Guide TB630 – Thermal Clip-on
$3,599.00 GST
FOR THE BEST UNBIASED ADVICE AND PRICING CALL 0427312312
5 in stock

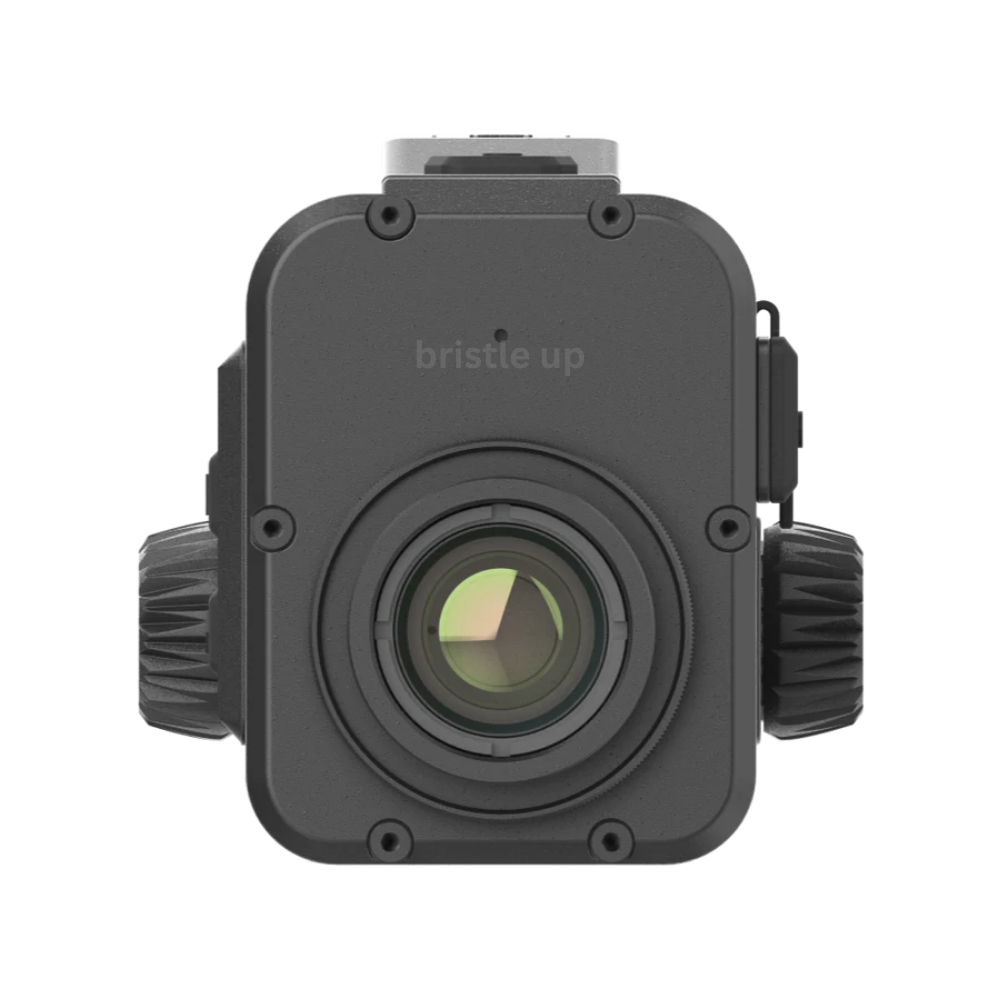

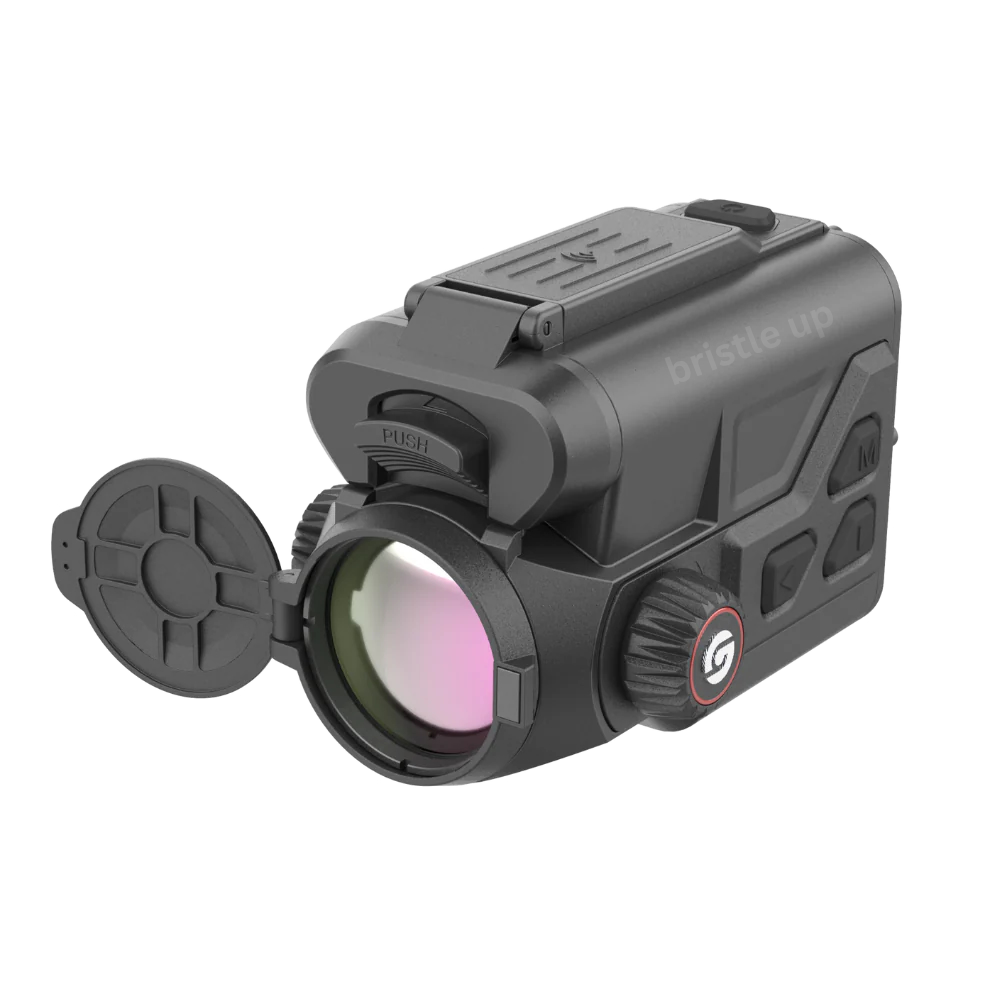

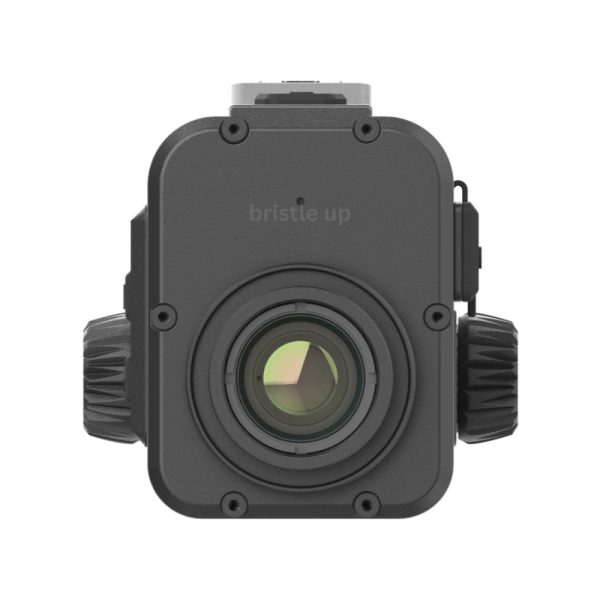

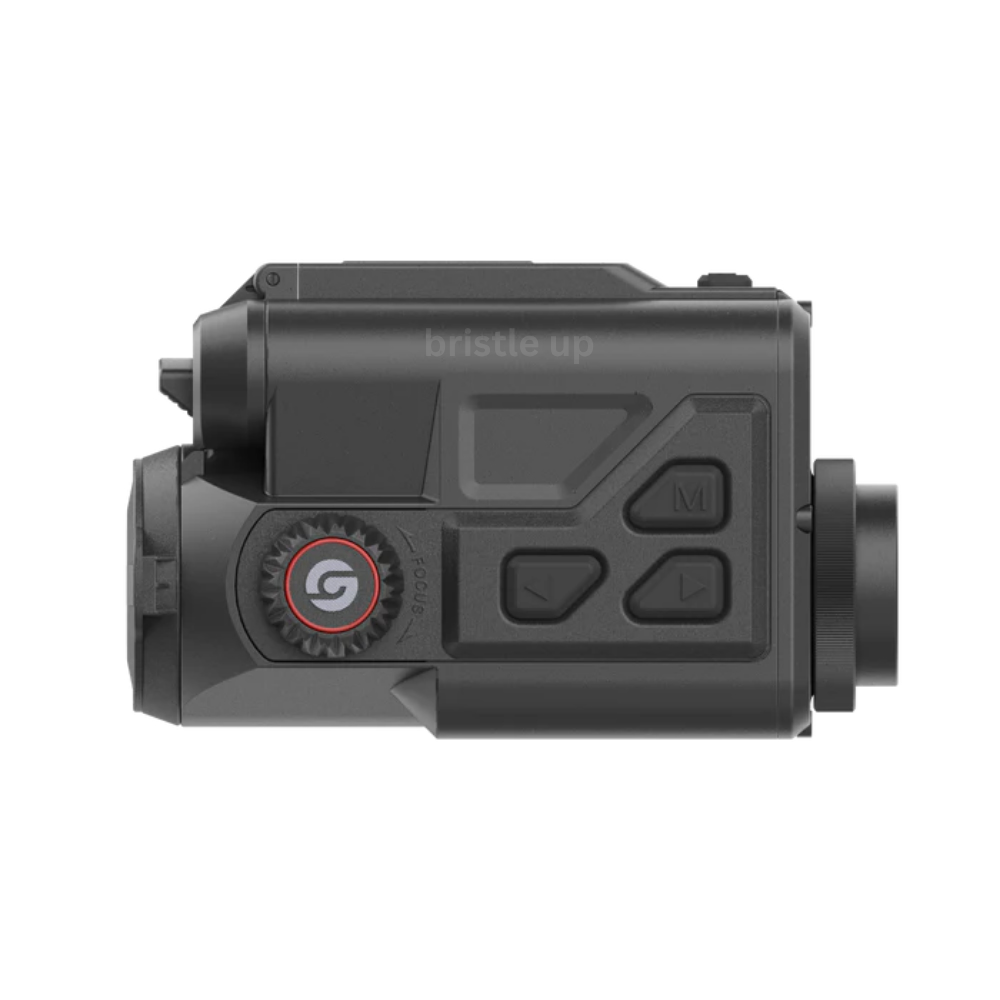

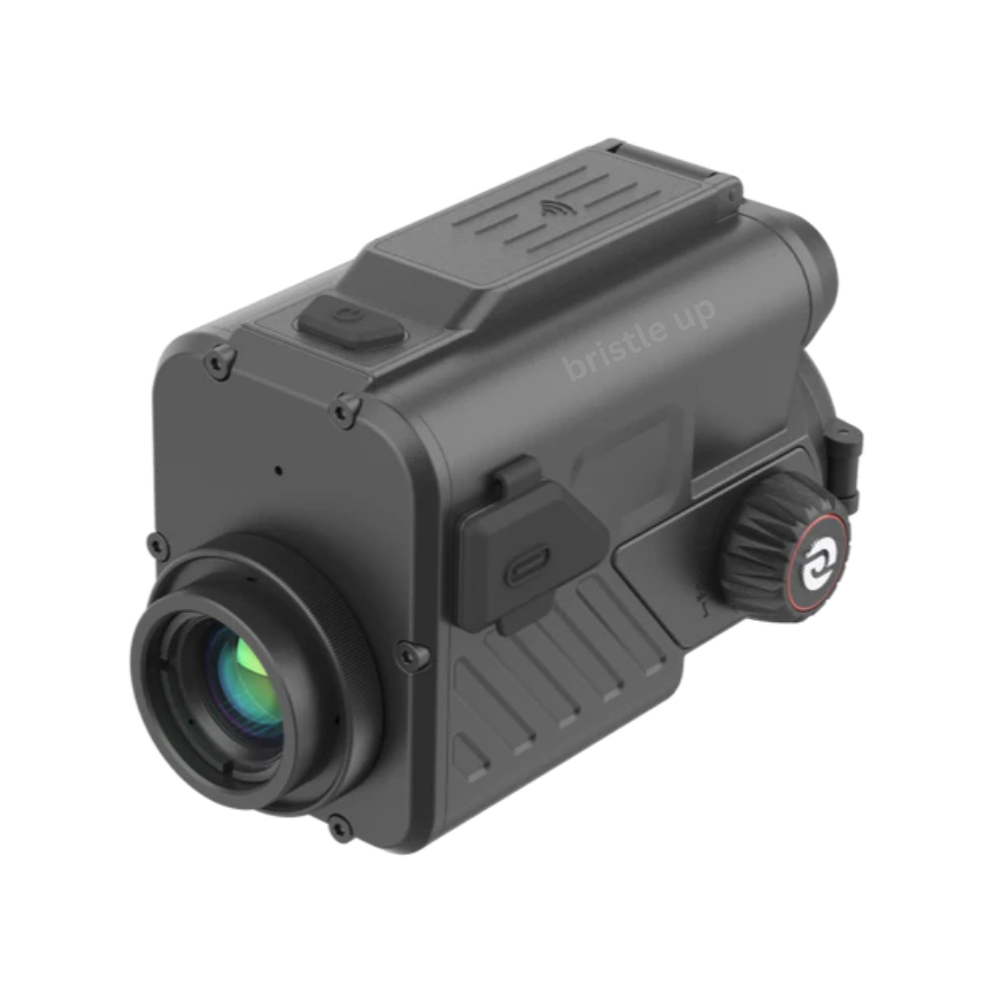

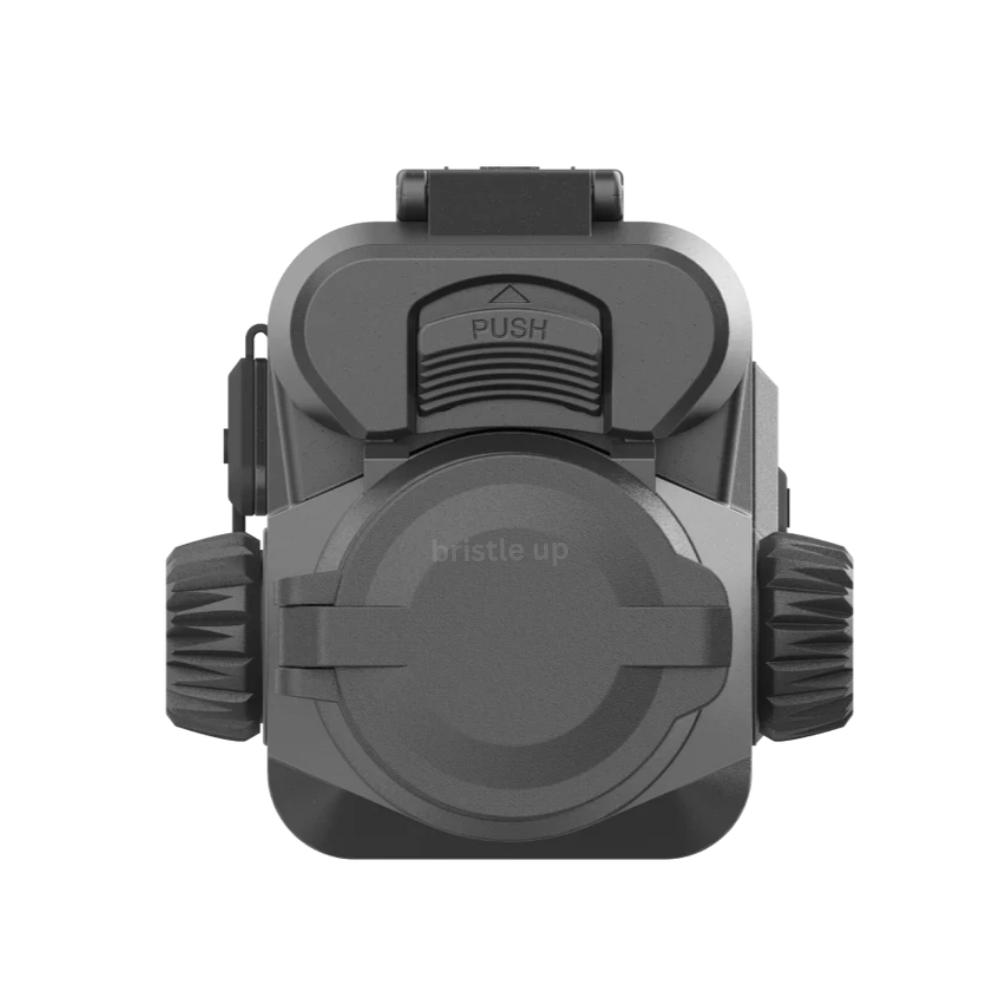

Guide TB630 – Thermal Clip-on
Thermal Clip-on
The TB Series revolutionises hunting equipment by seamlessly integrating precision and portability. Its magnesium alloy housing not only reduces weight but also enhances accuracy, making it over 20% lighter than comparable products.

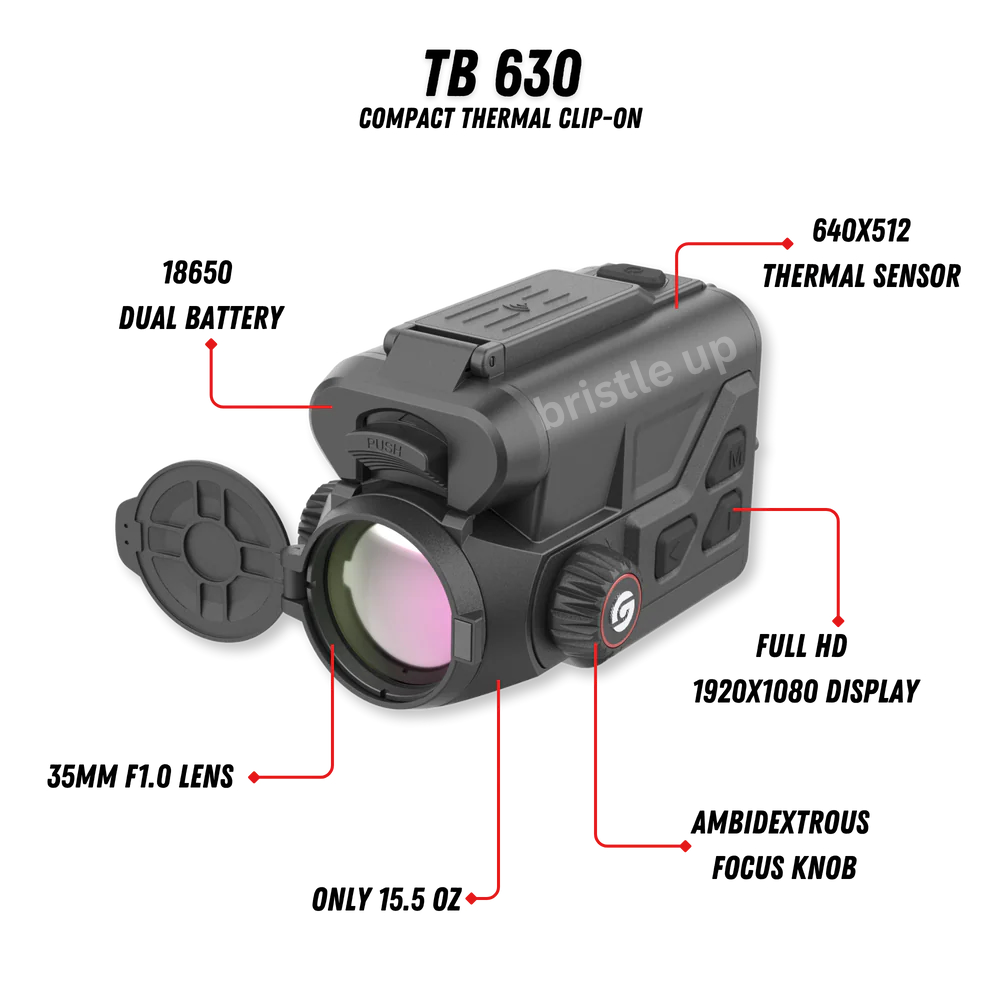

With it’s 640 x 512 @12μm sensor, 35mm lens and Full-HD AMOLED display boasting wider viewing angles and richer colors, the TB630 sets a new standard in relaxed hunting experiences.
Technical Parameters
| Model | TB630 |
| Sensor | |
| Type | Uncooled VOx Infrared Detector, 8 to 14μm |
| Resolution | 640×512@12μm |
| NETD | 20mK |
| Frame rate | 50Hz |
| Lens | |
| Objective lens | 35mm, F1.0 |
| Field of view | 12.5°×10.0° |
| FOV m@100m | 22×17 |
| Magnification | 1x |
| Detection range | 1800m/1950yd |
| Display | |
| Display type | 0.39″ AMOLED 1920×1080 |
| Color palettes | White hot, Black hot, Red hot, Green hot, Iron hot, Blue hot, Sepia |
| Eyepiece | Eye relief: 20mm, Zoom: 9.5x |
| Hardware | |
| WIFI | 2.4G, 5G |
| Interface | USB Type-C (Power supply/USB2.0) |
| Others | Microphone, Bluetooth |
| System | |
| Recording function | Photo/Video (Audio recording included) |
| Memory capacity | 64GB |
| Power | |
| Battery type | 2 replaceable 18650 batteries |
| Operating time | 10 hours |
| 25×19 | |
| Core Technology Item | 22×17 |
| Type | 18×11 |
| Resolution | 15×12 |
| NETD | 14×10 |
| Frame rate | 22×18 |
| Environmental | |
| Operating temp. | -20°C to 50°C / -4°F to +122°F |
| Shock | 1000G at 1ms half sine pulse (as per IEC60068-2-27) |
| Encapsulation | IP68 |
| 15×12 | |
| Objective lens | Thermal: 25×20; Digital: 11×9 |
| Physical | |
| Weight (g/oz) | 440/15.52 |
| Size (mm/in) | 128×79×57/5.04×3.11×2.31 |
| Standard | A device, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card |
| Optional | 18650 battery, Bluetooth remote control, Cover ring adapter |
