Hikmicro Thunder TQ35CL 3.0 – Thermal Clip-on | EOFY SALE

$4,499.10

5 in stockFree Express
On sale — 10% off

5 in stock

Google PayApple PayCredit/Debit CardsPayPalAfterpayZip now, pay laterhummDirect bank transfer

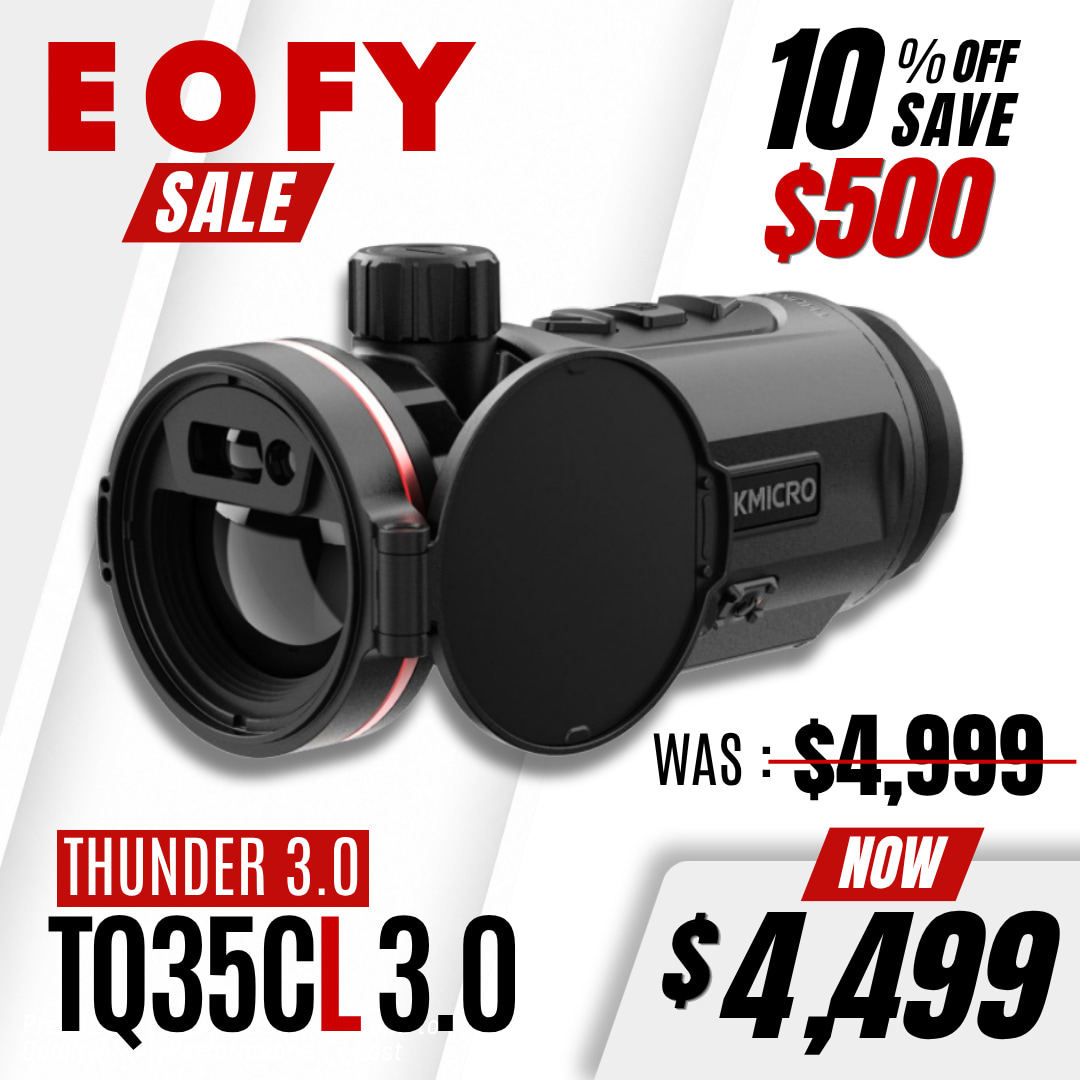

Hikmicro Thunder TQ35CL 3.0

MANUAL: HIKMICRO THUNDER 3.0 SERIES

SPECIFICATION

Thermal Module TQ35CL 3.0
Image Sensor Uncooled Focal Plane Arrays
Max. Resolution 640 × 512
Frame Rate 50 Hz
Pixel Interval 12 μm
Response Waveband 8 μm to 14 μm
NETD Less than 15 mK (25 °C, F#=1.0)
Lens (Focal Length) 35 mm, F1.0
Detection Range 1800 m
Focus Mode Focus Knob
Min. Focusing Distance 10 m
Magnification 1x
Field of View(H × V), Degrees / m @100m 12.5° × 8.0° / 21.9 m × 14.0 m
Recommended Magnification of the Day Scope 1-15x
Magnification of Monocular Mode 2.0x-16.0x (8x)
Image Display
Display 1920 × 1080, 0.49 inch, OLED
Palettes Black Hot, White Hot, Red Hot, Fusion, Red monochrome, Green monochrome
Exit Pupil 25 mm
Eye Relief 20 mm
Brightness Adjustment Yes
Tone Adjustment Cold, Warm
HSIS (HIKMICRO Shutterless Image System) Yes
Image Pro 3.0 Yes
System
Record Video On-board Video Recording
Capture Snapshot Yes
Virtual Reticle Yes
Standby Mode Yes
Storage Built-in EMMC (64 GB)
Hotspot Yes
Reticle No
Audio Recording Yes
Recoil-activation Recording Yes
Max. Recoil 1000 g / 0.4 ms
Local Album Yes
Image Calibration Yes
Zeroing Profiles 5
Power Supply
Battery Type Replaceable and Rechargeable Li-ion Battery Pack
Battery Operating Time ≥5h (25 °C, with hotspot off and LRF on)
Type-C Power Supply 5 VDC, 2 A
Supports External Power Supply Yes
Supports Direct Charging Yes
General
Protection Level IP67
Dimension 152.3 mm × 63 mm × 74.1 mm
Weight 525 g with battery
Working Temperature -30 °C to +55 °C (-22 °F to 131°F)
Body Material Body & Lens Cover: Magnesium Alloy
Center Height 32 mm
Laser Rangefinder
Safety Class for Laser Class 1
Wavelength 905 nm
Max. Measuring Range 1000 m
Measurement Accuracy ±1 m
Min. Measuring Range 10 m
LRF Module in Lens Yes
