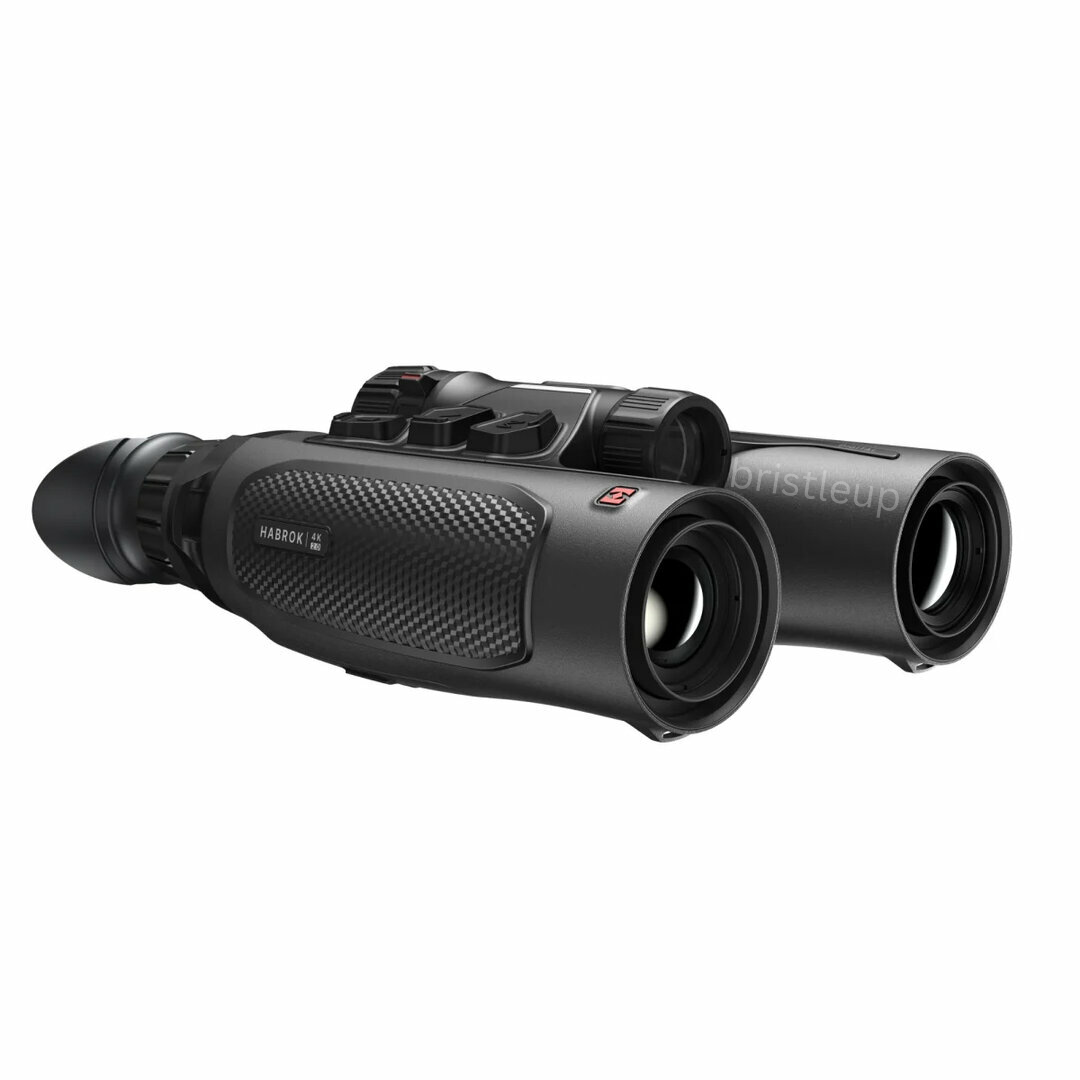

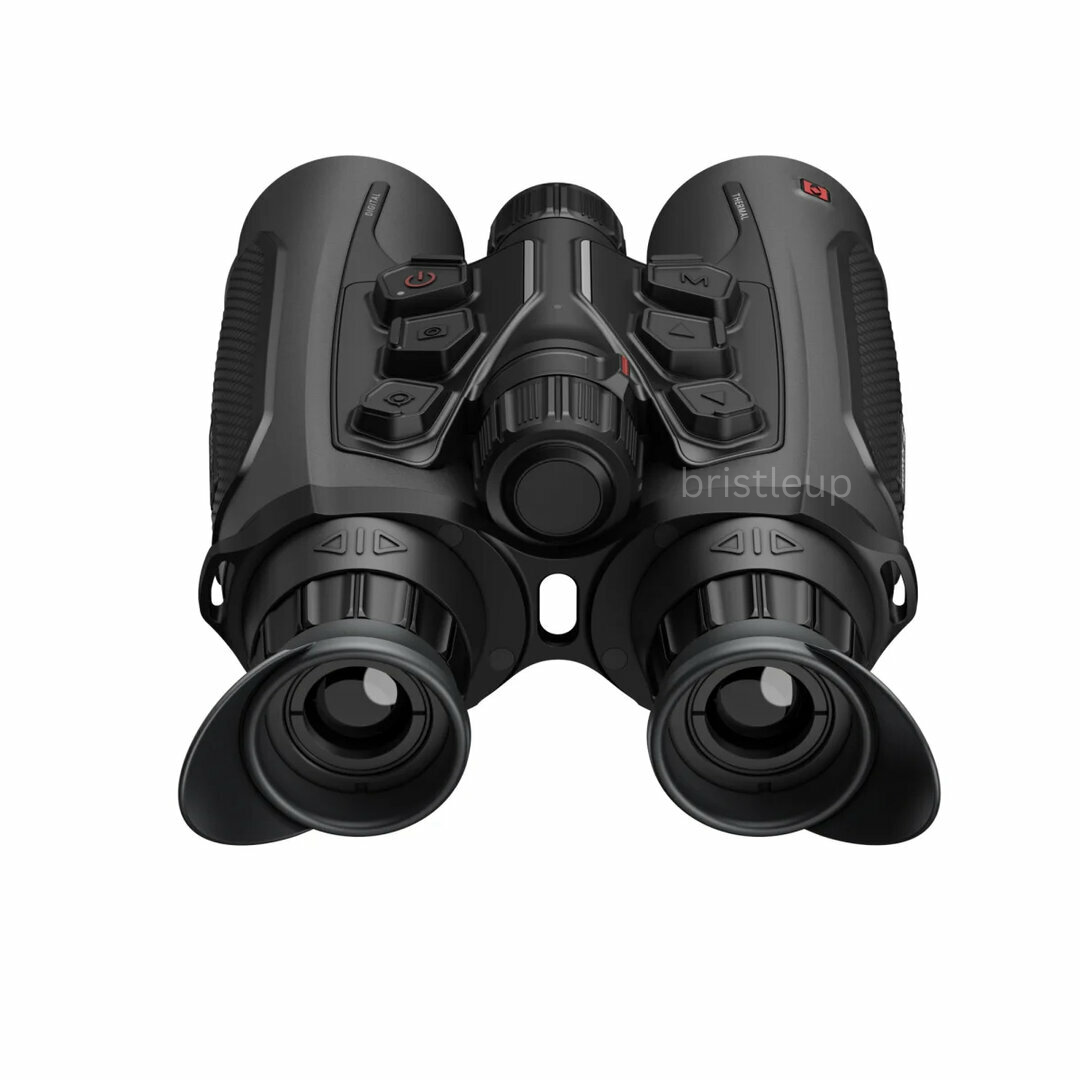

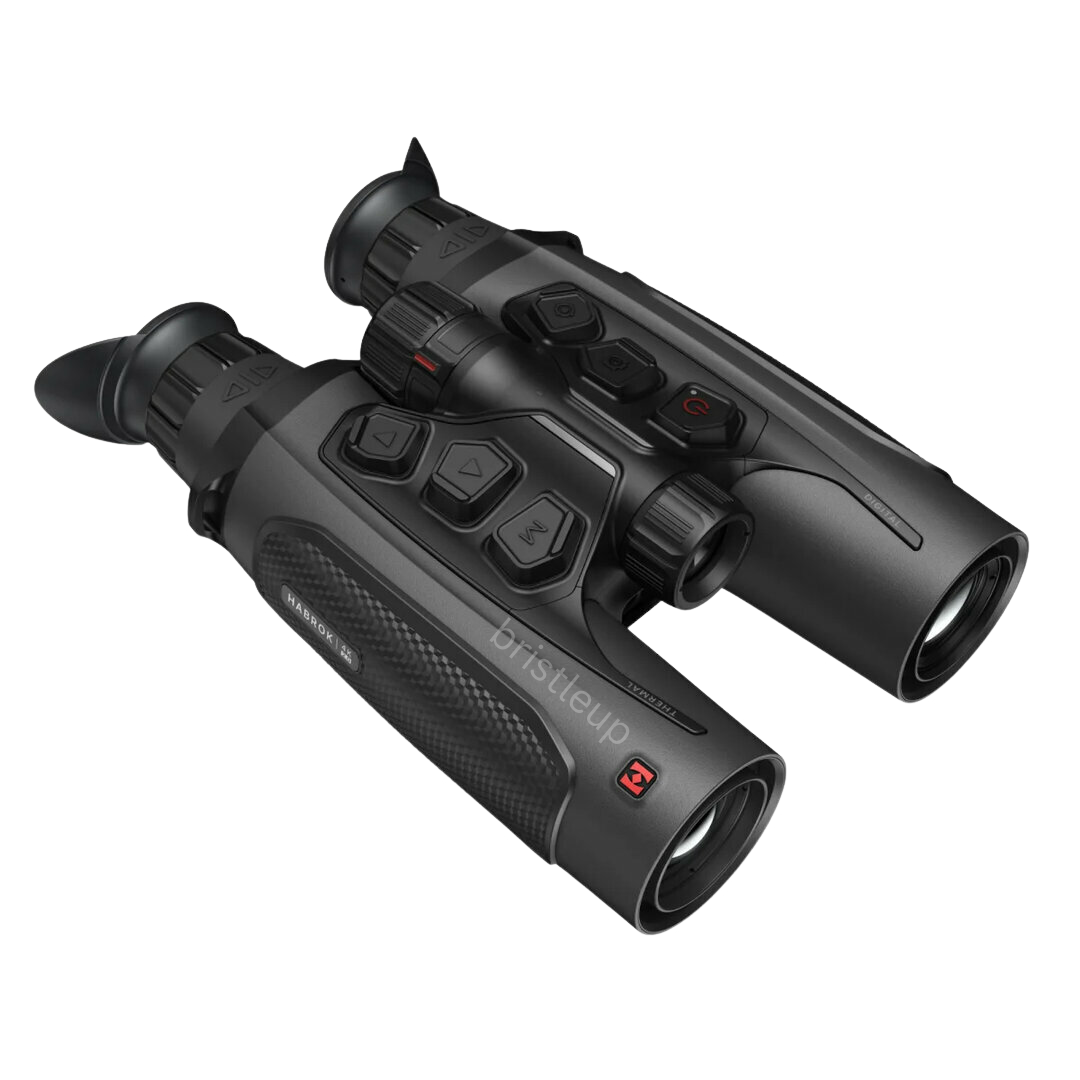

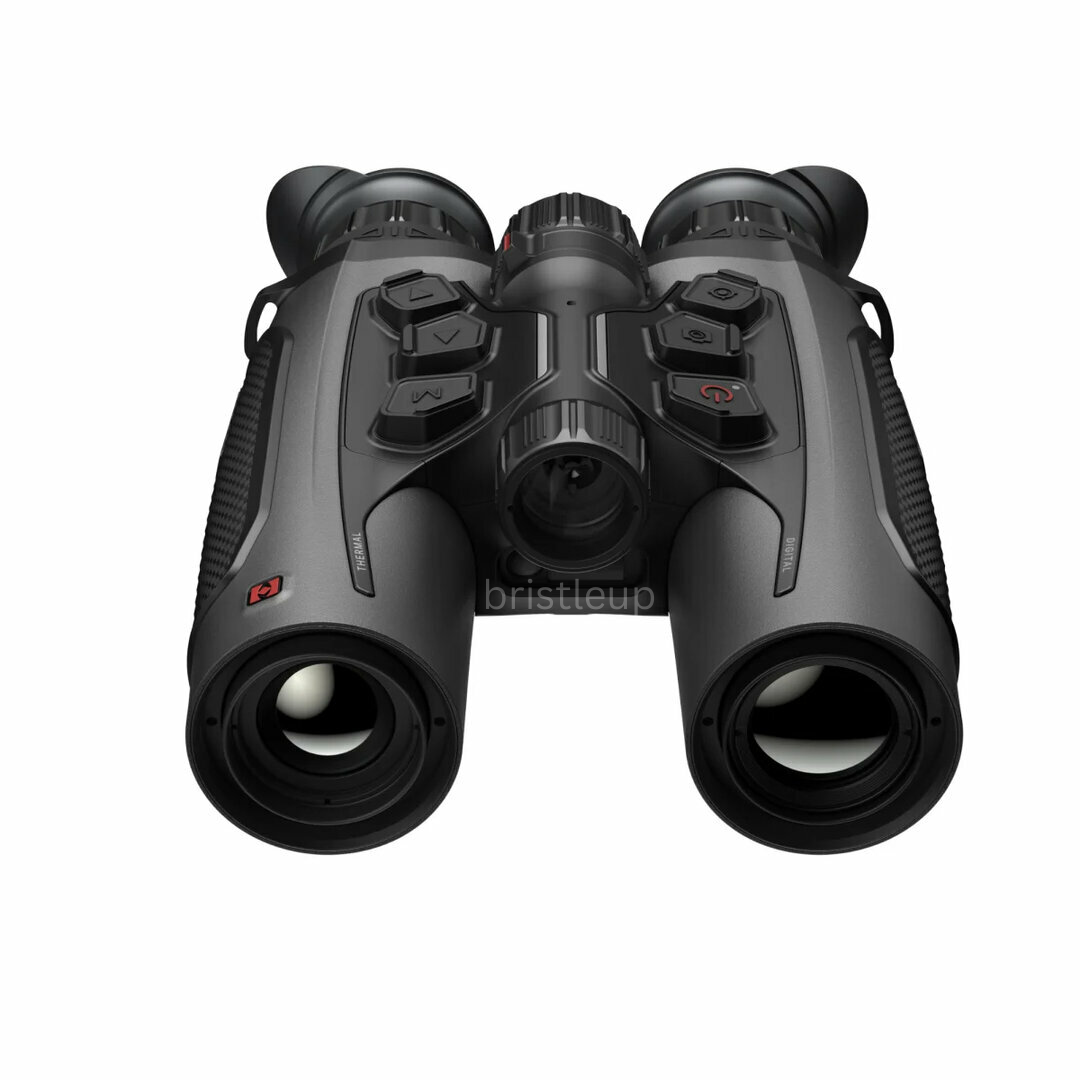

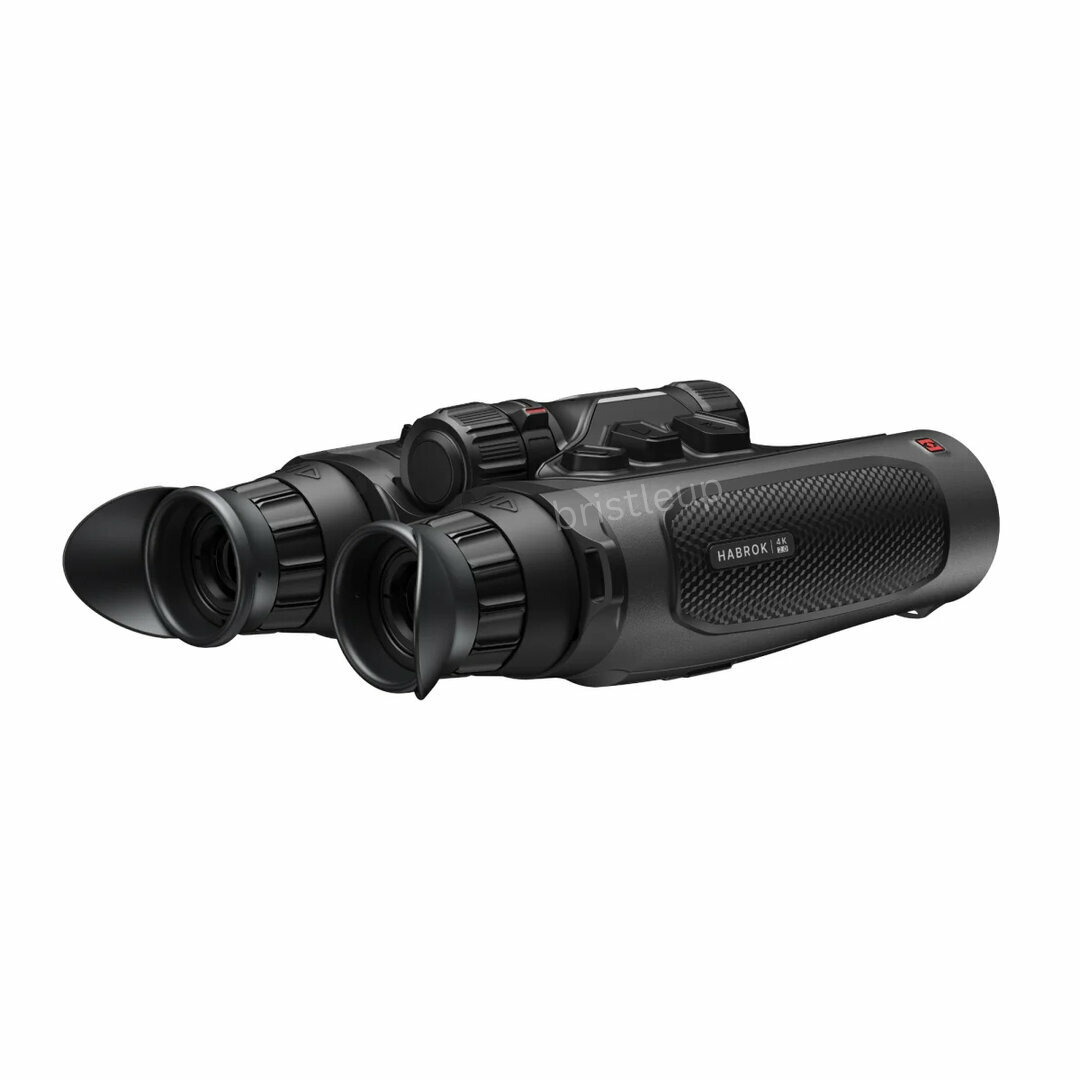

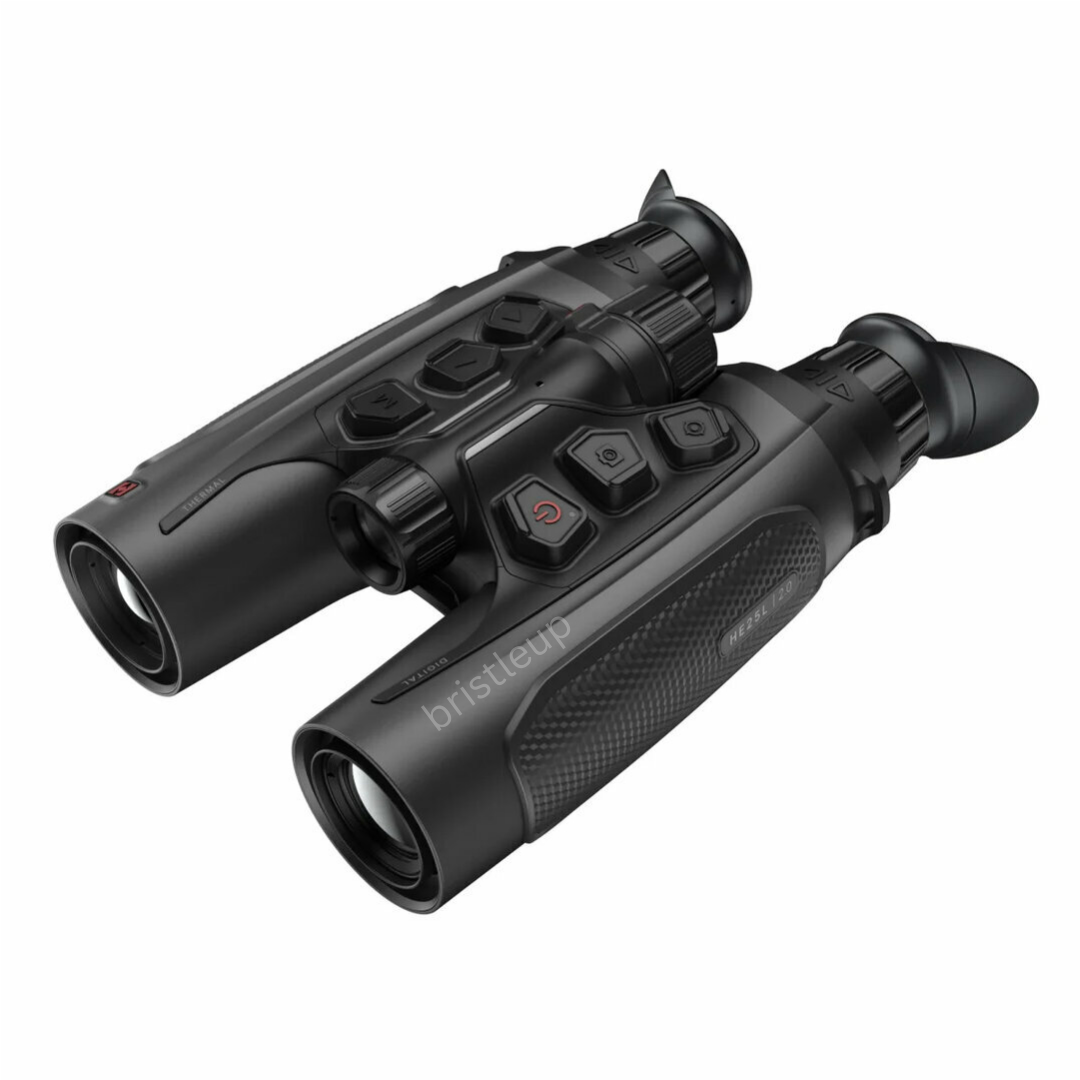

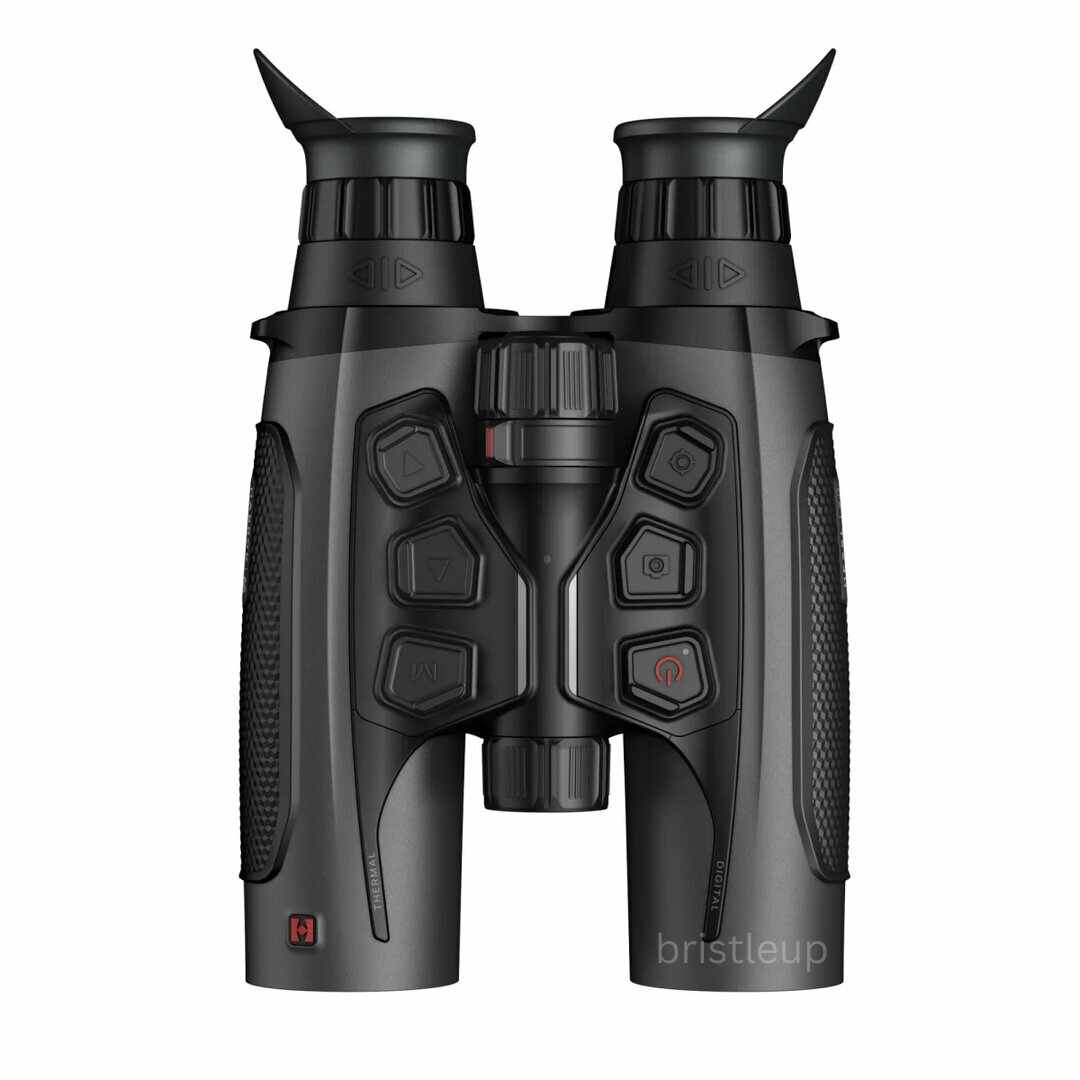

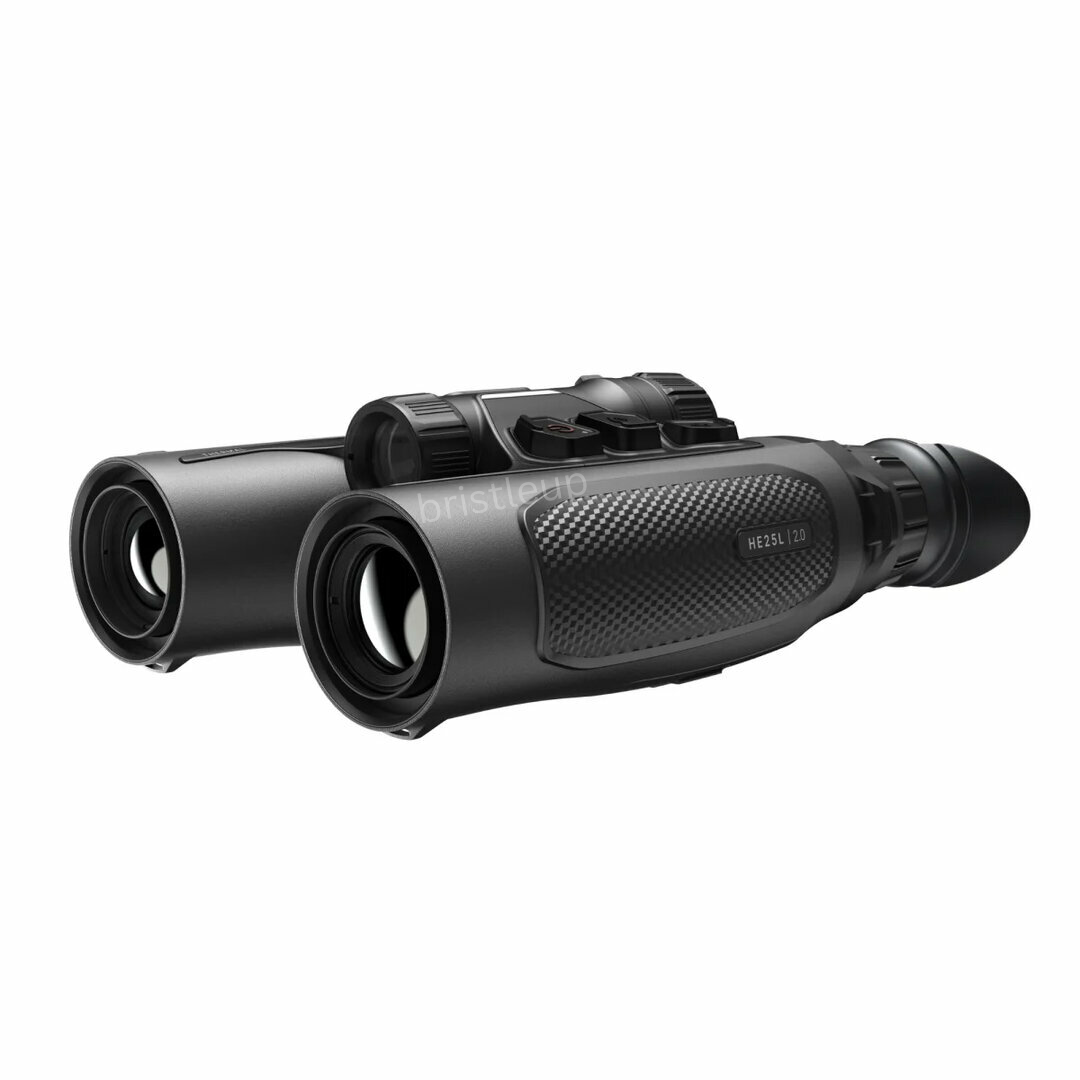

Hikmicro HABROK 4K – HE25L 2.0
The HIKMICRO HABROK 4K HE25L 2.0 is a powerful multi-spectrum binocular combining 4K digital clarity with thermal detection, designed especially for confident daytime spotting and identification. Built with a 256 × 192 thermal sensor, an advanced 4K digital detector, and a 60mm lens with 5.5× to 22× magnification, it delivers sharp detail and reliable target recognition across a wide range of environments.
Featuring a built-in 1000m laser rangefinder, the HABROK 4K 2.0 is ideal for forest and field hunting, birding, wildlife observation, adventuring, and search & rescue, performing reliably in changing weather conditions.













Remark:
① The battery time data comes from HIKMICRO lab. The actual result may differ due to the environment and personal usage habits. Please refer to actual experience.
*HIKMICRO Sight APP connection process is to comply with the latest CE RED Directive( 2014/53/EU) and the EN 18031 standard. We are always your most reliable choice.*All the pictures and videos taken by device are for reference only, the actual effect shall prevail.
| HE25L 4K 2.0 | |
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 256 × 192 |
| Frame Rate | 50 Hz |
| Pixel Interval | 12 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | Less than 18 mK (@25°C), F#=1.0 |
| Lens (Focal Length) | 25 mm, F1.0 |
| Detection Range | 1200 m |
| Focus Mode | Rear Focus Wheel |
| Field of View(H × V), Degrees / m @100m | 7.0° × 5.3° / 12.2 m × 9.3 m |
| Min. Focusing Distance | 3 m |
| Magnification | 4.3×~17.2× (4×) Support 2×, 3×, 4×, 5× Zooming Value, Support Zoom in and out |
| Optical Module | |
| Image Sensor | 1/1.8 Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Field of View(H × V), Degrees / m @100m | 7.3° × 4.1° / 12.8 m × 7.2 m |
| Focal Length | 60 mm, F2.2 |
| Min. Working Distance | 8 m |
| IR Illuminator Wavelength | 940 nm (default) and 850 nm (replaceable) |
| Viewing Range at Night | 400 m |
| Magnification | 5.5×~22.0× (4×) Support 2×, 3×, 4×, 5× Zooming Value, Support Zoom in and out |
| Focus Mode | Rear Focus Wheel |
| Smart IR | Yes |
| Replaceable IR Illuminator | Yes |
| Image Display | |
| Display | 0.49 inch, OLED, 1920 × 1080 |
| Contrast Adjustment | Yes |
| Brightness Adjustment | Yes |
| Palettes | Thermal: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome; Optical: Day, Night, Auto, Green, Yellow |
| Exit Pupil | 8 mm |
| Eye Relief | 15 mm |
| Diopter (Range) | -5D~+3D |
| Electric Image Stabilization | Supports Both Thermal and Digital Channels, Starting from 2× |
| Tone Adjustment | Cold, Warm |
| Zoom Pro | Yes |
| HSIS (HIKMICRO Shutterless Image System) | Yes |
| General | |
| Protection Level | IP67 |
| Weight | 895 g without Batteries |
| Dimension | 143.1 mm × 74.8 mm × 223.3 mm (5.63″ × 2.95″ × 8.8″) |
| Working Temperature | -30°C~+55°C |
| Interpupillary Adjustment Range | 60 mm to 74 mm |
| Mounting Adapter | 1/4″-20-UNC |
| System | |
| Record Video | Yes |
| Capture Snapshot | Yes |
| Hotspot | Yes |
| GPS | Yes |
| Digital Magnetic Compass | Yes |
| Standby Mode | Yes |
| Storage | Built-in EMMC (64 GB) |
| PIP | Yes |
| Hot Track | Yes |
| Audio Recording | Yes |
| Local Album | Yes |
| Power Supply | |
| Battery Type | Replaceable and Rechargeable Li-ion Battery |
| Battery Operating Time | ≥6.5 h (25°C, with hotspot and LRF on) |
| Type-C Power Supply | 5 V DC, 2 A Supports External Power Supply, Supports Direct Charging |
| Laser Rangefinder | |
| Safety Class for Laser | Class 1 |
| Wavelength | 905 nm |
| Max. Measuring Range | 1000 m |
| Measurement Accuracy | ±1 m |
| Min. Measuring Range | 10 m |
