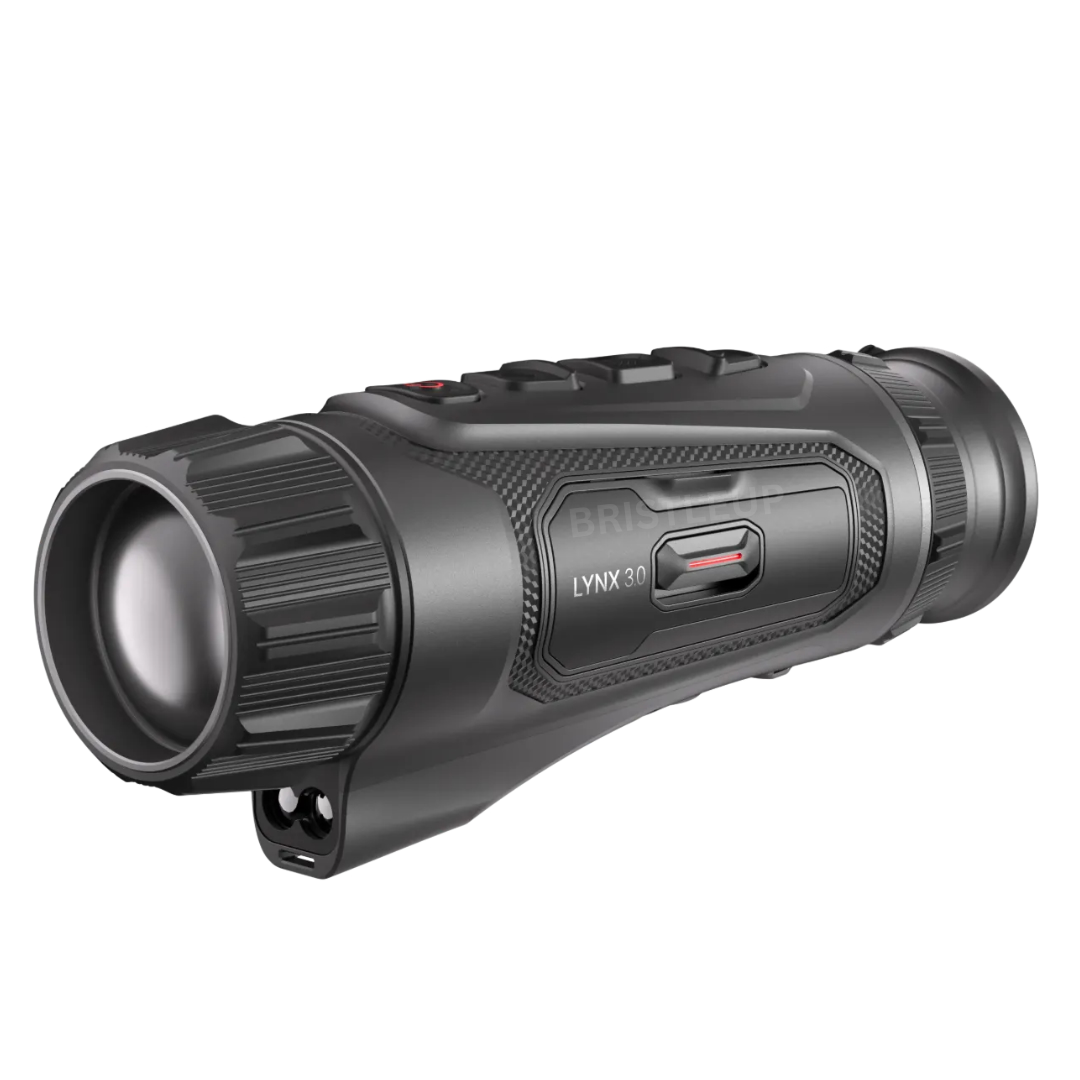

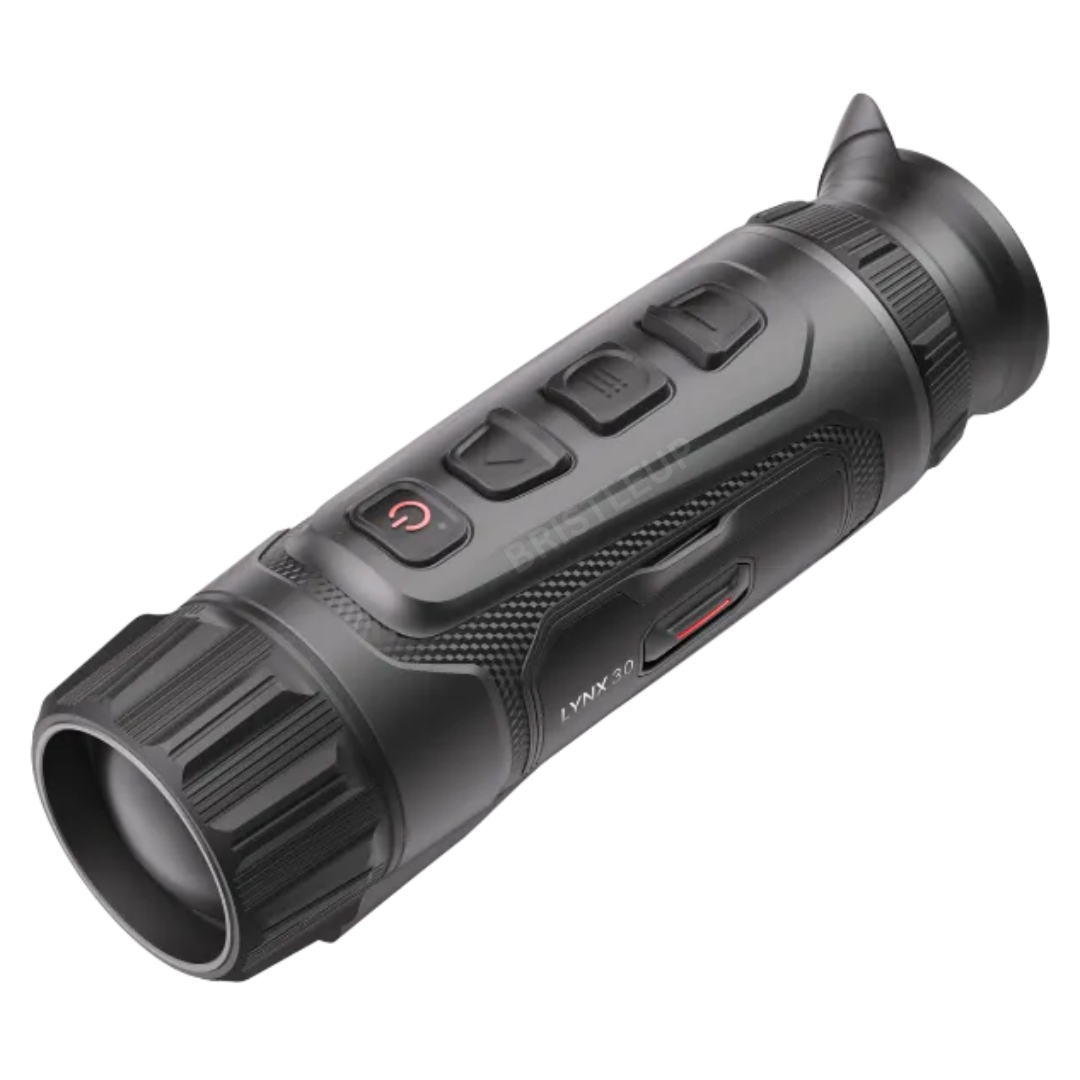

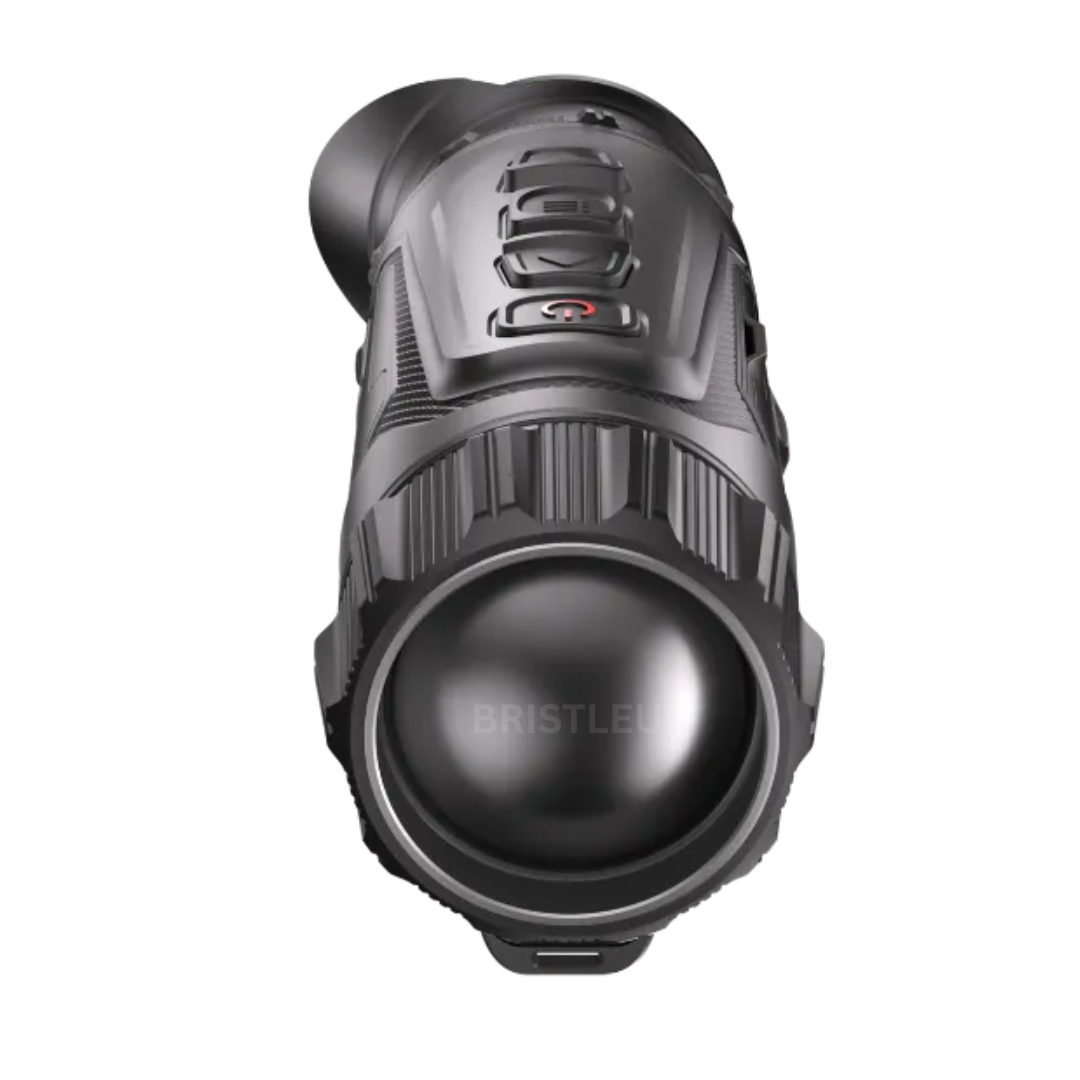

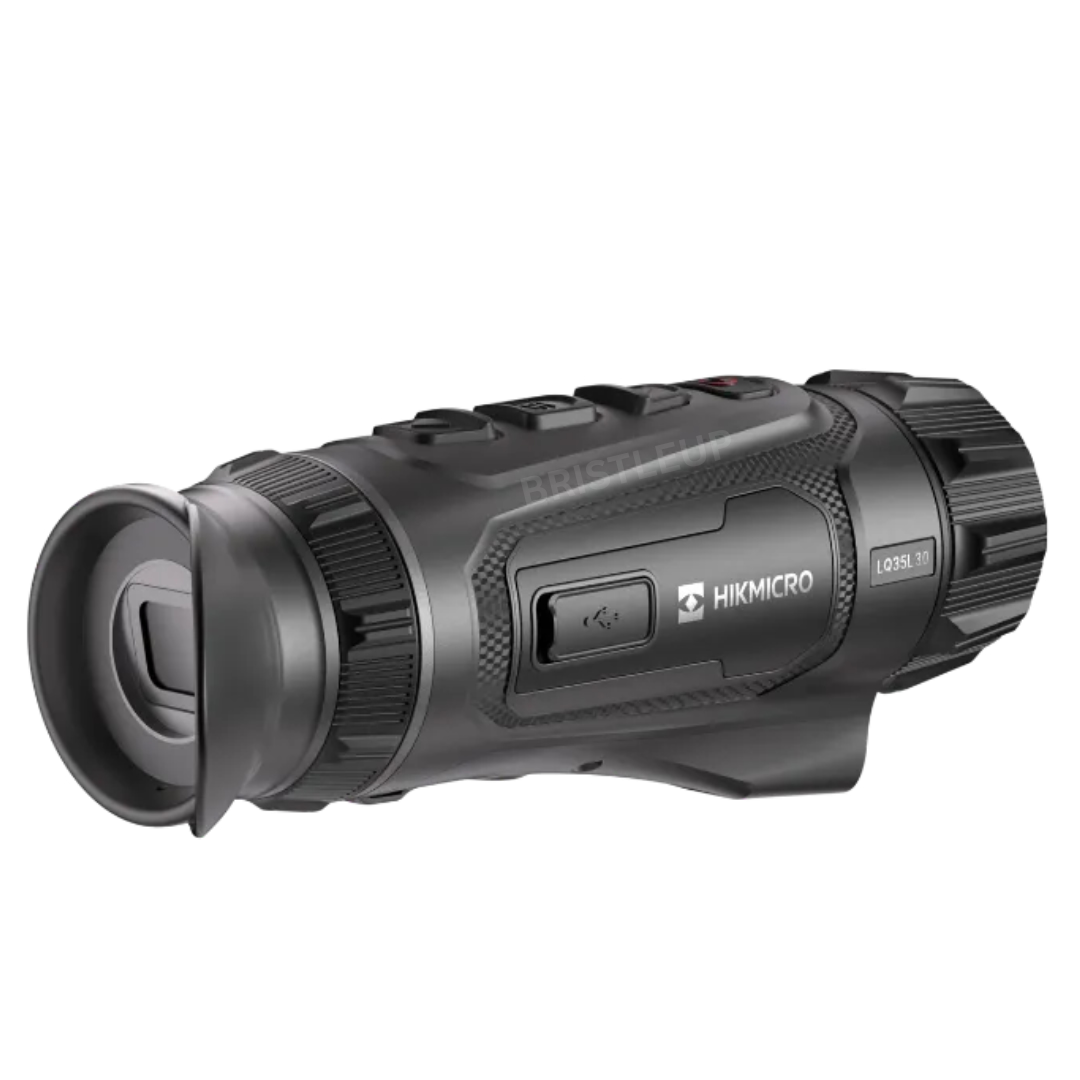

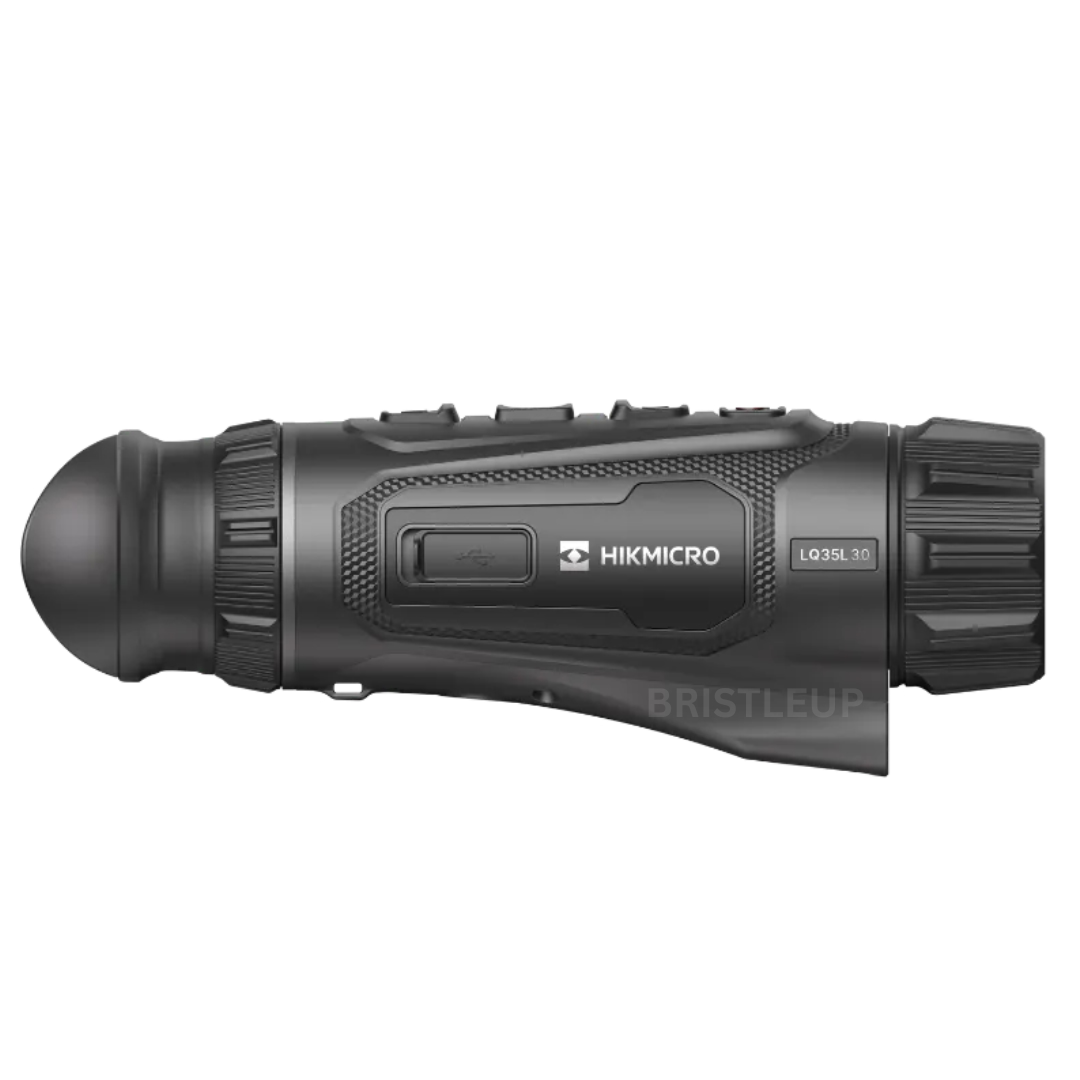

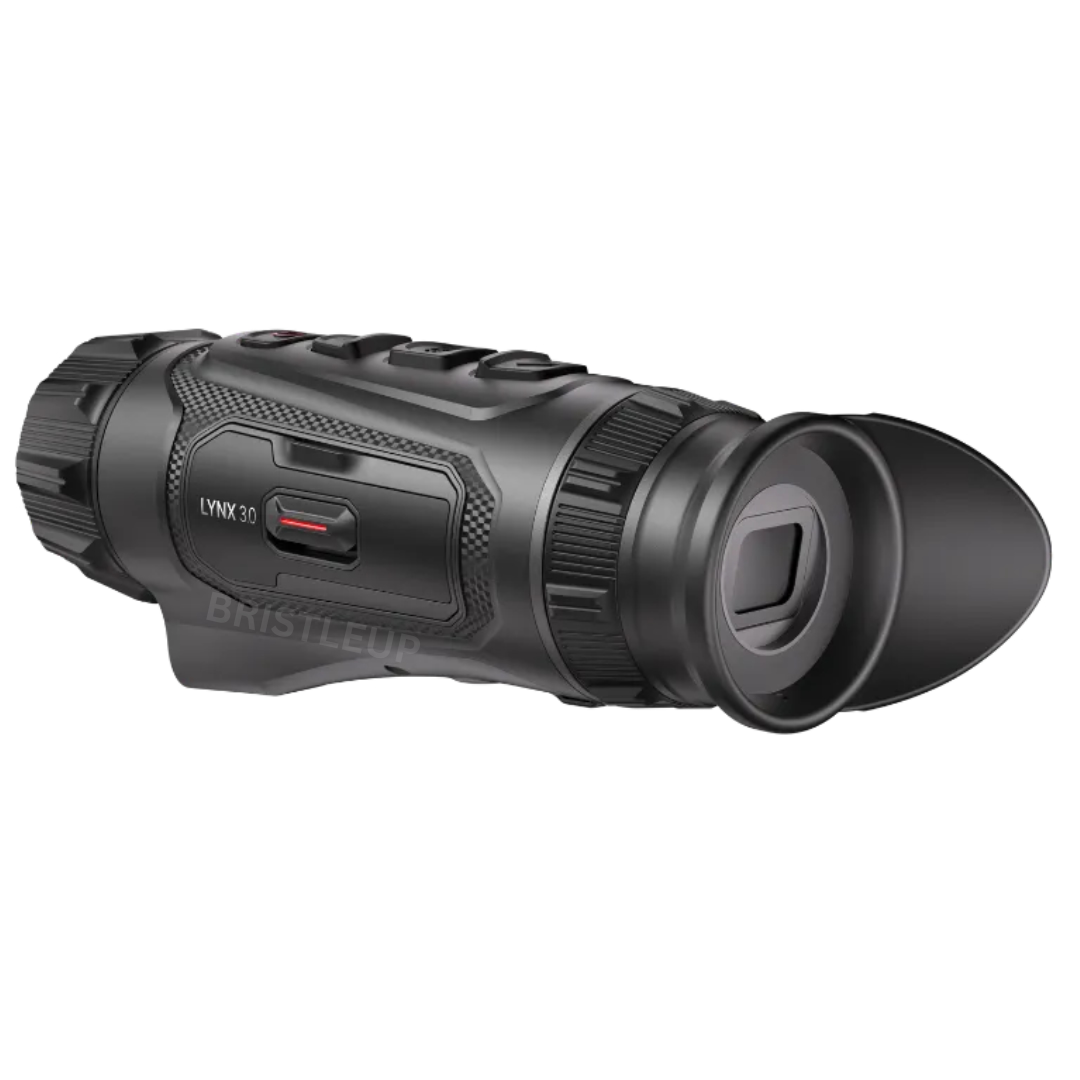

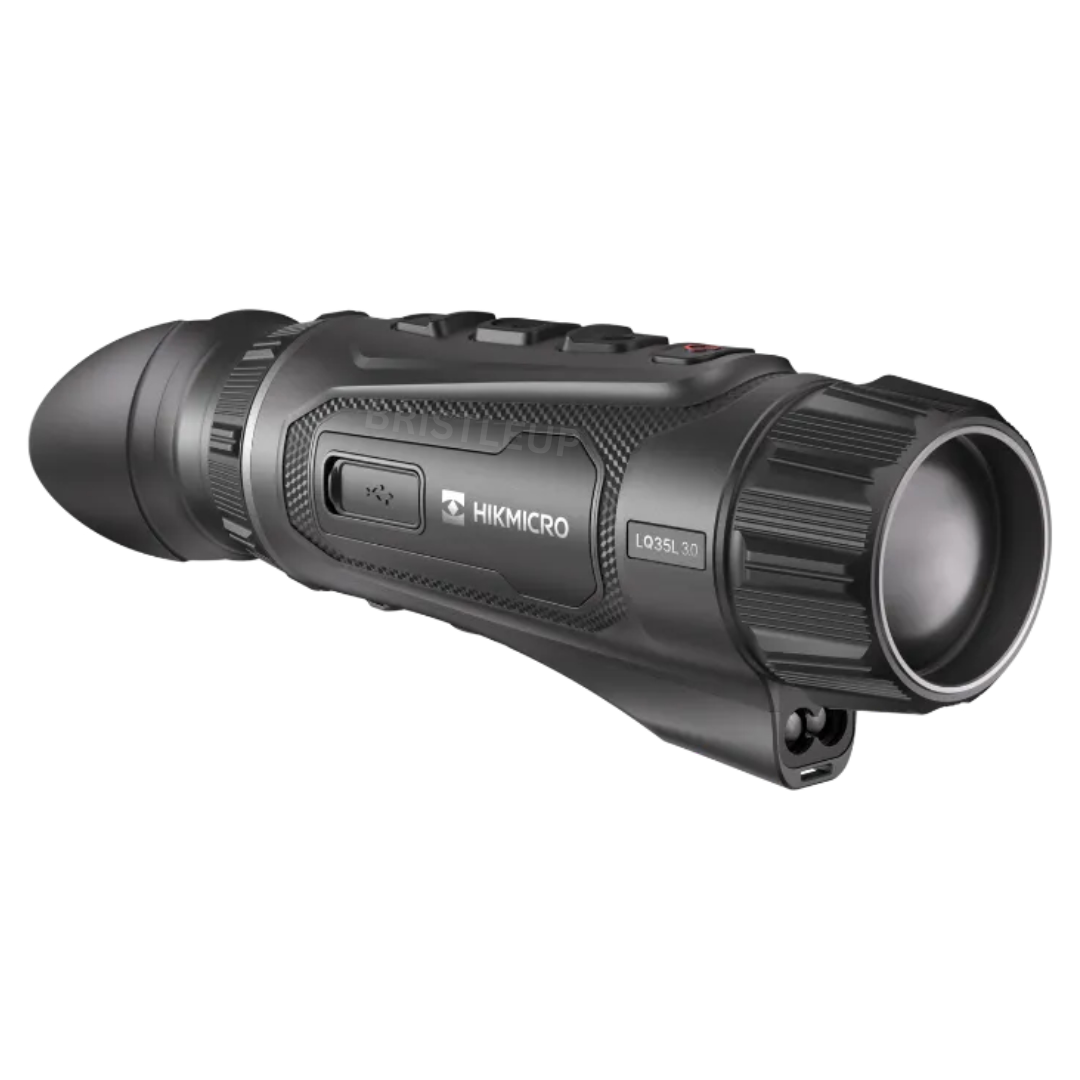

Hikmicro Lynx 3.0 LQ35 Thermal Monocular
The HIKMICRO Lynx 3.0 LQ35L retains the performance of the Lynx 3.0 LQ35 while adding an integrated laser rangefinder for precise distance measurement. Compact and efficient, it allows for accurate observation and assessment of the environment.
Its high-sensitivity thermal sensor 640 × 512 pixels allows for the detection of the slightest temperature variations in all conditions. The 35 mm F1.0 lens offers a detection range of up to 1800 meters while maintaining excellent image quality.
The integrated laser rangefinder allows for precise distance measurement, providing better terrain reading and more comprehensive observation.
The Lynx 3.0 LQ35L incorporates Image Pro 3.0, Zoom Pro, and HSIS technologies that enhance image sharpness and fluidity. Its Full HD AMOLED screen ensures excellent viewing comfort.

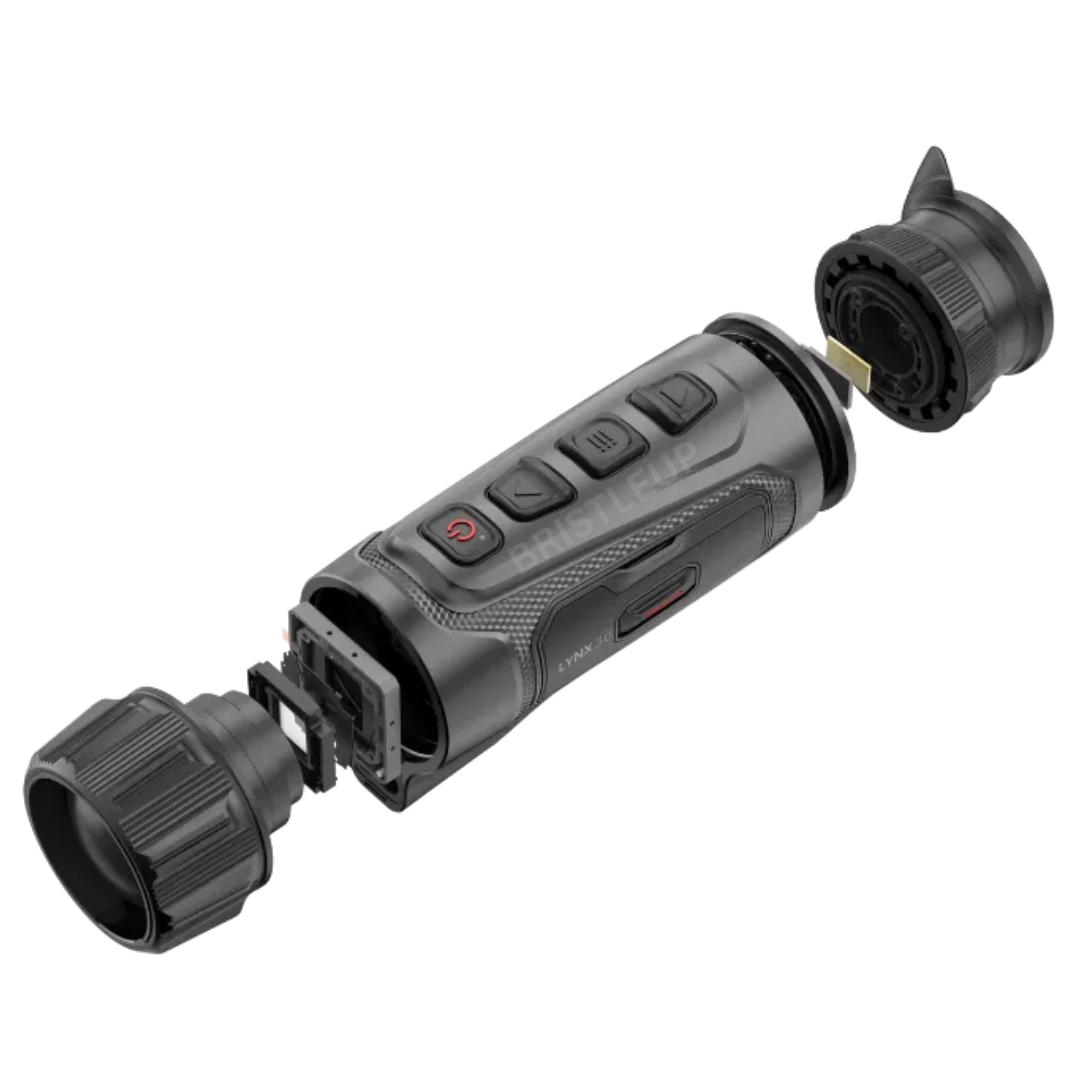

Compact and lightweight, it remains easy to carry and use during long outings. Its interchangeable 18650 battery allows for extended autonomy and quick replacement in the field.
The monocular also features photo and video recording with audio, 64 GB of internal memory, and Wi-Fi connectivity compatible with the HIKMICRO Sight app.
Hikmicro Lynx 3.0 Series Overview














Remark:
1. The shutter module has been retained to ensure high image quality for power-up and under large temperature variations.
2. The battery time data comes from HIKMICRO lab. The actual result may differ due to the environment and personal usage habits. Please refer to actual experience.
3. The HIKMICRO Sight APP connection process complies with the latest CE RED Directive (2014/53/EU) and the EN 18031 standard. We are always your most reliable choice.
*All the pictures and videos taken by device are for reference only, the actual effect shall prevail.
*All images, videos, and screen display contents about the product itself on this page are for reference only. Actual product effects (including but not limited to appearance, color, and size) and screen display contents (including but not limited to backgrounds, UI, and illustrations) may vary.
| Technical Specifications | |
| Product Model | LQ35L 3.0 |
| Thermal Module | |
| Sensor | Uncooled VOx |
| Resolution | 640 × 512 pixels |
| Pixel Pitch | 12 μm |
| Thermal Sensitivity | < 15 mK |
| Frequency | 50 Hz |
| Lens | 35 mm F1.0 |
| Detection Range | up to 1800 m |
| Magnification | 1.9x to 15.2x |
| Field of View | 12.5° × 7.5° |
| Laser Rangefinder | |
| Integrated Rangefinder | Yes |
| Distance Measurement | Yes |
| Rangefinder Range | up to 1000 m |
| Display | |
| Screen | AMOLED |
| Resolution | 1920 × 1080 |
| Diopter Adjustment | -5D to +3D |
| Functions | |
| Image Pro 3.0 | Yes |
| Pro Zoom | Yes |
| HSIS | Yes |
| Photo and Video Recording | Yes |
| Audio Recording | Yes |
| Wi-Fi | Yes |
| Internal Memory | 64 GB |
| PIP | Yes |
| Hot Track | Yes |
| Distance Measurement | Yes |
| Power Supply | |
| Battery | 18650 rechargeable and replaceable |
| Battery Life | up to 5 hours |
| Charging | USB-C |
| General | |
| Protection Rating | IP67 |
| Operating Temperature | -30°C to +45°C |
| Dimensions | 169.6 × 53.6 × 49.5 mm |
| Weight | approximately 360 g |
