Hikmicro Habrok Pro HX60LS – Multispectral LRF Binoculars
$10,299.00 GST

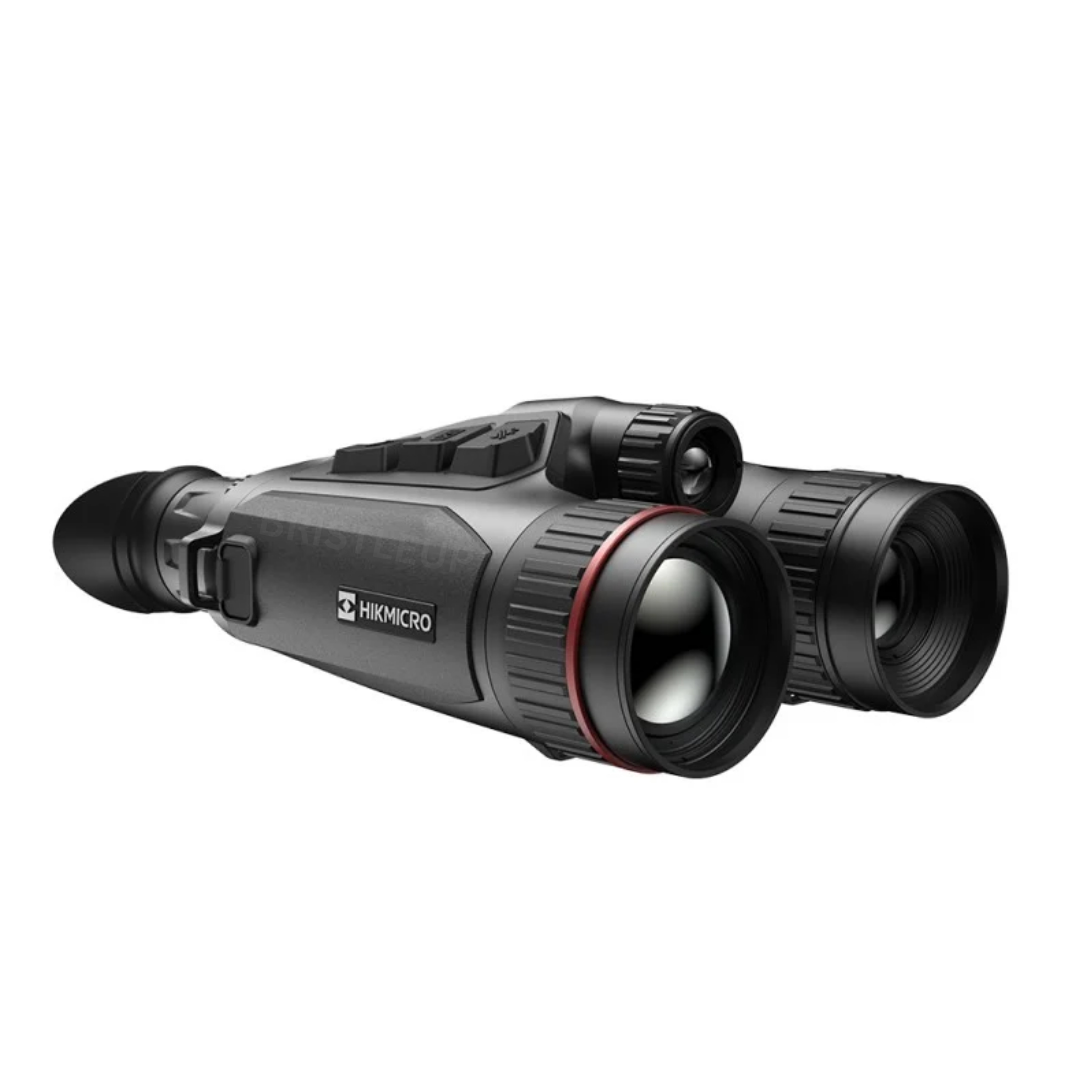

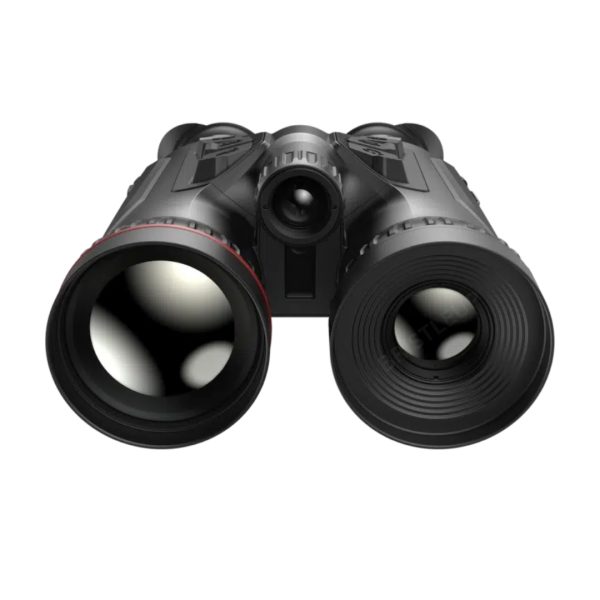

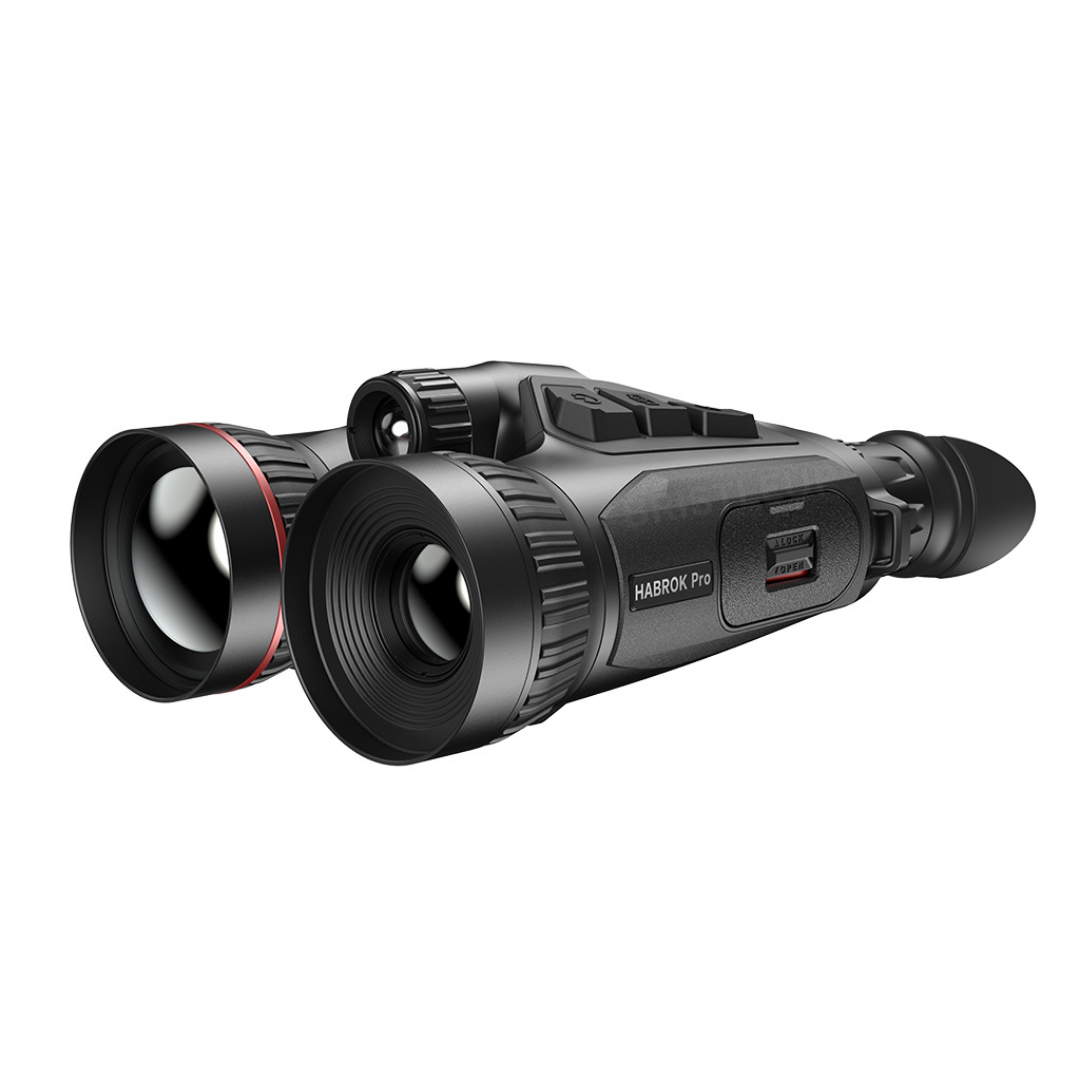

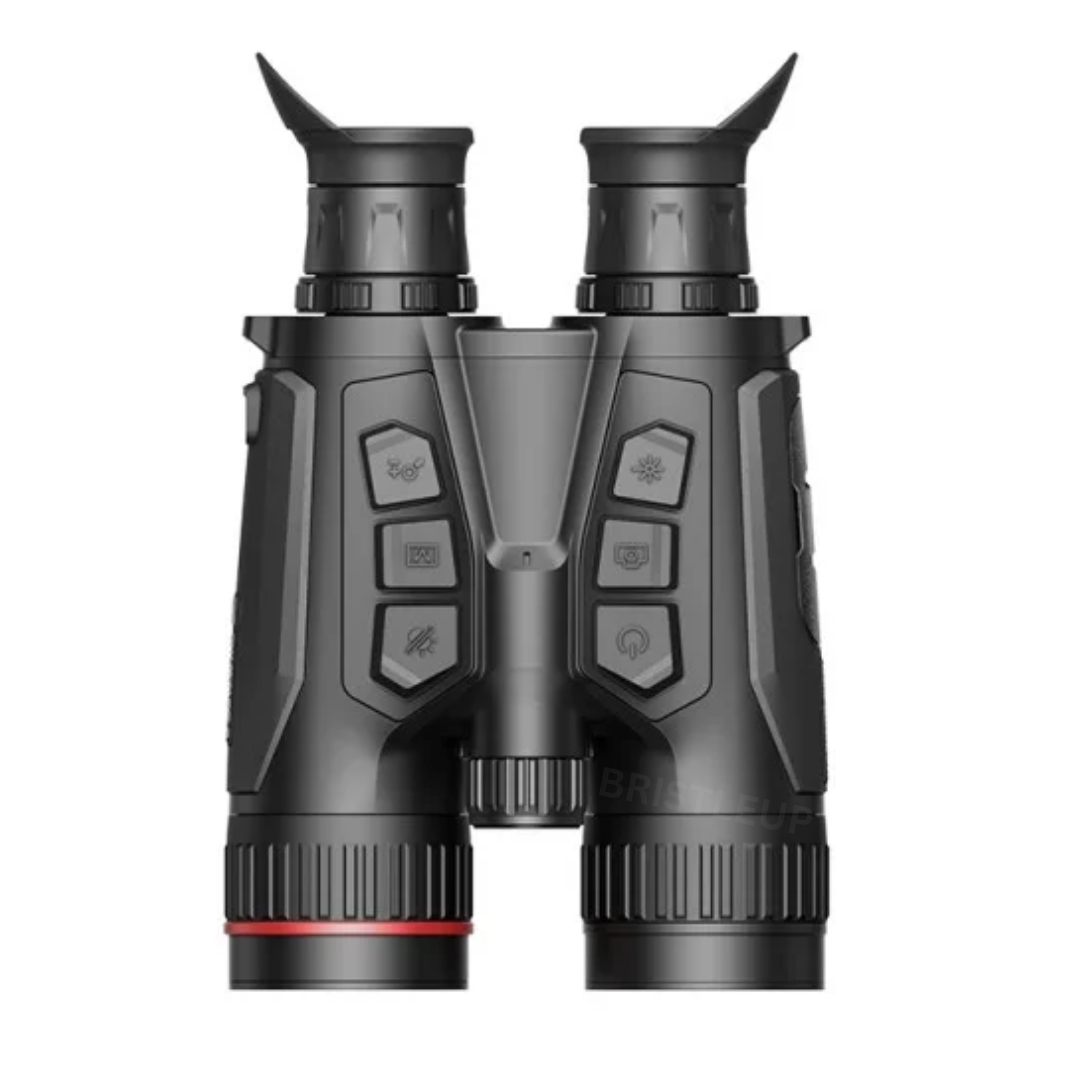

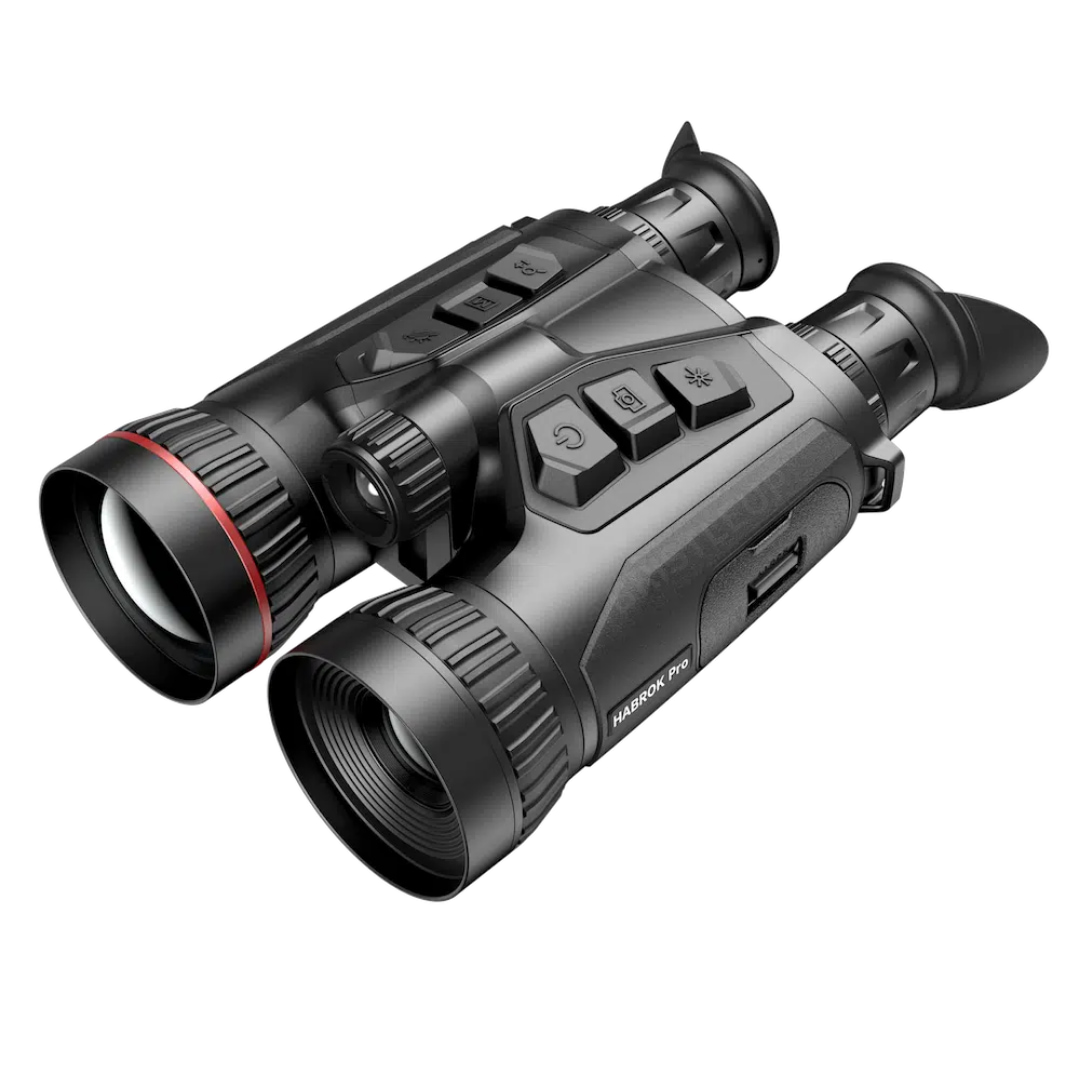

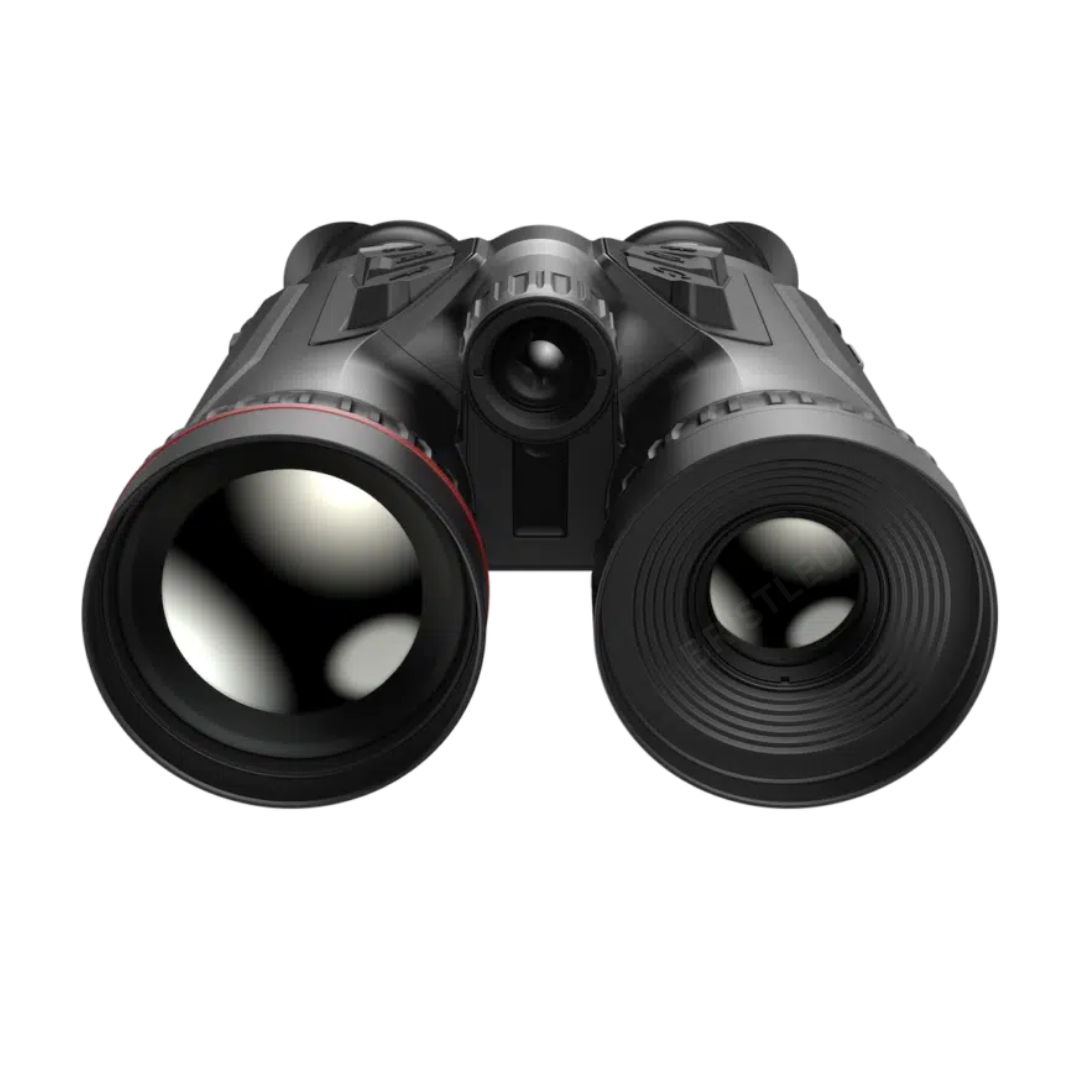

Hikmicro Habrok Pro HX60LS

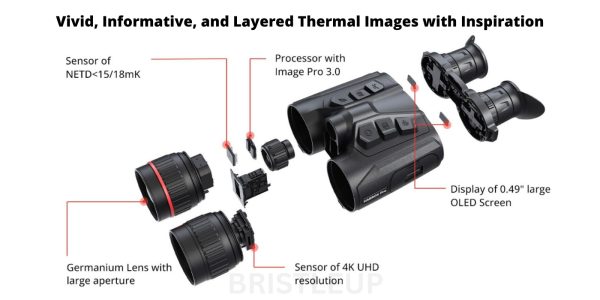

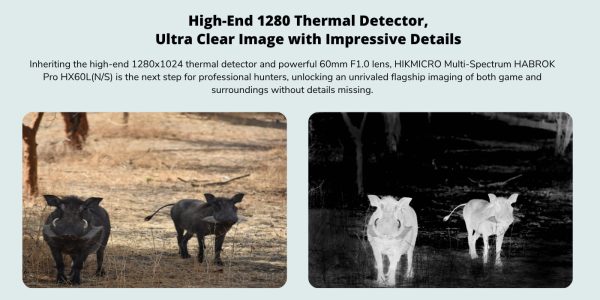

The HIKMICRO Habrok Pro HX60LS is a high-quality multi-spectrum pair of binoculars with a highly sensitive 15 mK NETD thermal sensor, a 1280 × 1024 / 50 Hz thermal imaging detector and a 60 mm thermal lens. This combination enables smooth image display, excellent image quality and precise detail recognition in almost all weather and lighting conditions.

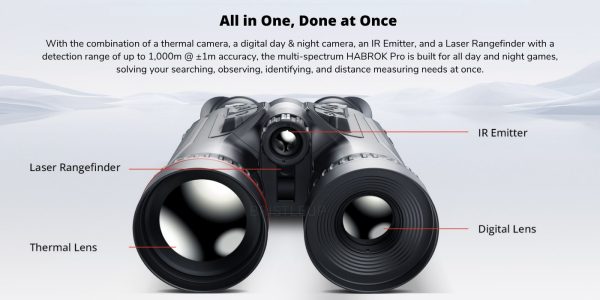

In addition, the HX60LS features a 4K digital detector with a 60 mm objective that delivers extremely sharp daytime and low-light images. A laser rangefinder with a range of 1000 m and an interchangeable 850 nm IR illuminator make the system a versatile all-in-one pair of binoculars for hunting, wildlife observation, birding, rescue operations and maritime scenarios.
| HX60LS Specification | |
| User Manual | |
| Model | HX60LS |
| Thermal Module | |
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 1280 x 1024 |
| Frame Rate | 50Hz |
| Pixel Interval | 12μm |
| Response Waveband | 8μm to 14μm |
| NETD | Less than 15 mK (@25°C), F#=1.0 |
| Lens (Focal Length) | 60mm, F1.0 |

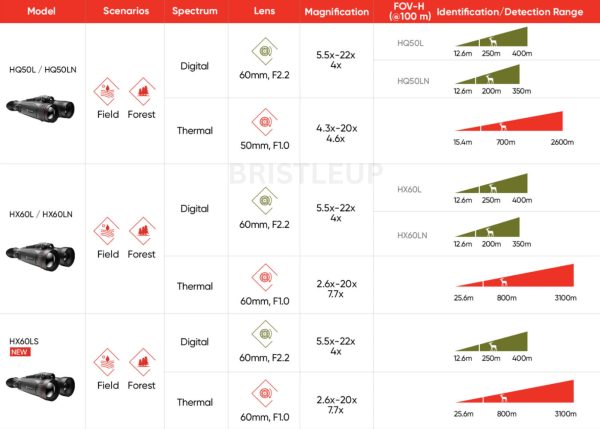

| Detection Range | 3100m |
| Focus Mode | Focus Ring |
| Field of View(H × V), Degrees / m @100m | 14.6° × 8.8° / 25.6m x 15.4m |
| Min. Focusing Distance | 3m |
| Magnification | 2.6x-20.0x (7.7x) |
| Optical Module | |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max. Resolution | 3840 x 2160 |
| Field of View (H × V), Degrees/m @100 m | 7.3° x 4.1° / 12.6m × 7.2m |
| Focal Length | 60mm, F2.2 |
| Min. Working Distance | 3m |
| IR Illuminator Wavelength | 850nm |
| Viewing Range at Night | 400m |
| Magnification | 5.5x – 22.0x (4x) |
| Focus Mode | Focus Ring |
| Smart IR | Yes |

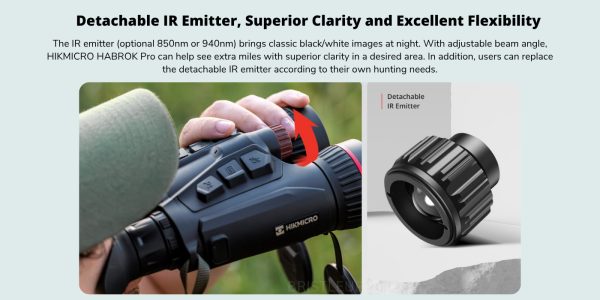

| Replaceable IR Illuminator | Yes |
| Image Display | |

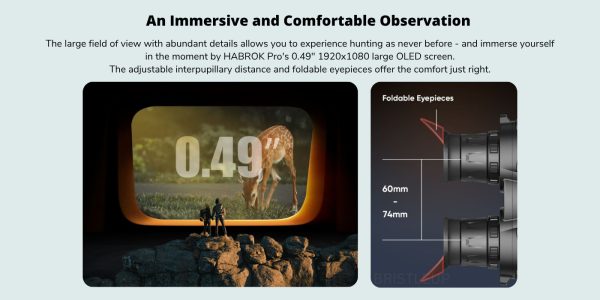

| Display | 0.49 inch, OLED, 1920 ×1080 |
| Contrast Adjustment | Yes |
| Brightness Adjustment | Yes |
| Palettes | Thermal: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome; Optical: Day, Night, Green, Yellow, Auto |
| FFC (Flat Field Correction) Mode | Auto, Manual, External Correction |
| Exit Pupil | 8mm |
| Eye Relief | 15mm |
| Diopter (Range) | -5D–+3D |
| Tone Adjustment | Cold, warm |
| Zoom Pro | No |
| Image Pro 2.0 | |

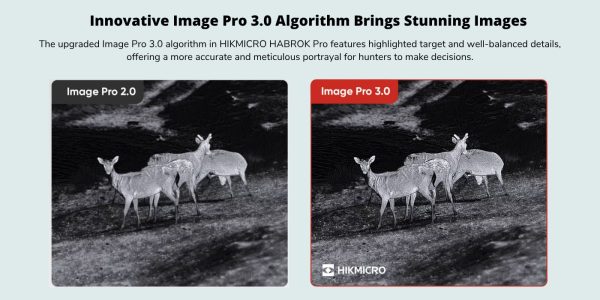

| Image Pro 3.0 | Yes |
| Sync Pro | Yes |
| General | |
| Protection Level | IP67 |
| Weight | 1050g with battery pack |
| Dimension | 152.8mm × 81.95 mm × 231.5 mm (6.0″ × 3.2″ × 9.1″) |
| Working Temperature | -30°C – +55°C |
| Interpupillary Adjustment Range | 60 mm to 74 mm |
| Mounting Adapter | 1/4″-20-UNC |
| System | |
| Record Video | Yes |
| Capture Snapshot | Yes |
| Hotspot | Yes |
| GPS | Yes |
| Digital Magnetic Compass | Yes |
| Standby Mode | Yes |
| Storage | Built-in EMMC (64 GB) |
| PIP | Yes |
| Hot Track | Yes |
| Audio Recording | Yes |
| Local Album | Yes |
| Power Supply | |
| Battery Type | Replaceable and Rechargeable Li-ion Battery Pack |
| Battery Operating Time | 9.5h (25 °C, with hotspot off, LRF on) |
| Type-C Power Supply | 5V/9V DC, 3A Support External Power Supply, Support Direct Charging |
| Laser Rangefinder | |
| Safety Class for Laser | Class 1 |
| Wavelength | 905nm |
| Max. Measuring Range | 1000m |
| Measurement Accuracy | ±1m |
| Min. Measuring Range | 10m |
