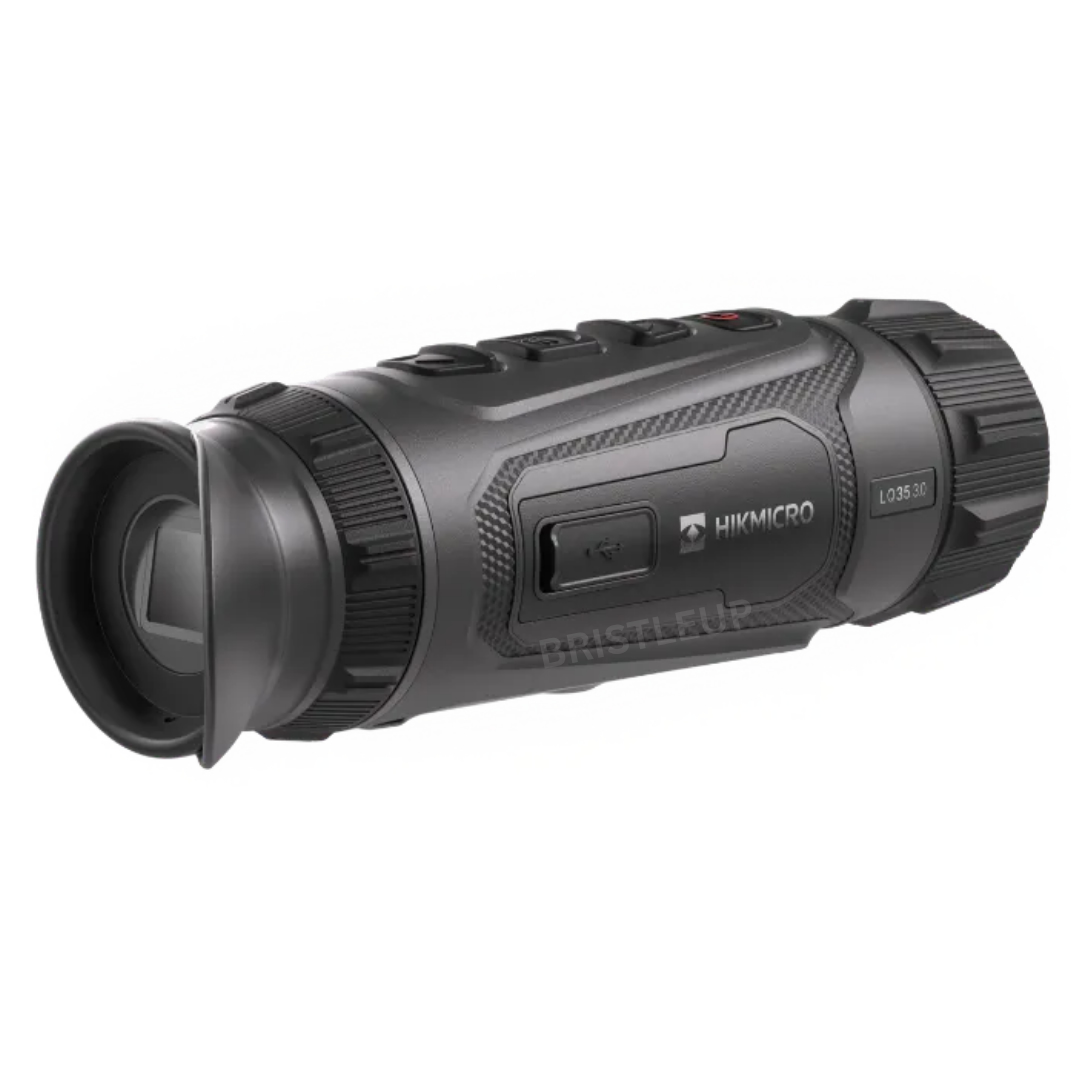

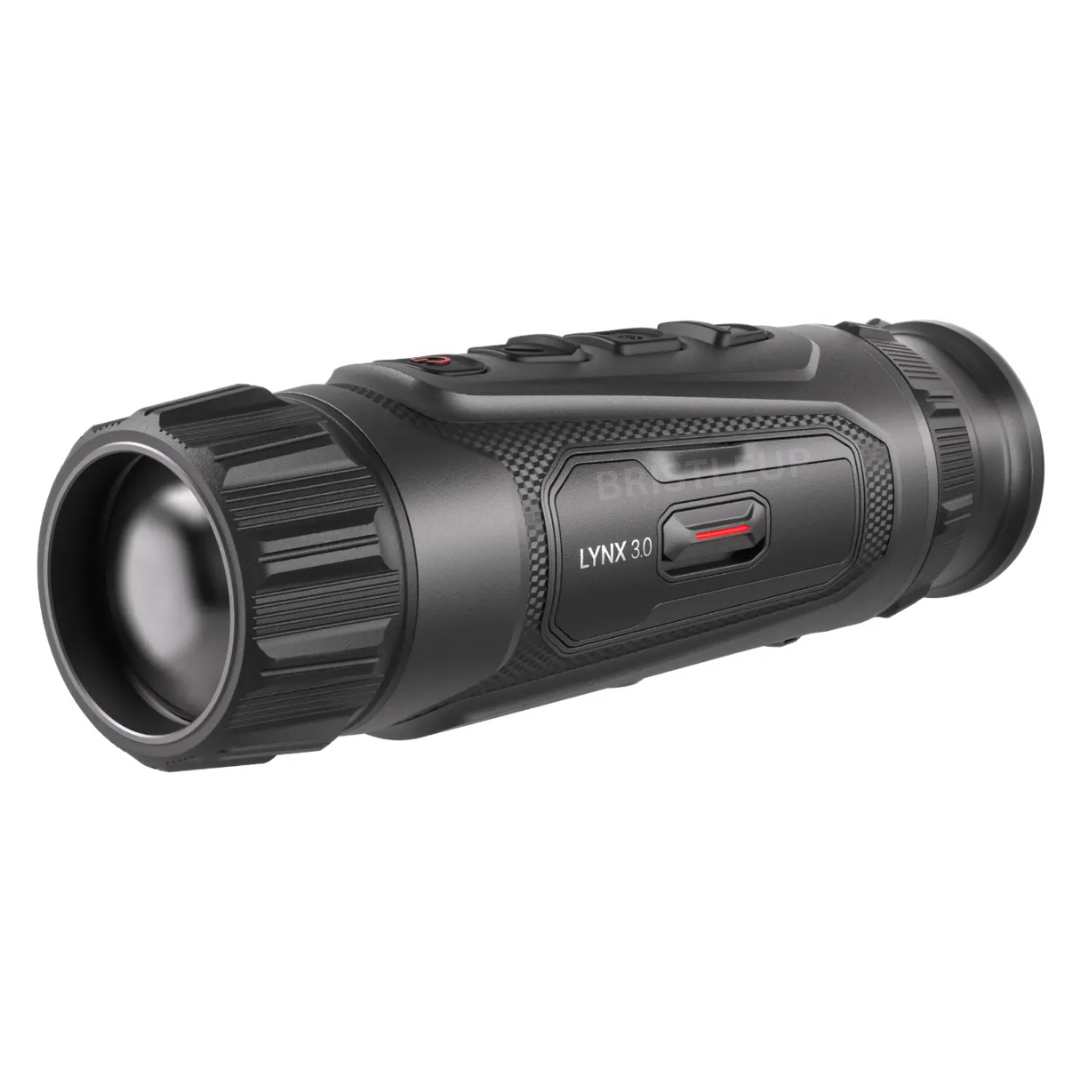

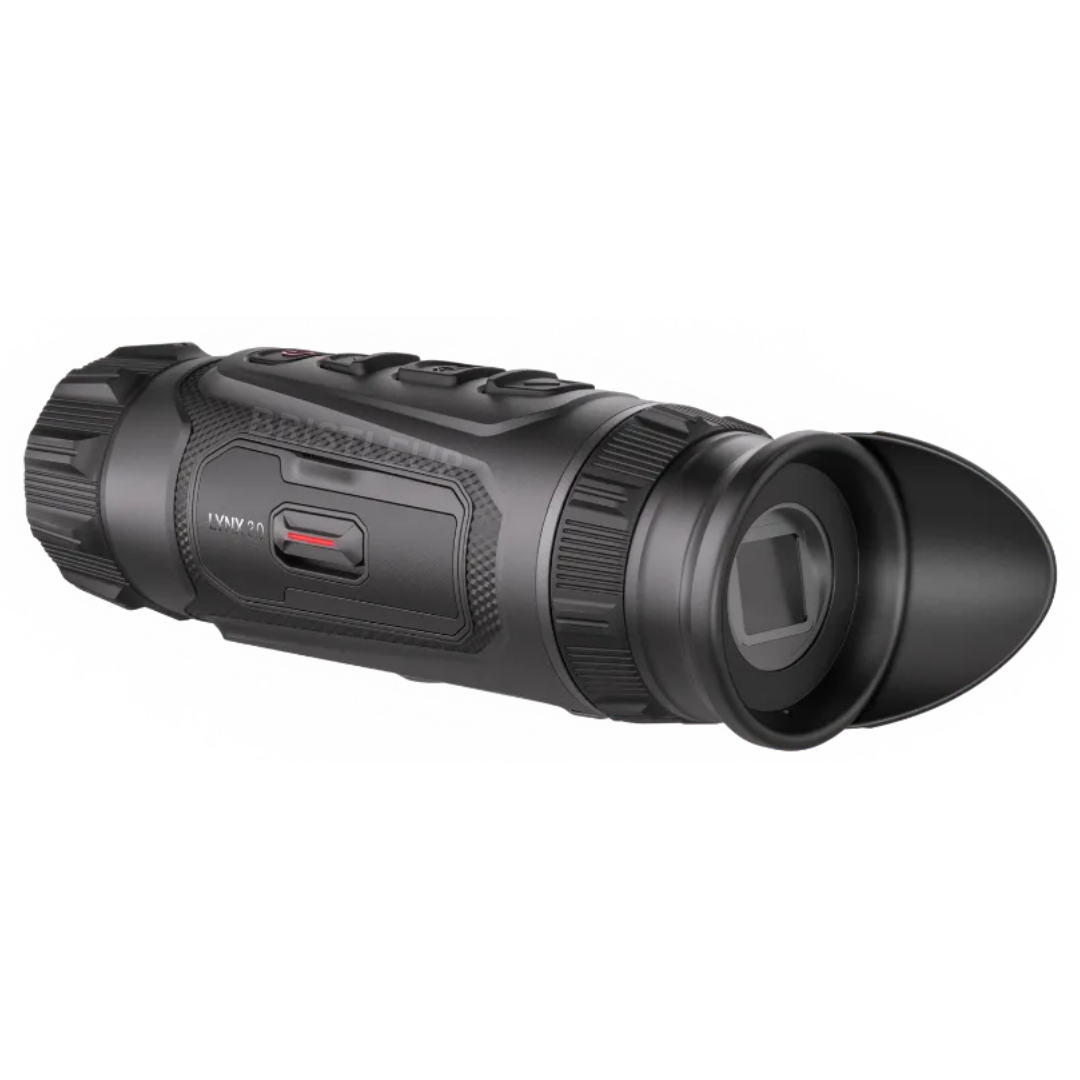

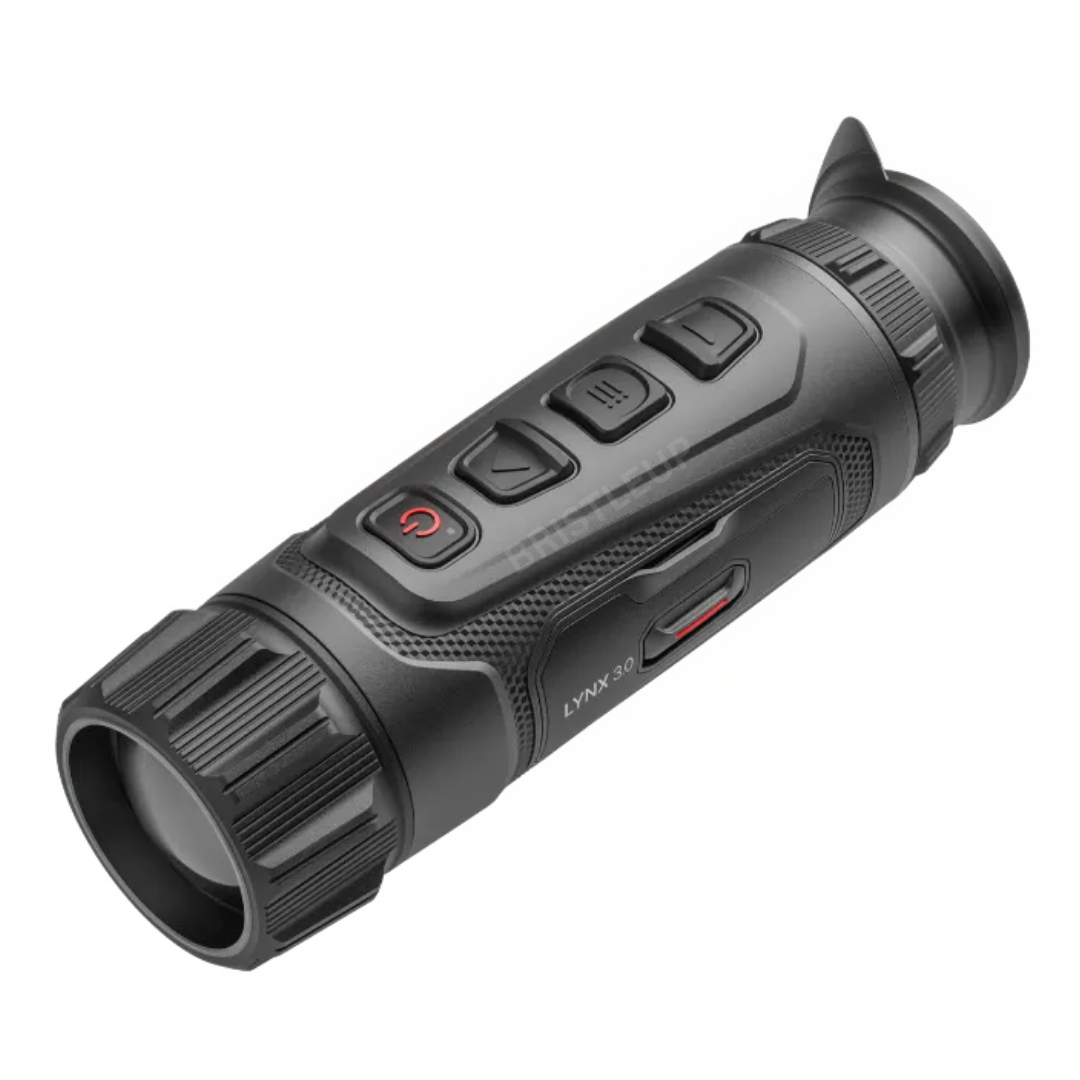

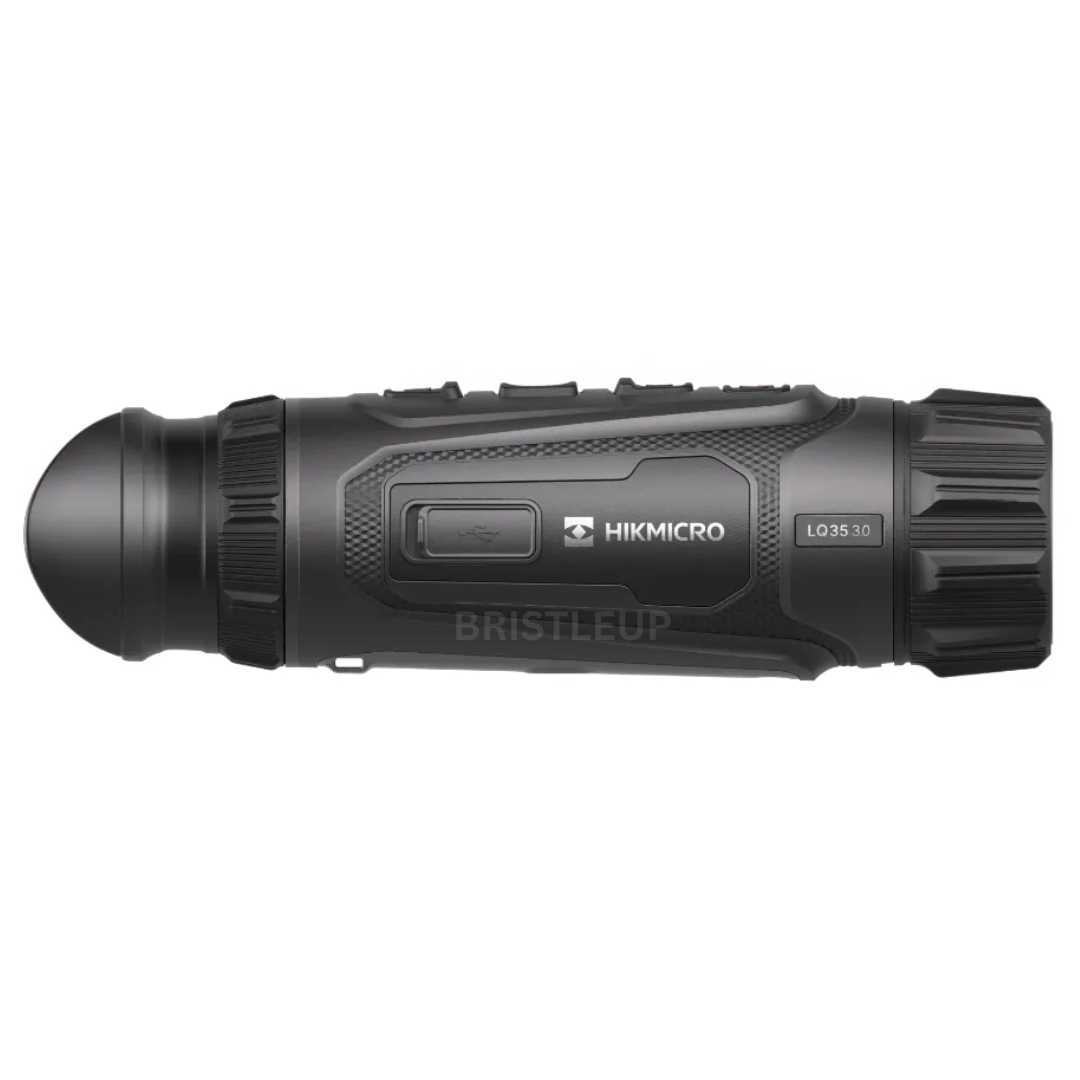

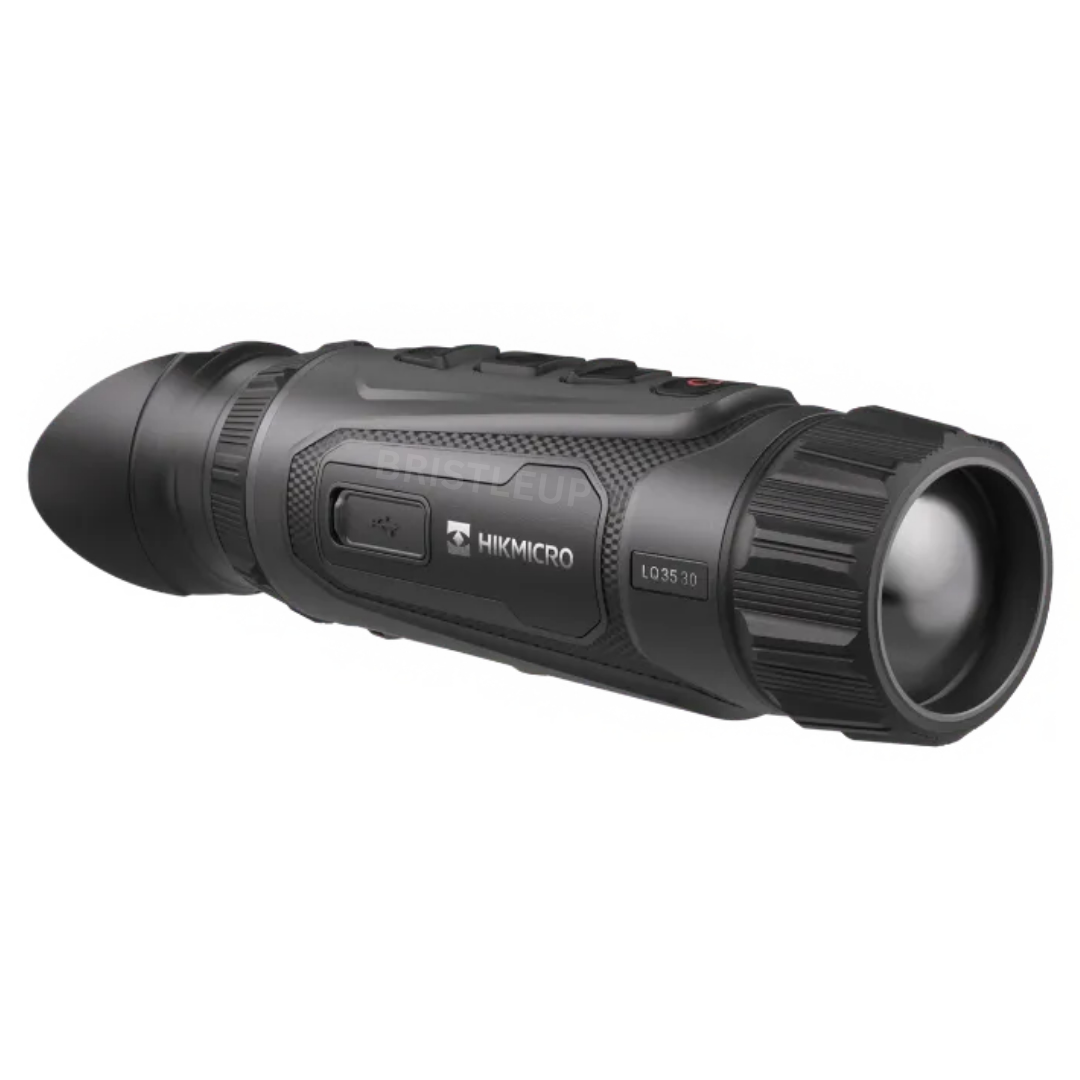

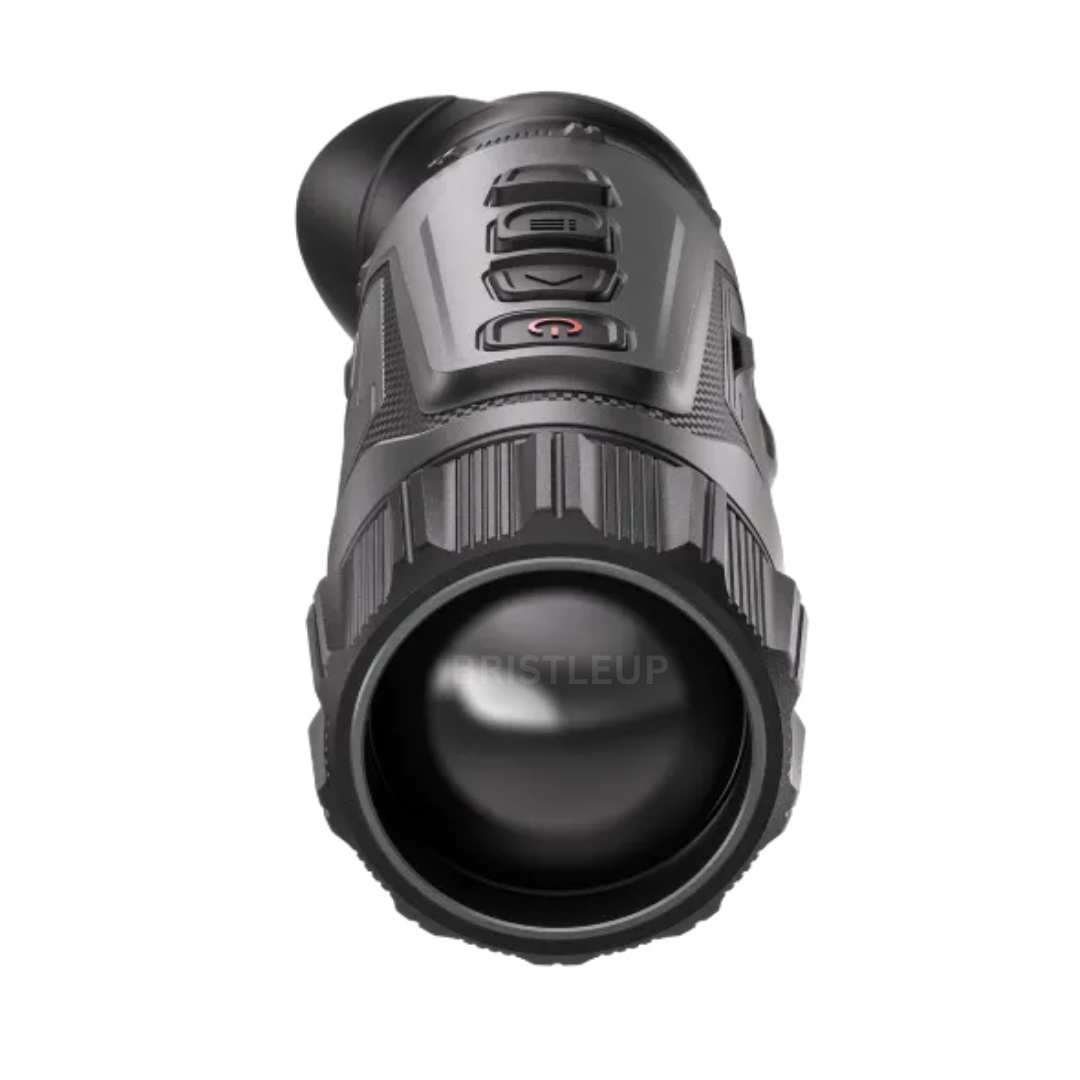

Hikmicro Lynx 3.0 LQ35 Thermal Monocular

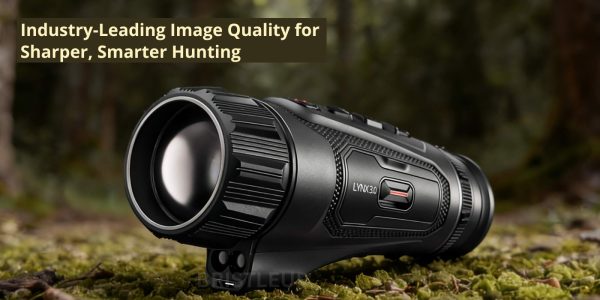

The HIKMICRO Lynx 3.0 LQ35 is a next-generation thermal monocular designed to provide exceptional image quality in a compact and lightweight format. With its high-sensitivity thermal sensor and advanced algorithms, it allows for clear observation in all conditions, day or night.
Its 640 × 512 pixel thermal sensor with a sensitivity of less than 15 mK allows for the detection of the slightest temperature differences. This precision enhances detection in challenging conditions such as fog, rain, or dense vegetation.
Equipped with a 35 mm F1.0 lens, the Lynx 3.0 LQ35 offers a detection range of up to 1800 meters. Its base magnification of 1.9x allows for comfortable observation with a wide field of view, ideal for medium and long-distance observations.
The monocular also integrates Image Pro 3.0, Zoom Pro technologies, and the HSIS shutterless system, which enhance image quality, smoothness, and detail accuracy.

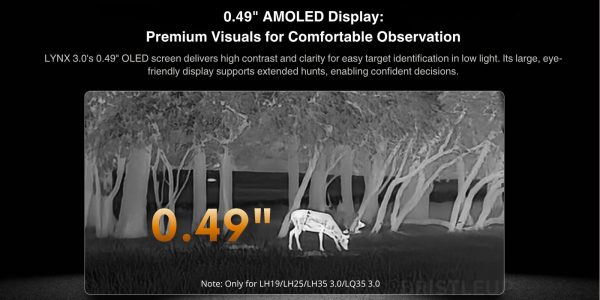

Its Full HD AMOLED screen ensures excellent visual comfort, even during prolonged use. Compact and lightweight, it remains easy to transport and use in the field.
The Lynx 3.0 LQ35 also features modern functionalities such as photo and video recording with audio, 64 GB of internal memory, Wi-Fi connectivity, and compatibility with the HIKMICRO Sight app.
Its interchangeable 18650 battery offers extended battery life and allows for easy battery replacement in the field.

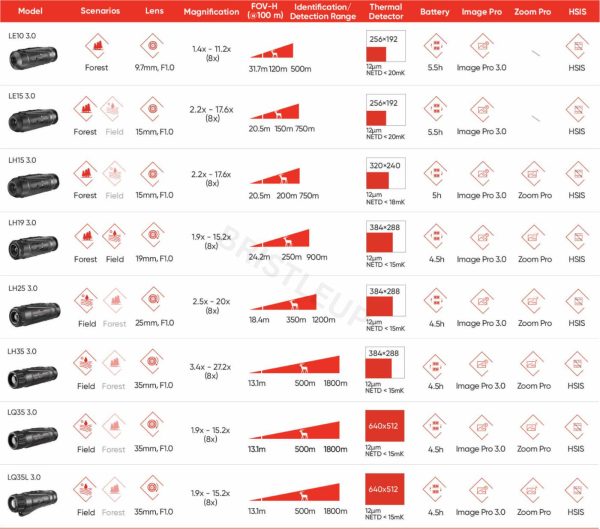

Hikmicro Lynx 3.0 Series Overview














Remark:
1. The shutter module has been retained to ensure high image quality for power-up and under large temperature variations.
2. The battery time data comes from HIKMICRO lab. The actual result may differ due to the environment and personal usage habits. Please refer to actual experience.
3. The HIKMICRO Sight APP connection process complies with the latest CE RED Directive (2014/53/EU) and the EN 18031 standard. We are always your most reliable choice.
*All the pictures and videos taken by device are for reference only, the actual effect shall prevail.
*All images, videos, and screen display contents about the product itself on this page are for reference only. Actual product effects (including but not limited to appearance, color, and size) and screen display contents (including but not limited to backgrounds, UI, and illustrations) may vary.
| Technical Specifications | |
| Product Model | LQ35 3.0 |
| Thermal Module | |
| Sensor | Uncooled VOx |
| Resolution | 640 × 512 pixels |
| Pixel Pitch | 12 μm |
| Thermal Sensitivity | < 15 mK |
| Frequency | 50 Hz |
| Lens | 35 mm F1.0 |
| Detection Range | up to 1800 m |
| Magnification | 1.9x to 15.2x |
| Field of View | 12.5° × 7.5° |
| Minimum Focusing Distance | 3.5 m |
| Display | |
| Screen | AMOLED |
| Resolution | 1920 × 1080 |
| Diopter Adjustment | -5D to +3D |
| Brightness Adjustment | Yes |
| Contrast Adjustment | Yes |
| Functions | |
| Image Pro 3.0 | Yes |
| Pro Zoom | Yes |
| HSIS (Shutterless System) | Yes |
| Photo and Video Recording | Yes |
| Audio Recording | Yes |
| Sleep Mode | Yes |
| PIP | Yes |
| Hot Track | Yes |
| Distance Measurement | Yes |
| Local Album | Yes |
| Wi-Fi | 2.4 GHz / 5 GHz |
| Internal Memory | 64 GB |
| Power Supply | |
| Battery Type | 18650 rechargeable and replaceable |
| Battery Life | up to 5 hours |
| Charging | USB-C |
| External Power Supply | Yes |
| General | |
| Protection Rating | IP67 |
| Operating Temperature | -30°C to +45°C |
| Dimensions | 169.6 × 53.6 × 49.5 mm |
| Weight | 354.5 g with battery |
