SmartRest Quad Rest 3 III Rack Kit Builder – SRQR3

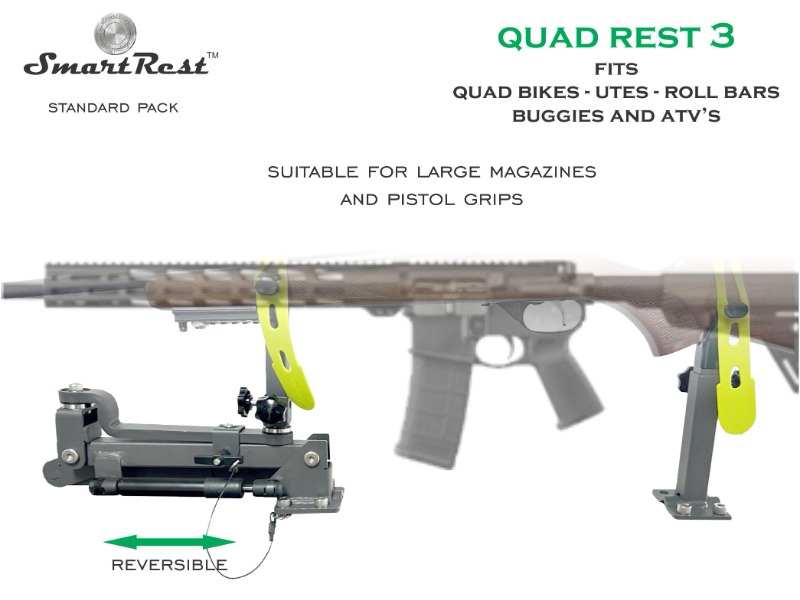

The Quad Rest 3 is a steel framed Gun Rest and Cradle system that stores a firearm in a safe position while travelling and doubles up as a stable rifle support for excellent accuracy while taking a shot.

Main Design Features:

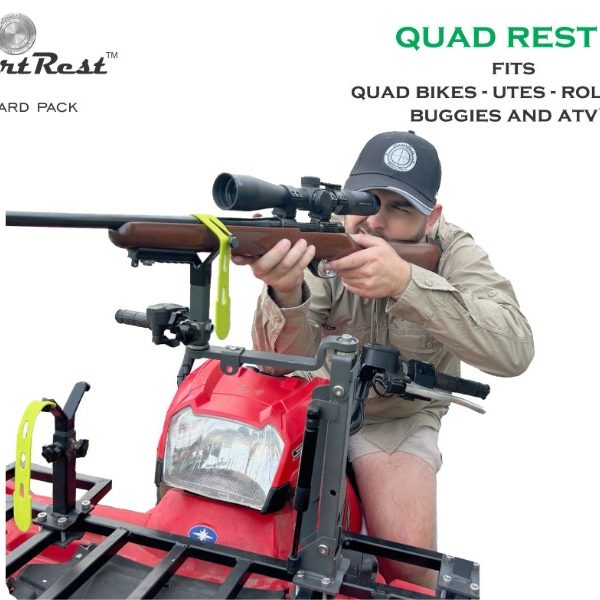

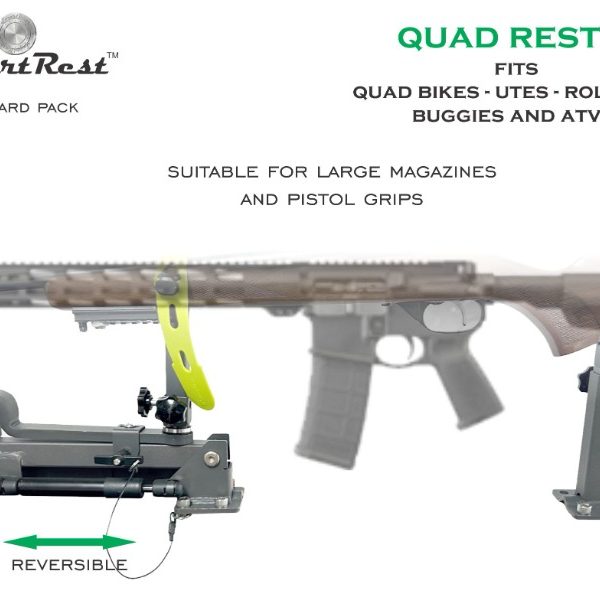

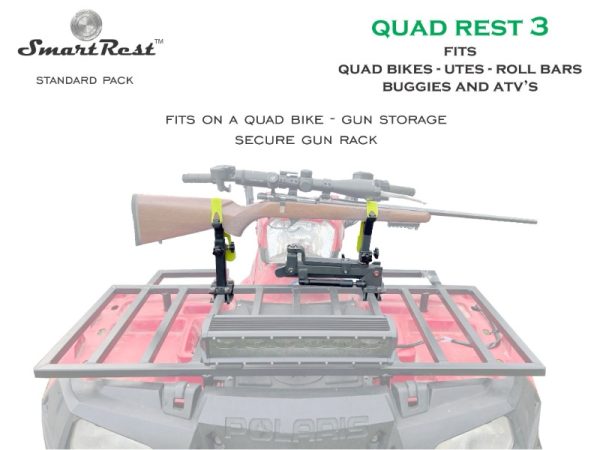

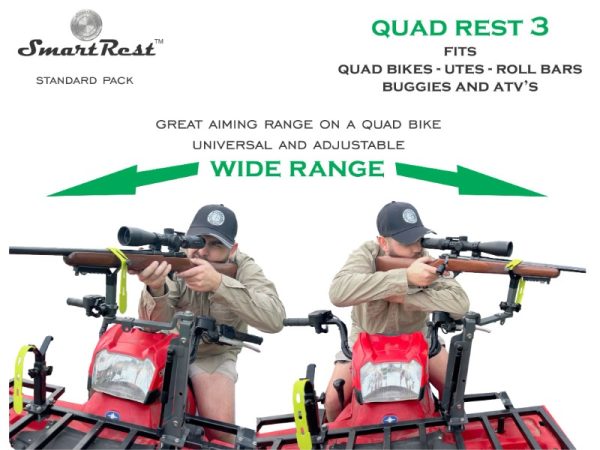

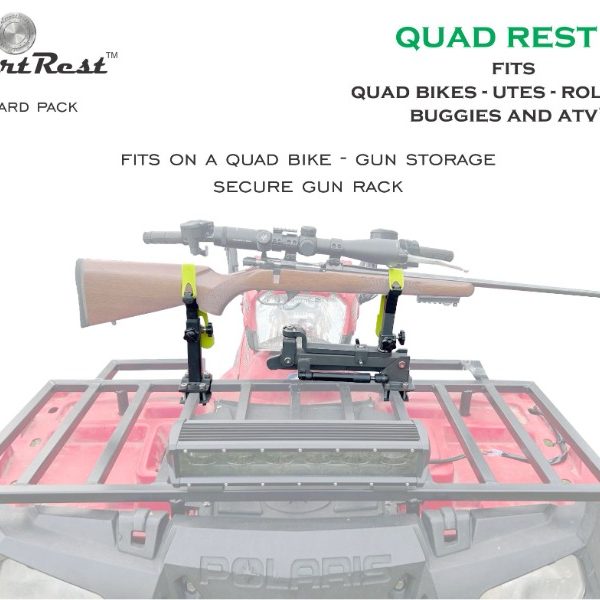

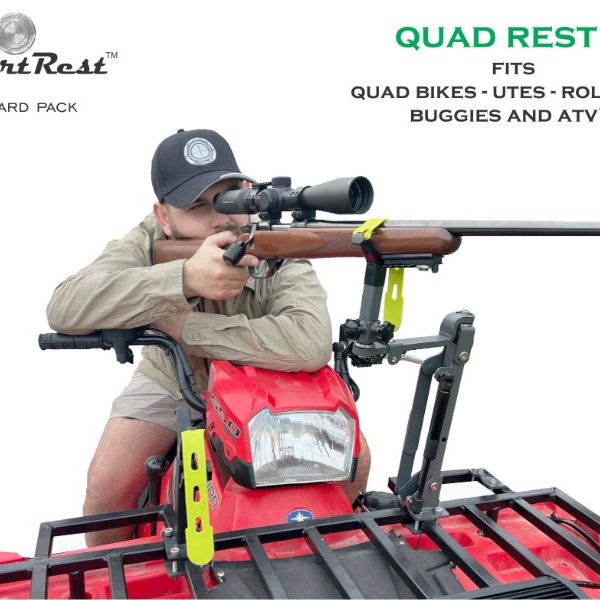

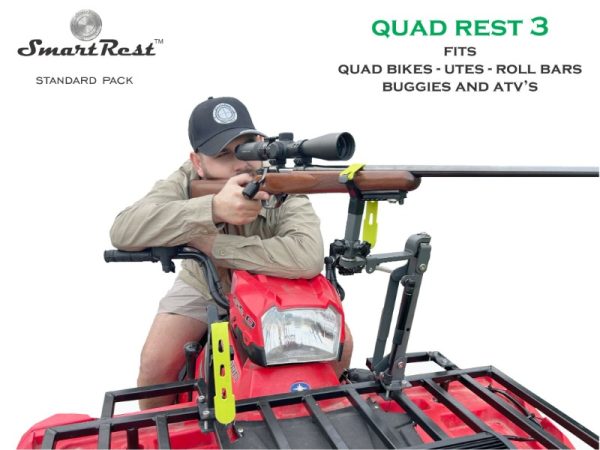

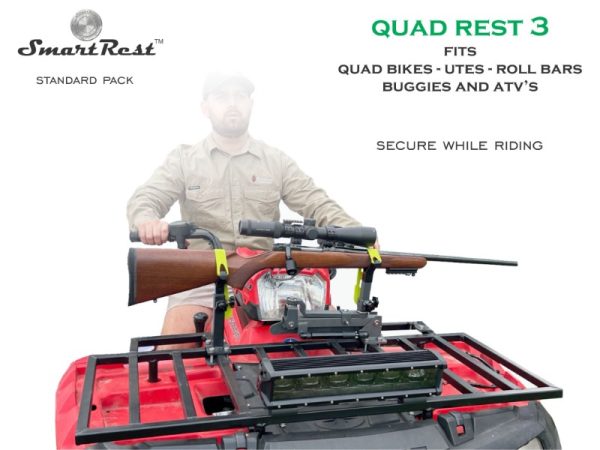

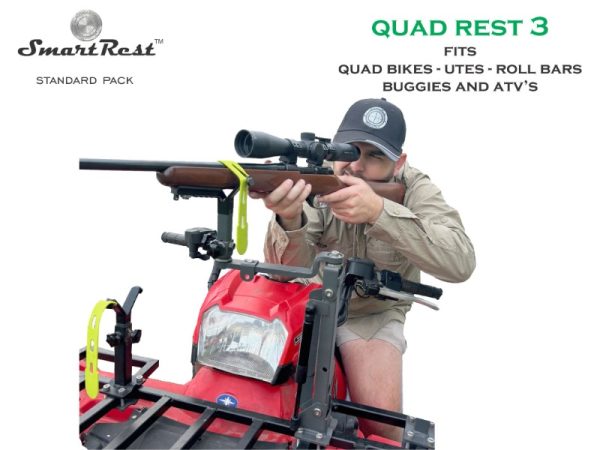

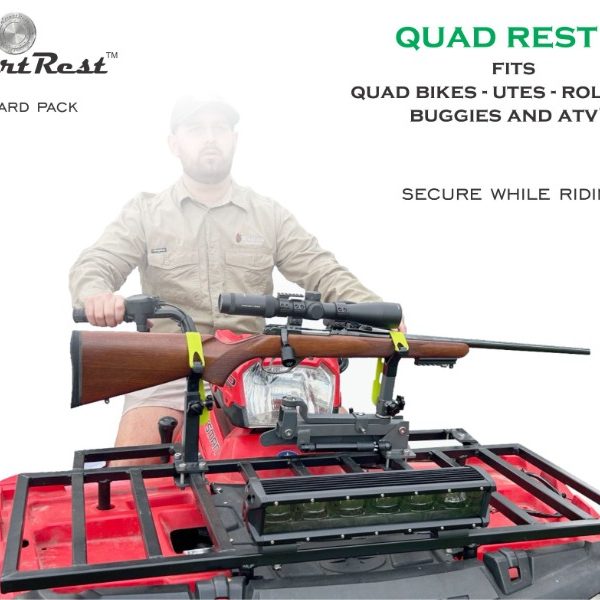

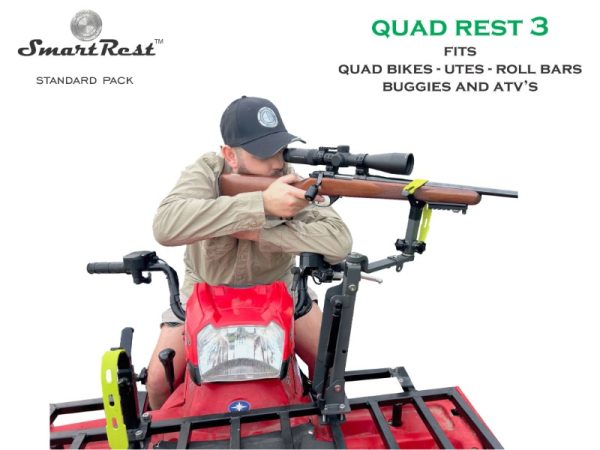

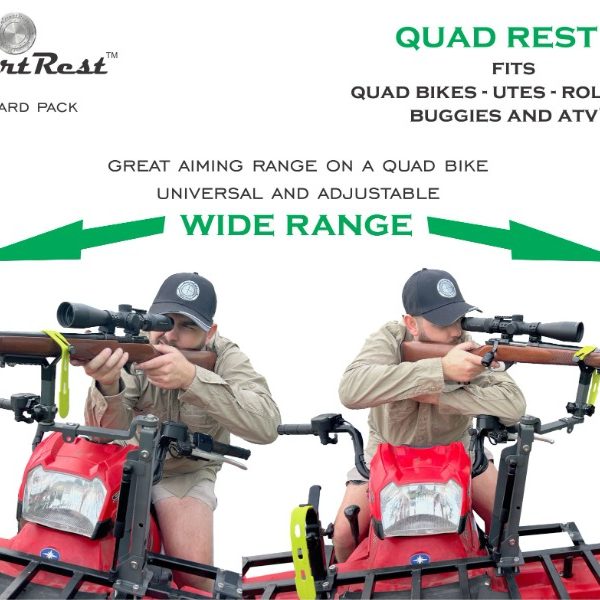

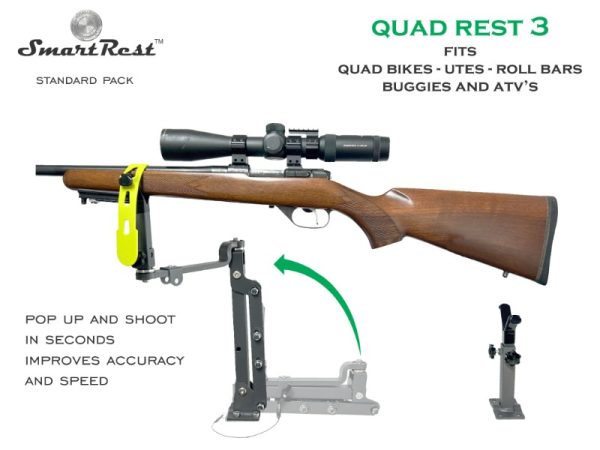

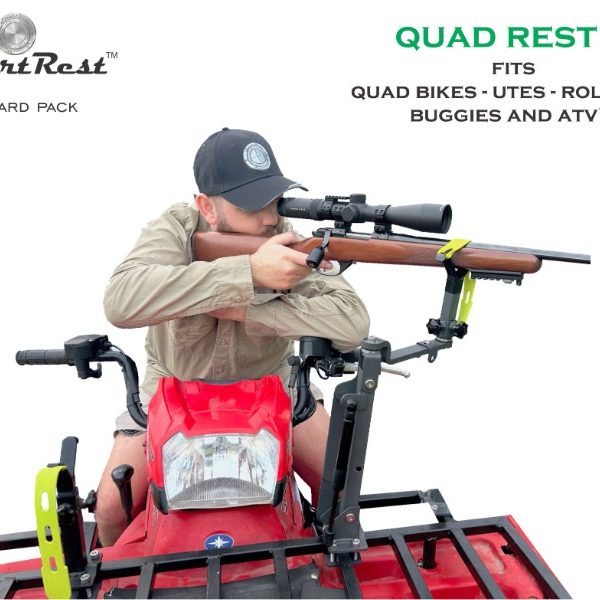

The Quad Rest 3 acts as a safe storage unit while it is locked down. It is a 2 part holder. The front part pops up and is used as gun rest to shoot off. The V bracket swivels and pivots while also being mounted on a double swivel extension arm that gives the shooter the ability to swing the V in a wide arc to allow for aiming in a wide range.

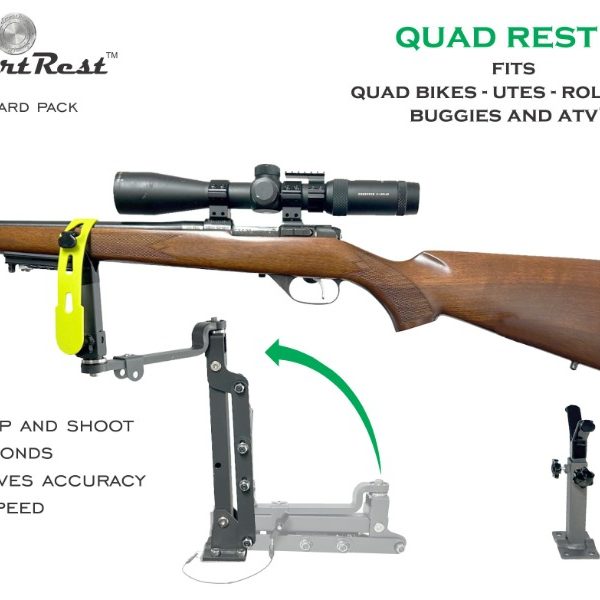

The Strut Assist Lift – allows the operator to lift the V bracket up into a shooting position, and also acts as a stabilizer to hold the popped up frame.

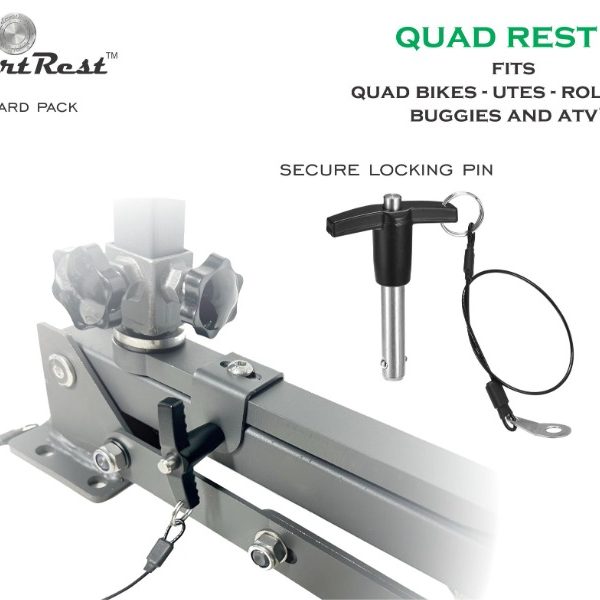

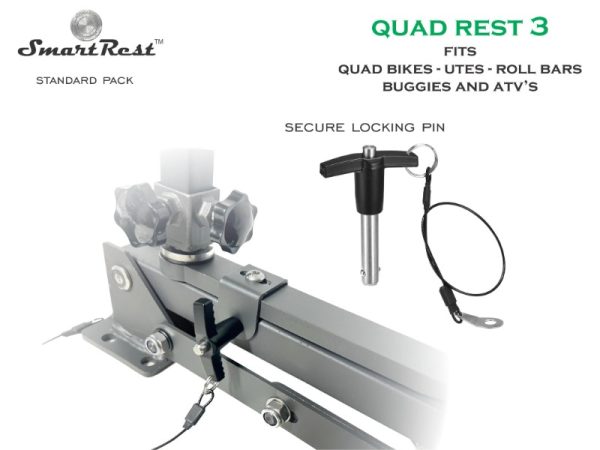

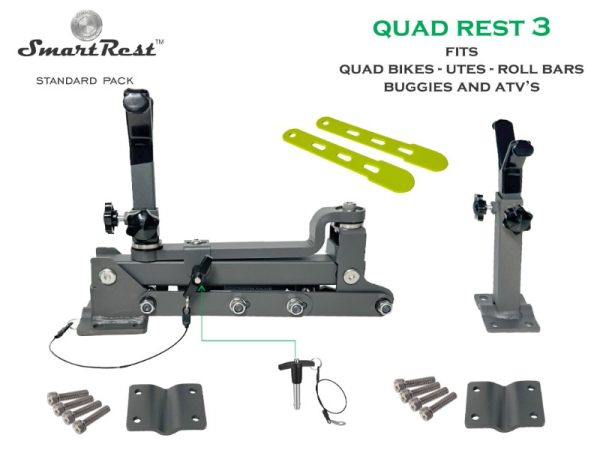

Lock Pin – the latest model utilizes a lock pin which is very strong and reliable.

Mounting Clamps and Options – the standard issue clamp is a two part clamp. It closes up on to square and round pipes from 17mm to 45mm. If the Quad Bike has no bars or pipes to mount on, you can either adapt a ply board to the front tray area in order to mount the Quad Rest standard base plate to it, or use the mounting plate as a platform to mount on to. If the pipe or bar is larger than 45mm a Mounting Plate with U Bolts is required. The Mounting plate comes in two size options. See SmartRest – Mounting Plate for more information. (For more mounting information or queries call us on 02 9773 6874 or email us)

More Details:

This Gun Rest model is the third model released which is also known as Quad Rest 3 and or the Roll Bar Rest 3, which are part of the Off Road Gun Rest Series by SmartRest – the Australian Gun Rest Brand. This model fits on Quad Bikes, UTVs and Utes/pickups.

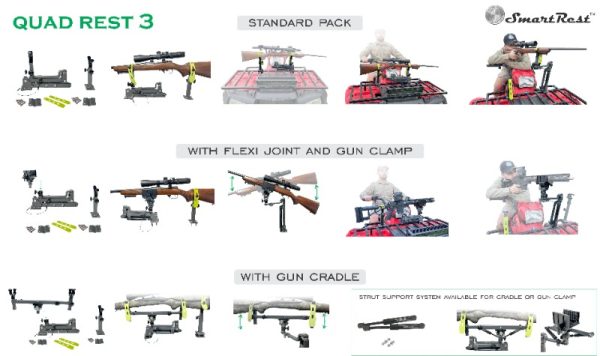

The Quad Rest 3 range can come in various models and attachments:

– For Quad Bikes – Quad Rest 3.

– For UTVs or ATVs (also known as Side-by-Side or Buggy) – UTV Side Mount.

– Utes or Pick Ups – Roll Bar Rest. (This comes in a kit package with all parts needed to mount on to a ute roll bar/sports bar and buggy roll bars. See Roll Bar Rest)

– Flexi Joint + Cradle attachment option

– Flexi Joint + Gun Clamp attachment option
