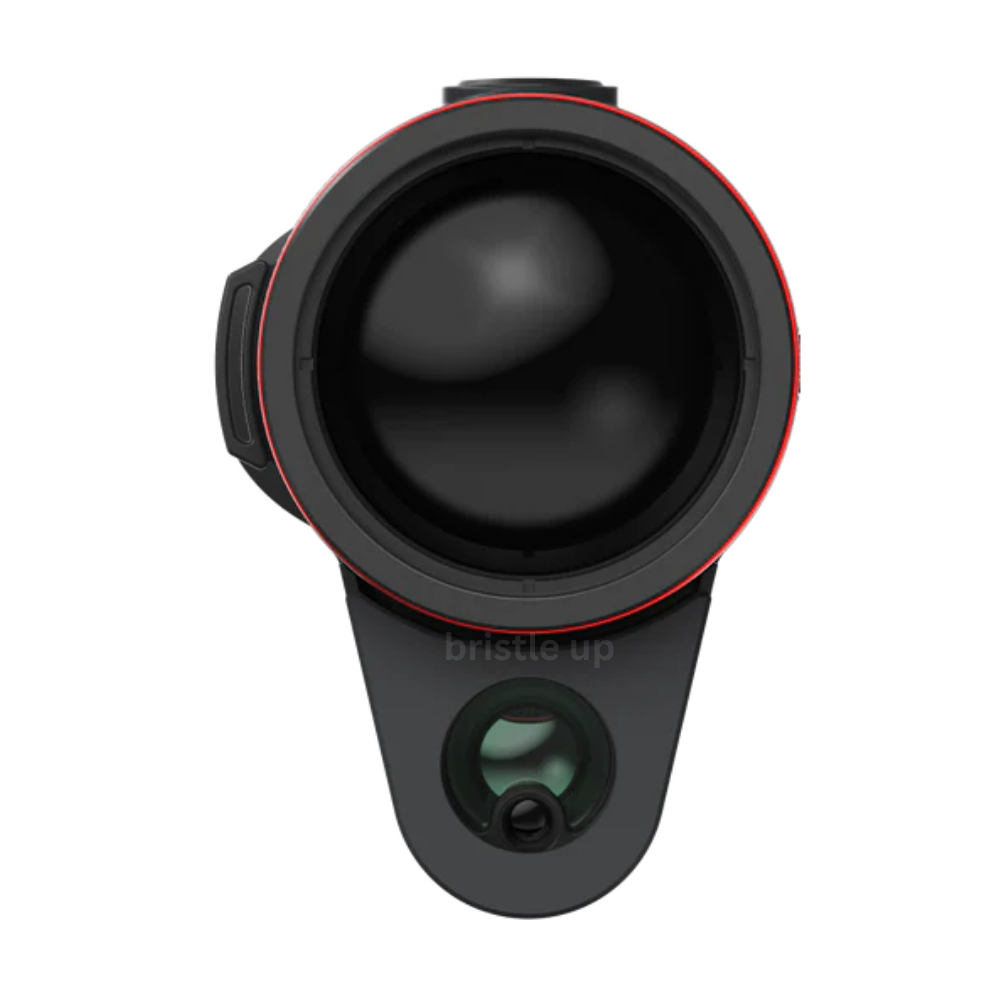

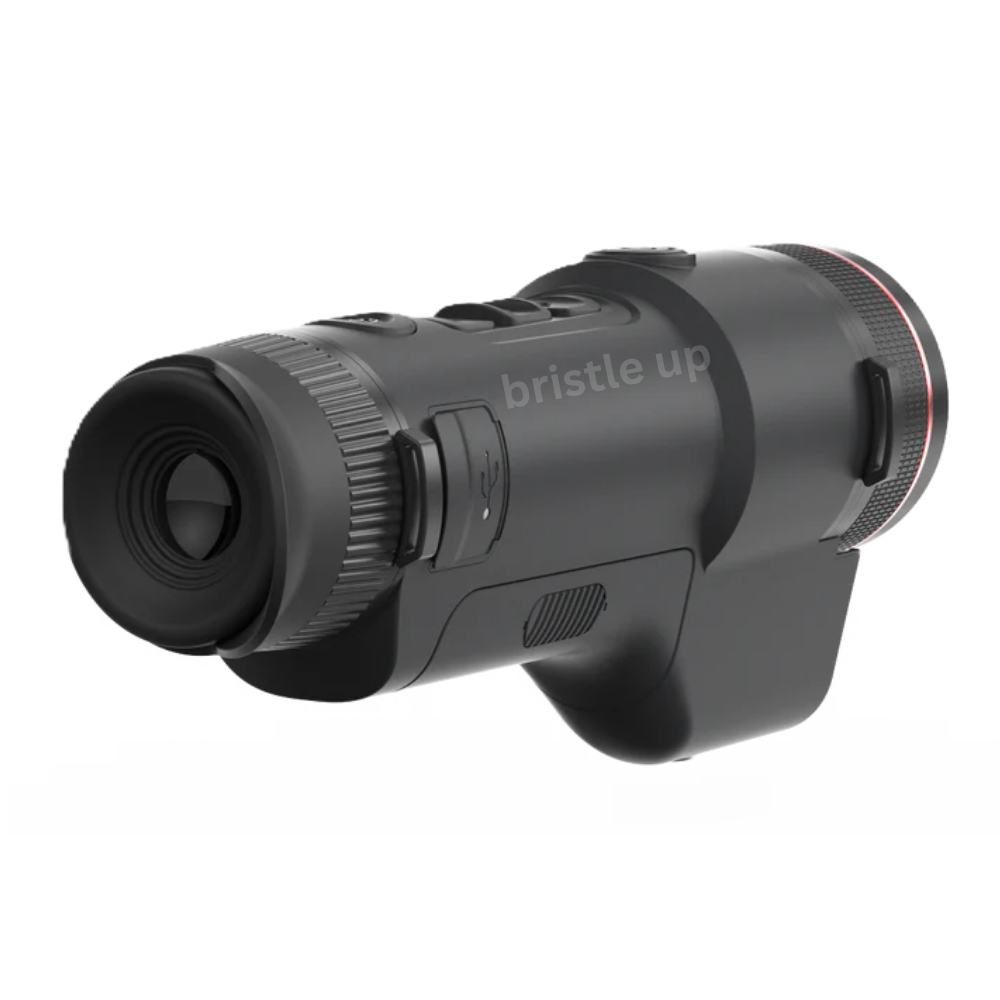

Guide TJ630LP – Thermal Monocular
Handheld Mini Thermal Imaging Monocular
TJ LRF Pro Series has fully upgraded its hardware configuration and software functions, bringing it to new heights in picture clarity, observation comfort, and intelligent operation.
It is equipped with a 12μm high-sensitivity infrared detector, making your targets in the dark clearly visible and lifelike. The 0.5″ ultra-large AMOLED display presents you with a stunning visual effect like a home theatre. A built-in 1500m laser rangefinder, triggered with one button, makes your adventure more secure and smooth.
Technical Parameters
| Model | TJ630LP |
| Sensor | |
| Type | Uncooled VOx Infrared Detector, 8 to 14μm |
| Resolution | 640×512@12μm |
| NETD | 20mK |
| Frame rate | 50Hz |
| Lens | |
| Objective lens | 35mm, F1.0 |
| Field of view | 12.5°×10.0° |
| FOV m@100m | 22×17 |
| Magnification | 3.31x–26.48x |
| Detection range | 1800m/1950yd |
| Display | |
| Display type | 0.5″ AMOLED 1600×1200 |
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia |
| Eyepiece | Eye relief: 16mm, Diopter: -6 to +6, Zoom: 18x |
| Hardware | |
| Laser rangefinder | 1500m/1630yd |
| WIFI | 2.4G, 5G |
| Interface | USB Type-C (Power supply/USB2.0) |
| Others | Microphone, Compass, Gyroscope, Bluetooth |
| System | |
| Recording function | Photo/Video (Audio recording included) |
| Memory capacity | 64GB |
| Power | |

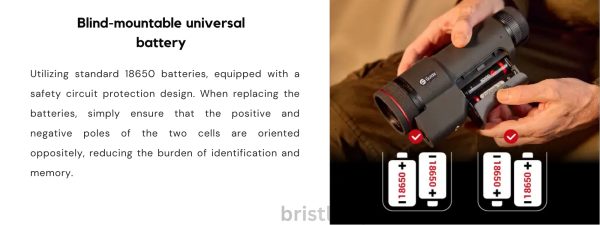

| Battery type | 2 replaceable 18650 batteries |
| Operating time | 9 hours |
| Environmental | |
| Operating temp. | -20°C to 50°C / -4°F to +122°F |
| Encapsulation | IP67 |
| Physical | |
| Weight (g/oz) | 584/20.60 |
| Size (mm/in) | 247×101×70/9.72×3.98×2.76 |
| Standard | A device, Wrist strap, Battery charger, 18650 battery×2, 5V2A adapter (US, Britain, Australia and Europe), USB Type-C cable, Quick use guide, Warranty card |
| Optional | Bluetooth remote control, 18650 battery |
