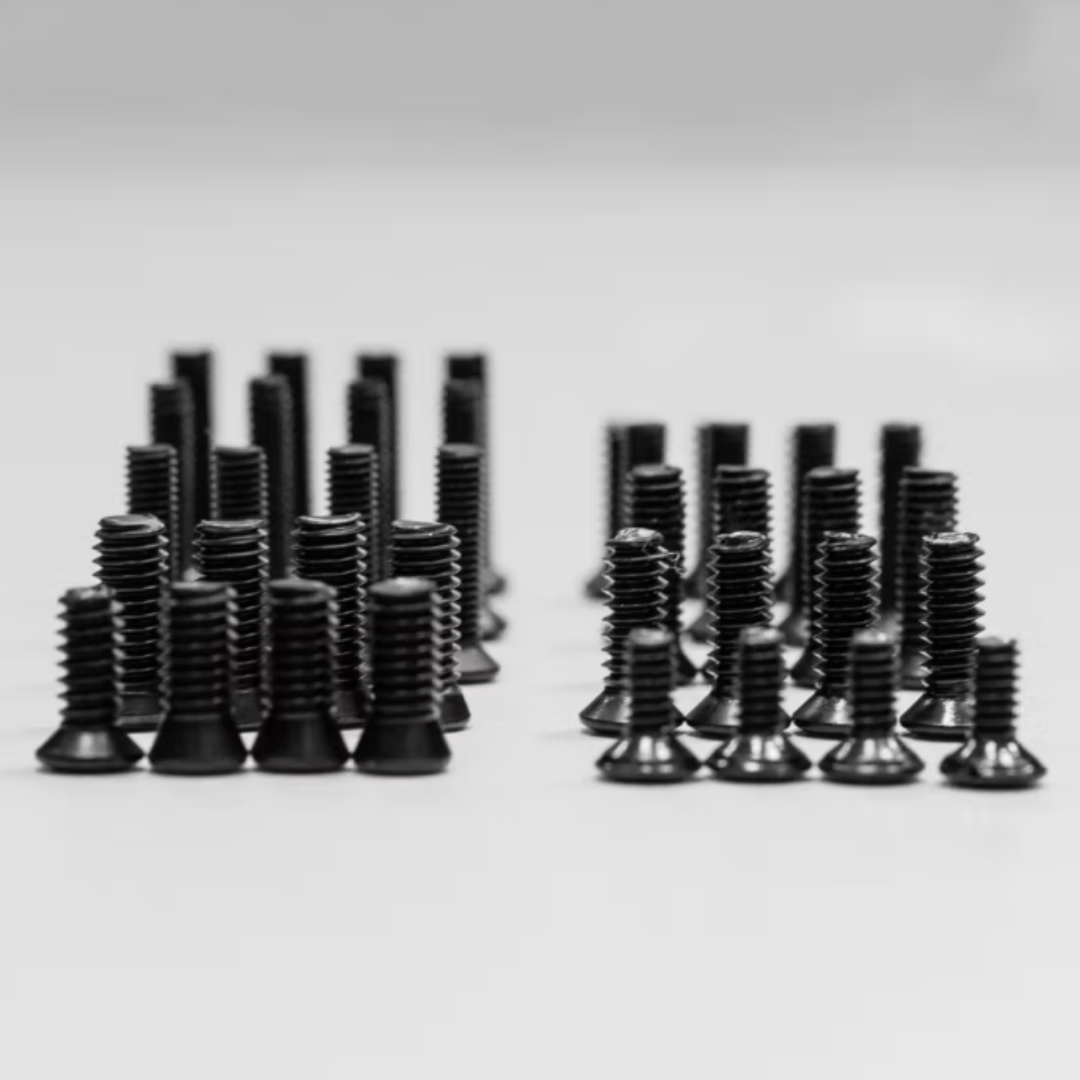

Swampfox Ultimate Red Dot Mounting Screw Pack

The Swampfox Ultimate Red Dot Mounting Screw Pack takes the guesswork out of attaching your red dot sight to slides, adapter plates, dovetail mounts, or custom gunsmith cuts. Designed for compatibility with Swampfox optics like Kingslayer, Liberty, Justice, and Sentinel, this kit includes 16 four-screw sets with various thread pitches and lengths to solve your mounting challenges.

Five Do-It-Yourself screw sets (6-32, 4-40, 6-40, M3, M3.5, M4) feature a 14mm effective thread length, allowing you to custom-cut them for a perfect fit. Small-head T10 Torx screws ensure secure mounting without damaging your equipment.

Whether you’re installing for the first time or troubleshooting an optic fit, this pack is your all-in-one solution.

Key Features:

• 16 sets of mounting screws for multiple thread pitches and lengths
• Compatible with Swampfox Kingslayer, Liberty, Justice, and Sentinel optics
• Includes 5 DIY sets with extra-long threads for custom fitting
• T10 Torx head for secure installation
• Small head design: 5.0 mm diameter (5.5 mm for #6-32)
• Torque rating: max 15 in-lbs
• Recommended: Apply blue threadlocker for optimal hold

Specifications:

• Head Type: T10 Torx
• Head Diameter: 5.0 mm (5.5 mm for #6-32)
• Thread Length (DIY screws): 14mm effective length
• Material: Steel
• Finish: Black oxide coating
