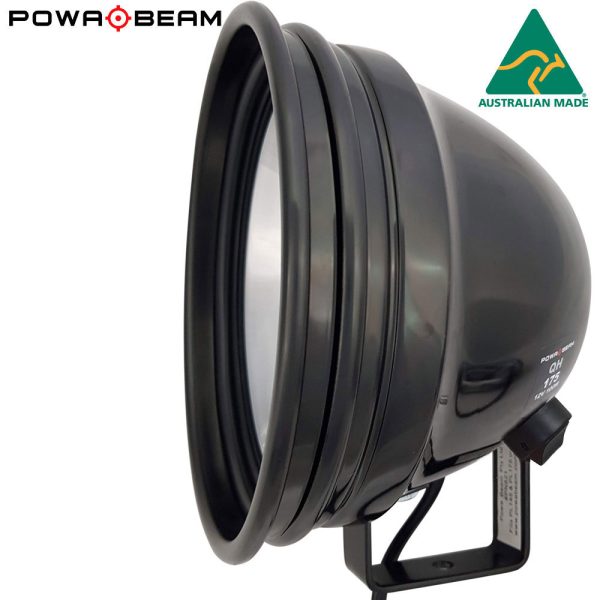

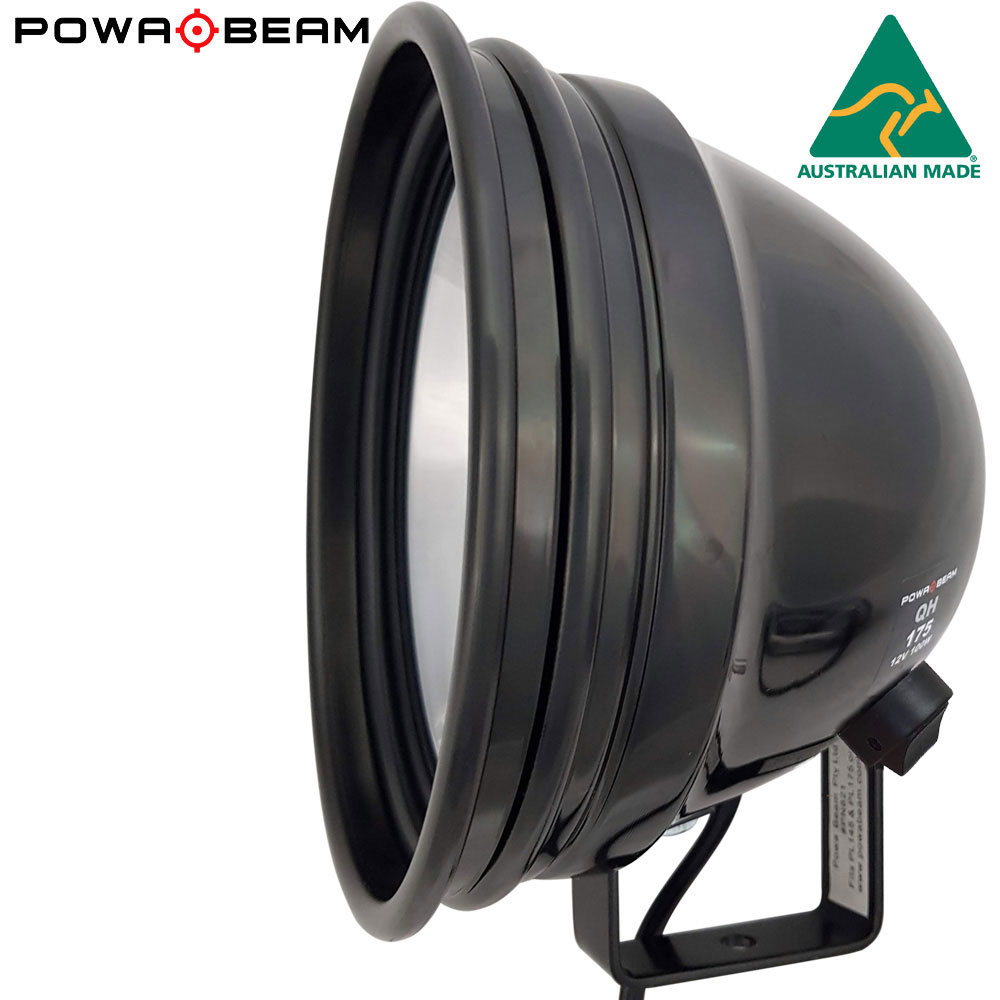

Powa Beam 7″ 12V 100w Information – ( Scroll for 24v Info )

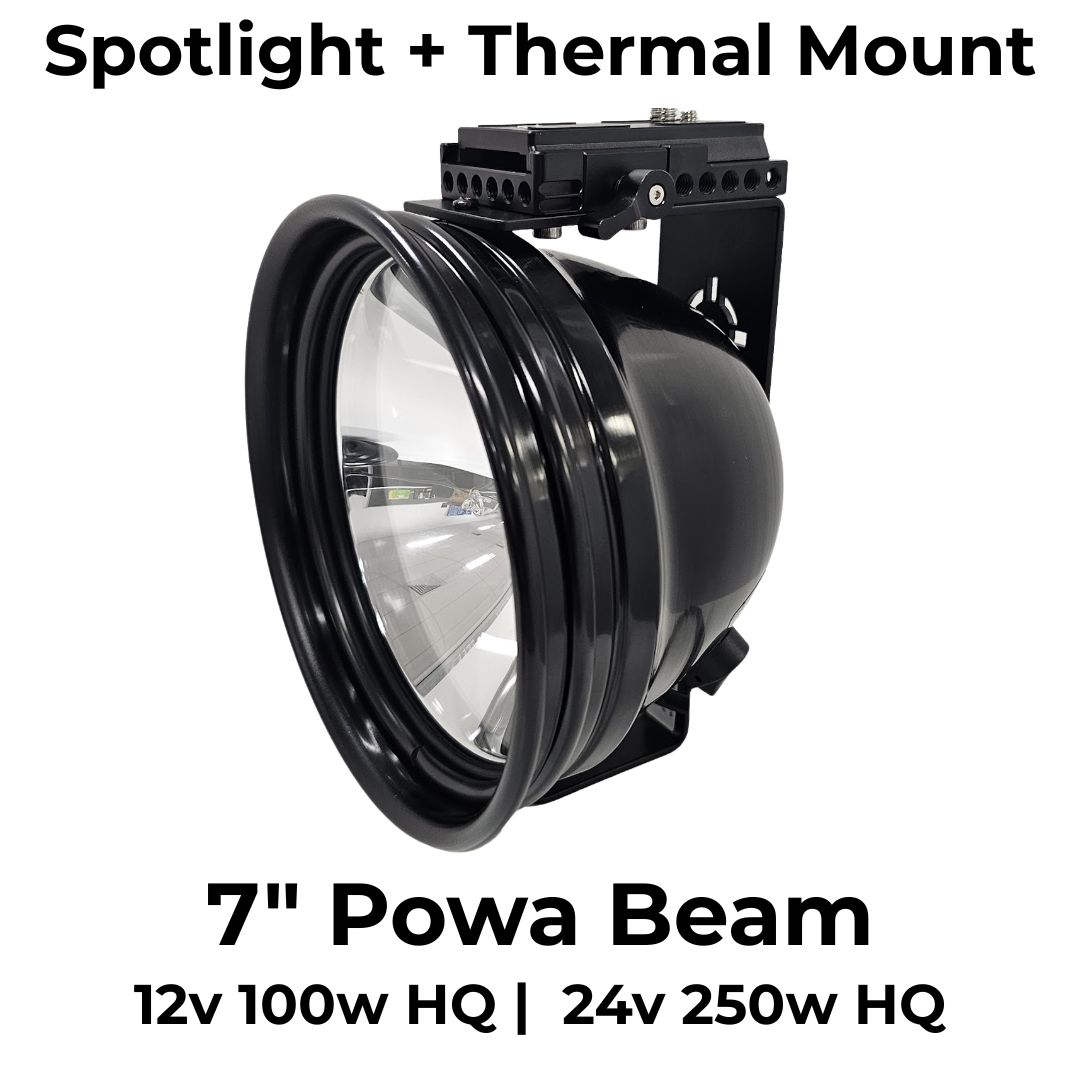

Powa Beam 7″ 100w Quartz Halogen Spotlight with built-in thermal mount and quick release adaptor. Also includes a DC-DC 12/24v Convertor with USB Type-C for Constant Power Capability
Spotlight Specifications:
- Reflector Size – 175mm (Diameter)
- Casing Size – 195mm (Diameter) x 140mm (Depth)
- Voltage – 12V
- Power – 100W
- Nominal Luminous Flux – 3200lm
- Light Type – Quartz Halogen (QH)
- Beam Type – Adjustable from Spot to Spread
- Base – Steel Bracket with 9mm Mounting Hole

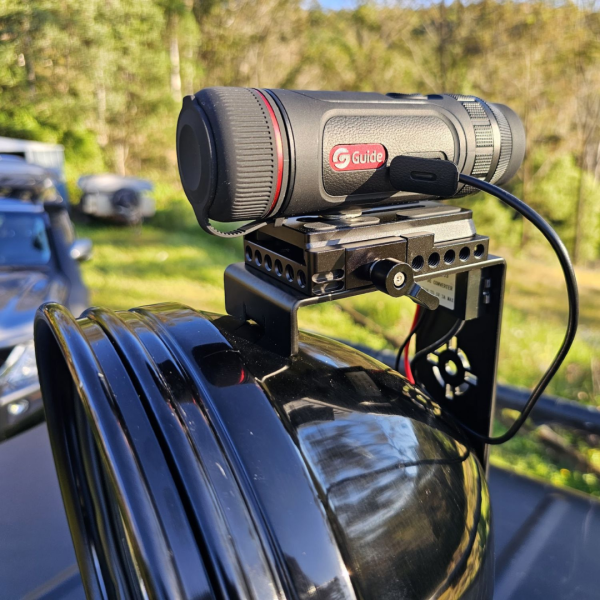

- Device Mount –Mount your thermal device on top for ultimate hunting combination, power supplied via 12/24v DC-DC USB-C Charger (thermal device not included)
Device Mount Specifications:
- Quick attach/detach
- Secure locking system with backup safety lock for extra peace of mind
- 1x 1/4″ mounting bolt to attach your thermal device or camera
- 1x 3/8″ mounting bolt to attach your thermal device or camera
- Rubber Anti-Slip Pads
- DC-DC 12/24v Convertor with USB Type-C & wire pack
Main Components for Modifications & Repairs:
- Bulb: 12V 100W Vertical Filament
- Lens: Toughened Glass
- Reflector: Heat Resistant Alloy Reflector
- Case: Anodized Alloy
- Base: Powder Coated Custom Metal Bracket
Package Includes:
- Powa Beam 7” QH Spotlight with Thermal Mount attached
- DC-DC 12/24v Convertor with USB Type-C & wire pack
- 3.5m Cable
- Electrical Connectors
- Battery Clips
- Powa Beam Bumper Sticker

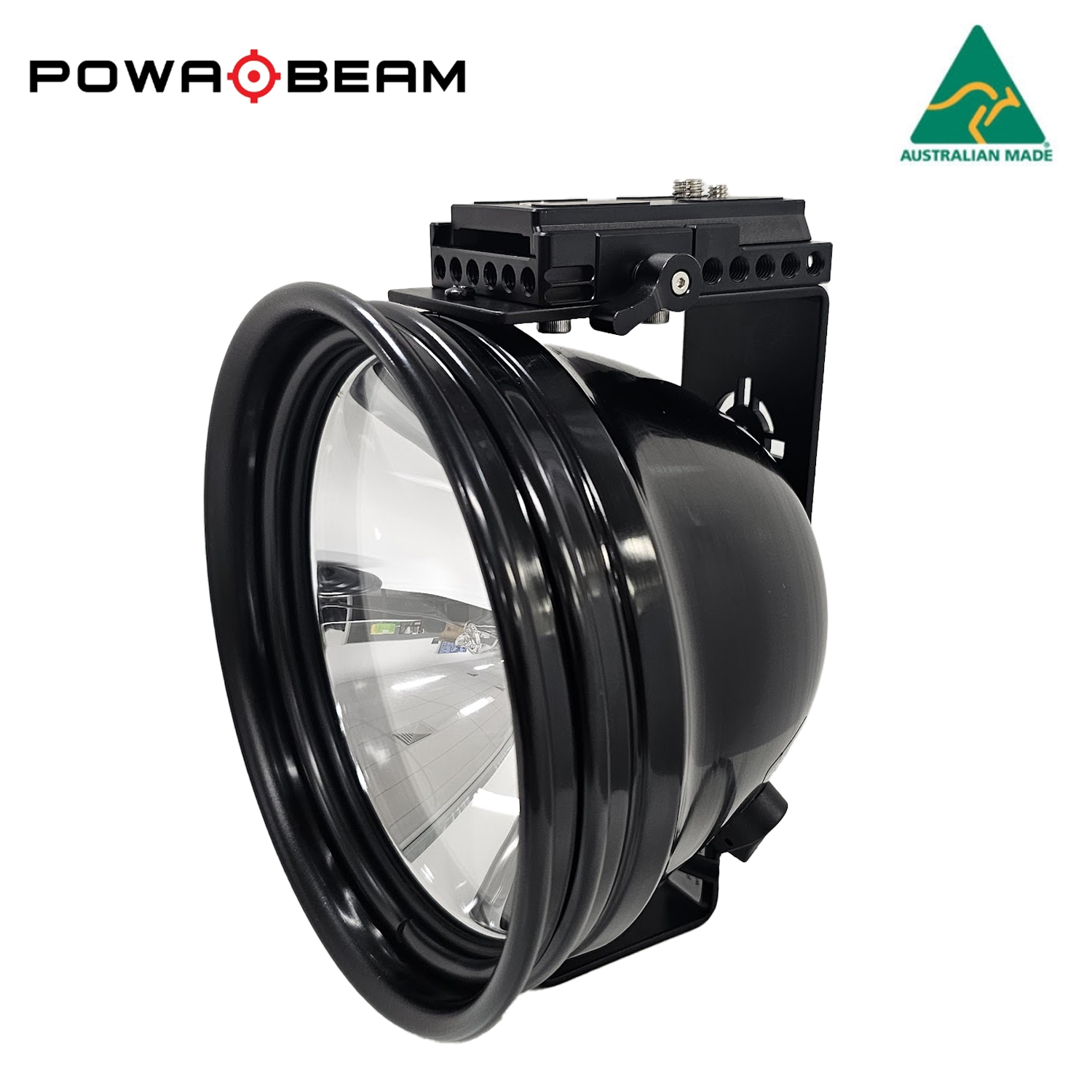

Powa Beam 7″ 24V 250w Information
Powa Beam 7″ 250w Quartz Halogen Spotlight with built-in thermal mount and quick release adaptor. Also includes a DC-DC 12/24v Convertor with USB Type-C for Constant Power Capability.
Specifications:
- Reflector Size – 175mm (Diameter)
- Casing Size – 195mm (Diameter) x 140mm (Depth)
- Voltage – 12V with a step up converter to 24V
- Power – 250W
- Nominal Luminous Flux – 8200lm
- Light Type – Quartz Halogen (QH)
- Beam Type – Adjustable from Spot to Spread
- Base – Steel Bracket with 9mm Mounting Hole
- UPC: 609722 855020
*NOTE:
- On Standby this Light will draw approx. 100mA, we suggest using a 25amp Isolation Switch
- In use this Light will draw approx. 22amp from the battery to the converter & approx. 10amp from the convertor to the spotlight
Main Components for Modifications & Repairs:
- Bulb: 24V 250W Vertical Filament
- Lens: Toughened Glass
- Reflector: Heat Resistant Alloy Reflector
- Case: Anodized Alloy
- Base: Powder Coated Custom Metal Bracket
Device Mount Specifications:
- Quick attach/detach
- Secure locking system with backup safety lock for extra peace of mind
- 1x 1/4″ mounting bolt to attach your thermal device or camera
- 1x 3/8″ mounting bolt to attach your thermal device or camera
- Rubber Anti-Slip Pads
- DC-DC 12/24v Convertor with USB Type-C & wire pack
Package Includes:
- Powa Beam 7” 250W QH Spotlight with Thermal Mount attached
- DC-DC 12/24v Convertor with USB Type-C & wire pack
- 3.5m Cable
- High Current 30A Switch
- Electrical Connectors
- 12-24v Step Up Converter
- Full Wiring Loom with Anderson Plugs and 8mm Ring Terminals
- Inline Fuse & Fuse Holder
- Powa Beam Bumper Sticker
