Handheld Mini Thermal Imaging Monocular

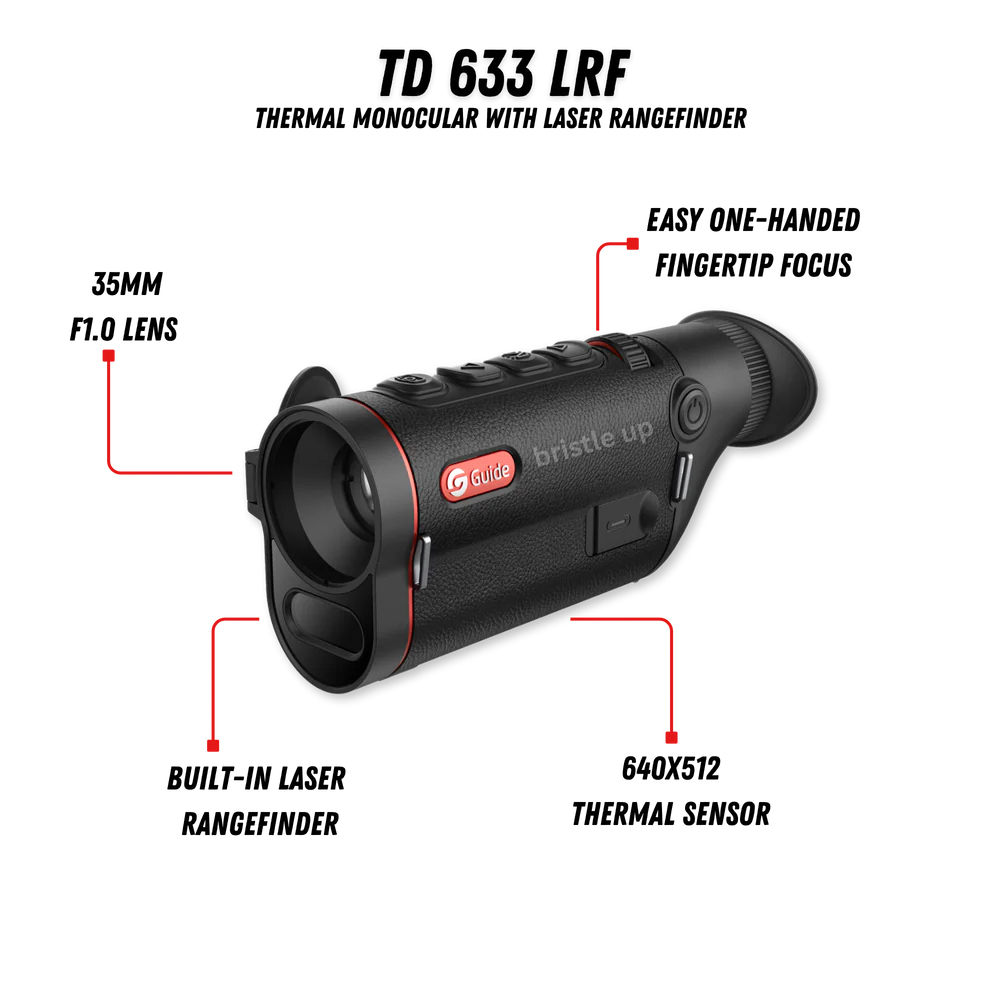

The Guide TD633L 3.0 merges advanced thermal imaging with precision ranging in a handheld format crafted for one-handed use. It incorporates a 640×512 VOx sensor (12 µm pixel pitch, NETD ≤ 20 mK), presenting crisp, high-contrast images via a bright 0.36″ AMOLED display (1280×960 resolution, 50 Hz refresh). Its lightweight (≈ 376 g) yet robust build, combined with an ergonomic symmetrical design, makes it ideal for long outdoor missions.

Equipped with a 35 mm f/1.0 lens, the TD633L provides a field of view of approximately 22 m × 17 m at 100 m. It offers a versatile optical magnification range from 1.8× to 14.4×, enabling a detection range of up to 1,800 m. With its integrated laser rangefinder, it accurately measures distances up to 1,000 m.

The TD Gen3 LRF Series handheld thermal imaging monocular innovatively integrates a laser rangefinder while maintaining a compact design. The focusing roller allows for convenient one-handed operation, while the symmetrical ergonomic design enables flexible handling with either hand. With an impressive 12-hour battery life and IP67, it is well-equipped to handle various outdoor challenges. Featuring Wi-Fi connection, it enhances the efficiency and enjoyment of your exploration.
