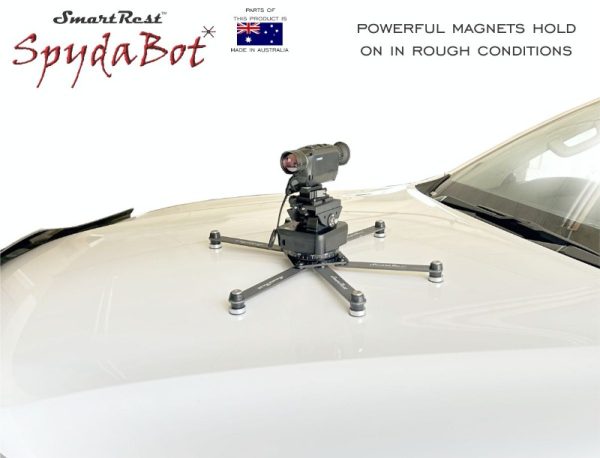

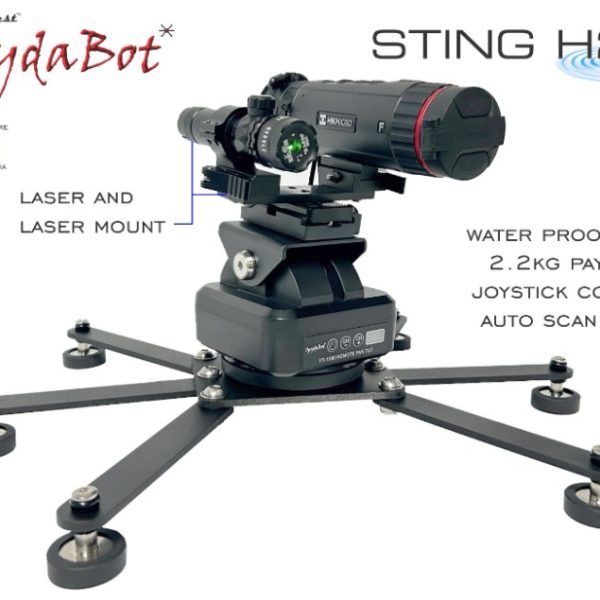

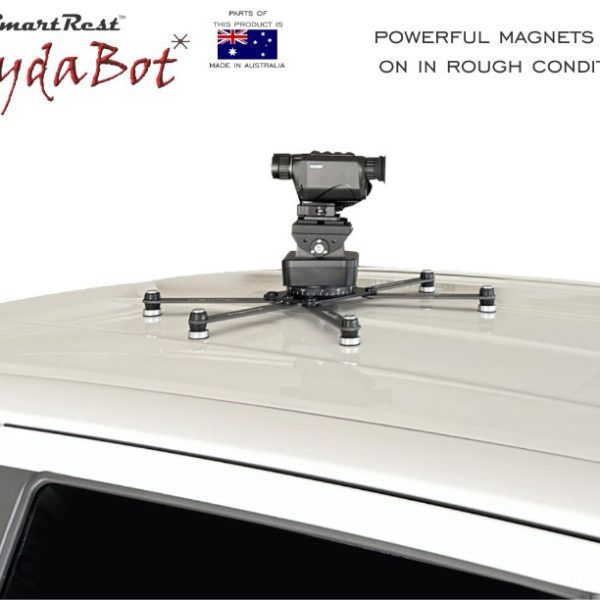

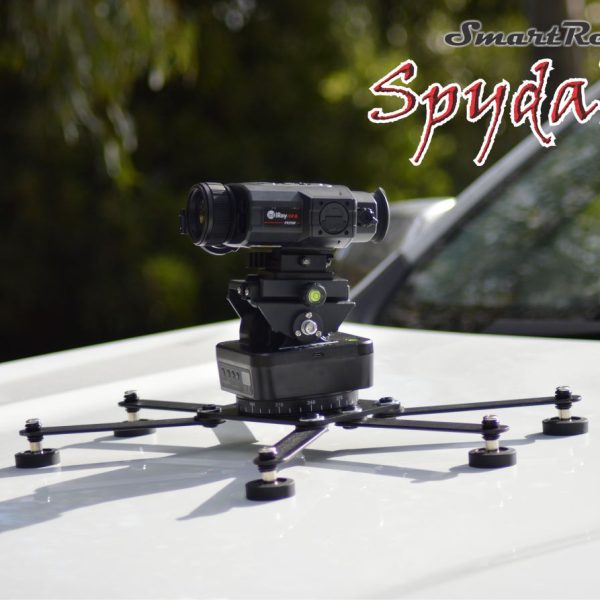

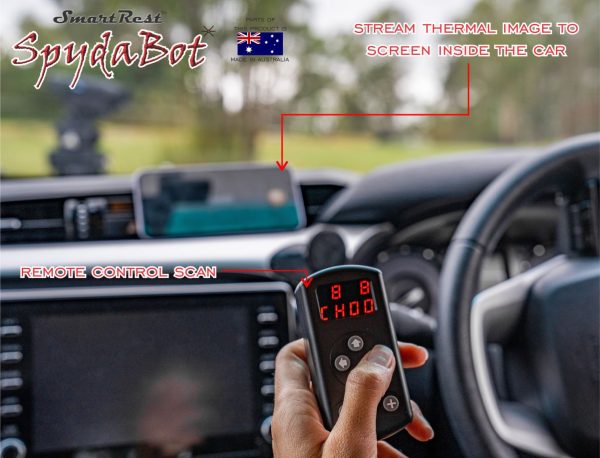

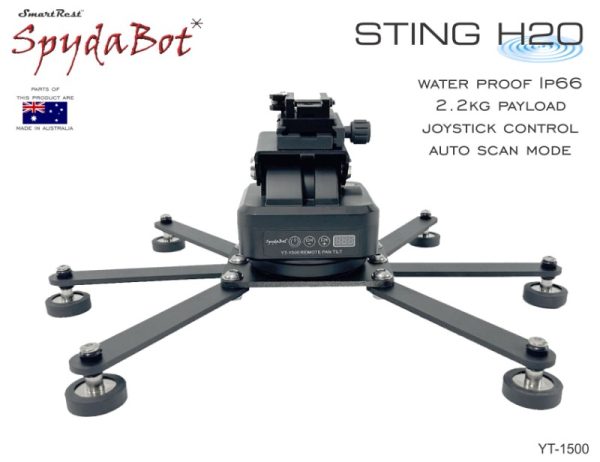

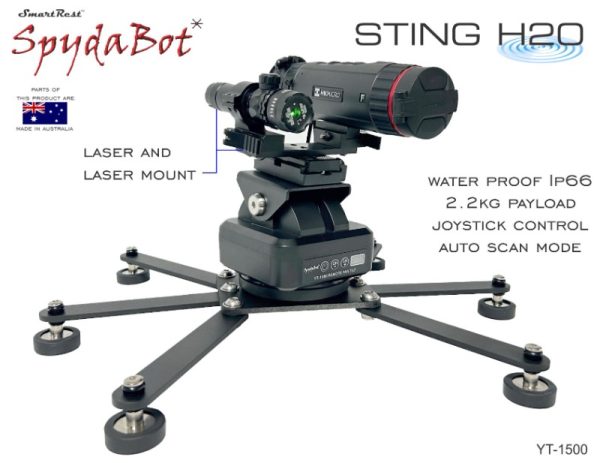

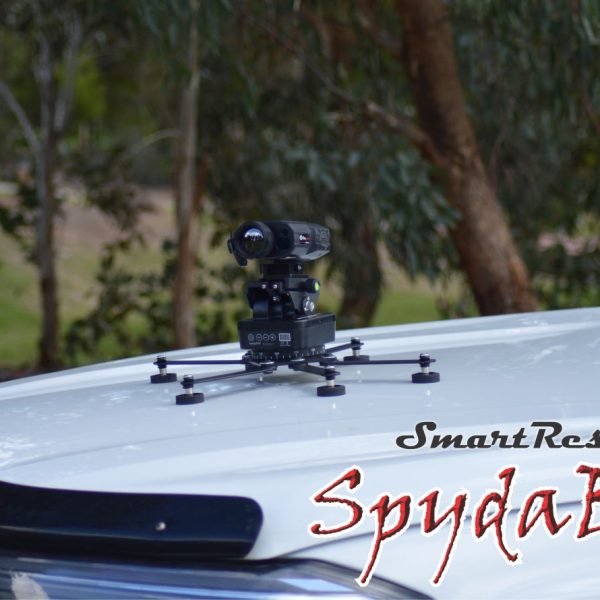

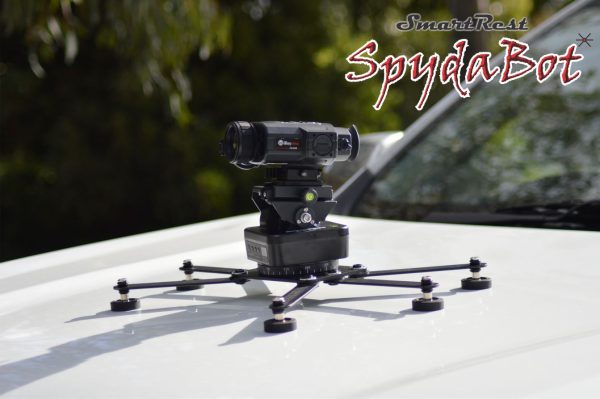

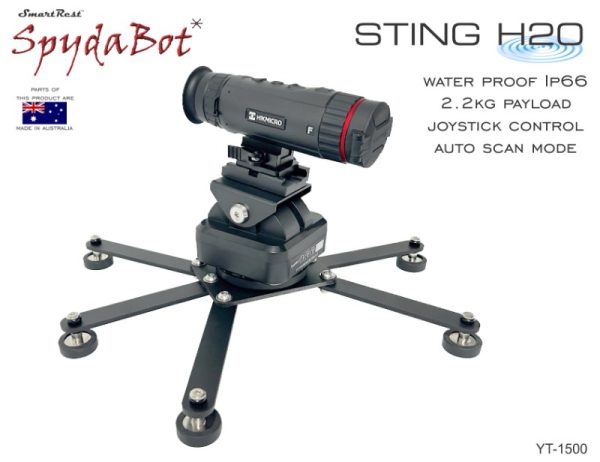

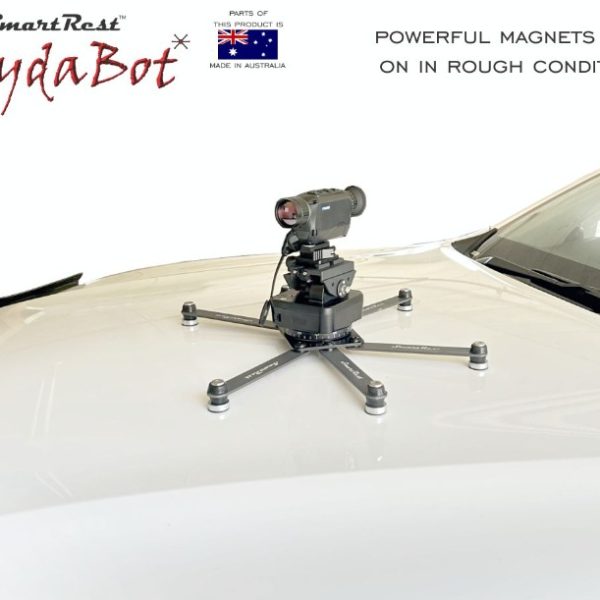

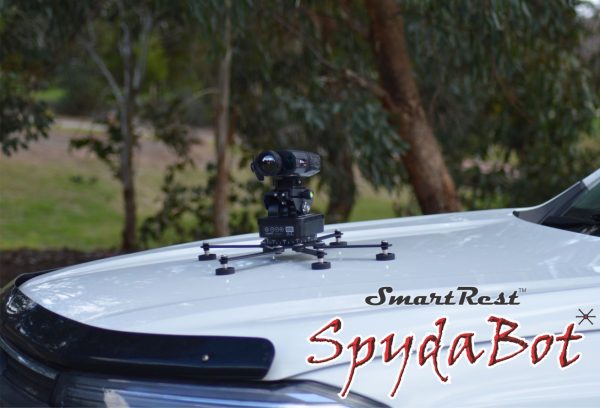

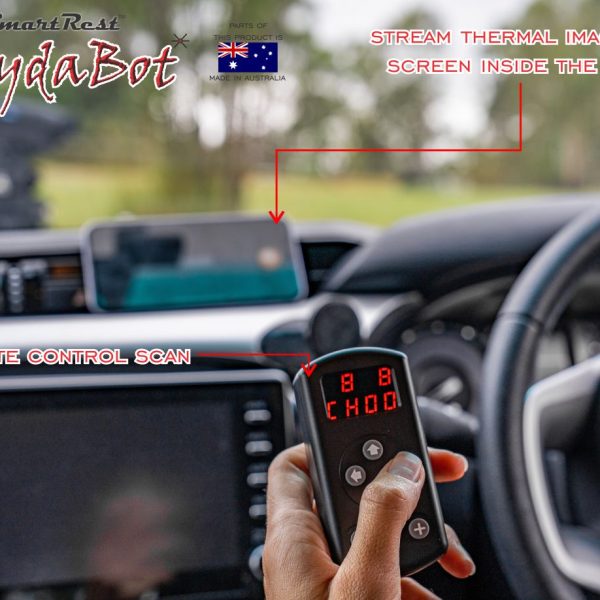

The SpydaBot is a wireless remote controlled robotic unit mounted on six magnetic legs that magnetise to a metal surface. The application of this set up is usually on a vehicle bonnet or turret of a vehicle where the passengers of the vehicle can control a thermal camera from inside the vehicle. The thermal camera outputs a wireless image to a smart screen inside the vehicle for the passengers to view. The magnetic feet have been arranged in a wide foot print around the central unit to ensure excellent adherence to the vehicle even in intensely rough conditions. We highly recommend the laser pointer mount and the laser to use as a direction indicator. It can get disorientating at night if you don’t know where the thermal is pointing, a laser easily solves that issue.

Uses:

The SpydaBot is used for:

• Scanning with thermal camera from a vehicle
• Scanning with a light from a vehicle
• Pest control uses
• Livestock monitoring
• Security

Advantages:

• Scanning from vehicle
• Easy mounting technique makes it fast to mount and remove
• All passengers in the vehicle can view the screen
• Quick release system so the thermal camera can be easily removed and used on a wide range of SmartRest units
• Long lasting batteries

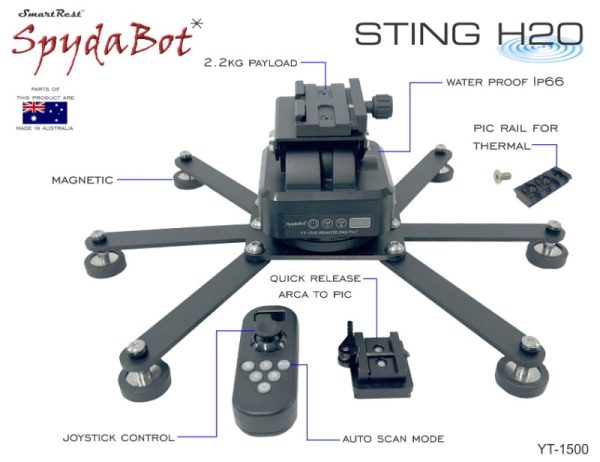

Technical Features:

• 3.7v2000mah 18560 rechargeable lithium battery
• 360⁰ rotation
• 2.4G wireless control
• Adjustable speed
• Tilt angle – 52⁰
• Pan speed – Full revolution / 18 seconds
• Battery power indicator
• Remote distance >40m
• Water proof IP66
• Power 3W max

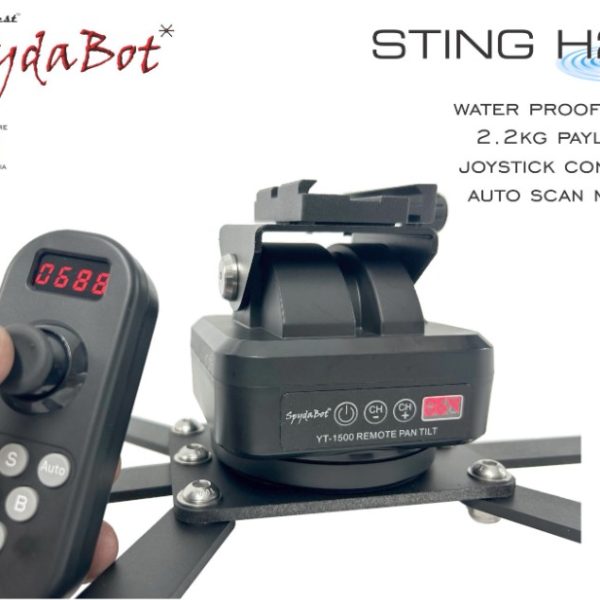

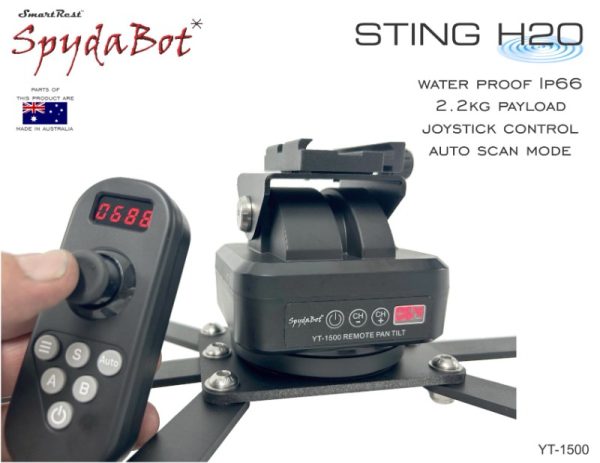

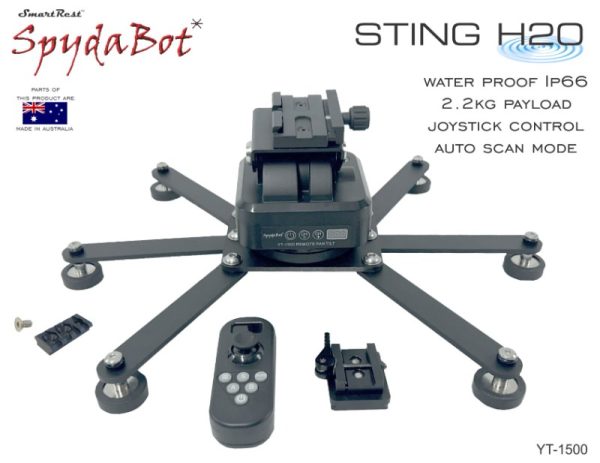

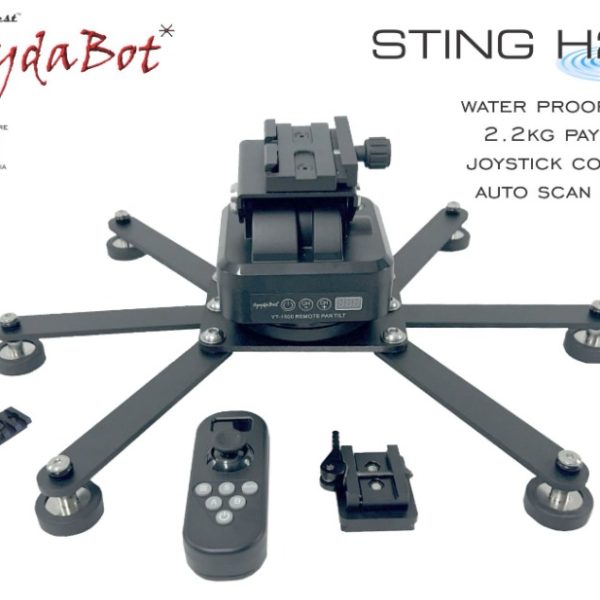

• Joystick Remote – digital display screen batteries included

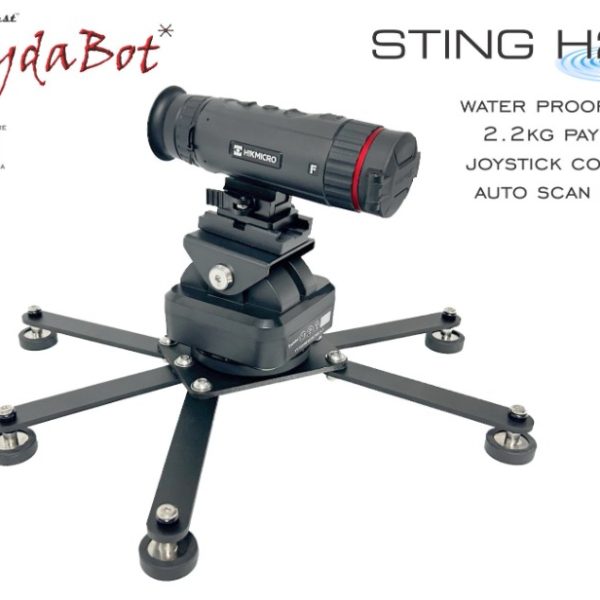

• Quick release thermal attachment system from Arca to pic – with rail included
• 6 x silicone caps cover the Magnetic feet – will not damage the paint

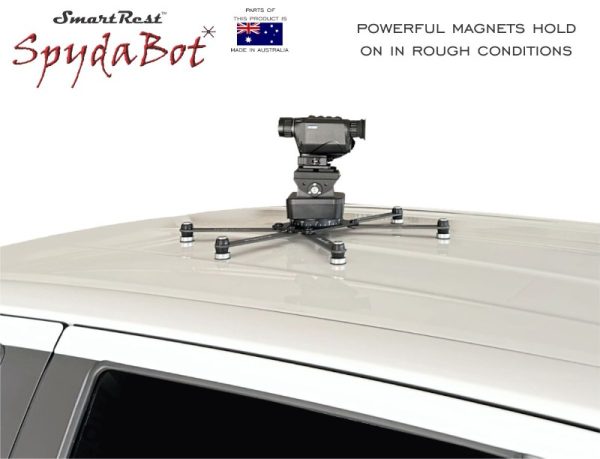

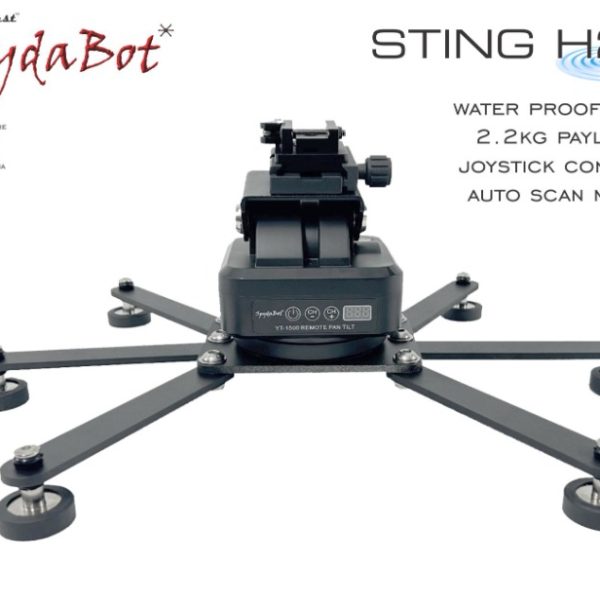

• 6 x magnetic rare earth neodymium feet on steel legs
• Wide foot print for extra grip in the roughest terrain regardless of weather
• 1 year manufacturer warranty on the motor (repair only) – Life time on hardware with proper use – a replacement unit will be loaned out until the repair is done
• Remote Battery – 2 x AAA alkaline
