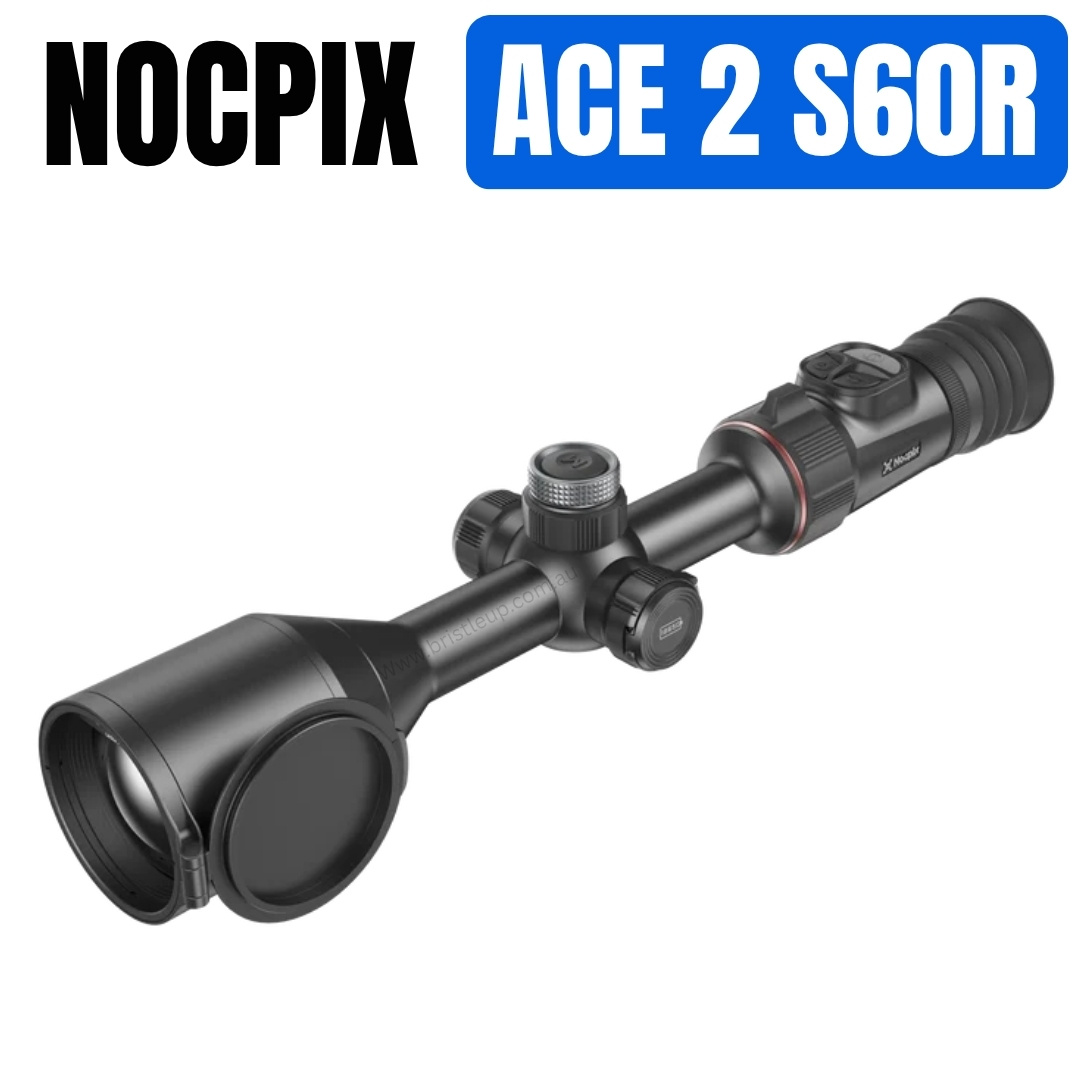

Nocpix Ace 2 S60R LRF – Thermal Scope
$10,499.95
NocPix Ace 2 S60R LRF – Thermal Scope
The ACE 2 S60R represents the pinnacle of the Nocpix thermal riflescope range, delivering unmatched image detail and long-range performance for hunters who demand the very best. Featuring a next-generation 1280×1024 thermal sensor with NETD ≤12mK sensitivity, the S60R provides extraordinary thermal resolution and target identification capability well beyond the limits of conventional thermal optics.
Its premium 60mm F1.0 objective lens maximises thermal data collection, while the advanced R+ 2.0 image enhancement engine ensures superior image clarity, contrast, and detail in every environment. Dual Clarity Mode allows users to seamlessly transition between smooth target tracking and ultra-detailed observation, giving the confidence to identify game with absolute certainty.
Integrated LRF 2.0 technology delivers rapid and precise ranging, while the onboard ballistic calculator provides real-time aiming corrections for improved long-range accuracy. Despite its flagship performance, the S60R remains lightweight and field-ready thanks to its magnesium alloy construction, making it the ultimate thermal riflescope for demanding hunting applications.
Key Features:
- 1280×1024 thermal sensor
- NETD ≤12mK thermal sensitivity
- 60mm F1.0 objective lens
- Detection range up to 3100m
- Integrated LRF 2.0 rangefinder
- Built-in ballistic calculator
- Dual Clarity Mode
- R+ 2.0 AI image enhancement
- Ocular Zoom 2.0
- 64GB internal storage
- 5G WiFi connectivity
- Magnesium alloy housing
- Up to 7 hours runtime
- IP67 waterproof rating
TECHNICAL SPECIFICATIONS
| Model | ACE 2 H35R | ACE 2 H50R | ACE 2 H60R | |
|---|---|---|---|---|
| Detector Specifications |
Thermal sensor | 640×512 & 12μm | 640×512 & 12μm | 1280×1024 & 12μm |
| NETD, mK | ≤12 | |||
| Frame rate, Hz | 60 | 60 | 30/60 | |
| Optical Specifications |
Objective lens, mm | F35/0.9 | F50/0.9 | F60/1.0 |
| Field of view (H×V) / ° @100m | 12.6×10.1 / 21.9×17.6 | 8.8×7.0 / 15.4×12.3 | 14.7×11.7 / 25.6×20.5 | |
| Optical Magnification, × | 2~4 | 3~6 | 2~4 | |
| Max. Magnification | 20× | 24× | 28× | |
| Eye relief, mm | 60 | |||
| Exit pupil diameter, mm | 10 | |||
| Diopter, D | -5~+4 | |||
| Detection range, m (Target size: 1.7m×0.5m, P(n)=99%) |
1800 | 2600 | 3100 | |
| Display Specifications |
Type | AMOLED | ||
| Resolution, pixels | 2560×2560 | |||
| Battery Power Supply |
Battery | Built-in battery/3650mAh + Replaceable 18650 battery/3650mAh | ||
| Max. operating Time (22°C), h | 8 | 8 | 7 | |
| External Power Supply | 5V (Type C) | |||
| Physical Specifications |
Wi-Fi/APP | Support | ||
| Photo/Video Recorder | Support | |||
| Recoil activated video | Support | |||
| Gallery | Support | |||
| Memory Capacity | 64GB | |||
| IP rating | IP67 | |||
| Operating Temperature, °C | -20 ~ +50 | |||
| Weight, g | 850 | 920 | 980 | |
| Dimension, mm | 367×65×92 | 383×70×92 | 397×73×92 | |
| Connections Compatibilities |
Max. recoil power on rifled weapon (E₀), Joules |
7000 | ||
| Safety Class for LRF | Class 1 | |||
| LRF, m | 1200, ±1 | |||
| Ballistic Calculation | Support | |||
Nocpix Ace 2 Model
| Nocpix Ace 2 Series | ACE 2 S60R – 12mk – 2x – 1280px – 3100m |
|---|
