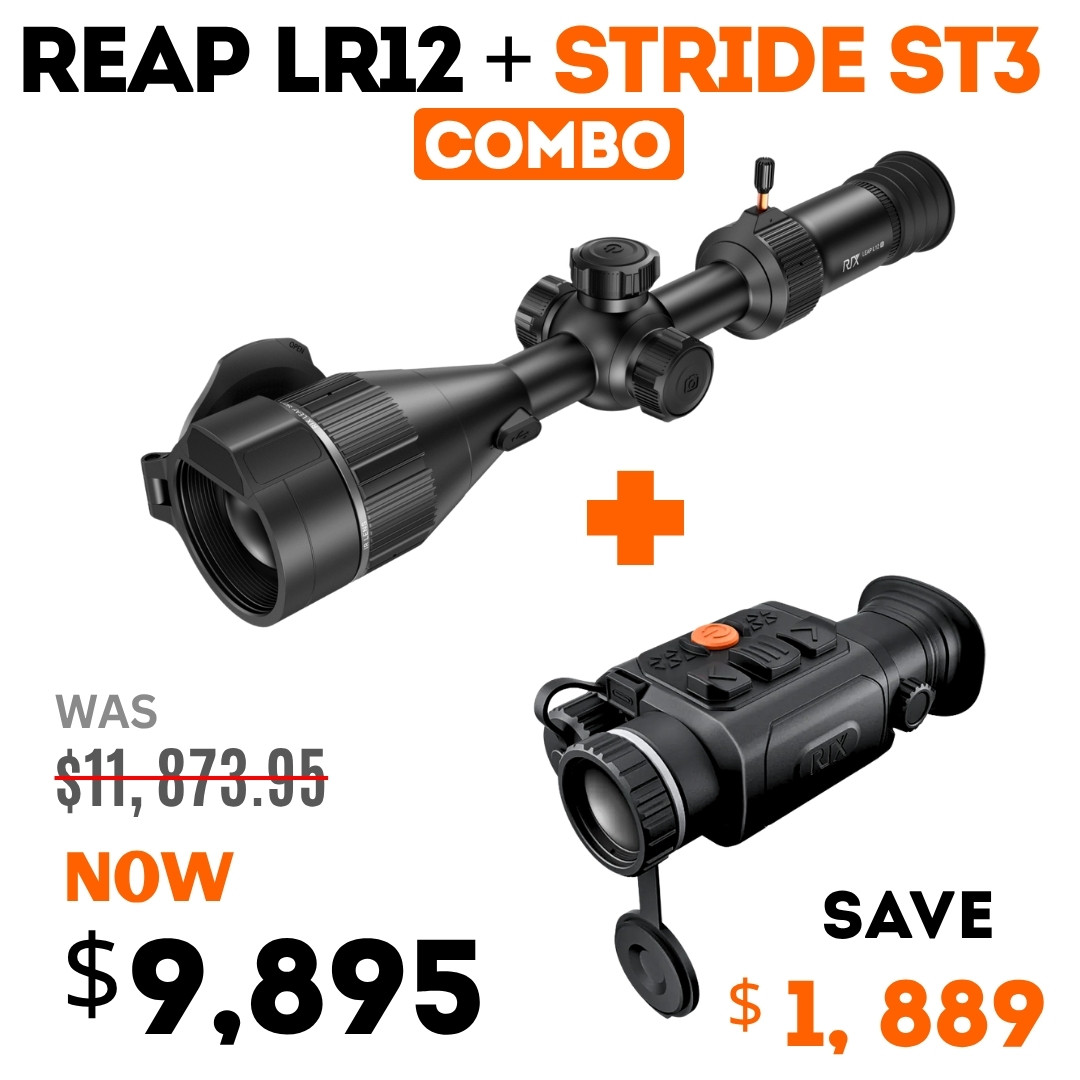

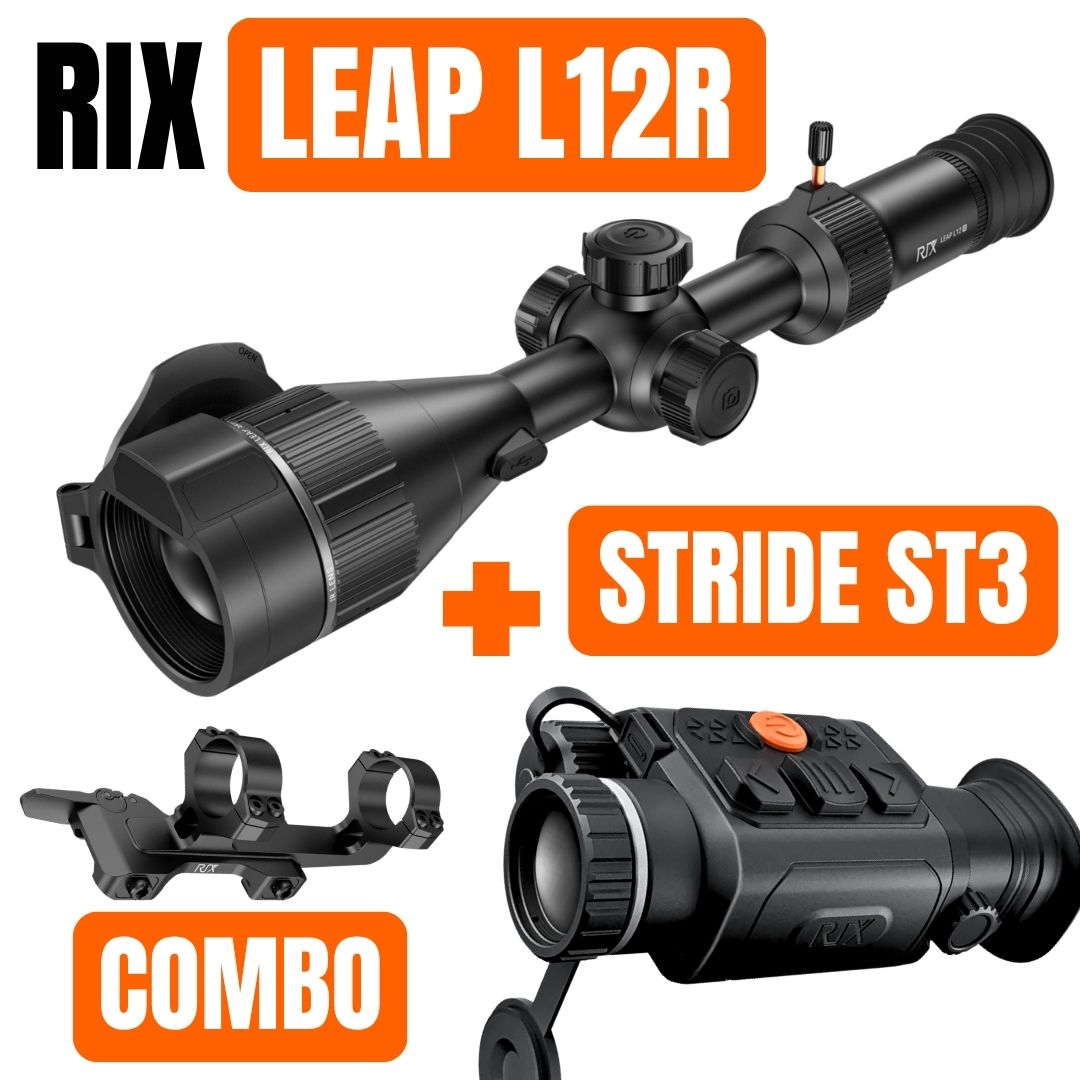

RIX LEAP L12R Thermal Riflescope + Stride ST3 Combo
From: Original price was: $11,873.95.$9,895.00Current price is: $9,895.00. GST
RIX LEAP L12R – Thermal Imaging Riflescope
The RIX LEAP L12R Thermal Imaging Riflescope is a flagship long-range thermal riflescope built for hunters and shooters who demand extreme image clarity, precision ranging, and smooth optical zoom performance in the harshest night conditions. Featuring a next-generation 1280×1024 thermal sensor with an ultra-sensitive NETD of less than 15mK, the LEAP L12R delivers incredibly detailed thermal imaging with enhanced target separation, even in fog, rain, humidity, or low-contrast environments.
TECHNICAL SPECIFICATIONS
| Model | LEAP L3R | LEAP L6R | LEAP L12R |
|---|---|---|---|
| Sensor Specifications | |||
| Type | VOx Uncooled | VOx Uncooled | VOx Uncooled |
| Resolution | 384×288 | 640×480 | 1280×1024 |
| Pixel Pitch | 12μm | 12μm | 12μm |
| NETD | <20 mK | <20 mK | <15 mK |
| Frame Rate | 50 Hz | 50 Hz | 60 Hz |
| Optical Specifications | |||
| Objective Lens | 35mm, F0.9 | 50mm, F0.9 | 60 mm, F1.0 |
| Base Magnification | 3.2~9.6× | 2.8~8.4× | 2~6× |
| Field of View, degrees/yd@100yd | 7.5°×4.2°/13.2×7.4yd | 8.8°×4.9°/15.4×8.6yd | 14.6°×11.7°/25.6×20.5yd |
| Digital Zoom | 1~4× | 1~4× | 1~8× |
| Eye Relief | 50mm | 50mm | 50mm |
| Diopter Adjustment | -5 ~ +5 D | -5 ~ +5 D | -5 ~ +5 D |
| Detection Range | 1800m / 1969yd | 2600m / 2843yd | 3100m / 3390yd |
| Display Specifications | |||
| Type | AMOLED | AMOLED | AMOLED |
| Resolution, pixels | 1920×1080 | 1920×1080 | 2560×2560 |
| Laser Rangefinding | |||
| Measurement Range | 1200m / 1312yd | 1200m / 1312yd | 1200m / 1312yd |
| Measurement Accuracy | ±1m / ±1.09yd | ±1m / ±1.09yd | ±1m / ±1.09yd |
| Video Recorder | |||
| Video / Photo Resolution | 1280×720 | 1280×720 | 1280×1280 |
| Video / Photo Format | .mp4 / .jpg | .mp4 / .jpg | .mp4 / .jpg |
| Built-in Memory | 32GB | 32GB | 64GB |
| Environmental Characteristics | |||
| Degree of Protection, IP code | IP67 | IP67 | IP67 |
| Operating Temperature Range | -20°C to +50°C / -4°F to +122°F | -20°C to +50°C / -4°F to +122°F | -20°C to +50°C / -4°F to +122°F |
| Connections and Compatibilities | |||
| Battery Type | 18650 | 18650 | 18650 |
| Wi-Fi | √ | √ | √ |
| Operating Time on Battery Pack (at t=25°C/72°F) | 4 h | 4 h | 6.5 h |
| External Power Supply, V | 5V(Type-C USB) | 5V(Type-C USB) | 5V(Type-C USB) |
| Max Recoil Power on Rifled Weapon (Eo) | 1000g / 6000J | 1000g / 6000J | 1000g / 6000J |
| Compatible Mounts | 30mm rings | 30mm rings | 30mm rings |
| Weight & Size | |||
| Dimensions | 371×89×76 mm / 14.2×3.5×3 in | 371×89×76 mm / 14.2×3.5×3 in | 395×97×85 mm / 15.5×3.8×3.3 in |
| Weight | 1200 g / 2.7 lb | 1200 g / 2.7 lb | 1356 g / 3.0 lb |
RIX Optics Leap Series
| Rix Leap Series | RIX Leap L12R |
|---|
ADM American Defense - Quick Detach Mount
| American Defense Series | DELTA, RECON |
|---|---|
| Tube Size | 25mm Tube, 30mm Tube, 34mm Tube |
| Mount Height | 27mm, 29mm, 34mm, 35mm, 38mm, 39mm, 43mm, 49mm |
| American Defense Mount Models | AD DELTA QD C STD – 30mm Tube – 38mm Height – 0 MOA – (50mm Cantilevered for better eye relief, AD DELTA QD C-H – 30mm Tube – 49mm Height – 0 MOA – (50mm offset for better eye relief), AD DELTA QD C-H STD – 30mm Tube – 49mm Height – 0 MOA, AD DELTA QD C-M – 30mm Tube – 43mm Height – 0 MOA – (50mm offset for better eye relief), AD DELTA QD RC-30-STD – 30mm Tube – 43mm Height – 0 MOA – (25mm offset for better eye relief) – Left Side Levers, AD DELTA QD RC-L-30-STD – 30mm Tube – 34.9mm Height – 0 MOA – (25mm offset for better eye relief), AD DELTA QD STD – 25mm Tube – 38mm Height – 0 MOA, AD DELTA QD STD – 30mm Tube – 38mm Height – 0 MOA, AD DELTA QD STD – 34mm Tube – 39mm Height – 0 MOA, AD Recon 30 STD QD – 30mm Tube – 38mm Height – 0 MOA – (50mm Cantilevered for better eye relief), AD Recon 30 STD QD – 25mm Tube – 34mm Height – 0 MOA – (50mm Cantilevered for better eye relief), AD Recon 30 STD QD – 34mm Tube – 39mm Height – 0 MOA – (50mm Cantilevered for better eye relief), AD Recon H QD STD – 30mm Tube – 49mm height – 0 MOA, AD Recon QD SL-30-STD – 25mm Tube – 27mm Height – 0 MOA, AD Recon S 30 STD QD – 30mm Tube – 37mm Height – 0 MOA, AD Recon S QD STD – 34mm Tube – 39mm Height – 0 MOA, AD Recon SL QD STD – 30mm Tube – 29mm Height – 0 MOA, AD Recon SL QD STD – 34mm Tube – 29mm Height – 0 MOA |
Popular Unimounts + Rings + Quick Detach 2026
| Mount Brand | Burris, Darnox, Magne-Tech, SPUHR, Warne |
|---|---|
| Tube Size | 30mm Tube |
| Mount Models | Burris AR-PEPR – 30mm Tube – 40mm Height – 50mm Cantilever, Darnox 7075 Rings – 30mm Tube – 32mm Height – 0 MOA, Darnox 7075 Rings – 30mm Tube – 37mm Height – 0 MOA, Darnox ObsidianOne – 30mm Tube – 38mm High – 50mm Cantilever – 0 MOA, Magne-Tech 30mm Tube – TOP PART ONLY – 38.5mm high, (Part B), Magne-Tech BASE ONLY goes to picatinny rail (Part A), Magne-Tech FULL KIT – 30mm Tube – 38.5mm Height, SPUHR – QDP-3002 – 30mm Tube – 38mm Height – 0 MOA, SPUHR – QDP-3006 – 30mm Tube – 34mm Height – 0 MOA, SPUHR – QDP-3016 – 30mm Tube – 38mm Height – 0 MOA – 40mm Offset, SPUHR – QDP-3046 – 30mm Tube – 34mm Height – 0 MOA – 40mm Cantilever (recommended for Thermal), Warne XSKEL QD – 30mm Tube – 36mm Height – 0 MOA – 40mm Cantilever |
(K) ALL Picatinny Rails 2026
| Rifle Brand | Anschutz, Brno, Browning, CZ, Howa, Lithgow, Marlin, Other / I Need Help, Remington, Ruger, SAKO, Sauer, Savage, Steyr, Tikka, UTG / Uni Dovetail, Weatherby, Winchester |
|---|---|
| Picatinny Rail | 11mm Dovetail to Picatinny Adapter – 145mm Long – MNT-ADP1102 CCOP, 12mm – 145mm Long – Dovetail to Picatinny Adapter – MNT-ADP1102 CCOP, 3/8 – 9.5mm – 125mm Long Dovetail to Picatinny Adapter – WODG048 CCOP, 5/8 – 16mm – 145mm Long – Dovetail to Picatinny Adapter – MNT-ADP85002 CCOP, A-Bolt LA 0 MOA 43100 EGW, A-Bolt SA 0 MOA 43000 EGW, AC Howa 1500 Mini Action, Anschutz 11mm – 1450, 1451, 1415, 1416, 1418, 1420, Model 64 / Match 64, 1710, 1712, Model 54 / Match 54, 1761, 1903, 1907, 1913 – MNT-ADP1102 – CCOP, Anschutz 54 Action, 54.18, 1710, 1712 – Talley, Armacore Ruger, LA M77, M77 MKII, Hawkeye, Armacore Ruger, SA M77, M77 MKII, Hawkeye, Armacore Tikka T3, T3x, 0 MOA Australian Made, ATP Howa 1500 SA MOA, ATP Lithgow LA101 RH MOA, ATP Lithgow LA102, LA105, 0 MOA, ATP Remington 700 SA MOA, ATP Tikka M55 Black MOA, ATP Tikka T1x RH 0 MOA, Contessa SAKO 85 M PH13 – 75 IV, MA 05 M, L691, TRG-S M995, Contessa SAKO 85 S-SM PH12, CONTESSA SAKO 90, S90, SK90, S20/CZ 600 0 MOA – Picatinny on Picatinny, Contessa SAKO XS 85, 75 I, MA 05 XS, L461 Vixen, S491 – PH31 Standard, CZ 11mm Dovetail 452, 453, 455, 511, 512, 515 – 0 MOA – EGW HD 80910 [ejection slot], CZ 3/8 dovetail 452, 453, 455, 511, 512, 515 – 0 MOA – EGW HD 80900 [ejection slot], CZ 452 / 455 / Brno newer Model 2, 2E – 3/8' (11mm) – MNTCZ455 – CCOP, CZ 527 / OLD Brno 1 and 2 – 5 / 8 (16mm) Dovetail – MNTCZ527 – CCOP, CZ 550 / CZ 557 / BRNO ZKK 600 / ZG-47 – Standard / Medium Action – 19mm Dovetail – 80914 – HD EGW, DN CZ 457, DN Sako S 85, 75 III, MA 05 S, L579 Forester, M591, VL63 Finnwolf, DN Sako XS 85, 75 I, MA 05 XS, L461 Vixen, S491, EGW HD Howa 1500/Weatherby Vanguard SA 81040, EGW HD Remington 700 SA 80000, EGW Savage Edge/Axis 41800, EGW Savage Flat Back SA 41200, EGW Savage Round Back SA 41000, EGW Winchester 70 SA 42000, Enter CZ Model In Notes Below, LA HD Rem 700, 721, 725, Sauer 100, 101 – 0 MOA – 50100 – Center Spread: 4.485 – EGW, LA LW Rem 700, 721, 725, Sauer 100, 101 0 MOA – 40100 – Center Spread: 4.485 – EGW, LA Mark V (9 lug) HD Weatherby 80700 EGW, LA Ruger American – 0 MOA 7685M Warne, LA Ruger M77 MNT MKII LAUH – RUGM77MK2LAUH – CCOP, LA Sauer 100 / REM 700 M674M Warne, LA X-BOLT BRNT – 0 MOA 7642BB Warne, LA101 0 MOA Lithgow DN, Low 3/8 Wedge / 12.7-13mm on top – Dovetail to Picatinny Adapter – 145mm Long – MNT-ADP83002 CCOP, Magnum Action – CZ 550, BRNO ZKK 602 – 19mm Dovetail – 80920 – HD EGW, Mark VTRR (6 lug Bolt) HD Weatherby O MOA 80710 EGW, Marlin XT-17, XT-22 982, 917 – AC, Mini Action Howa / 1500 – 0 MOA 7656M Warne, Other / I'm Not Sure, Remington 783 LA 0 MOA, Remington 783 SA 0 MOA, Ruger 10-22 NON-Takedown – 46100 EGW, Ruger American 10-22 – PBRUG001 CCOP, SA Ruger M77 MNT MKII LAUH – RUGM77MK2SAUH – CCOP, SA Sako A7 0 MOA Talley, SA Steyr SBS Pro Hunter / Pro Varmint- 0 MOA (Center Spread 2.44″) – 81070 – EGW, SA Winchester 70 – Arctic, SA XPR Winchester 70 – Arctic, Sako 85 XS PH31 NV 0 MOA – Contessa, Sako S20, CZ 600 Saphire / Helix 0 MOA PH70 – Contessa, Savage B Mag, Heavy Barrel, WSM, 0 MOA, BLK – 41970 EWG, Spuhr R-7001 Remington 700 SA 0MIL, Spuhr R-7011 Remington 700 LA 0MIL, SSA X-Bolt 7640M 0 MOA Warne, Tikka T3 / T3X 0 MOA – DN, Tikka T3 0 MOA – 44000 EGW, Tikka T3, T3x 0 MOA 76T3M Warne, UTG 9-11mm -100mm long Dovetail to Picatinny 9 slot, UTG 9-11mm Dovetail to Picatinny 14 slot 50mm cantilever, X-BOLT LA 0 MOA, X-BOLT SA 0 MOA |
(k) Zeroing Targets - Thermal + Day + Night Vision 2026
| Zeroing Targets | Pulsar Thermal + Day + Night Vision Zeroing Targets, Hikmicro Thermal + Day + Night Vision Zeroing Targets, Thermal Flashing Tape Roll Zeroing (Best Value) |
|---|
