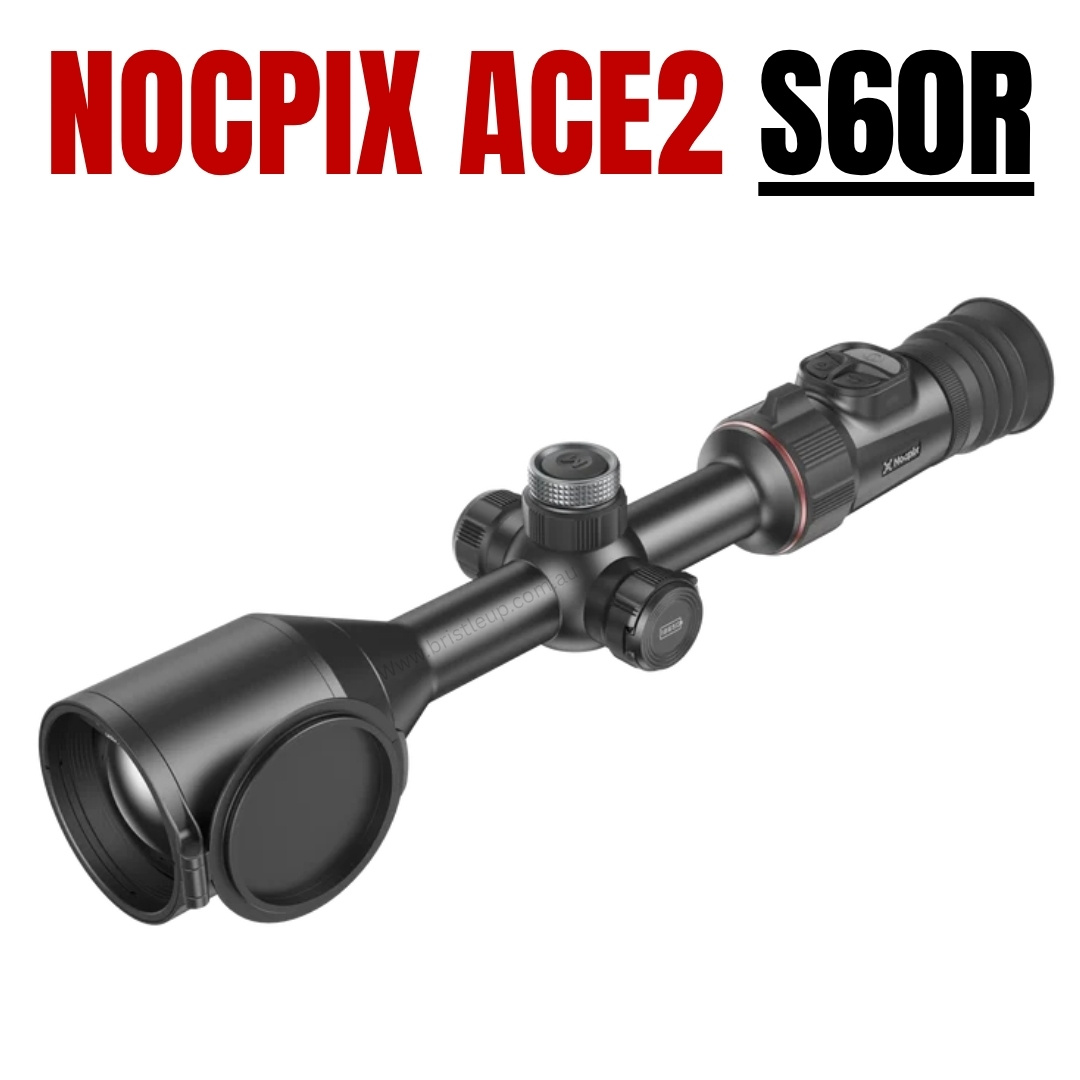

Nocpix Ace 2 S60R Thermal Scope
Nocpix Ace 2 S60R Thermal Scope - Image 2
Nocpix Ace 2 S60R Thermal Scope - Image 3
Nocpix Ace 2 S60R Thermal Scope - Image 4
Nocpix Ace 2 S60R Thermal Scope - Image 5
Nocpix Ace 2 S60R Thermal Scope - Image 6
Nocpix Ace 2 S60R Thermal Scope - Image 7
Nocpix Ace 2 S60R Thermal Scope
Nocpix Ace 2 S60R Thermal Scope - Image 2
Nocpix Ace 2 S60R Thermal Scope - Image 3
Nocpix Ace 2 S60R Thermal Scope - Image 4
Nocpix Ace 2 S60R Thermal Scope - Image 5
Nocpix Ace 2 S60R Thermal Scope - Image 6
Nocpix Ace 2 S60R Thermal Scope - Image 7

Nocpix Ace 2 S60R Thermal Scope

$10,499.95

2 in stockFree Express
Nocpix Ace2 Series

Nocpix Ace 2 Model

obsidian one cantilever mount

Popular Unimounts + Rings + Quick Detach 2026

American Defense

ADM American Defense - Quick Detach Mount

Picatinny Rails

ALL Picatinny Rails 2026

all pulsar hikmicro thermal targets

Zeroing Targets - Thermal + Day + Night Vision 2026

torque driver digital 2

Budget Torque Driver Digital High Accuracy with common bits

Budget Torque Driver Digital High Accuracy with common bits

The Nocpix ACE 2 S60R is the flagship model. It is the true ultimate all-rounder for both close and long range. It gives you a very good field of view at close range, even better than the H35R, while the 1280px sensor and incredible zoom quality give you the best long-range clarity and shape recognition in the ACE 2 Series, making it quite a step up over the H50R for longer shots.

You really can’t go wrong with this one if you can afford it. It is the perfect scope for everything from cattle country and open cropping country to dense cane, bananas and macadamias.

Its 1280×1024 12μm detector contains four times the pixel count of a 640×512 sensor and is paired with a large 60mm F1.0 objective lens, NETD ≤12mK sensitivity and selectable 30/60Hz operation.

Importantly, Nocpix has combined this resolution with 2× base magnification and a particularly wide 25.6 × 20.5m field of view at 100 metres. This gives the S60R a wider base image than either 640 ACE 2 model while retaining significantly more sensor resolution as magnification increases.

That makes the S60R an excellent option for hunters who want both a broad viewing area at base magnification and outstanding clarity and shape recognition at longer distances.

The S60R also receives the full ACE 2 feature platform, including R+ 2.0 image processing, Ocular Zoom 2.0, Integrated LRF 2.0, ballistic calculation, central focusing, intelligent tracking, Dual Clarity Mode, magnesium-alloy construction and 5G Wi-Fi.

ACE 2 S60R Key Specifications

  • Thermal sensor: 1280×1024
  • Pixel pitch: 12μm
  • NETD: ≤12mK
  • Frame rate: 30/60Hz
  • Objective: 60mm F1.0
  • Base magnification: 2×
  • Field of view: 14.7° × 11.7°
  • Field of view at 100m: 25.6 × 20.5m
  • Integrated laser rangefinder: LRF 2.0
  • Ballistic calculation: Yes
  • Ocular Zoom: Ocular Zoom 2.0



1280×1024 Thermal Sensor

The defining specification of the S60R is its 1280×1024 sensor.
A 1280×1024 detector contains 1,310,720 sensing pixels, compared with 327,680 in a 640×512 detector.
That’s four times the total pixel count.
That extra sensor information becomes particularly valuable when identifying animals, examining finer details or increasing magnification.
Digital zoom still reduces effective resolution — there is no magic way around that — but starting with four times as many sensor pixels gives the image-processing system considerably more information to work with.

60mm F1.0 Objective

The flagship sensor is paired with a 60mm F1.0 germanium objective.
This gives the S60R the largest objective in the ACE 2 family while its 1280 detector allows Nocpix to keep base magnification at just 2×.
The result is unusual: a physically large, long-distance-capable thermal scope that still gives the hunter a very broad view at minimum magnification.

25.6m Field of View at 100m

The S60R actually has the widest field of view of the entire ACE 2 range.
At 100 metres:
S60R: 25.6m wide
H35R: 21.9m wide
H50R: 15.4m wide
That means the flagship model doesn’t force the hunter into a narrow high-magnification view simply because it uses a 60mm objective.
The high-resolution 1280 sensor allows Nocpix to combine a large objective with a wide 2× starting view.

NETD ≤12mK

Resolution is only part of image quality.
The S60R sensor is also rated at ≤12mK NETD, improving its ability to distinguish small differences in temperature throughout the image.
This becomes increasingly important under poor thermal conditions when vegetation, ground and animals begin moving closer together in temperature.
The result should not simply be a sharper-looking image, but greater usable thermal separation for identification.

R+ 2.0 Image Processing

Nocpix’s upgraded R+ 2.0 AI image algorithm processes the information coming from the 1280 detector to improve fine detail, definition and perceived image clarity.
On the S60R in particular, the processing system has an enormous amount of raw sensor information available compared with conventional 640-class optics.
That is one of the reasons we recommend judging the S60R from real recordings rather than sensor numbers alone.

Ocular Zoom 2.0

The S60R begins with a wide 2× view, but that doesn’t mean it is restricted to low magnification.
Ocular Zoom 2.0 combines ocular magnification with electronic zoom, giving the shooter the ability to enlarge the viewed image while maintaining a natural reticle and interface presentation.
ACE 2 also increases eye relief to 60mm and exit pupil diameter to 10mm, making eye placement more forgiving than on the previous generation.
For the S60R, this combination is important: start wide when scanning and use the available resolution and magnification when more detail is required.

Integrated LRF 2.0

A premium long-range thermal optic needs a good rangefinder.
The Integrated LRF 2.0 system sits inside the ACE 2 housing and is designed to provide rapid distance information without an obvious external laser module.
Nocpix claims the new system offers 11% improved optical performance and up to 57% faster ranging in difficult conditions.

Advanced Ballistic Calculation

The S60R can feed measured range data into its integrated ballistic calculation system.
Configured ballistic information can then be used to calculate an adjusted aiming point based on measured distance and the relevant shooting parameters.
On a model designed for greater target detail and longer-distance observation, integrating the rangefinder and ballistic system makes particular sense.

Dual Clarity – Motion & Still Modes

ACE 2’s Dual Clarity Mode provides separate approaches for moving and relatively stationary targets.
Use Motion Mode to prioritise smooth, blur-resistant tracking.
Use Still Mode when you want to extract maximum fine detail and target definition.
The S60R’s high-resolution detector makes this particularly useful because there is substantial native detail available for the image-processing system to work with.

Central Focus System

Despite the S60R’s large 60mm front objective, focus adjustments are controlled from the centre of the scope.
This avoids repeatedly reaching forward to the objective bell and allows focus to be refined while staying closer to the normal shooting position.

Intelligent Tracking

Integrated laser ranging, electronic compass information and positioning functions allow ACE 2 to retain information relating to the ranged target position.
The system is designed to reduce the disconnect between identifying something through the scope and finding the corresponding location afterwards.

Magnesium Alloy Body

Large 1280 thermal scopes can become heavy very quickly.
ACE 2 uses a magnesium-alloy housing and Nocpix states that the new platform remains under 1000g, while being approximately 25% lighter than the preceding generation.
That is particularly important for the S60R because it houses the largest sensor and objective in the range.

Battery System

ACE 2 combines internal battery capacity with a replaceable 18650 cell, providing both onboard power and the ability to carry spare batteries.
Nocpix advertises the platform at up to eight hours, although actual runtime varies by model and by use of Wi-Fi, ranging and recording functions.

5G Wi-Fi & Recording Transfer

The upgraded wireless system supports 5G Wi-Fi transfer rates quoted at up to 20MB/s.
This is particularly useful on the S60R because high-quality thermal video files can become large, making faster transfer to a phone or other device a worthwhile improvement.

ACE 2 S60R vs H50R

These two models shouldn’t be compared on lens size alone.

ACE 2 H50R

640×512
50mm F0.9
3× base magnification
15.4m FOV at 100m
60Hz

ACE 2 S60R

1280×1024
60mm F1.0
2× base magnification
25.6m FOV at 100m
30/60Hz
The H50R starts more magnified.
The S60R starts substantially wider but has four times the sensor pixel count available.
That distinction is more important than simply thinking of them as a 50mm versus 60mm scope.

Who Is the Nocpix ACE 2 S60R For?

Choose the S60R when your priority is:
  • Maximum thermal sensor resolution
  • Fine target detail
  • Strong performance when magnification is required
  • Wide field of view at base magnification
  • Premium thermal image quality
  • Integrated LRF and ballistic calculation
  • A traditional tube-style scope rather than a brick-style optic
It is the premium ACE 2 and the model to look at when image quality matters more than achieving the lowest possible purchase price.

TECHNICAL SPECIFICATIONS

Model ACE 2 H35R ACE 2 H50R ACE 2 H60R
Detector
Specifications		 Thermal sensor 640×512 & 12μm 640×512 & 12μm 1280×1024 & 12μm
NETD, mK ≤12
Frame rate, Hz 60 60 30/60
Optical
Specifications		 Objective lens, mm F35/0.9 F50/0.9 F60/1.0
Field of view (H×V) / ° @100m 12.6×10.1 / 21.9×17.6 8.8×7.0 / 15.4×12.3 14.7×11.7 / 25.6×20.5
Optical Magnification, × 2~4 3~6 2~4
Max. Magnification 20× 24× 28×
Eye relief, mm 60
Exit pupil diameter, mm 10
Diopter, D -5~+4
Detection range, m

(Target size: 1.7m×0.5m, P(n)=99%)
 1800 2600 3100
Display
Specifications		 Type AMOLED
Resolution, pixels 2560×2560
Battery
Power Supply		 Battery Built-in battery/3650mAh + Replaceable 18650 battery/3650mAh
Max. operating Time (22°C), h 8 8 7
External Power Supply 5V (Type C)
Physical
Specifications		 Wi-Fi/APP Support
Photo/Video Recorder Support
Recoil activated video Support
Gallery Support
Memory Capacity 64GB
IP rating IP67
Operating Temperature, °C -20 ~ +50
Weight, g 850 920 980
Dimension, mm 367×65×92 383×70×92 397×73×92
Connections
Compatibilities		 Max. recoil power on
rifled weapon (E₀), Joules		 7000
Safety Class for LRF Class 1
LRF, m 1200, ±1
Ballistic Calculation Support

Nocpix Ace 2 Model

Nocpix Ace 2 Series

ACE 2 S60R – 12mk – 2x – 1280px – 3100m
