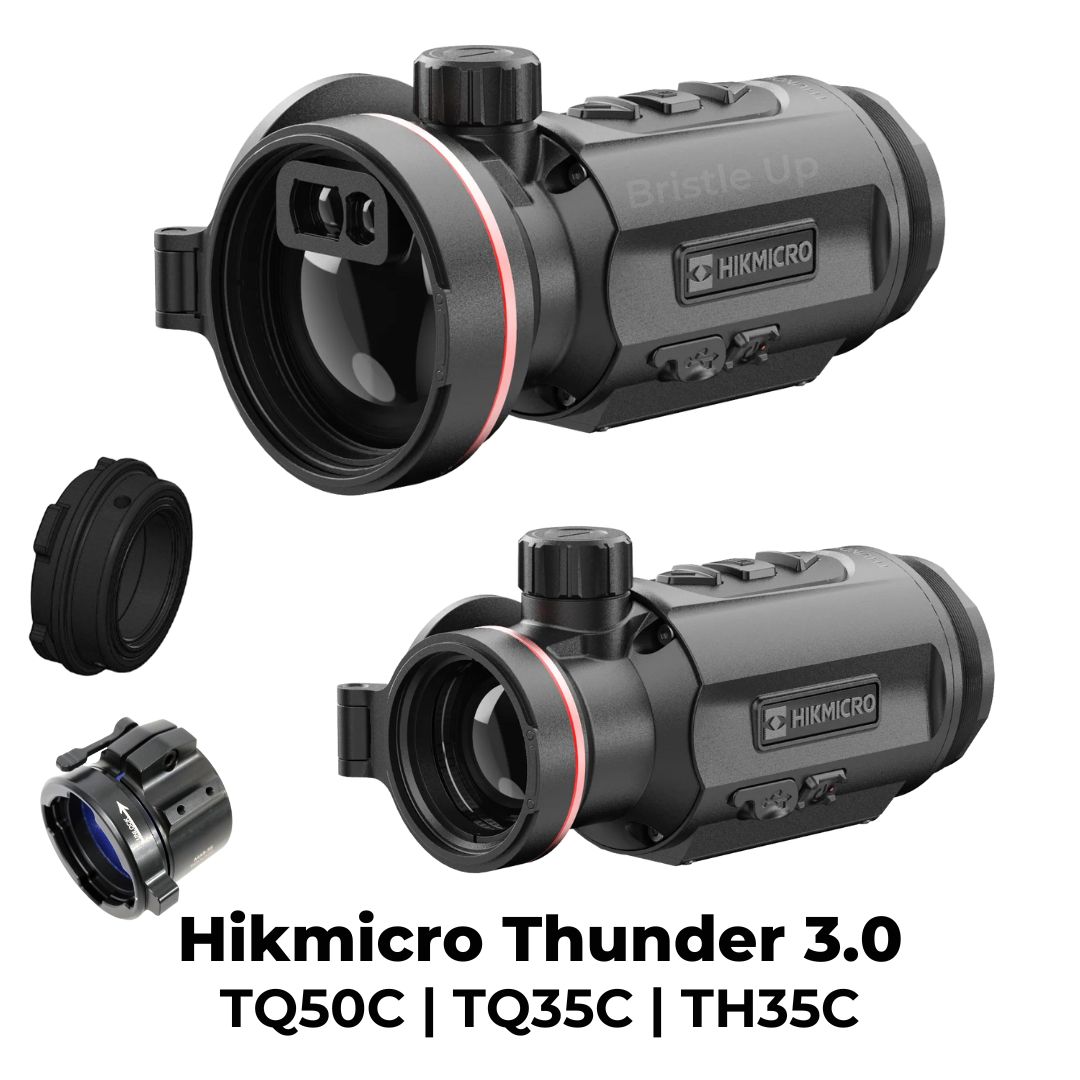

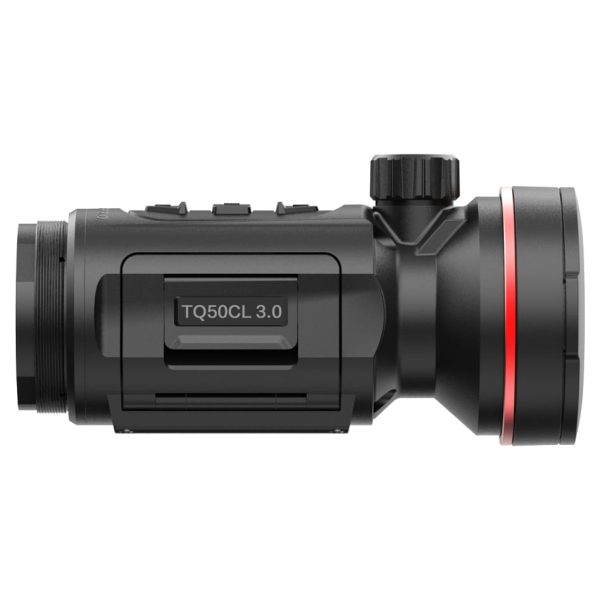

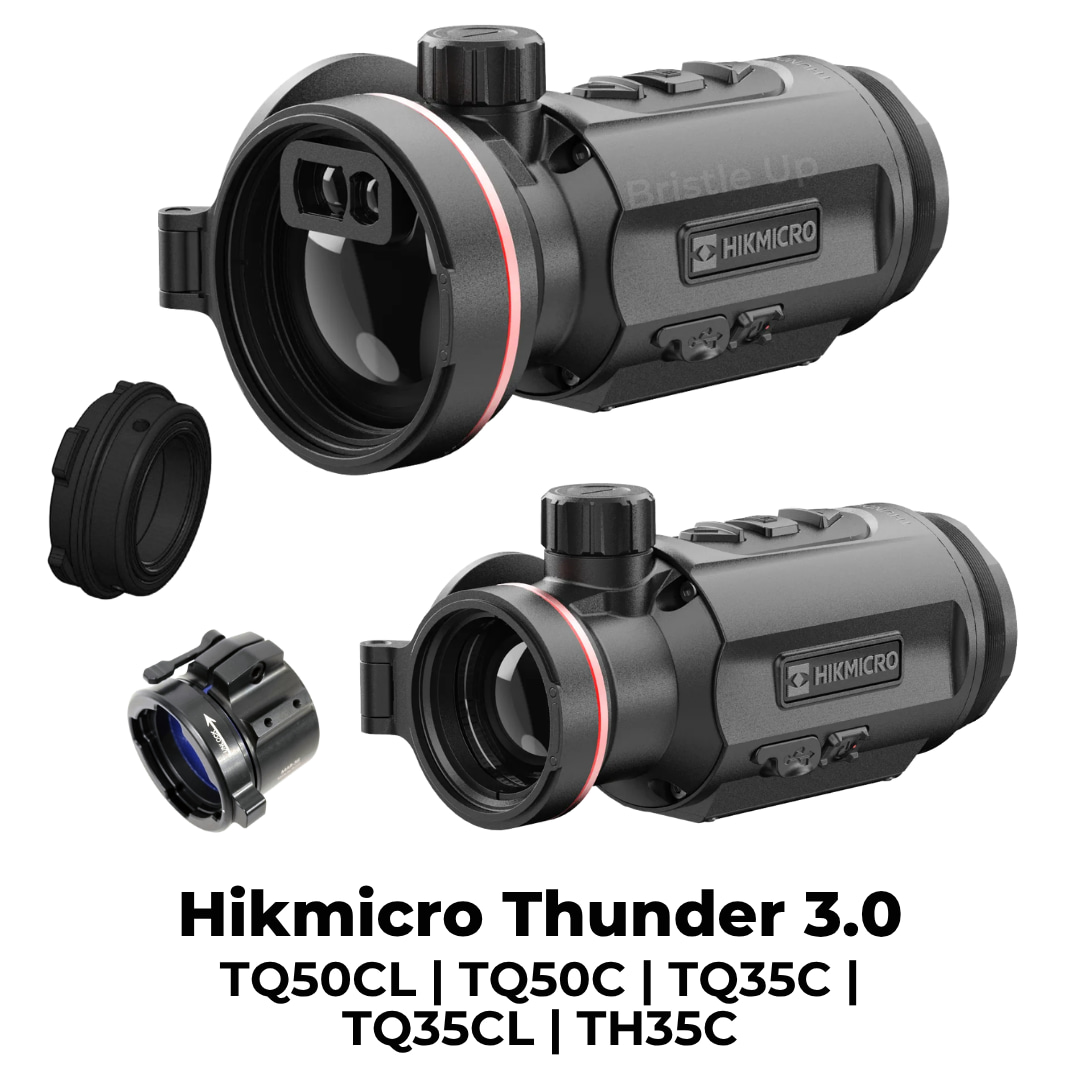

Hikmicro Thunder 3.0 – TQ50CL – TQ50C – TQ35C – TQ35CL – TH35C – Thermal Clip-On
From: $3,499.00 GST
The HIKMICRO Thunder 3.0 models feature upgraded thermal sensors. This level of sensitivity provides remarkable image clarity, allowing hunters to see even the finest details of the animal and environment, regardless of lighting or weather conditions.
MANUAL: CLICK HERE FOR MANUAL
SPECIFICATION
Model |
TH35C 3.0 |
TQ35C 3.0 |
TQ50C 3.0 |
TQ35CL 3.0 |
TQ50CL 3.0 |
|---|---|---|---|---|---|
Thermal Module |
|||||
Image Sensor |
Uncooled Focal Plane Arrays |
Uncooled Focal Plane Arrays |
Uncooled Focal Plane Arrays |
Uncooled Focal Plane Arrays |
Uncooled Focal Plane Arrays |
Max. Resolution |
384×288 |
640×512 |
640×512 |
640×512 |
640 × 512 |
Frame Rate |
50Hz |
50Hz |
50Hz |
50Hz |
50 Hz |
Pixel Interval |
12μm |
12μm |
12μm |
12μm |
12 μm |
Response Waveband |
8μm to 14μm |
8μm to 14μm |
8μm to 14μm |
8μm to 14μm |
8 μm to 14 μm |
NETD |
Less than 15mK (25°C, F#=1.0) |
Less than 15mK (25°C, F#=1.0) |
Less than 15mK (25°C, F#=1.0) |
Less than 15mK (25°C, F#=1.0) |
Less than 15 mK (@25 °C, F# = 1.0) |
Lens (Focal Length) |
35mm, F1.0 |
35mm, F1.0 |
50mm, F1.0 |
35mm, F1.0 |
50 mm, F1.0 |
Detection Range |
1800m |
1800m |
2600m |
1800m |
2600 m |
Focus Mode |
Focus Knob |
Focus Knob |
Focus Knob |
Focus Knob |
Focus Knob |
Field of View (H × V), Degrees / m @100m |
7.5° × 5.7° / 13.2m × 9.9m |
12.5° × 8.0° / 21.9m × 14.0m |
8.8° × 7.0° / 15.4m × 12.3m |
12.5° × 8.0° / 21.9m × 14.0m |
8.8° × 7.0° / 15.4 m × 12.3 m |
Min. Focusing Distance |
10m |
10m |
10m |
10m |
10 m |
Magnification |
1x |
1x |
1x |
1x |
1× |
Recommended Magnification of the Day Scope |
1-12x |
1-15x |
1-15x |
1-15x |
1-15x |
Magnification of Monocular Mode |
3.3×-26.4× (8x) |
2.0×-16.0× (8x) |
2.8×-22.4× (8x) |
2.0×-16.0× (8x) |
|
Image Display |
|||||
Display |
1920×1080, 0.49 inch, OLED |
1920×1080, 0.49 inch, OLED |
1920×1080, 0.49 inch, OLED |
1920×1080, 0.49 inch, OLED |
1920 × 1080, 0.49 inch, OLED |
Brightness Adjustment |
Yes |
Yes |
Yes |
Yes |
Yes |
Palettes |
Black Hot, White Hot, Red Hot, Fusion, Red monochrome, Green monochrome |
Black Hot, White Hot, Red Hot, Fusion, Red monochrome, Green monochrome |
Black Hot, White Hot, Red Hot, Fusion, Red monochrome, Green monochrome |
Black Hot, White Hot, Red Hot, Fusion, Red monochrome, Green monochrome |
Black Hot, White Hot, Red Hot, Fusion, Red monochrome, Green monochrome |
Exit Pupil |
25mm |
25mm |
25mm |
25mm |
25 mm |
Eye Relief |
20mm |
20mm |
20mm |
20mm |
20 mm |
Tone Adjustment |
Cold, Warm |
Cold, Warm |
Cold, Warm |
Cold, Warm |
Cold, Warm |
HIKMICRO Shutterless Image System (HSIS) |
Yes |
Yes |
Yes |
Yes |
Yes |
Image Pro 3.0 |
Yes |
Yes |
Yes |
Yes |
No |
General |
|||||
Protection Level |
IP67 |
IP67 |
IP67 |
IP67 |
IP67 |
Weight |
460g with battery |
460g with Battery |
500g with battery |
525g with battery |
540 g with Battery |
Dimension |
143.4mm × 67.5mm × 72.9mm |
143.4mm × 67.5mm × 72.9mm |
149.4mm × 76mm × 74.6mm |
152.3mm × 63mm × 74.1mm |
150.3 mm × 83 mm × 78.1 mm |
Working Temperature |
-30 °C to +55 °C (-22 °F to 131°F) |
-30 °C to +55 °C (-22 °F to 131°F) |
-30 °C to +55 °C (-22 °F to 131°F) |
-30 °C to +55 °C (-22 °F to 131°F) |
-30°C to +55°C (-22°F to 131°F) |
Body Material |
Body & Lens Cover: Magnesium Alloy |
Body & Lens Cover: Magnesium Alloy |
Body & Lens Cover: Magnesium Alloy |
Body & Lens Cover: Magnesium Alloy |
Body & Lens Cover: Magnesium Alloy |
Center Height |
35.5 mm |
||||
System |
|||||
Record Video |
On-board Video Recording |
On-board Video Recording |
On-board Video Recording |
On-board Video Recording |
On-board Video Recording |
Capture Snapshot |
Yes |
Yes |
Yes |
Yes |
Yes |
Hotspot |
Yes |
Yes |
Yes |
Yes |
Yes |
Hot Track |
Yes |
||||
Virtual Reticle |
Yes |
Yes |
Yes |
Yes |
Yes |
Standby Mode |
Yes |
Yes |
Yes |
Yes |
Yes |
Storage |
Built-in EMMC (64 GB) |
Built-in EMMC (64 GB) |
Built-in EMMC (64 GB) |
Built-in EMMC (64 GB) |
Built-in EMMC (64GB) |
Reticle |
No |
No |
No |
No |
No |
Audio Recording |
Yes |
Yes |
Yes |
Yes |
Yes |
Recoil-activation Recording |
Yes |
Yes |
Yes |
Yes |
Yes |
Max. Recoil |
1000g/0.4ms |
1000g/0.4ms |
1000g/0.4ms |
1000g/0.4ms |
1000 g/0.4 ms |
Local Album |
Yes |
Yes |
Yes |
Yes |
Yes |
Image Calibration |
Yes |
Yes |
Yes |
Yes |
Yes |
Zeroing Profiles |
5 |
5 |
5 |
5 |
5 |
Power Supply |
|||||
Battery Type |
Replaceable and Rechargeable Li-ion Battery Pack |
Replaceable and Rechargeable Li-ion Battery Pack |
Replaceable and Rechargeable Li-ion Battery Pack |
Replaceable and Rechargeable Li-ion Battery Pack |
Replaceable and Rechargeable Li-ion Battery Pack |
Battery Operating Time |
≥6h (25 °C, with hotspot off) |
≥6h (25 °C, with hotspot off) |
≥6h (25 °C, with hotspot off) |
≥5h (25 °C, with hotspot off and LRF on) |
≥5h (25 °C, with hotspot off and LRF on) |
Type-C Power Supply |
5VDC, 2ASupports External Power SupplySupports Direct Charging |
5VDC, 2ASupports External Power SupplySupports Direct Charging |
5VDC, 2ASupports External Power SupplySupports Direct Charging |
5VDC, 2ASupports External Power SupplySupports Direct Charging |
5 VDC, 2 ASupports External Power Supply |
Laser Rangefinder |
|||||
Safety Class for Laser |
— |
— |
— |
Class 1 |
Class 1 |
Wavelength |
— |
— |
— |
905nm |
905 nm |
Max. Measuring Range |
— |
— |
— |
1000m |
1000 m |
Measurement Accuracy |
— |
— |
— |
±1m |
±1 m |
Min. Measuring Range |
— |
— |
— |
10m |
10 m |
LRF Module in Lens |
Yes |
||||
Choose Model
| Choose Model | TQ50CL 3.0 LRF – 640px – 15mk – 2600m, TH35C 3.0 – 384px – 15mk – 1800m, TQ35C 3.0 – 640px – 15mk – 1800m, TQ35CL 3.0 – 640px – 15mk – 1800m, TQ50C 3.0 – 640px – 15mk – 2600m |
|---|
Choose Rusan Modular Adapter Size
| OUTER DIAMETER SIZE | 30mm, 34mm, 36mm, 38mm, 39.2mm, 40mm, 41mm, 42mm, 42.5mm, 44mm, 46mm, 46.7mm, 47mm, 48mm, 49mm, 50mm, 51mm, 52mm, 52.5mm, 53mm, 54mm, 55mm, 56mm, 57mm, 57.2mm, 57.5mm, 58mm, 58.4mm, 59mm, 60mm, 61mm, 62mm, 63mm, 63.5mm, 64mm, 65mm, 66mm |
|---|

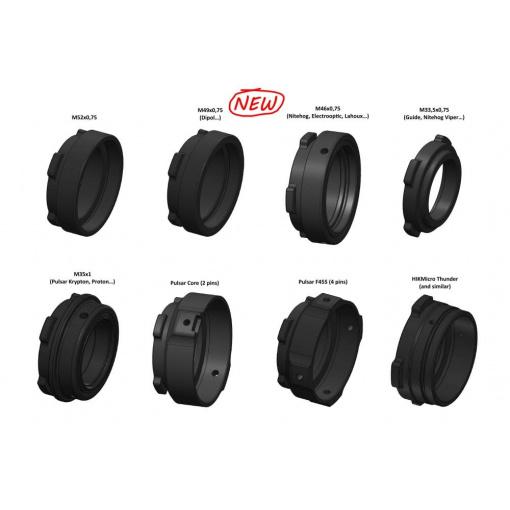

Rusan Adapter Connector
| Clip On Model | InfiRay / Leica Calonox, HIKMICRO, Pulsar Krypton, Pulsar F455NV, Burris/Guide |
|---|
Rusan Monocular Adapter
| Base Mag Options | 2.5x (Recommended), 3x not best for some thermals |
|---|
Add Addtional Rusan Modular Adapter Clamp for Thermal Clip on Scopes
| OUTER DIAMETER SIZE | 30mm, 34mm, 36mm, 38mm, 39.2mm, 40mm, 41mm, 42mm, 42.5mm, 44mm, 46mm, 46.7mm, 47mm, 48mm, 49mm, 50mm, 51mm, 52mm, 52.5mm, 53mm, 54mm, 55mm, 56mm, 57mm, 57.2mm, 57.5mm, 58mm, 58.4mm, 59mm, 60mm, 61mm, 62mm, 63mm, 63.5mm, 64mm, 65mm, 66mm |
|---|
