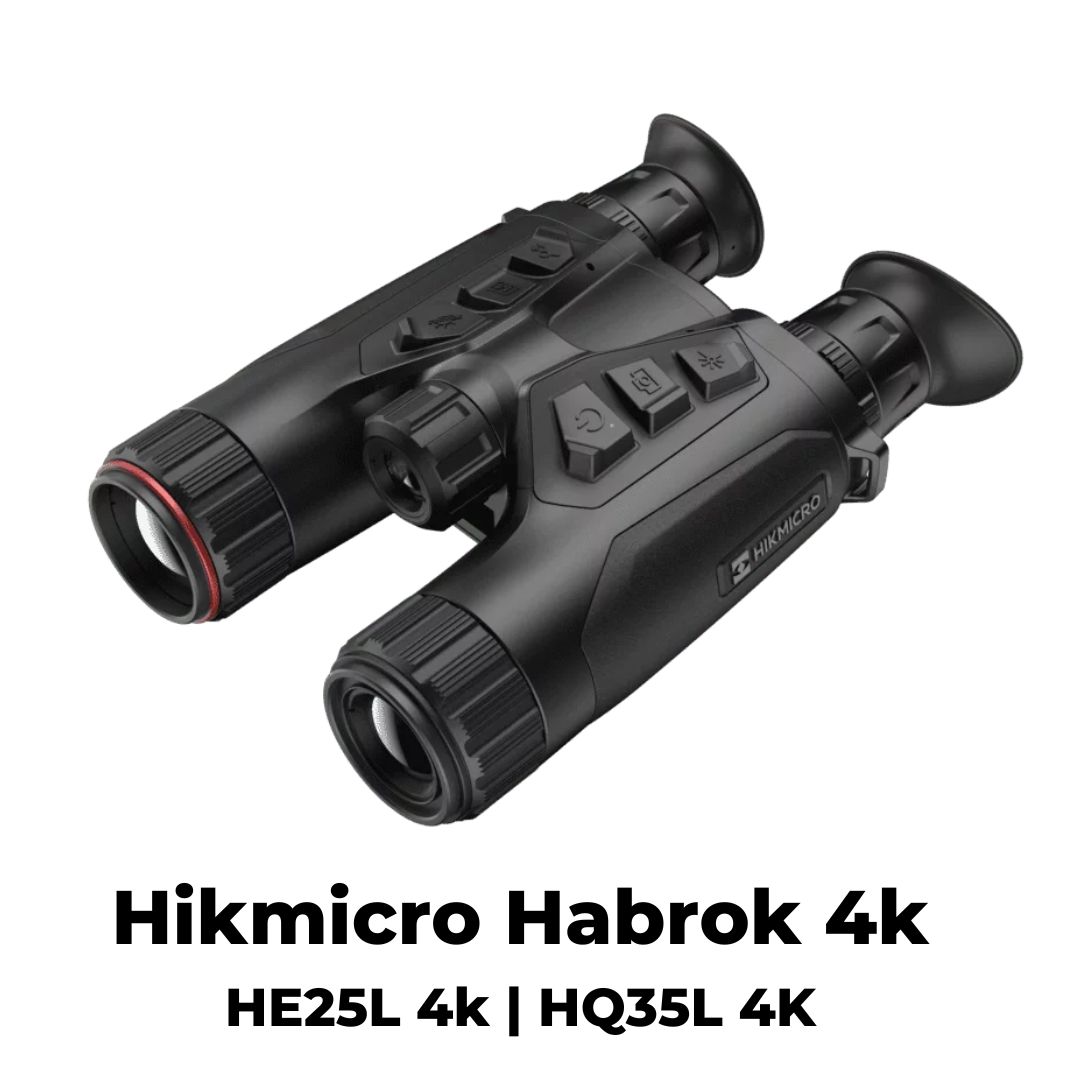

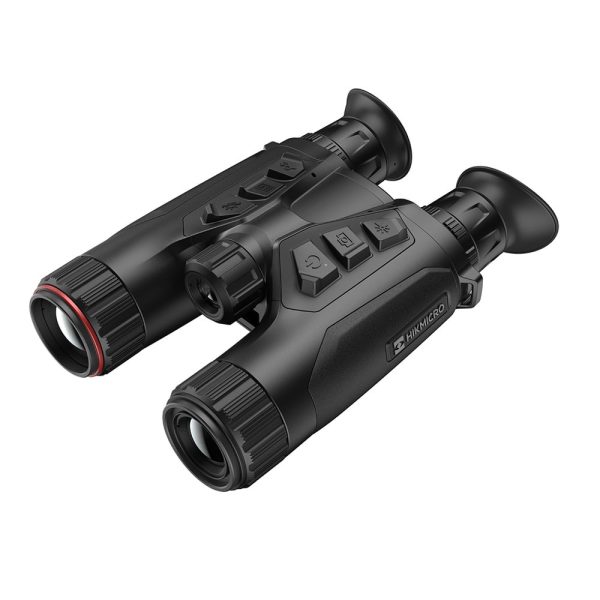

Hikmicro HABROK 4K – HE25L 2.0 & HQ35L 4K – Multisprectral LRF Binoculars
From: Original price was: $2,799.00.$2,519.10Current price is: $2,519.10. GST
Hikmicro HABROK 4K 2.0
Born from the field, built for the future. HABROK 4K 2.0 combines cutting-edge shutterless thermal technology, 4K digital vivid images, superior clarity in darkness with lR, and intuitive ergonomics in one compact device. Whether you stalk in twilight, scan open fields, or track through dense woods, HABROK 4K 2.0 ensures you never miss a moment that matters. HABROK 4K 2.0, a step into digital hunting with confidence – without giving up familiarity or spending premium.
Remark:
① The battery time data comes from HIKMICRO lab. The actual result may differ due to the environment and personal usage habits. Please refer to actual experience.
*HIKMICRO Sight APP connection process is to comply with the latest CE RED Directive( 2014/53/EU) and the EN 18031 standard. We are always your most reliable choice.*All the pictures and videos taken by device are for reference only, the actual effect shall prevail.
| Technical Parameters |
4K HE25L 2.0
Multi-Spectrum Binocular
|
4K HQ35L
Multi-Spectrum Binocular
|
| Thermal Module | ||
| Image Sensor | VOx Uncooled Focal Plane Arrays | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 256 × 192 | 640 × 512 |
| Frame Rate | 50Hz | 50Hz |
| Pixel Interval | 12μm | 12μm |
| Response Waveband | 8μm to 14μm | 8μm to 14μm |
| NETD | Less than 18 mK (@25°C)(F#=1.0) | Less than 20 mK (@25°C), F#=1.0 |
| Lens (Focal Length) | 25mm, F1.0 | 35mm, F1.0 |
| Focus Mode | Rear Focus Wheel | Focus Ring |
| Detection Range | 1200m | 1800m |
| Min. Focusing Distance | 3m | 3.5m |
| Magnification | 4.3x-17.2x (4x) Support 2x, 3x, 4x, 5x Zooming Value, Support Zoom in and out | 3.0x – 22.0x (7.3x) |
| Field of View (H × V), Degrees / m @100m | 7.0° × 5.3° / 12.2m × 9.3m | 12.5° × 10.1° / 22.0m × 17.6m |
| Optical Module | ||
| Image Sensor | 1/1.8 Progressive Scan CMOS | 1/1.8″ Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 | 3840 × 2160 |
| Focal Length | 60mm, F2.2 | 60mm, F2.2 |
| Min. Working Distance | 8m | 3m |
| Min. Illumination | N.A. | N.A. |
| Focus Mode | Rear Focus Wheel | Focus Ring |
| Magnification | 5.5x – 22.0x (4x) Support 2x, 3x, 4x, 5x Zooming Value, Support Zoom in and out | 5.5x – 22.0x (4x) |
| Field of View (H × V), Degrees / m @100m | 7.3° × 4.1° / 12.8m × 7.2m | 7.3° × 4.1° / 12.6m × 7.2m @100m |
| Smart IR | Yes | Yes |
| IR Illuminator Wavelength | 940nm (default) and 850nm (replaceable) | 940nm (default), 850nm (replaceable) |
| Viewing Range at Night | 400m | 400m |
| Replaceable IR Illuminator | Yes | Yes |
| Image Display | ||
| Display | 0.49 inch, OLED, 1920 × 1080 | 0.49 inch OLED, 1920 × 1080 |
| Palettes | Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto, Green, Yellow | Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto |
| FFC Mode | N.A. | Auto, Manual, External Correction |
| Exit Pupil | 8mm | 8mm |
| Eye Relief | 15mm | 15mm |
| Diopter Range | -5D~+3D | -5D ~ +3D |
| Brightness Adjustment | Yes | Yes |
| Tone Adjustment | Cold, Warm | Cold, Warm |
| Contrast Adjustment | Yes | Yes |
| Electric Image Stabilization | Supports Both Thermal and Digital Channels, Starting from 2x | N.A. |
| Zoom Pro | Yes | Yes |
| HSIS (HIKMICRO Shutterless Image System) | Yes | N.A. |
| System | ||
| Record Video | Yes | Yes |
| Capture Snapshot | Yes | Yes |
| Audio Recording | Yes | Yes |
| Standby Mode | Yes | Yes |
| Storage | Built-in EMMC (64 GB) | Built-in eMMC (64GB) |
| PIP | Yes | Yes |
| Hotspot | Yes | Yes |
| Hot Track | Yes | Yes |
| Digital Magnetic Compass | Yes | Yes |
| GPS | Yes | Yes |
| Local Album | Yes | Yes |
| Power Supply | ||
| Battery Type | Replaceable and Rechargeable Li-ion Battery | Replaceable and Rechargeable Li-ion Battery |
| Battery Operating Time | ≥6.5h (25 °C, with hotspot and LRF on) | ≥8h (25°C, with hotspot off) |
| Type-C Power Supply | 5V DC, 2A Supports External Power Supply, Support Direct Charging | 5V DC, 2A Supports External Power Supply, Supports Direct Charging |
| General | ||
| Protection Level | IP67 | IP67 |
| Dimension | 143.1 mm × 74.8 mm × 223.3 mm (5.63″ × 2.95″ × 8.8″) | 138.1 × 68.5 × 222.4 mm (5.44″ × 2.70″ × 8.75″) |

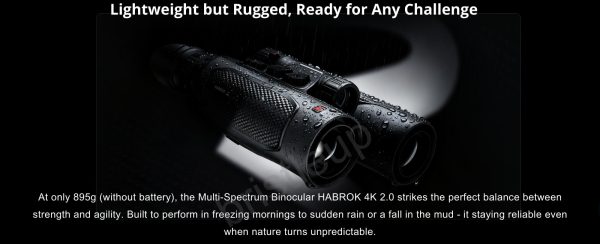

| Weight | 895g without Batteries | 798g without battery |
| Working Temperature | -30°C ~ +55°C | -30°C to +55°C |
| Interpupillary Adjustment Range | 60 mm to 74 mm | 60mm to 74mm |
| Mounting Adapter | 1/4″-20-UNC | 1/4″-20 UNC |
| Laser Rangefinder | ||
| Safety Class for Laser | Class 1 | Class 1 |
| Wavelength | 905nm | 905nm |
| Max. Measuring Range | 1000m | 1000m |
| Measurement Accuracy | ±1m | ±1m |
| Min. Measuring Range | 10m | 10m |
| Emitter | N.A. | N.A. |
| IR Wavelength | N.A. | 940nm (default), 850nm (replaceable) |
| Beam Angle | N.A. | N.A. |

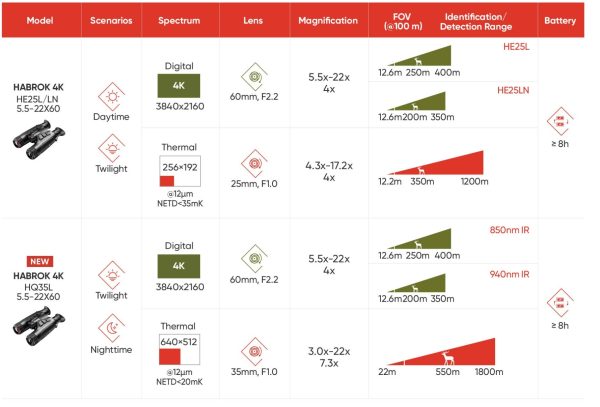

Choose Habrok 4K Model
| Choose Model | HE25L 4K 2.0- Night: 256px, 18mk, 5.5x, 400m DAY: 4K, 4.3x, 905nm. 1200m, HQ35L 4K – Night: 640px, 20mk, 3x, 1200m DAY: 4K, 5.5x, 850nm. 400m, HQ35LN 4K – Night: 640px, 20mk, 3x, 1200m DAY: 4K, 5.5x, 940nm, 350m |
|---|
