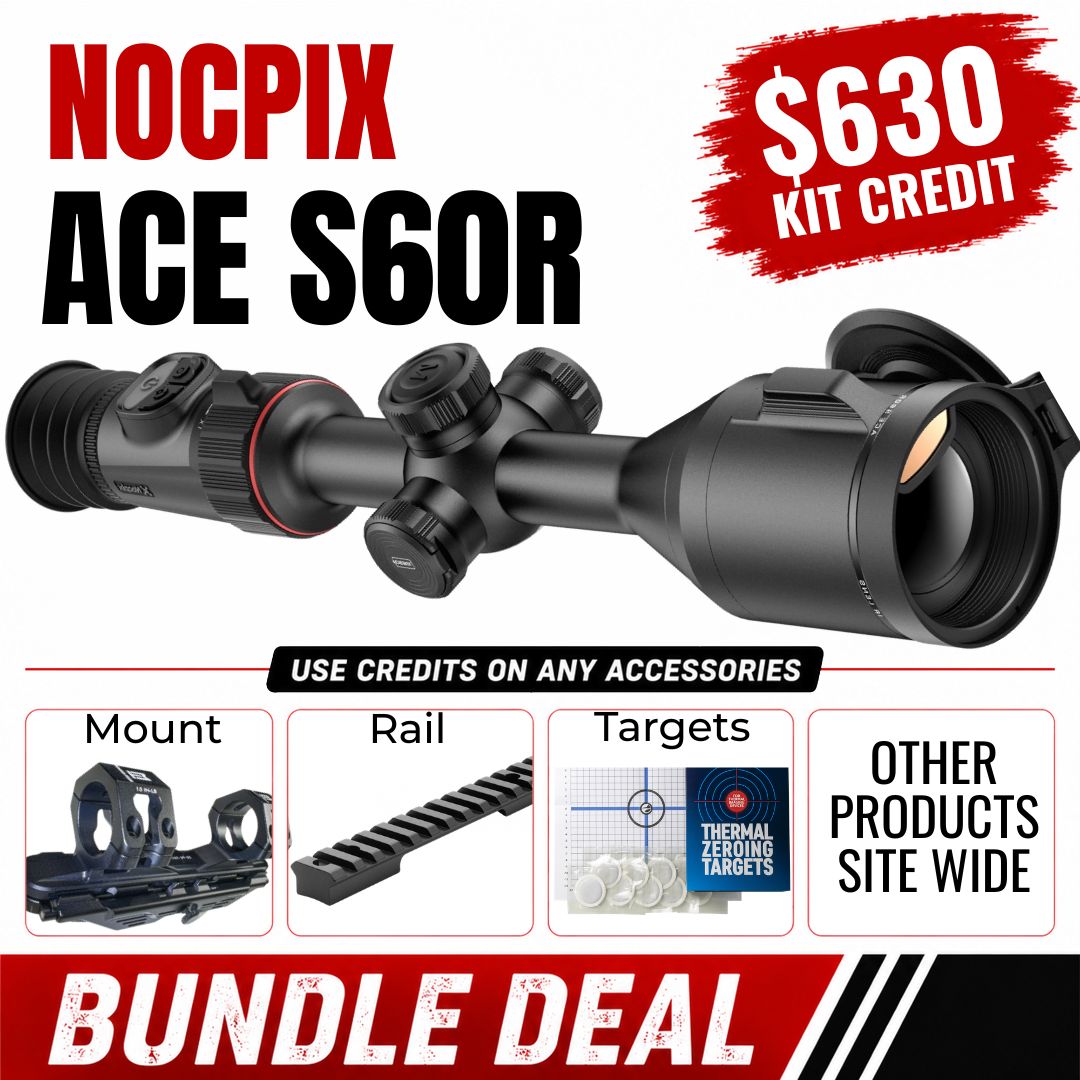

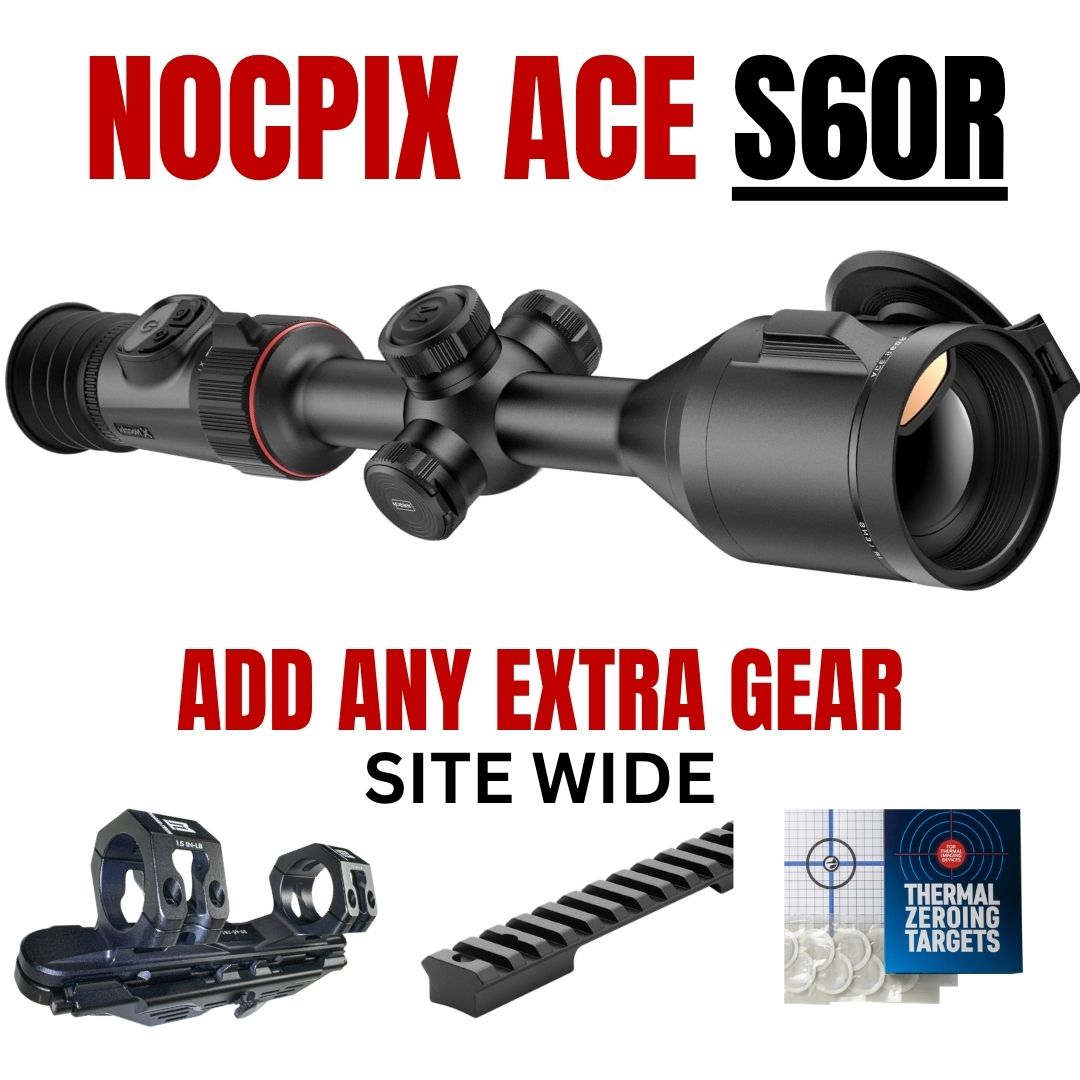

Nocpix Ace S60R | BUNDLE DEAL | Thermal Scope
$10,499.00
NOCPIX ACE SERIES REVIEW & IMAGE QUALITY
NOCPIX ACE SERIES REVIEW & IMAGE QUALITY
Introducing the ACE series, the flagship thermal riflescope designed for all hunting environments. It features a self-developed high-resolution thermal sensor, integrated LRF, and advanced Reality+ and Vision+ systems. Deliver unparalleled image quality and superior performance.
Superior Sensor
Ensures Excellence Equipped with a Gen-2 HD thermal sensor offering a resolution of up to 1280×1024 and a frame rate of up to 60Hz, the ACE provides stable performance with an NETD≤15mK. This enables it to detect even the slightest temperature variations, delivering exceptionally detailed and smooth thermal imagery, even when tracking fast-moving prey.
Enhanced Clarity with Larger Lens
The ACE series feature 60mm/F1.0 or 50mm/F0.9 lenses. The larger objective lens allows 20% more light to reach the sensor. Coupled with high-transmittance lens elements, it generates brighter and clearer images.
Long-Distance Detection at Ease
The ACE series boasts an impressive detection range of up to 3100 meters. This capability allows clear identification of distant targets, providing a significant advantage for long-range hunting.
Reality+ Imaging Enhancement
Our proprietary Reality+ image processing algorithm effectively eliminates environmental temperature noise, enhancing contrast and detail clarity.New Vision+ System with Ocular Zoom
The new Vision+ system features a 1.03-inch round 2560×2560 AMOLED screen and industry-leading ocular zoom for direct optical magnification. Unlike traditional e-zoom, it prevents blurring and distortion in close-up views. Enjoy high-resolution images and a broader field of view for an immersive and comfortable observation experience.
Agile and Precise Built-in LRF
The ACE is equipped with an integrated LRF, offering laser range-finding up to 1200 meters with true optical axis alignment, ensuring precise distance measurements while maintaining a sleek and elegant design.
Eliminate Battery Capacity Concerns
The ACE employs a dual-battery system with a 4000mAh built-in battery and an additional replaceable 18650 battery. This setup meets the demands of prolonged outdoor hunting sessions.
Designed for Hunting
The ACE includes essential features for hunting scenarios such as ballistic calculations, auto screen shutdown, recoil-activated video recording, and a shutterless design, making perfect hunting achievable.
Outdoor-Friendly Design
The ACE incorporates thoughtful features such as a focus adjuster, charging cover, and a Gallery feature for direct video playback, significantly enhancing user convenience.
Rigorous Testing & High-durability
Crafted from high-strength aluminum alloy, the ACE undergoes rigorous impact resistance testing, ensuring exceptional robustness and durability for years to come.
MANUAL: View Ace Manual
Nocpix Ace Series
| Choose Model | ACE S60R – 15mk – 2x – 1280px – 3100m |
|---|
Popular Unimounts + Rings + Quick Detach 2026
| Mount Brand | Burris, Darnox, Magne-Tech, SPUHR, Warne |
|---|---|
| Tube Size | 30mm Tube |
| Mount Models | Burris AR-PEPR – 30mm Tube – 40mm Height – 50mm Cantilever, Darnox 7075 Rings – 30mm Tube – 32mm Height – 0 MOA, Darnox 7075 Rings – 30mm Tube – 37mm Height – 0 MOA, Darnox ObsidianOne – 30mm Tube – 38mm High – 50mm Cantilever – 0 MOA, Magne-Tech 30mm Tube – TOP PART ONLY – 38.5mm high, (Part B), Magne-Tech BASE ONLY goes to picatinny rail (Part A), Magne-Tech FULL KIT – 30mm Tube – 38.5mm Height, SPUHR – QDP-3002 – 30mm Tube – 38mm Height – 0 MOA, SPUHR – QDP-3006 – 30mm Tube – 34mm Height – 0 MOA, SPUHR – QDP-3016 – 30mm Tube – 38mm Height – 0 MOA – 40mm Offset, SPUHR – QDP-3046 – 30mm Tube – 34mm Height – 0 MOA – 40mm Cantilever (recommended for Thermal), Warne XSKEL QD – 30mm Tube – 36mm Height – 0 MOA – 40mm Cantilever |
Quality Picatinny Rails
| Rifle Brand | Browning, CZ, Howa, Lithgow, Other / I Need Help, Remington, Ruger, SAKO, Savage, Tikka, Weatherby, Winchester |
|---|---|
| Picatinny Rail | Armacore Ruger, LA M77, M77 MKII, Hawkeye, Armacore Ruger, SA M77, M77 MKII, Hawkeye, Armacore Tikka T3, T3x, 0 MOA Australian Made, ATP Howa 1500 SA MOA, ATP Lithgow LA101 RH MOA, ATP Lithgow LA102, LA105, 0 MOA, ATP Remington 700 SA MOA, ATP Tikka M55 Black MOA, ATP Tikka T1x RH 0 MOA, CCOP MNT-Rug M77 MKII LAUH, CCOP MNT-Rug M77 MKII SAUH, CCOP Ruger, LA M77 MKII, CCOP Ruger, SA M77 MKII, Contessa SAKO 85 M PH13 – 75 IV, MA 05 M, L691, TRG-S M995, Contessa SAKO 85 S-SM PH12, CONTESSA SAKO 90, S90, SK90, S20/CZ 600 0 MOA – Picatinny on Picatinny, Contessa SAKO XS 85, 75 I, MA 05 XS, L461 Vixen, S491, DN Sako S 85, 75 III, MA 05 S, L579 Forester, M591, VL63 Finnwolf, DN Sako XS 85, 75 I, MA 05 XS, L461 Vixen, S491, EGW HD Howa 1500/Weatherby Vanguard SA 81040, EGW HD Remington 700 SA 80000, EGW Savage Edge/Axis 41800, EGW Savage Flat Back SA 41200, EGW Savage Round Back SA 41000, EGW Winchester 70 SA 42000, Enter CZ Model In Notes Below, Other / I'm Not Sure, Remington 783 LA 0 MOA, Remington 783 SA 0 MOA, Spuhr R-7001 Remington 700 SA 0MIL, Spuhr R-7011 Remington 700 LA 0MIL, X-BOLT LA 0 MOA, X-BOLT SA 0 MOA |
ADM American Defense - Quick Detach Mount
| American Defense Series | DELTA, RECON |
|---|---|
| Tube Size | 25mm Tube, 30mm Tube, 34mm Tube |
| Mount Height | 27mm, 29mm, 34mm, 38mm, 39mm, 43mm, 49mm |
| American Defense Mount Models | AD DELTA QD C STD – 30mm Tube – 38mm Height – 0 MOA – (50mm Cantilevered for better eye relief, AD DELTA QD C-H – 30mm Tube – 49mm Height – 0 MOA – (50mm offset for better eye relief), AD DELTA QD C-H STD – 30mm Tube – 49mm Height – 0 MOA, AD DELTA QD C-M – 30mm Tube – 43mm Height – 0 MOA – (50mm offset for better eye relief), AD DELTA QD RC-30-STD – 30mm Tube – 43mm Height – 0 MOA – (25mm offset for better eye relief) – Left Side Levers, AD DELTA QD STD – 25mm Tube – 38mm Height – 0 MOA, AD DELTA QD STD – 30mm Tube – 38mm Height – 0 MOA, AD DELTA QD STD – 34mm Tube – 39mm Height – 0 MOA, AD Recon 30 STD QD – 30mm Tube – 38mm Height – 0 MOA – (50mm Cantilevered for better eye relief), AD Recon 30 STD QD – 25mm Tube – 34mm Height – 0 MOA – (50mm Cantilevered for better eye relief), AD Recon 30 STD QD – 34mm Tube – 39mm Height – 0 MOA – (50mm Cantilevered for better eye relief), AD Recon H QD STD – 30mm Tube – Extra High- 0 MOA, AD Recon QD SL-30-STD – 25mm Tube – 27mm Height – 0 MOA, AD Recon S 30 STD QD – 30mm Tube – 37mm Height – 0 MOA, AD Recon S QD STD – 34mm Tube – 39mm Height – 0 MOA, AD Recon SL QD STD – 30mm Tube – 29mm Height – 0 MOA, AD Recon SL QD STD – 34mm Tube – 29mm Height – 0 MOA |
Zeroing Targets - Thermal + Day + Night Vision 2026
| Zeroing Targets | Pulsar Thermal + Day + Night Vision Zeroing Targets, Hikmicro Thermal + Day + Night Vision Zeroing Targets, Thermal Flashing Tape Roll Zeroing (Best Value) |
|---|
