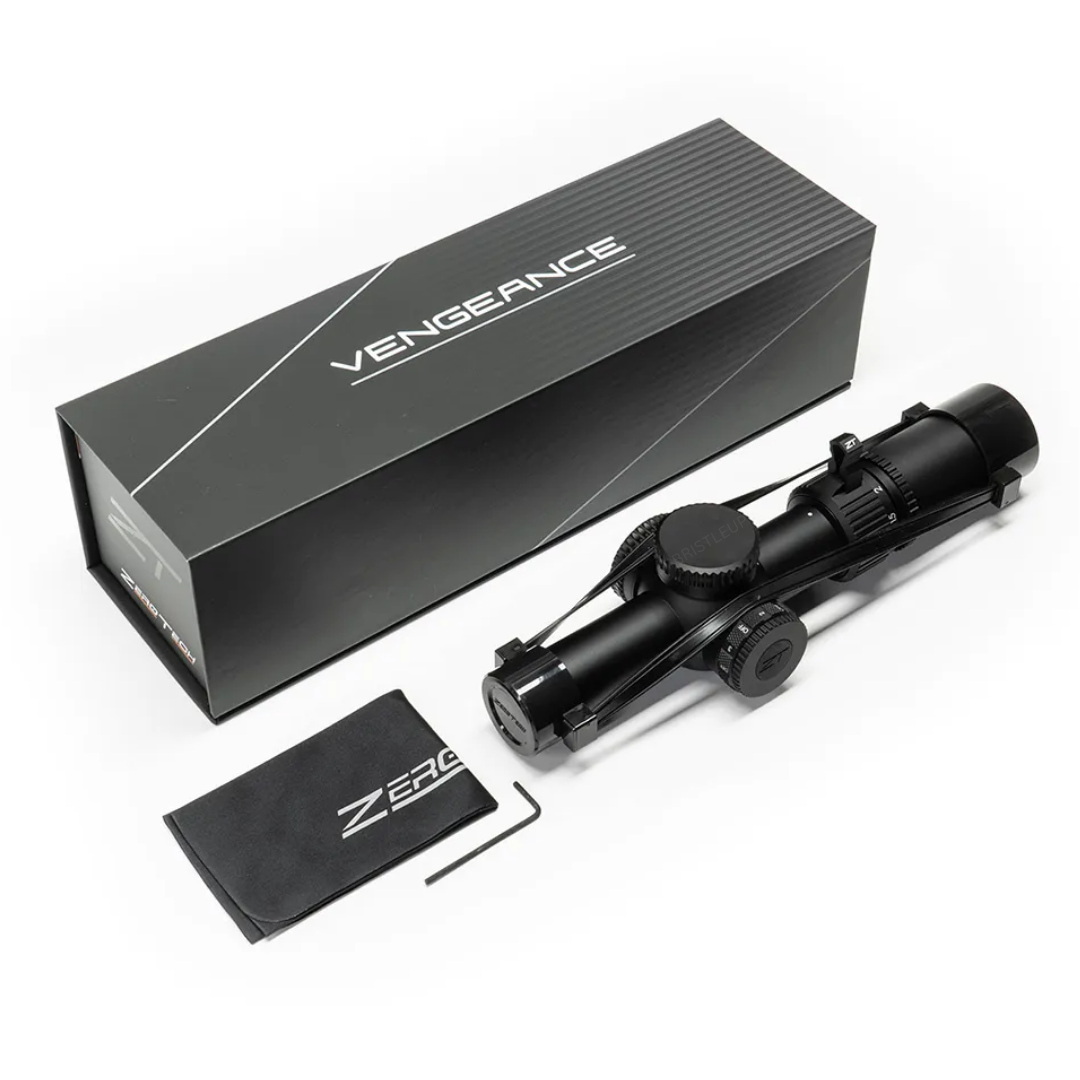

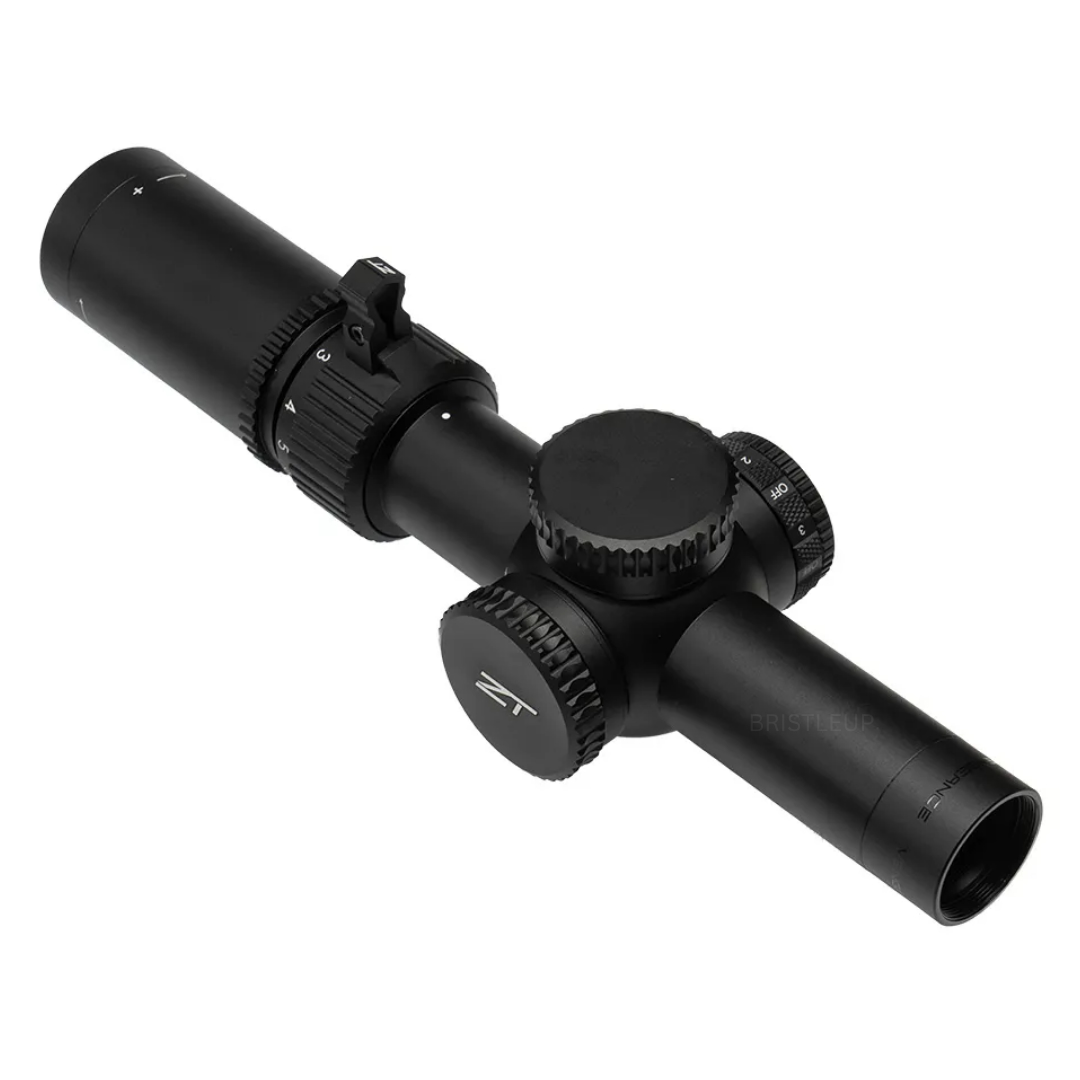

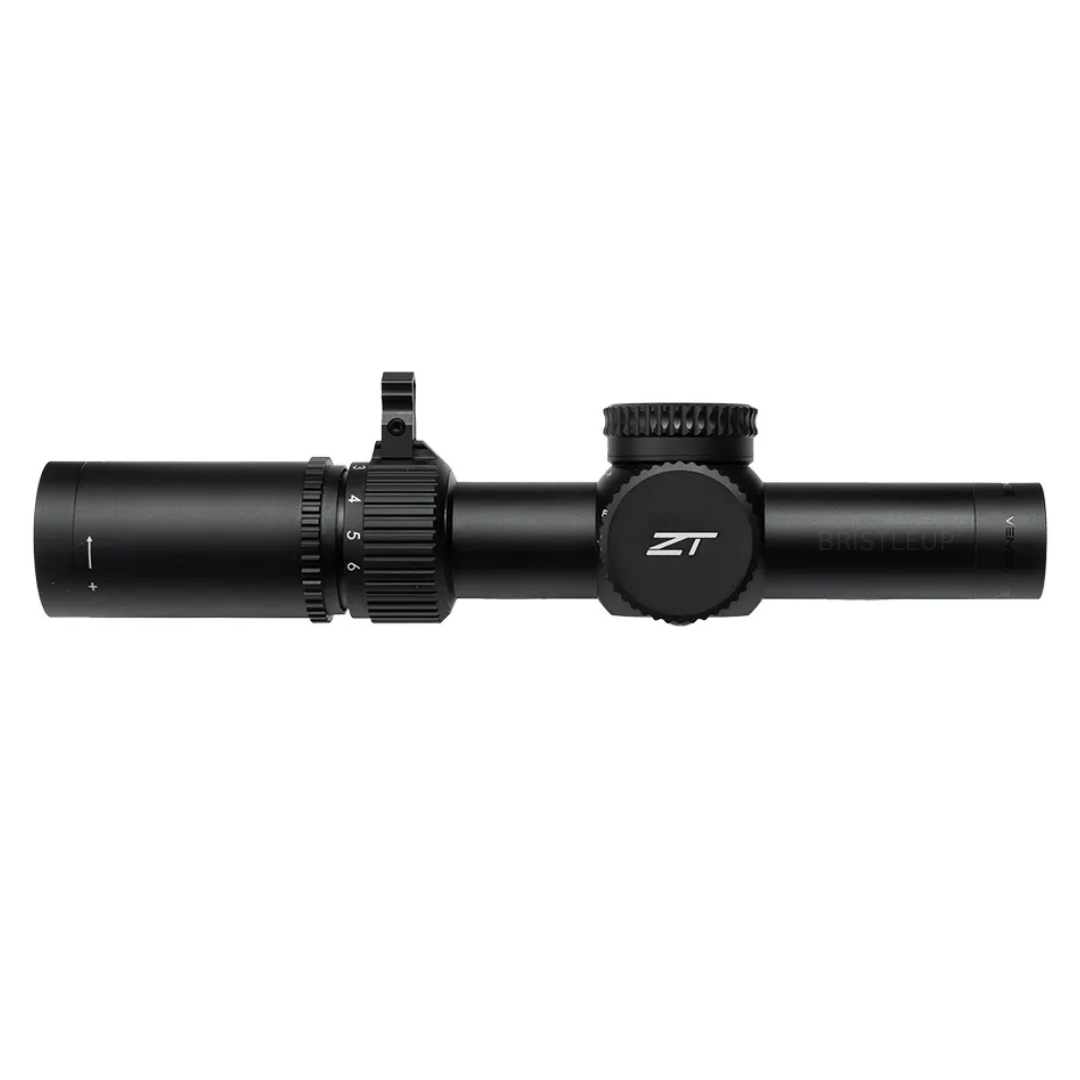

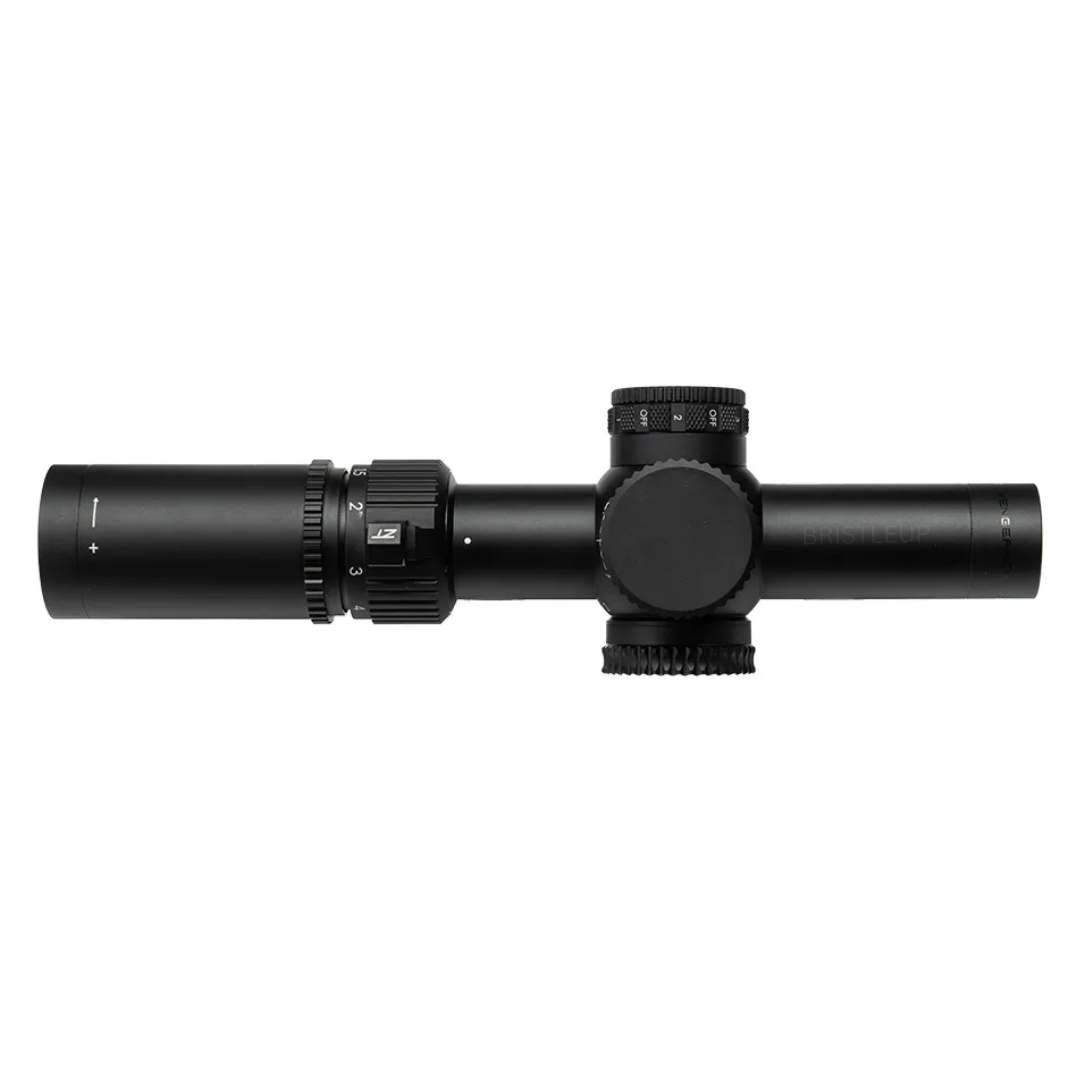

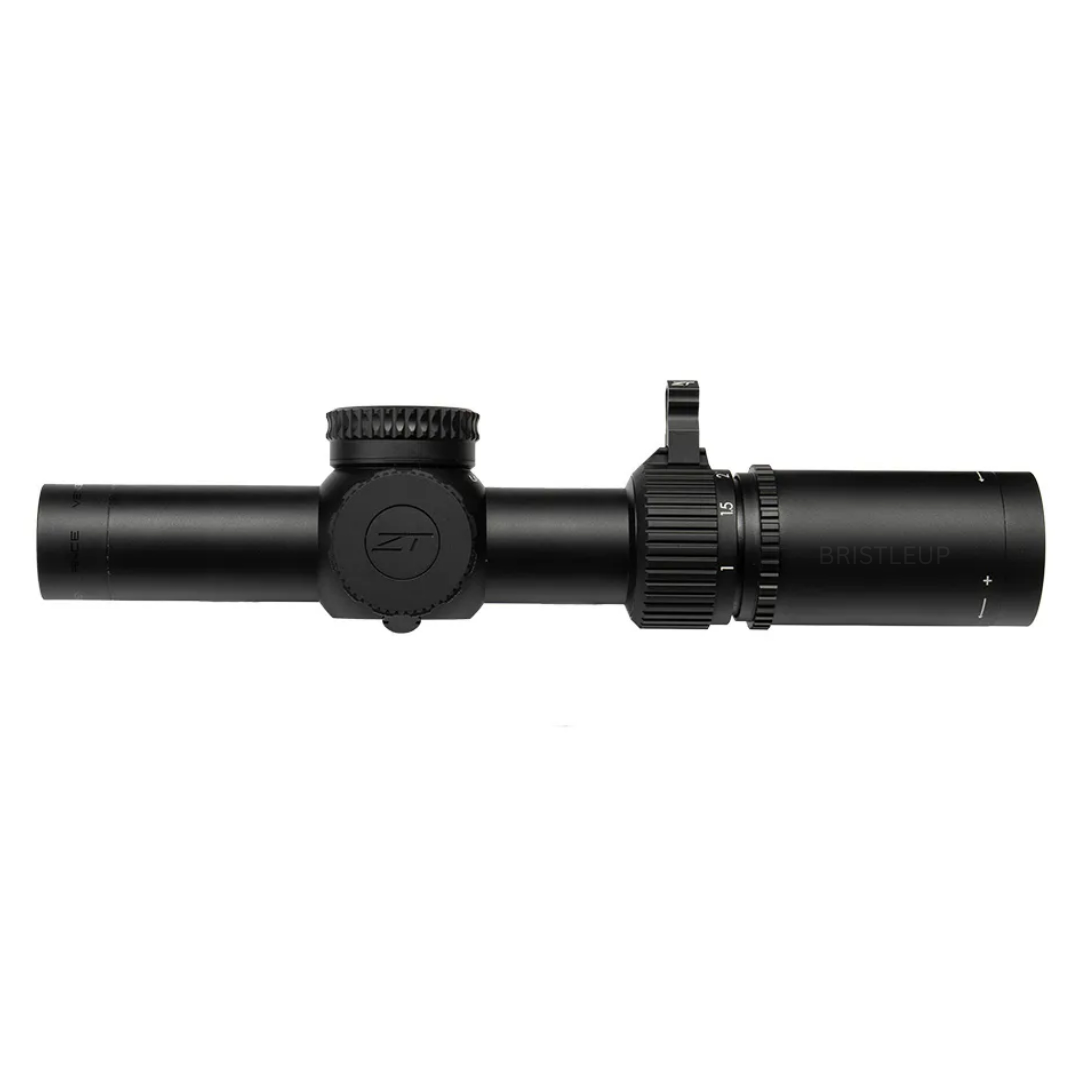

ZeroTech Vengeance 1-6x24mm LPVO RAR
Our locking diopter system allows you to secure your diopter setting with a lock ring and achieve a perfect 1 X image every time. The removable magnification throw lever makes power changes a breeze, coupled with our RAR illuminated reticle makes for the ultimate speed shooting combination. Low profile, large diameter capped turrets provide precise and audible indexing and are guaranteed to return to zero every time. A 30mm main tube will ensure excellent mounting versatility and high strength.
VENGEANCE optics are engineered, tested and priced to deliver you the absolute best value for money without short-changing you on features.

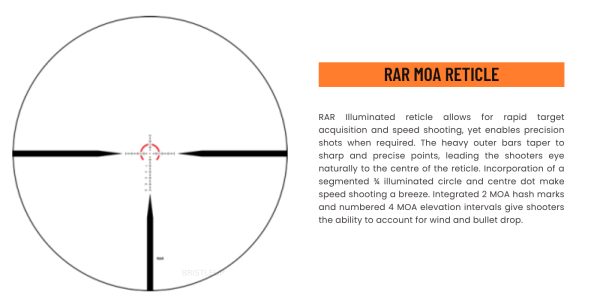

- RAR SFP Illuminated reticle
- 30mm tube
- Throw lever
- Locking dioptre
- Low profile capped turrets



Downloads
| Manual : 1-6X24mm LPVO RAR | Reticle Specs | Reticle Range Chart |
|---|
| SPECIFICATIONS | |
|---|---|
| Model Number/SKU | VG1624-IR |
| Focal Plane | Second (SFP) |
| Reticle calibrated magnification power (SFP only) | 6x |
| Magnification Range | 1-6x |
| Objective Lens Diameter | 24mm |
| Maintube Diameter | 30mm |
| Maintube Material | 6061-T6 |
| Dioptre Adjustment | -2 / +2 (locking) |
| Zero Stop | No |
| Turret Index Value | 0.5MOA |
| Internal Elevation Adjustment | 80MOA |
| Internal Windage Adjustment | 80MOA |
| Exit Pupil Diameter | Low: 10.6mm; High: 4.0mm |
| Eye Relief | 100mm |
| Field Of View @100 Meters | Low: 30.77m; High: 5.23m |
| Field of view @ 100 Yards | Low: 92.31ft; High: 15.69ft |
| Objective Outer Diameter | 30mm |
| Lens Coating | Fully Multi Coated (FMC) |
| Ocular Outer Diameter | 40mm |
| Weight | 588g |
| Available Reticles | RAR (MOA) |
| Illumination | Yes – 6 Brightness settings |
| Waterproof Rating | IPX7 |
| Colour | Black |
