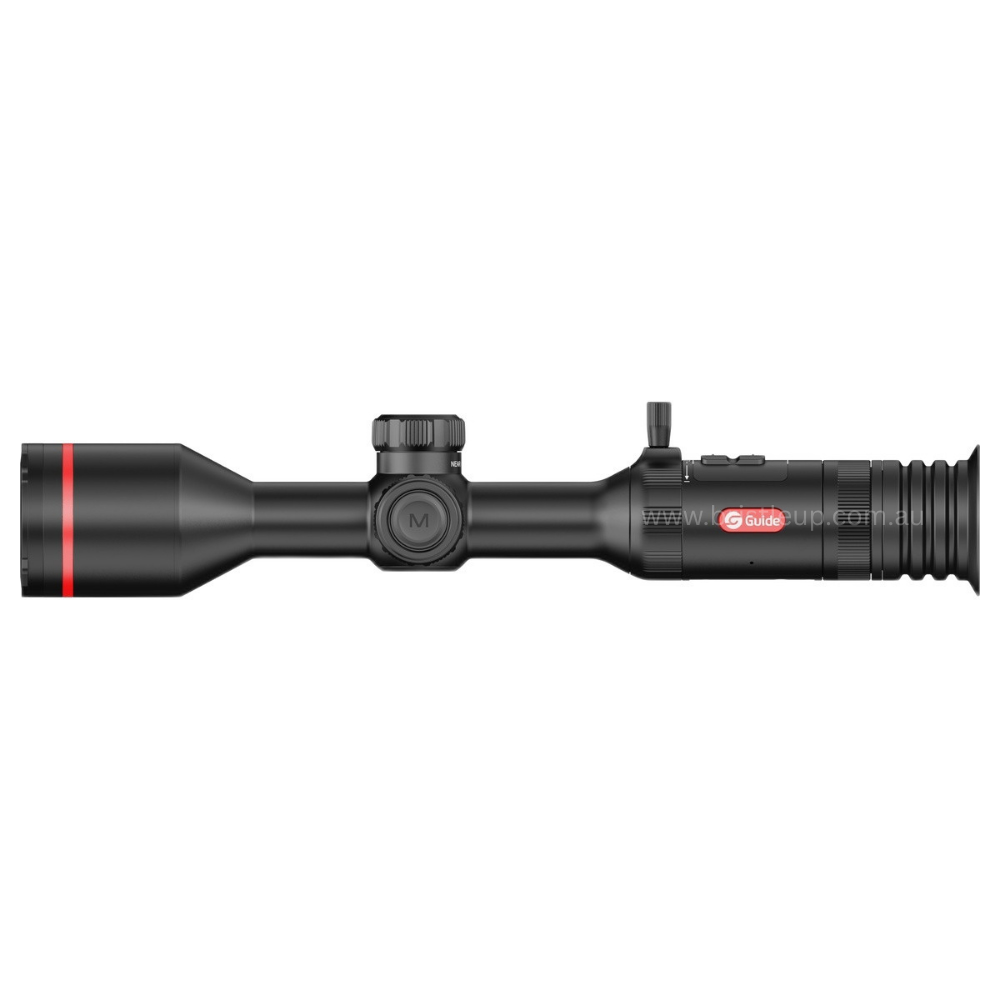

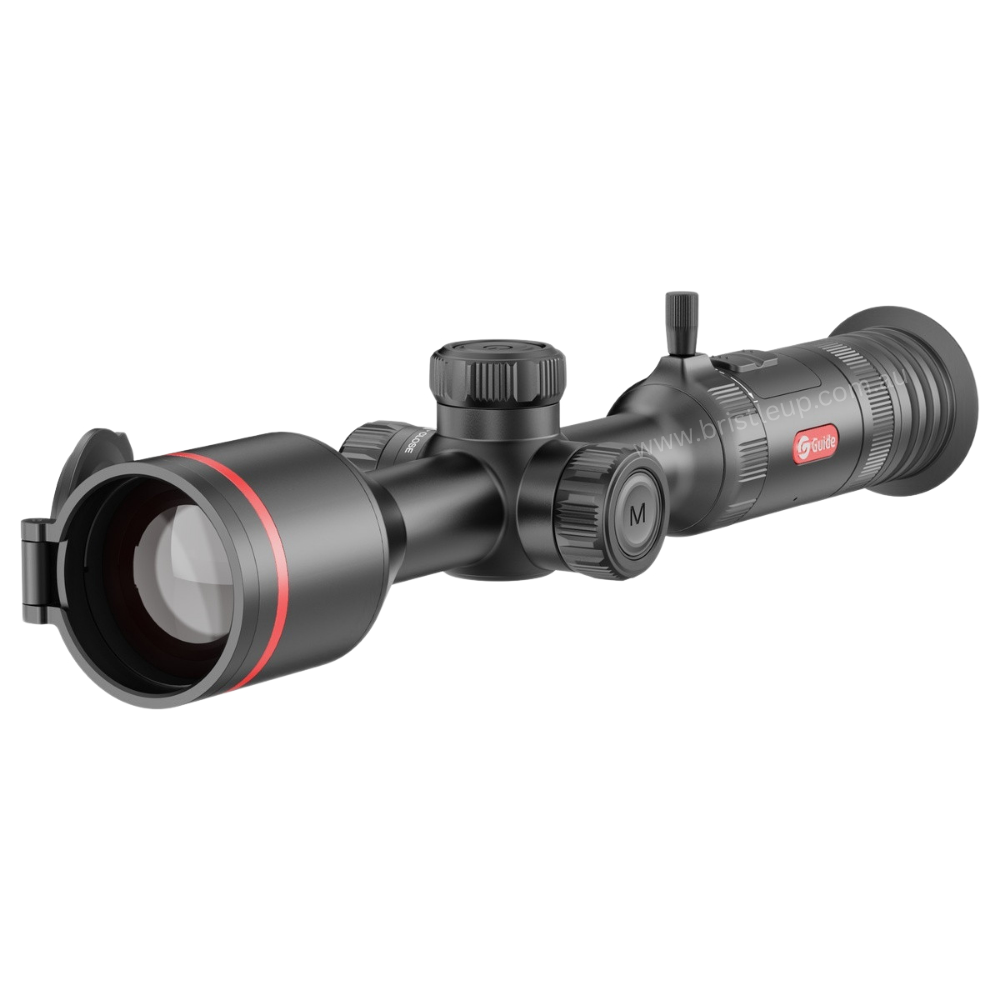

The Guide TU635S 3.0 Apex Vision Thermal Scope – 640×512, 15mK, 35mm
Original price was: $4,798.00.Current price is: $4,399.00. Save $399.00

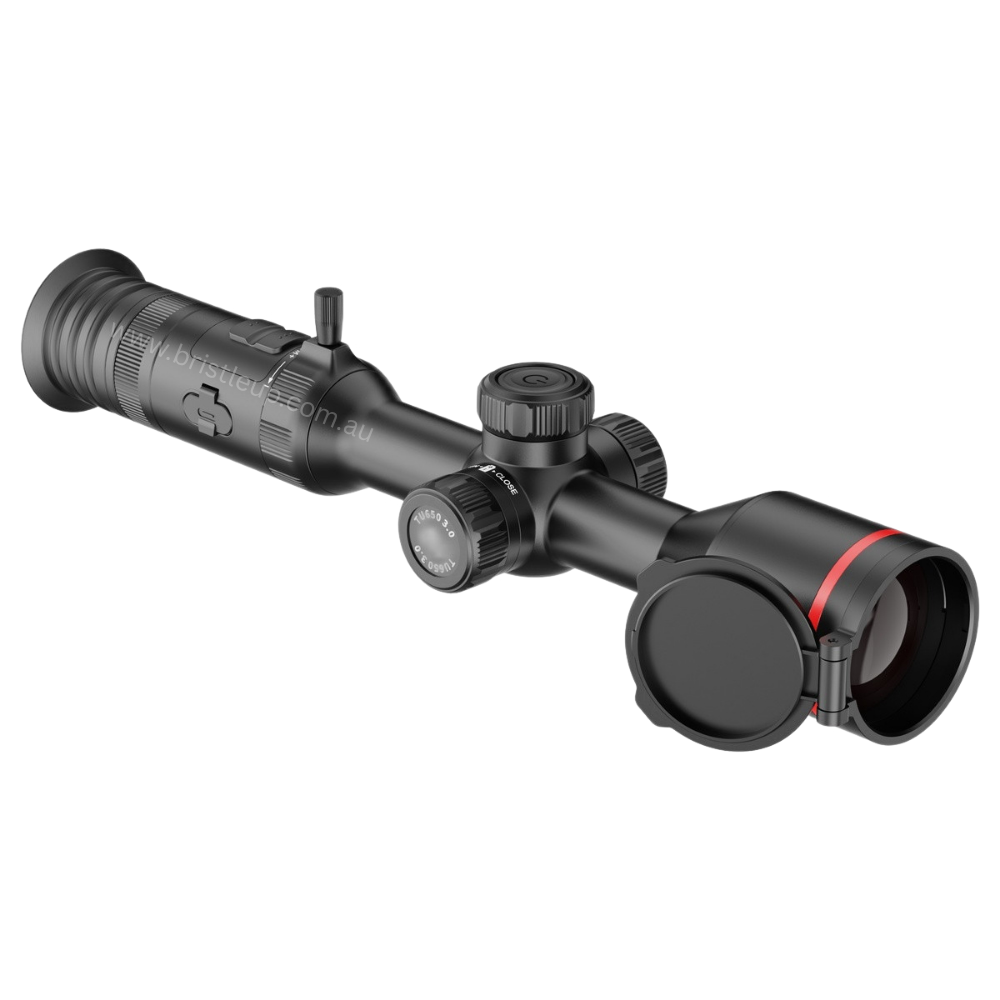

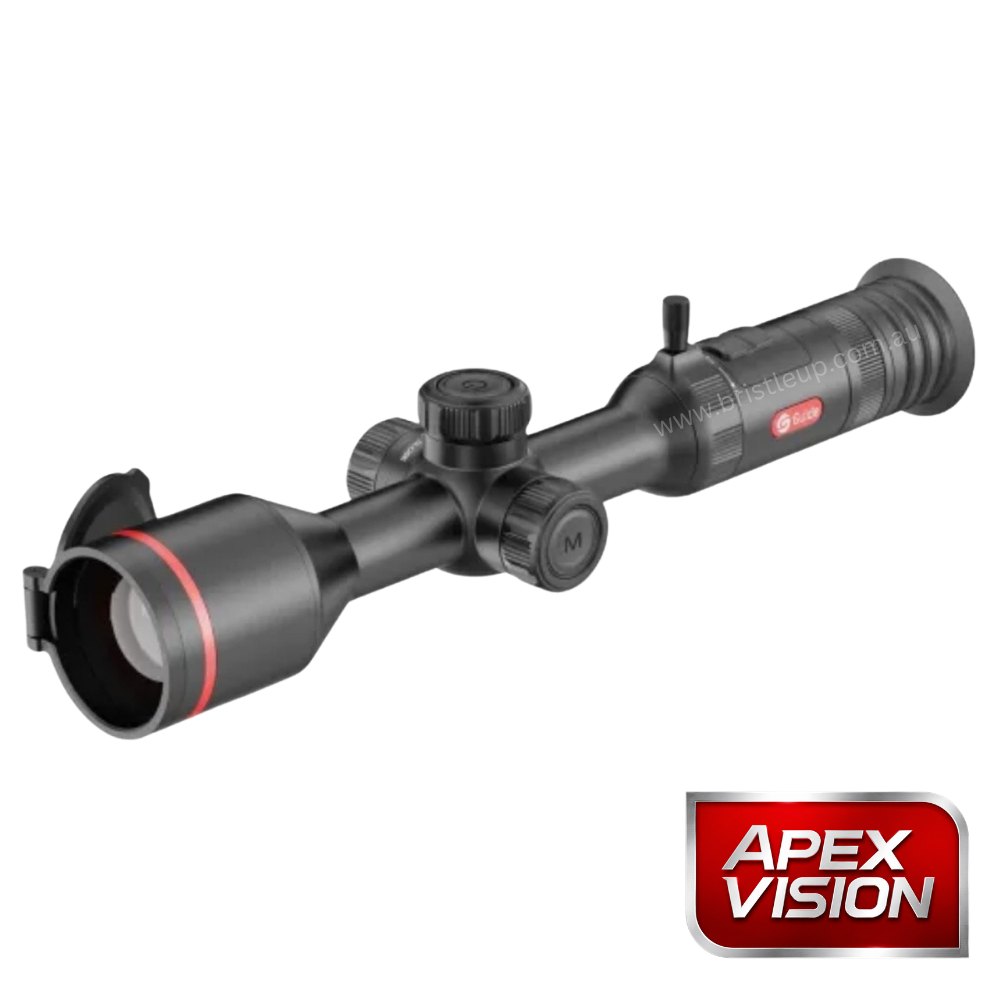

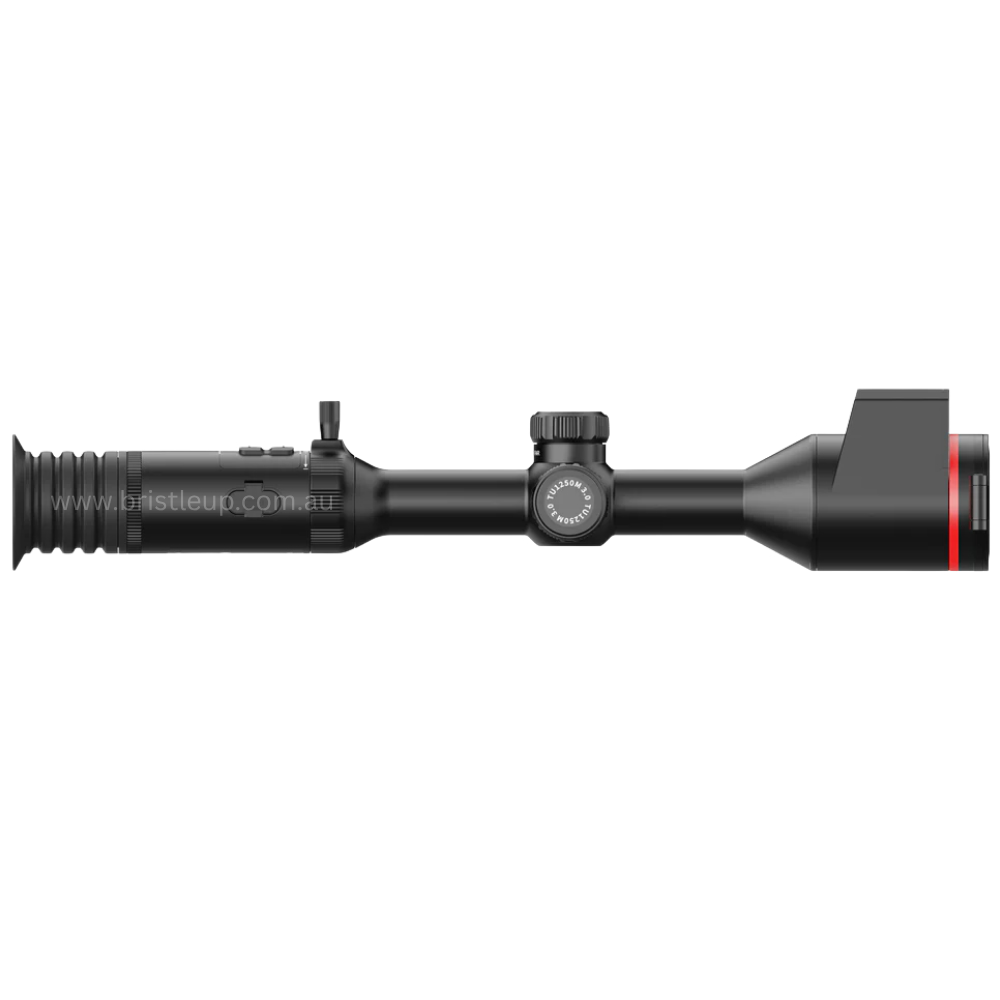

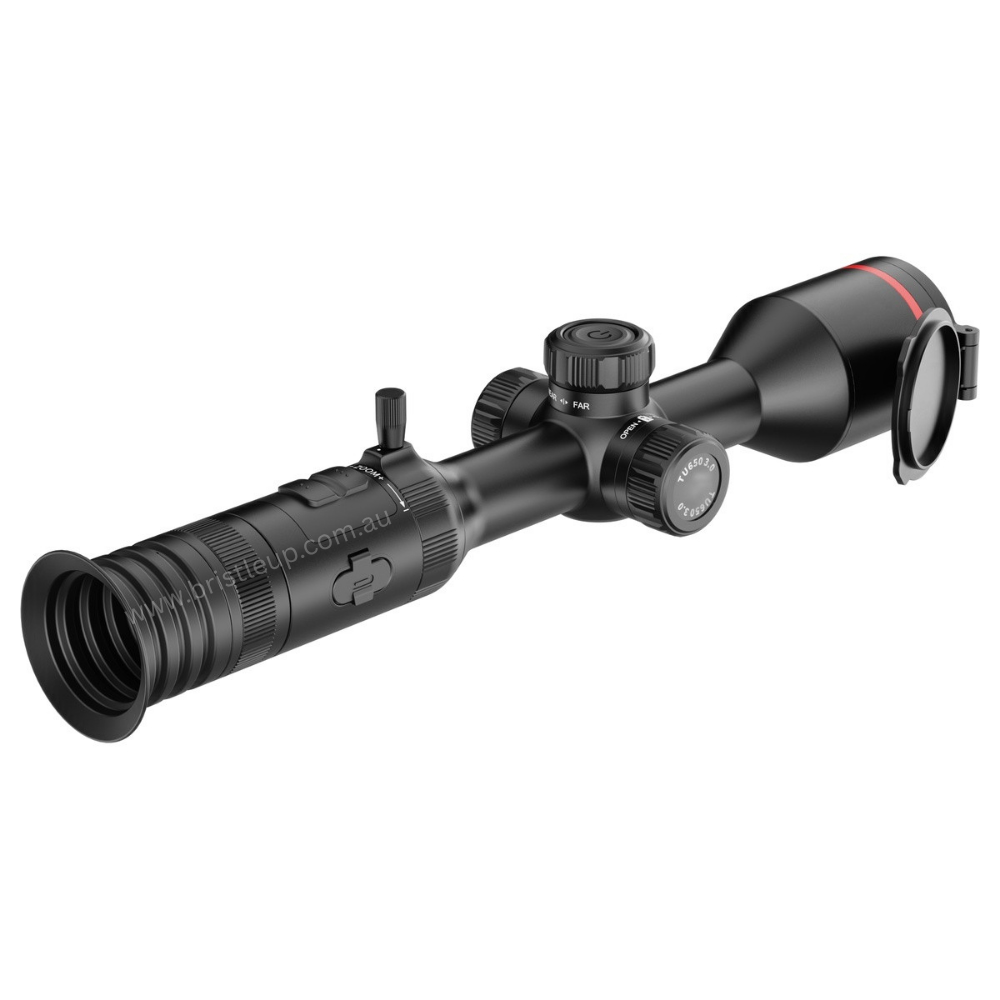

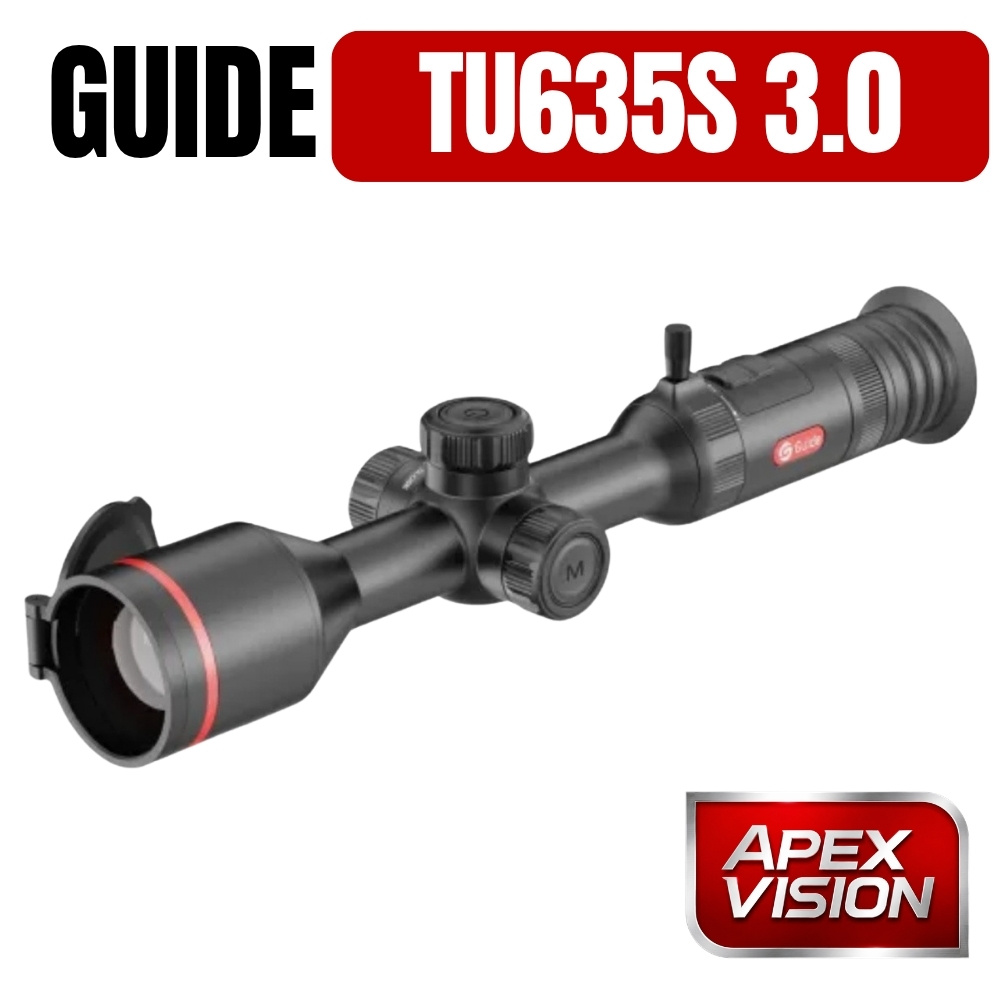

Guide TU635S 3.0 Apex Vision Thermal Scope
The Guide TU635S 3.0 is a high-performance thermal imaging scope featuring a 640×512 12μm thermal sensor with 15mK NETD and a 35mm objective lens, delivering detailed thermal imaging and strong sensitivity across challenging weather and environmental conditions.
Guide’s Hyper-Light image processing improves image clarity, reduces noise and optimises contrast and fine details. Its Shutterless 3.0 technology provides smooth, uninterrupted thermal viewing without the image freezing normally associated with calibration.
The TU635S features a 0.49-inch 1920×1080 AMOLED display and provides up to 8 hours of battery life. Its compact TU 3.0 design also incorporates AI-enhanced imaging and IP68 protection, providing reliable performance in demanding outdoor environments.

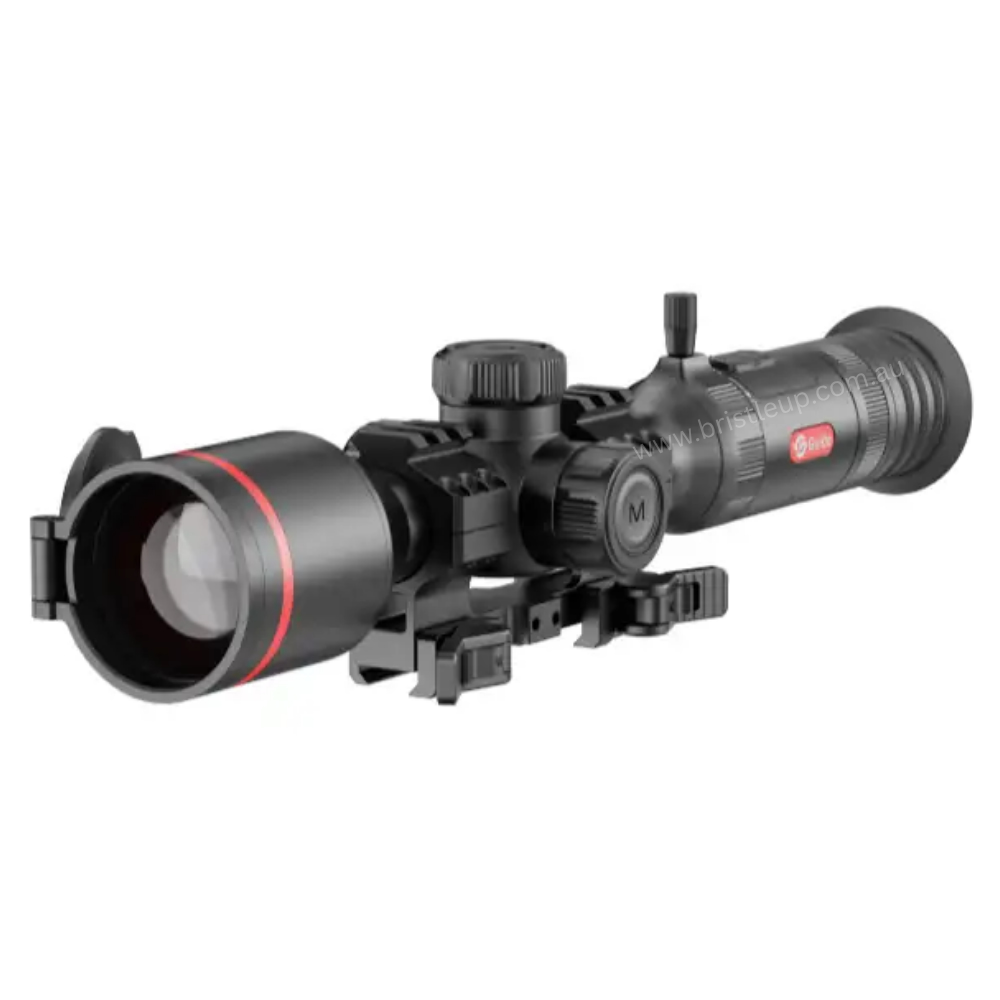

INCLUDES QUICK RELEASE SCOPE MOUNT.
Quick Release Mount Scope Tube Torque Settings = <2.5N·m / 22.13 in-lbs
Key Features
- 640 × 512, 12μm thermal sensor
- 15mK NETD thermal sensitivity
- 35mm objective lens
- Hyper-Light image processing
- Shutterless thermal imaging
- 0.49″ 1920 × 1080 AMOLED display
- AI-enhanced imaging
- Up to 8 hours battery life
- Recoil-activated smart recording
- Up to 6000J shock resistance
- IP68 weather protection
TECHNICAL SPECIFICATIONS
| Product model | TU435S | TU635S | TU650S |
| Sensor | |||
| Core technology | Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0 |
||
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | ||
| Resolution | 400×300@12μm | 640×512@12μm | |
| NETD | 15mK | ||
| Frame rate | 50 Hz | 50Hz | |
| Lens | |||
| Objective lens | 35mm, F0.9 | 50mm, F0.9 | |
| Field of view | 7.4°×4.4° | 11.8°×7.1° | 8.8°×7.0° |
| FOV m@100m | 13×8 | 21×12 | 15×12 |
| Magnification | 4.4x~17.6x | 2.8x~22.4x | 3.7x~29.6x |
| Detection range | 1800m/1950yd | 2600m/2800yd | |
| Focus | Manual | ||
| Display | |||
| Display type | 0.49″ AMOLED 1920×1080 | 1.03″ AMOLED 2560×2560 | |
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | ||
| Eyepiece | Eye relief: 48mm; Diopter −5 to +5; Zoom: 14x | Eye relief: 60mm; Diopter −5 to +5; Zoom: 7.8x | |
| Hardware | |||
| Wi-Fi | 2.4G, 5G | ||
| Interface | USB-C (Charge/USB2.0) | ||
| Tube diameter | Standard 30 mm | ||
| Others | Microphone, Bluetooth | ||
| System | |||
| Recording function | Photo/Video (Audio recording included) | ||
| Memory capacity | 128 GB | 256 GB | |
| Power | |||

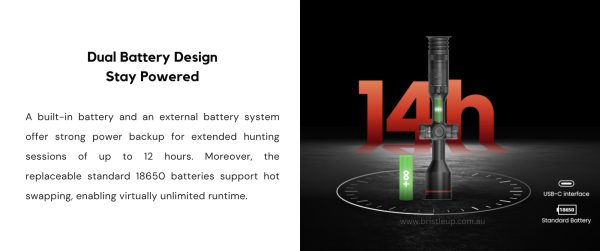

| Battery type | 18500 ×1 Battery (Built-in) and 18650 ×1 Battery (External) | 18650 ×2 Battery (Built-in) and 18650 ×1 Battery (External) | |
| Operating time | 8 hours | 14 hours | |
| Environmental | |||
| Operating temp. | −20°C to 50°C / −4°F to +122°F | ||
| Shock | 6000J | ||
| Encapsulation | IP68 | ||
| Physical | |||

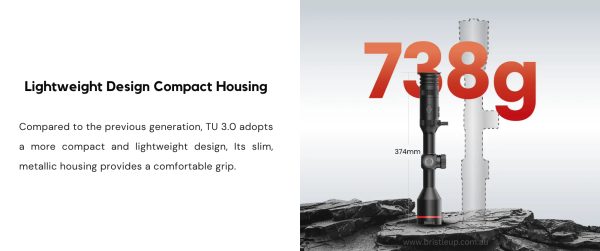

| Weight (g/oz) | 738/26.03 | 745/26.28 | 921/32.49 |
| Size (mm/in) | 374×89×76/14.72×3.50×2.99 | 421×89×80/16.57×3.50×3.15 | |
| Standard | Device, Eye Mask, Quick-Release Scope Mount, Carry Bag, Lint-Free Cloth, Battery Charger, 18650 Battery ×2, 5V 2A Adapter (US, UK, Australia, and Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card |
||
| Optional | Bluetooth Remote Control, 18650 Battery | ||
