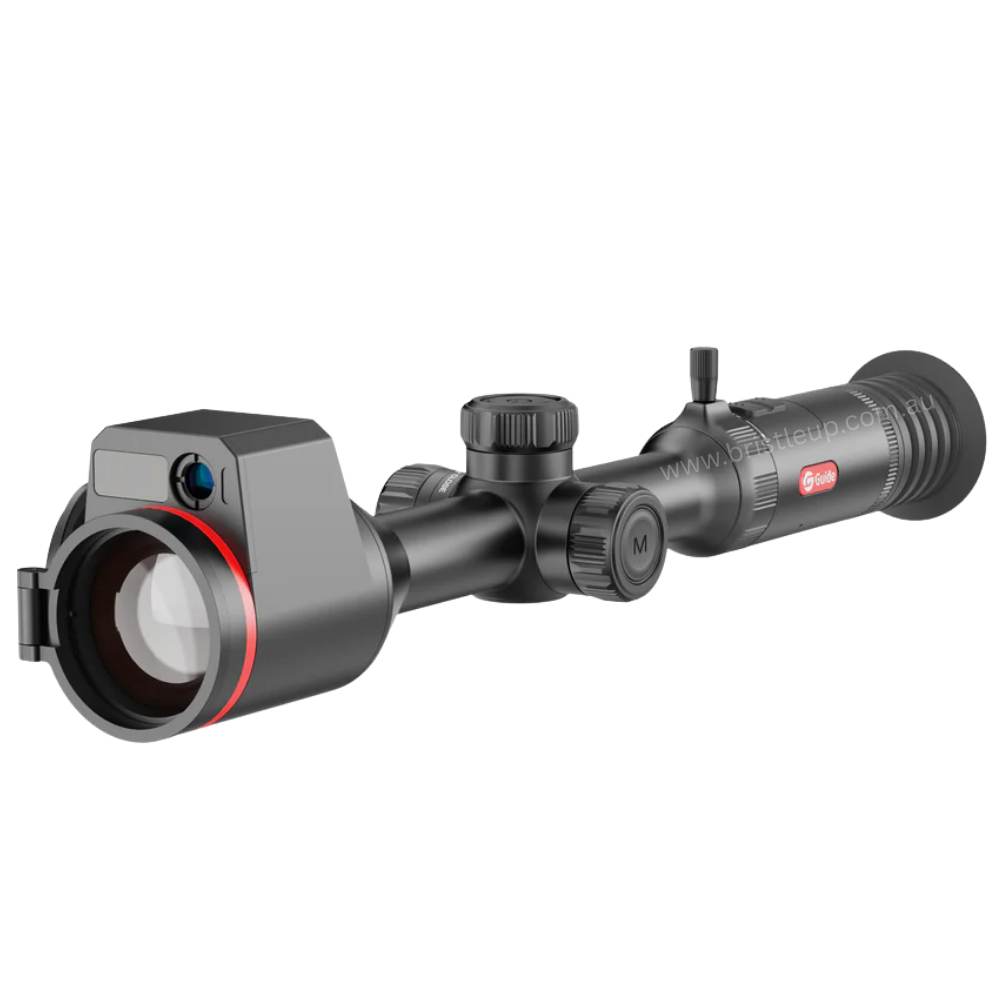

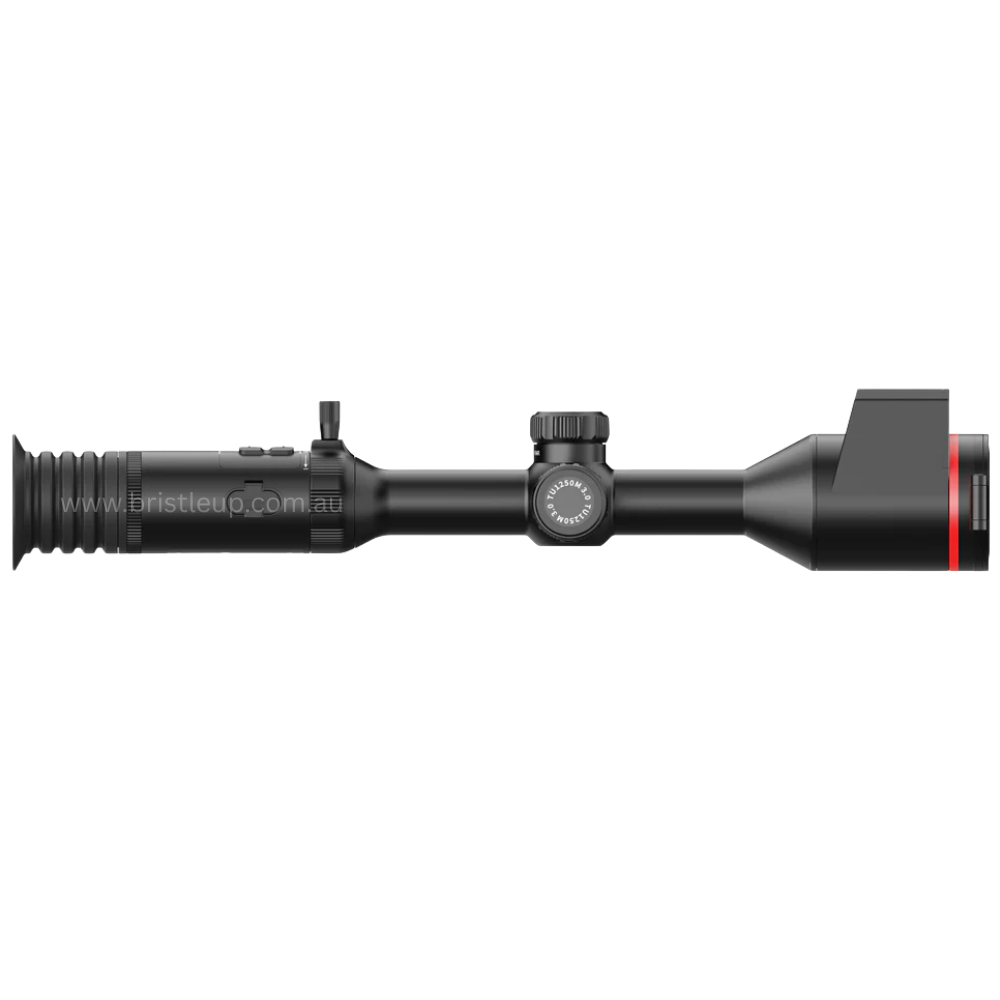

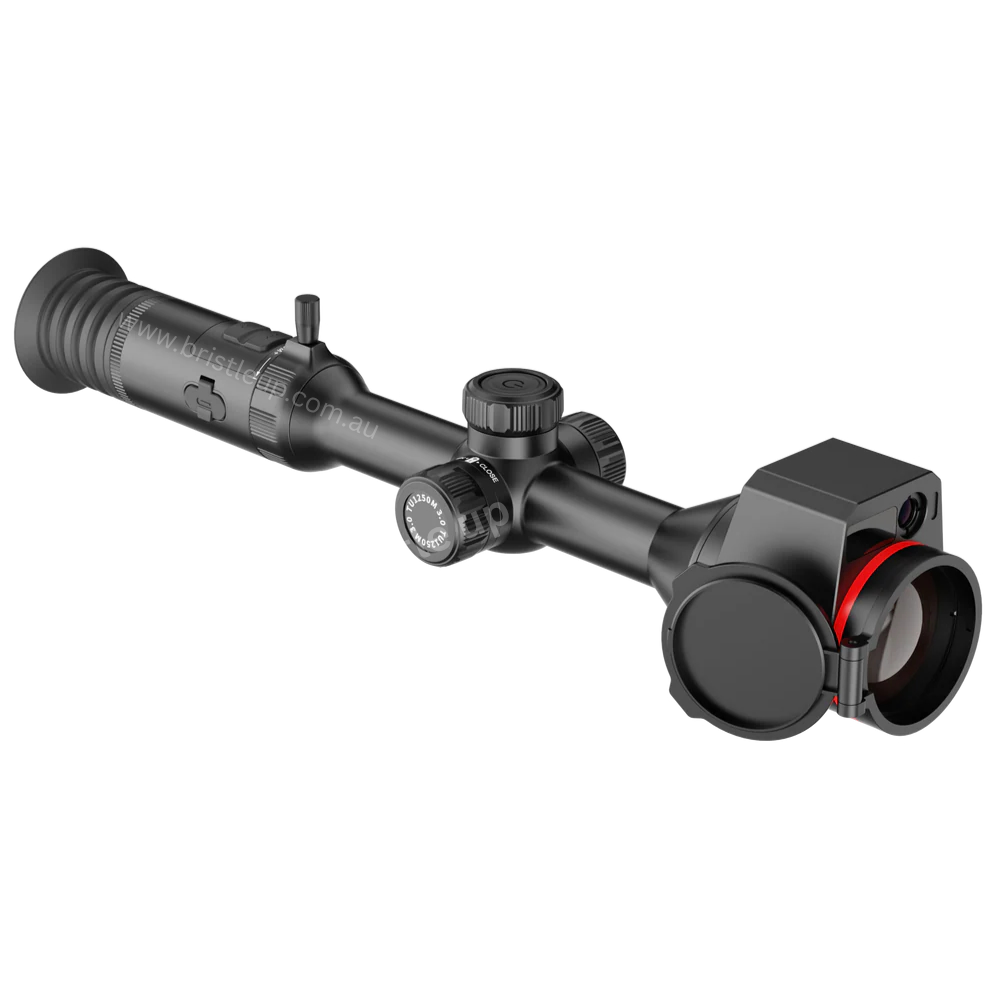

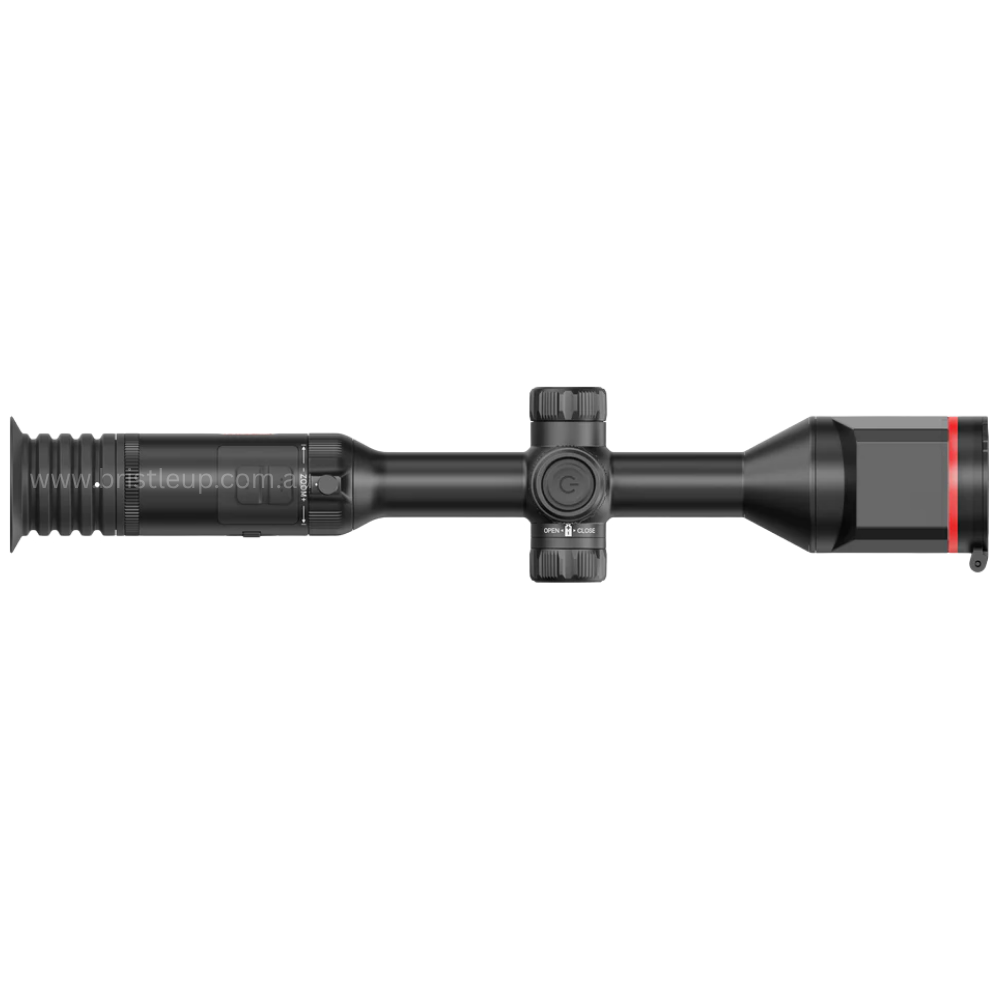

The Guide TU1260MS MUO 3.0 Apex Vision Multispectral Thermal and Night Vision Scope – 1280×1024, 15mK, 60mm LRF
Original price was: $10,398.00.Current price is: $8,499.00. Save $1,899.00

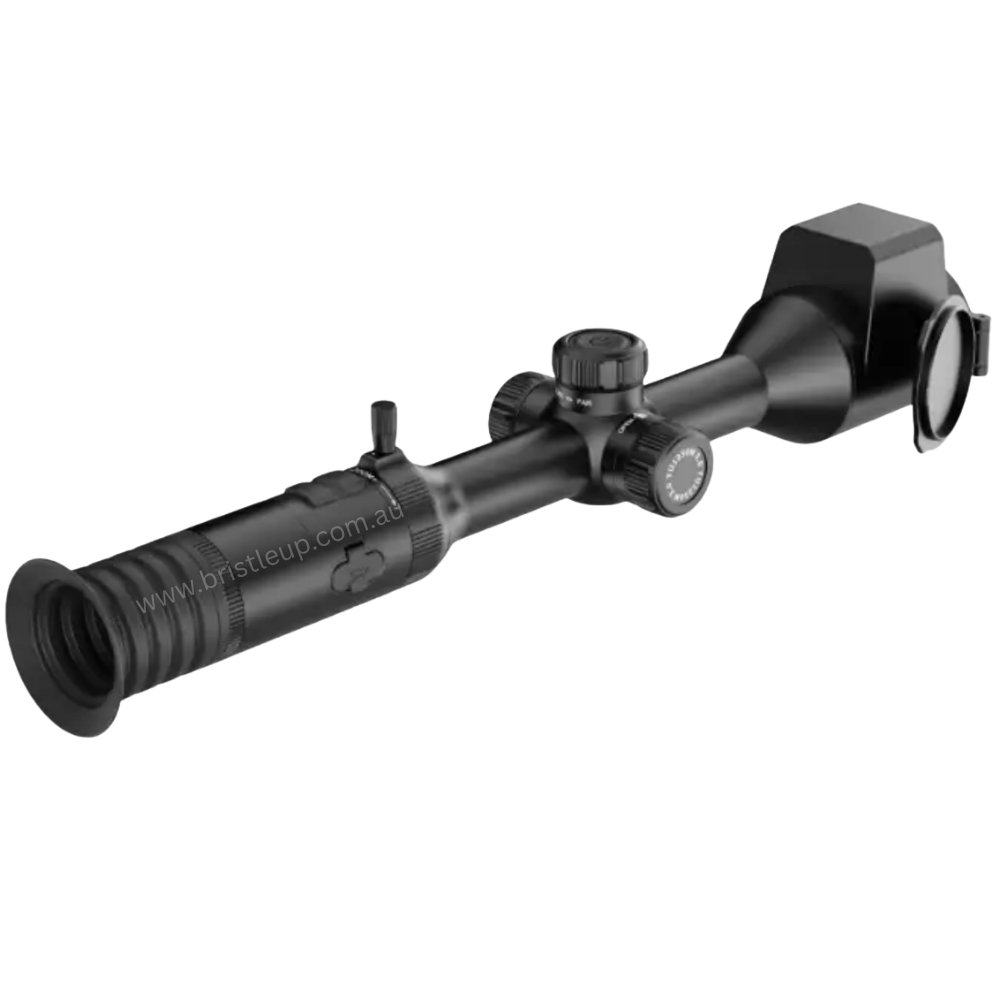

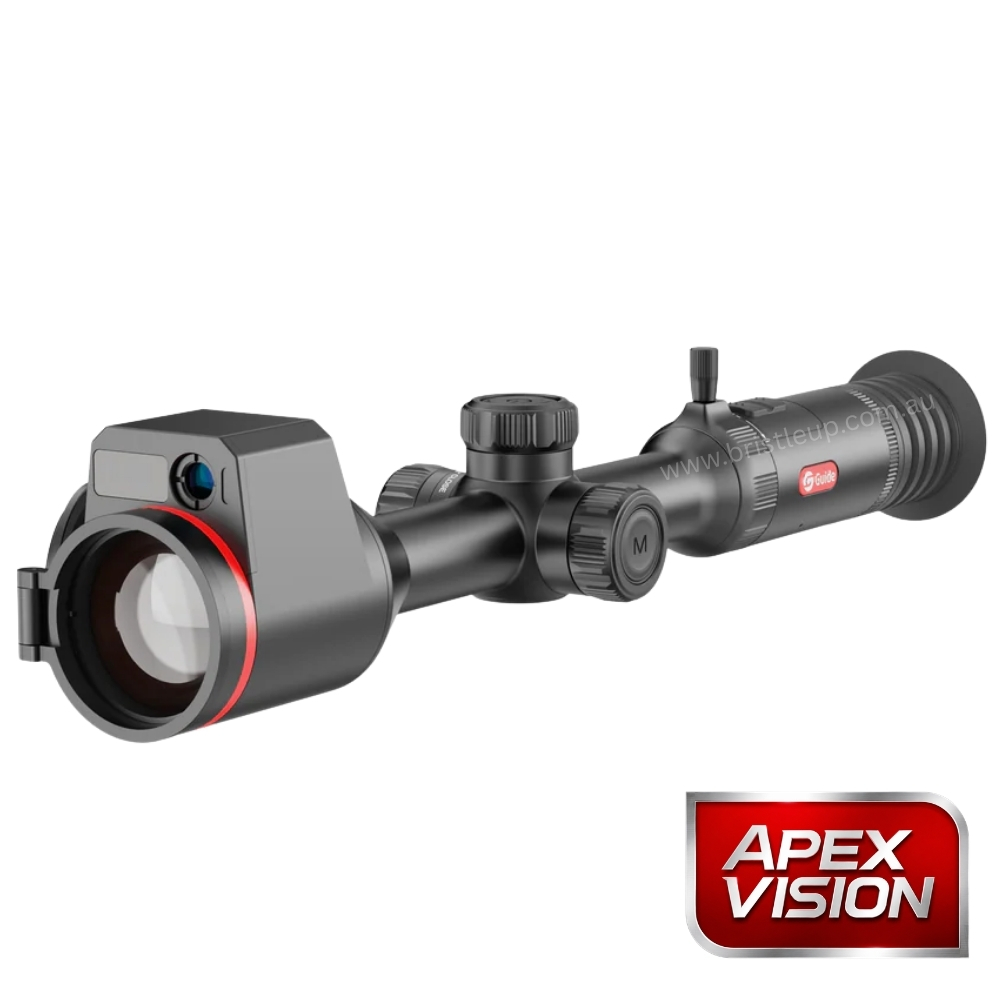

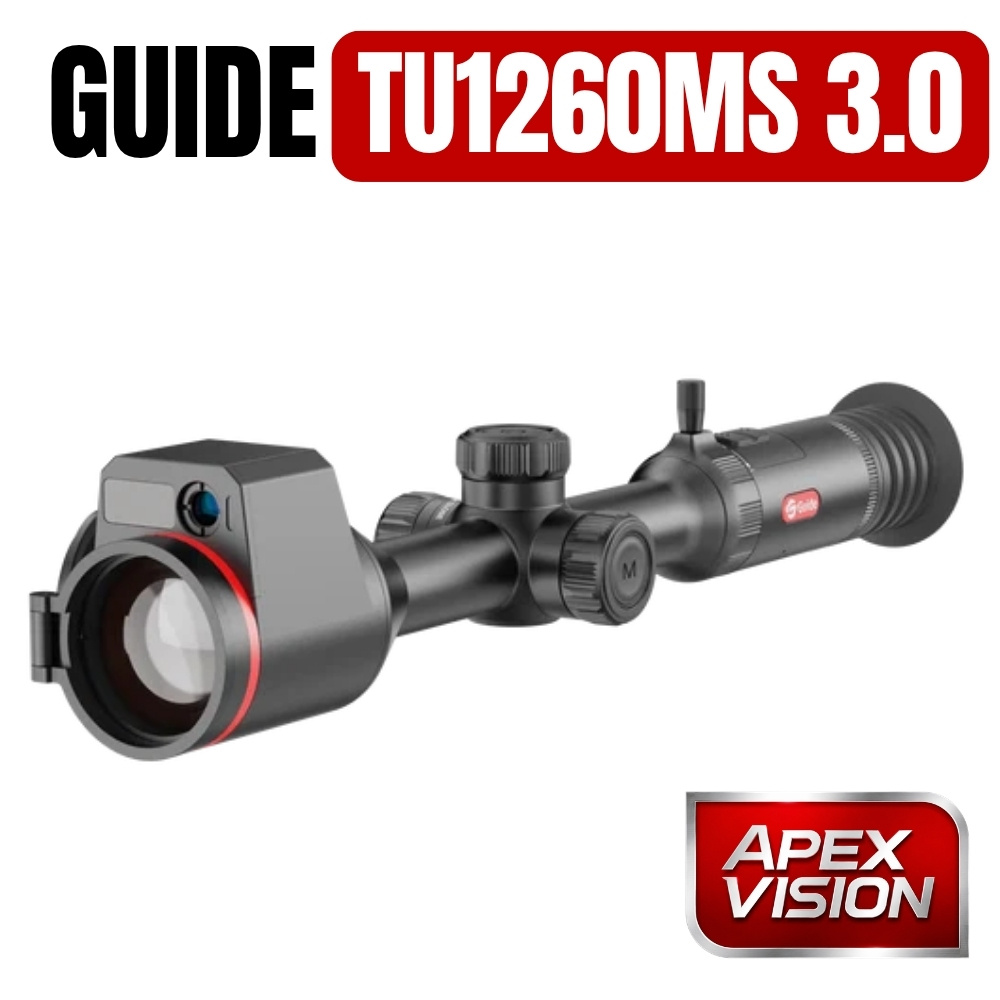

Guide TU1260MS 3.0 MUO Multispectral Thermal and Night Vision Scope with LRF
The Guide TU1260MS Muo 3.0 is a premium multispectral scope combining a high-resolution 1280×1024 12μm thermal sensor with 15mK NETD and a 1920×1080 digital sensor. Its thermal and visible-light imaging system provides detailed observation during the day, night and low-light conditions.
Featuring a 60mm objective lens and up to 3,200m thermal detection range, the TU1260MS is designed for high-detail observation over extended distances. Guide’s Hyper-Light algorithm enhances image clarity, reduces noise and improves contrast and fine details, while its shutterless design provides smooth, uninterrupted thermal viewing.
The TU1260MS also combines laser ranging, advanced AI-assisted functions and Guide’s TargetIR Ballistics support. Its rugged construction provides IP68 weather protection and up to 6000J shock resistance, making it suitable for demanding outdoor environments.

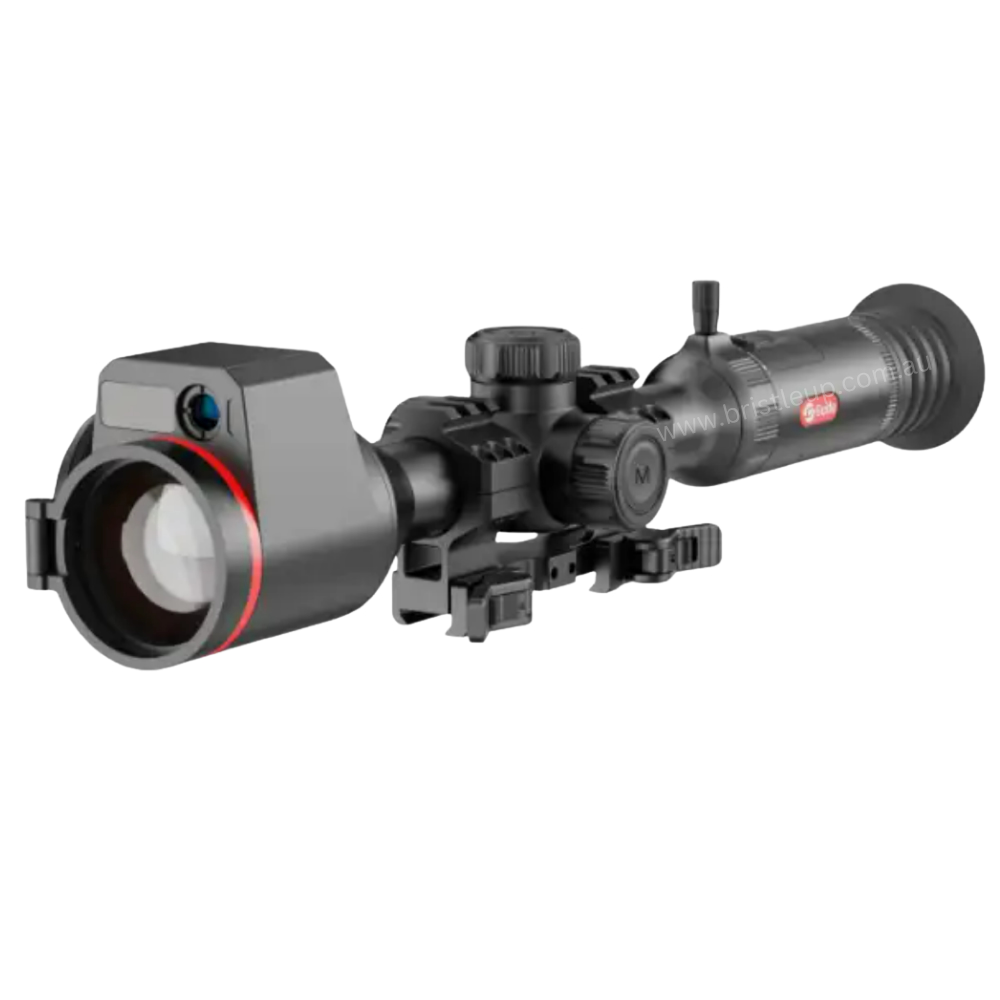

INCLUDES QUICK RELEASE SCOPE MOUNT: Torque Settings = <2.5N·m / 22.13 in-lbs
INCLUDES IR TORCH & 30MM BRACKET
Key Features
- 1280 × 1024, 12μm thermal sensor
- 15mK NETD thermal sensitivity
- 60mm objective lens
- 1920 × 1080, 2.9μm digital sensor
- Thermal + visible-light multispectral imaging
- Up to 3,200m thermal detection range
- Laser Rangefinder
- Hyper-Light image processing
- Shutterless thermal imaging
- Day, night & low-light modes
- AI-enhanced functions
- TargetIR Ballistics support
- Up to 6000J shock resistance
- IP68 weather protection
Specifications
| Product model | TU1260MS |
| Sensor | |
| Core Technology Item |
Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0 |
| Type | Thermal: Uncooled VOx Infrared Detector, 8 to 14μm; Digital: CMOS |
| Resolution | Thermal: 1280×1024@12μm (NETD 15mK); Digital: 1920×1080@2.9μm |
| Frame rate | 50Hz |
| Lens | |
| Objective lens | Thermal: 60mm, F1.0; Digital: 35mm, F4.0 |
| Field of view | Thermal: 14.6°×11.7°; Digital: 6.4°×5.1° |
| FOV m@100m | Thermal: 25×20; Digital: 11×9 |
| Magnification | Thermal: 2.3x–36.8x; Digital: 5.1x–81.6x |
| Detection range | Thermal: 3200m/3500yd; Digital: 330m/360yd |
| Focus | Manual |
| Display | |
| Display type | 1.03″ AMOLED 2560×2560 |
| Color palettes | IR: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia; Visible: Day, Night, Low-light |
| Eyepiece | Eye relief: 60mm; Diopter −5 to +5; Zoom: 7.8x |
| Hardware | |
| Laser rangefinder | 1500m/1630yd |
| WIFI | 2.4G, 5G |
| Interface | USB-C (Charge/USB2.0) |
| Tube diameter | Standard 30 mm |
| Others | Microphone, Bluetooth |
| System | |
| Recording function | Photo/Video (Audio recording included) |
| Memory capacity | 256GB |
| Power | |
| Battery type | 18650 ×2 Battery (Built-in) and 18650 ×1 Battery (External) |
| Operating time | 12 hours |
| Environmental | |
| Operating temp. | −20°C to 50°C / −4°F to +122°F |
| Shock | 6000J |
| Encapsulation | IP68 |
| Physical | |
| Weight (g/oz) | 1145/40.39 |
| Size (mm/in) | 450×90×91/17.72×3.54×3.58 |
| Standard | Device, Eye Mask, Quick-Release Scope Mount, Carry Bag, Lint-Free Cloth, IR Illuminator, IR Illuminator Bracket, Battery Charger, 18650 Battery ×2, 5V 2A Adapter (US, UK, Australia, and Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card |
| Optional | Bluetooth Remote Control, 18650 Battery |
