Pixfra Sirius S650 LRF – Thermal Monocular
$3,990.00

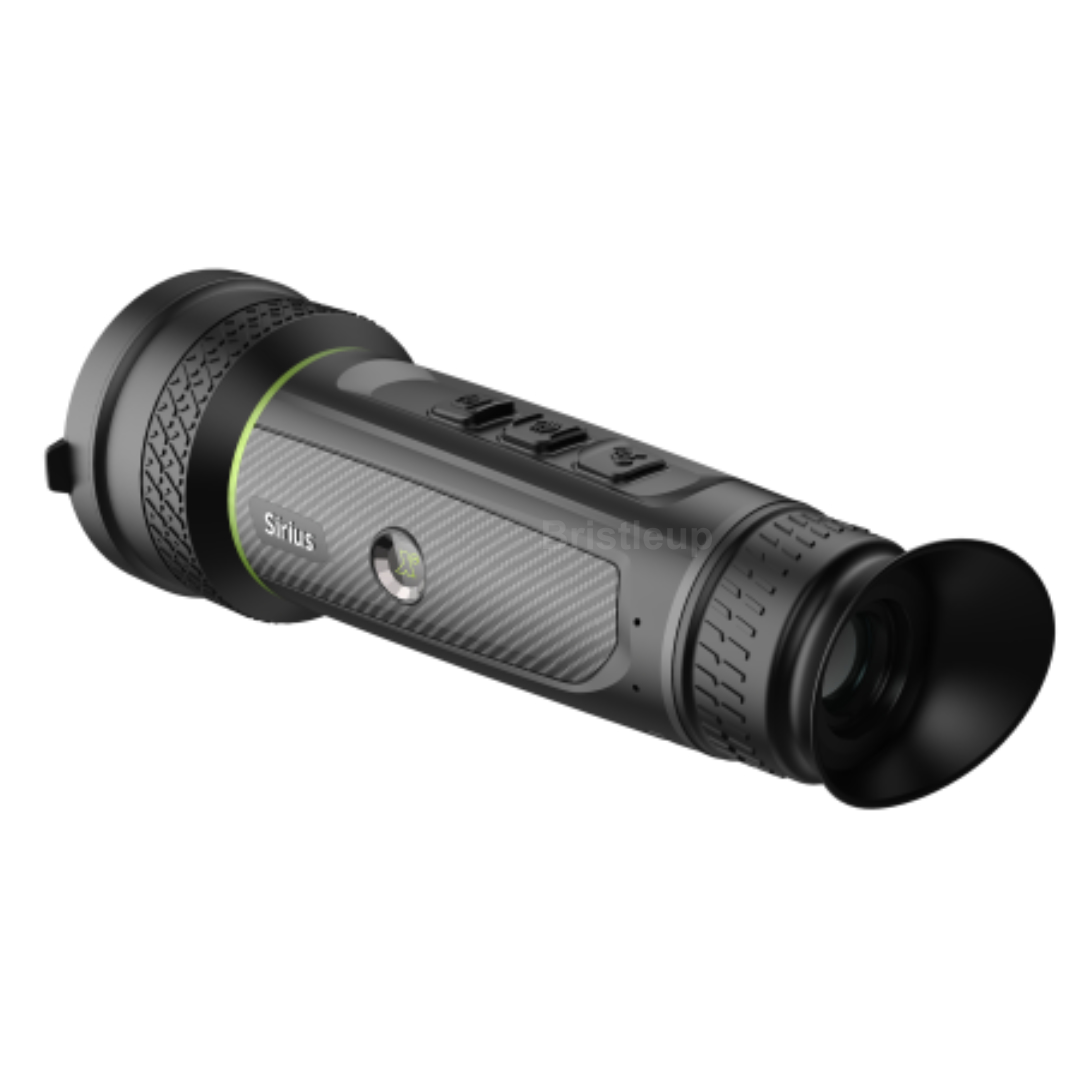

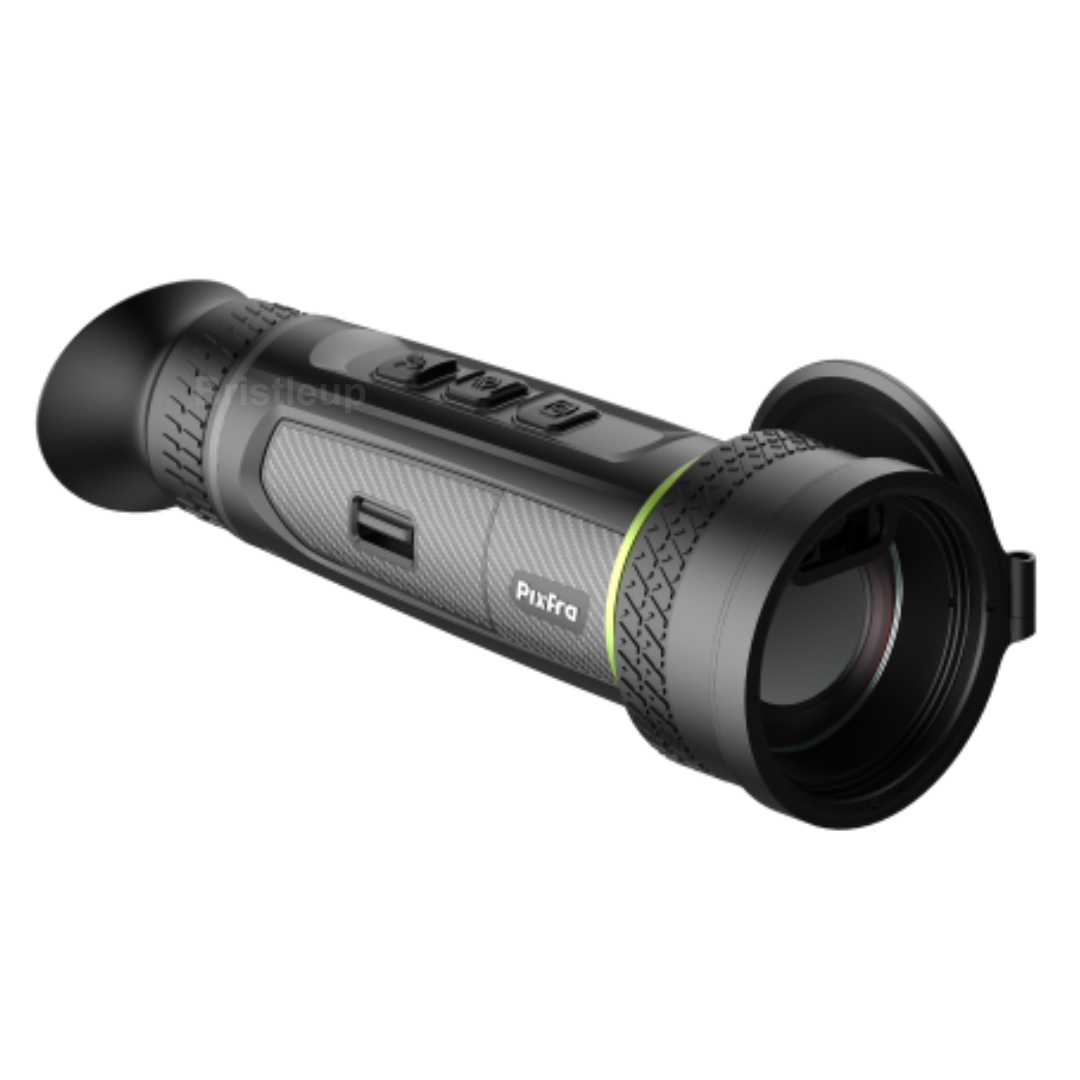

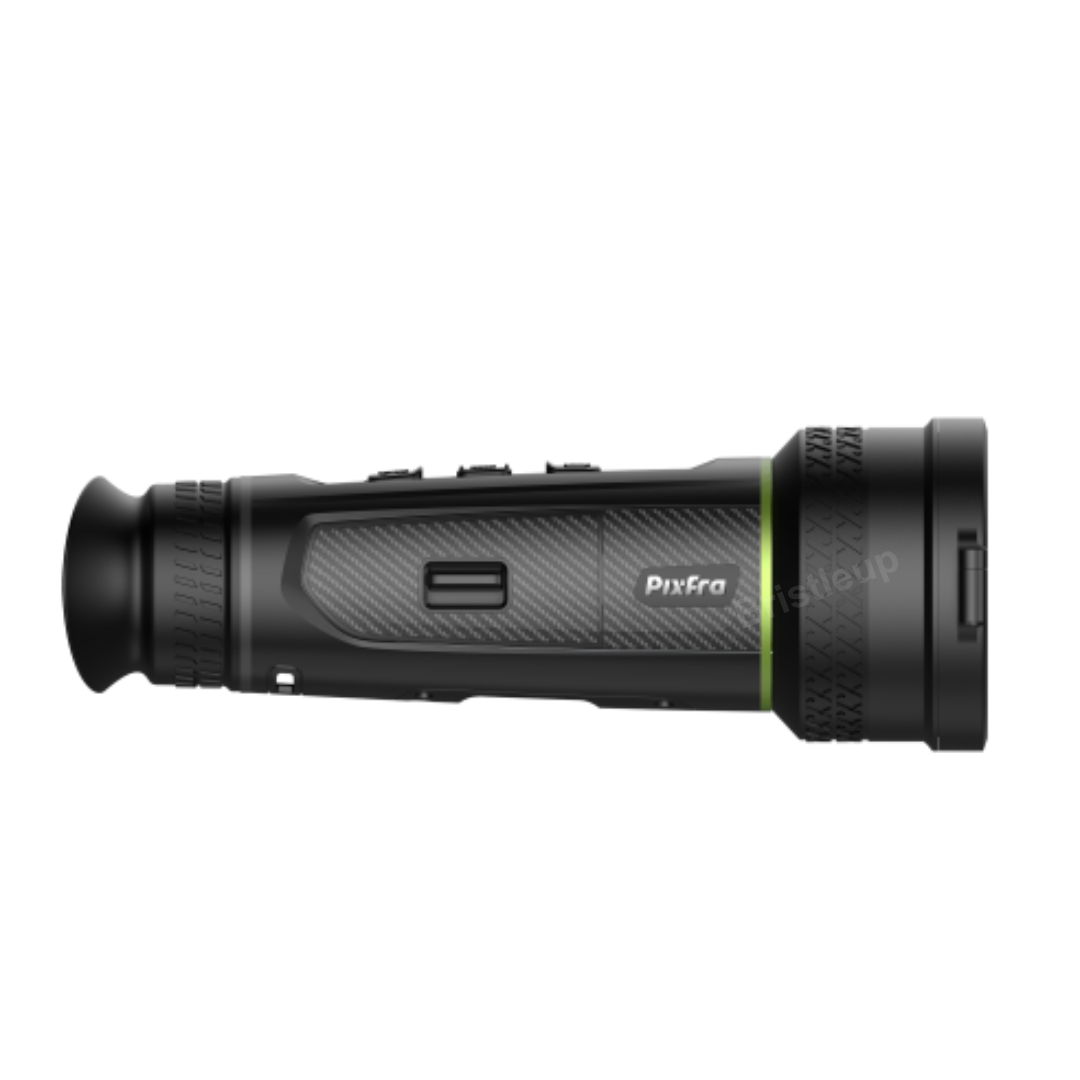

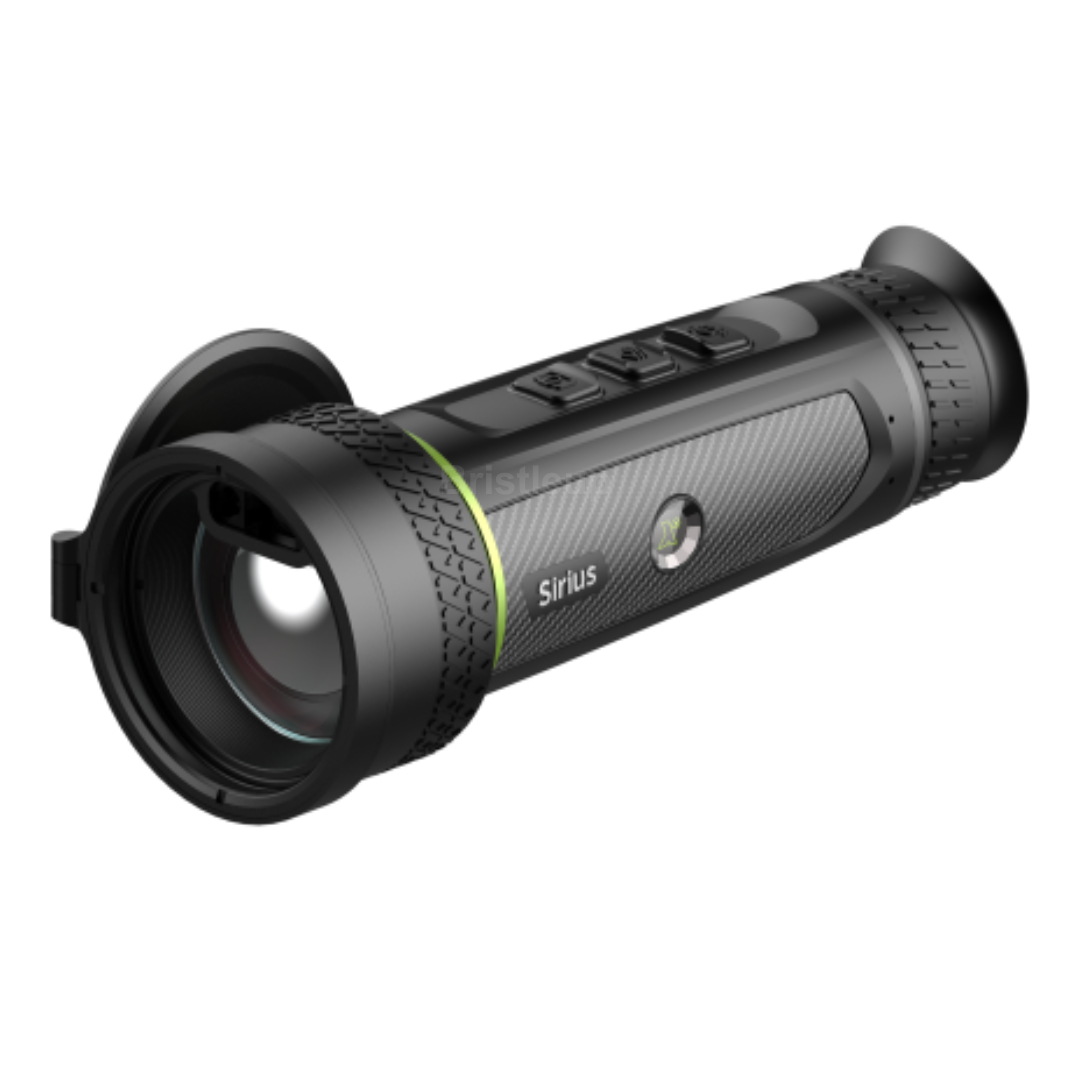

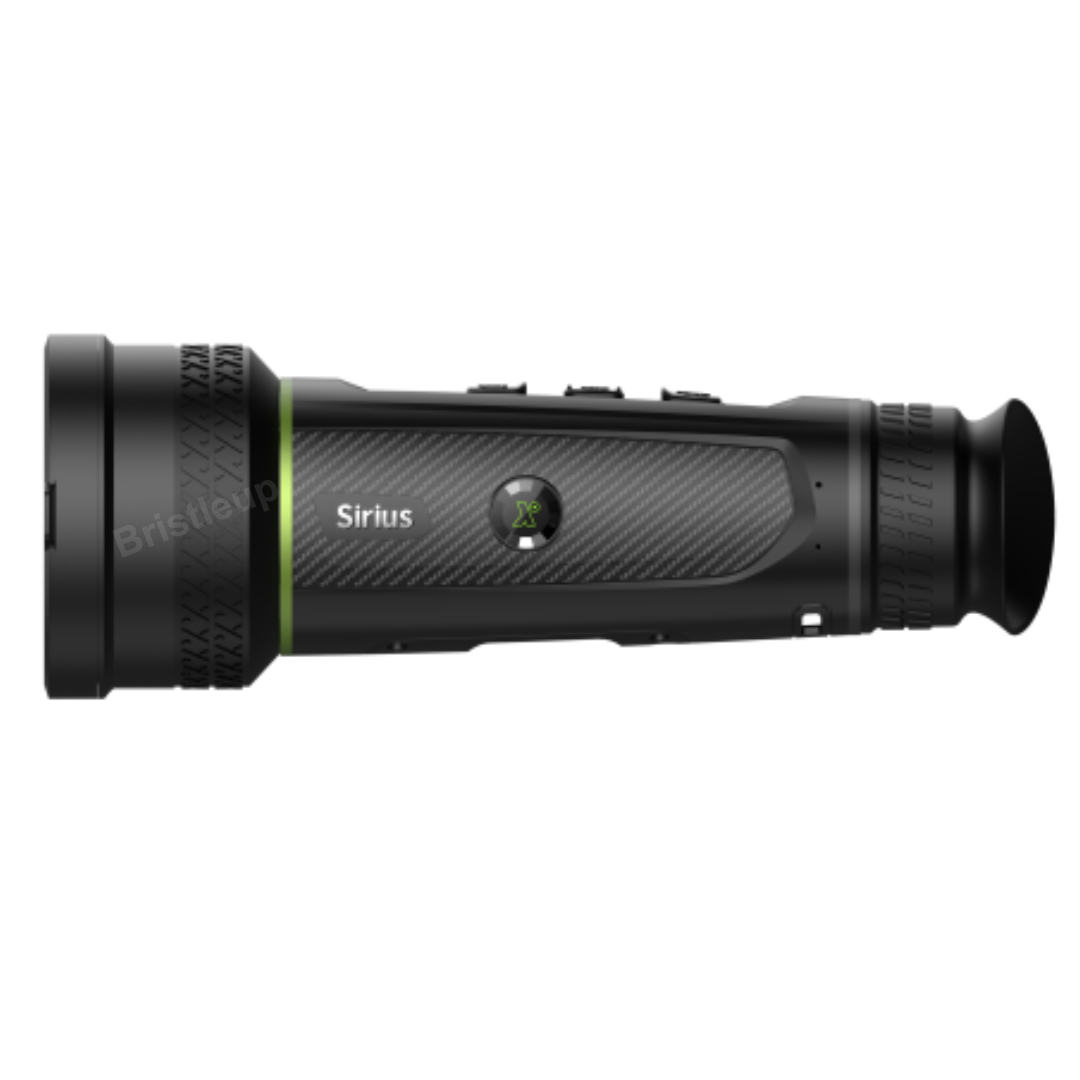

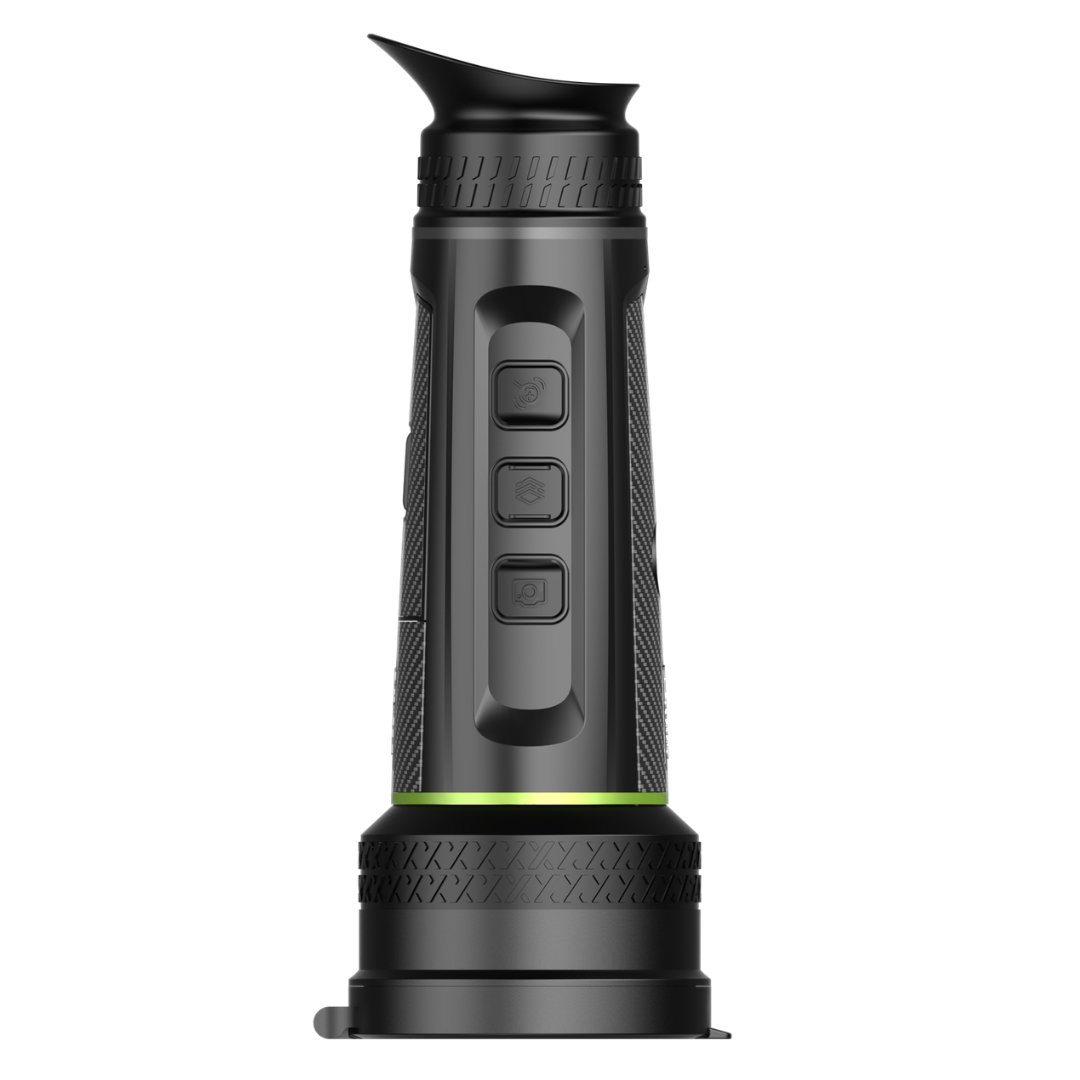

Pixfra Sirius S650 LRF
The Sirius S650 from Pixfra is a thermal imaging monocular that is packed full of cutting-edge technology, an abundance of digital features, and an ergonomic design, ensuring an unprecedented performance and unparalleled comfort. With a sensitive 640×512, 12µm, <18mK NETD thermal sensor and a powerful 50mm f0.9 objective lens, this monocular will effortlessly detect the smallest heat signature at distances reaching up to 2600m.
| PRODUCT PARAMETERS | |||||
| Product Model | S435 | S635 | S650 | S650D | S650 LRF |
| Detector Type | Vanadium oxide uncooled focal plane detector | Vanadium oxide uncooled focal plane detector | Vanadium oxide uncooled focal plane detector | Vanadium oxide uncooled focal plane detector | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 384 (H) × 288 (V) | 640 (H) × 512 (V) | 640 (H) × 512 (V) | 640 (H) × 512 (V) | 640 (H) × 512 (V) |
| Pixel Pitch | 12 μm | 12 μm | 12 μm | 12 μm | 12 μm |
| Spectral Range | 8μm ~ 14μm | 8μm ~ 14μm | 8μm ~ 14μm | 8μm ~ 14μm | 8μm ~ 14μm |
| Sensitivity (NETD) | ≤18 mK@f/1.0 | ≤18 mK@f/1.0 | ≤18 mK@f/1.0 | ≤18 mK@f/1.0 | ≤18 mK@f/1.0 |
| Focal Length | 35 mm | 35 mm | 50 mm | 25 mm; 50 mm | 50 mm |
| Thermal Focus Control | Manual | Manual | Manual | Manual | Manual |
| Close Focus Distance | 3 m (9.84 ft) | 3 m (9.84 ft) | 3 m (9.84 ft) | 25 mm: 2 m (6.56 ft); 50 mm: 8 m (26.25 ft) |
3 m (9.84 ft) |
| Aperture | F1.0 | F1.0 | F0.9 | 25 mm: F0.88; 50 mm: F1.1 |
F0.9 |
| Field of View | H: 7.85°; V: 5.89°/H: 13.7 m; V: 10.3 m (@100 m) | H: 12.4°; V: 10°/H: 21.9 m; V: 17.6 m (@100 m) | H: 8.8°; V: 7.1°/H: 15.4 m; V: 12.3 m (@100 m) | 25 mm: H: 17.9°; V: 14.2°/H: 30.7 m; V: 24.6 m (@100 m); 50 mm: H: 8.8°; V: 7.0°/H: 15.4 m; V: 12.3 m (@100 m) |
H: 8.8°; V: 7.1°/H: 15.4 m; V: 12.3 m (@100 m) |
| Detection Distance | 1,800 m (5,905.31 ft) | 1,800 m (5,905.31 ft) | 2,600 m (8,530.18 ft) | 25 mm: 1,300 m (4,265.09 ft); 50 mm: 2,600 m (8,530.18 ft) |
2,600 m (8,530.18 ft) |
| Digital Zoom | 1 ×; 2 ×; 4 ×; 8 × | 1 ×; 2 ×; 4 ×; 8 × | 1 ×; 2 ×; 4 ×; 8 × | 1 ×; 2 ×; 4 ×; 8 × | 1 ×; 2 ×; 4 ×; 8 × |
| Magnification | 3.68 × | 2.41 × | 3.45 × | 25 mm: 1.72×; 50 mm: 3.45× |
3.45 × |
| Frame Rate | 50 Hz | 50 Hz | 50 Hz | 50 Hz | 50 Hz |
| Screen | 1920 × 1080, 0.49 inch, OLED | 1920 × 1080, 0.49 inch, OLED | 1920 × 1080, 0.49 inch, OLED | 1920 × 1080, 0.49 inch, OLED | 1920 × 1080, 0.49 inch, OLED |
| Color Palettes | 6 (white hot/black hot/iron red/alarm/amber/emerald) | 6 (white hot/black hot/iron red/alarm/amber/emerald) | 6 (white hot/black hot/iron red/alarm/amber/emerald) | 6 (white hot/black hot/iron red/alarm/amber/emerald) | 6 (white hot/black hot/iron red/alarm/amber/emerald) |
| Storage | Built-in 64 GB | Built-in 64 GB | Built-in 64 GB | Built-in 64 GB | Built-in 64 GB |
| FFC Calibration | Auto, Manual, External Correction | Auto, Manual, External Correction | Auto, Manual, External Correction | Auto, Manual, External Correction | Auto, Manual, External Correction |
| Hot Spot Trace | Yes | Yes | Yes | Yes | Yes |
| Wi-Fi Hotspot | Yes | Yes | Yes | Yes | Yes |
| Video Recorder | Yes | Yes | Yes | Yes | |
| Snapshot | Yes | Yes | Yes | Yes | Yes |
| Battery Type | Replaceable 18650 battery | Replaceable 18650 battery | Replaceable 18650 battery | Replaceable 18650 battery | Replaceable 18650 battery |
| Battery Life | ≥7.5 h | ≥6 h | ≥6 h | ≥6 h | ≥6 h |
| Power Supply | 5 VDC/2 A | 5 VDC/2 A | 5 VDC/2 A | 5 VDC/2 A | 5 VDC/2 A |
| Port | USB Type-C | USB Type-C | USB Type-C | USB Type-C | USB Type-C |
| Operating Temperature | −30 °C to +55 °C (−22 °F to +131 °F) | −30 °C to +55 °C (−22 °F to +131 °F) | −30 °C to +55 °C (−22 °F to +131 °F) | −30 °C to +55 °C (−22 °F to +131 °F) | −30 °C to +55 °C (−22 °F to +131 °F) |
| Protection Grade | IP67 | IP67 | IP67 | IP67 | IP67 |
| Product Dimensions | 194.3 mm × 54 mm × 65.4 mm (7.65″ × 2.13″ × 2.57″) (L × W × H) | 194.3 mm × 54 mm × 65.4 mm (7.65″ × 2.13″ × 2.57″) (L × W × H) | 213.1 mm × 73 mm × 83.4 mm (8.39″ × 2.87″ × 3.28″) (L × W × H) | 223 mm × 61 mm × 71.4 mm (8.78″ × 2.4″ × 2.81″) (L × W × H) | 213.1 mm × 73 mm × 83.4 mm (8.39″ × 2.87″ × 3.28″) (L × W × H) |
| Packaging Dimensions | 291 mm × 140 mm × 127 mm (11.46″ × 5.51″ × 5″) (L × W × H) | 291 mm × 140 mm × 127 mm (11.46″ × 5.51″ × 5″) (L × W × H) | 291 mm × 140 mm × 127 mm (11.46″ × 5.51″ × 5″) (L × W × H) | 291 mm × 140 mm × 127 mm (11.46″ × 5.51″ × 5″) (L × W × H) | 291 mm × 140 mm × 127 mm (11.46″ × 5.51″ × 5″) (L × W × H) |
| Net Weight | 421 g (0.93 lb) | 421 g (0.93 lb) | 537 g (1.18 lb) | 537 g (1.18 lb) | 537 g (1.18 lb) |
| (S) Pixfra Thermal and Night Vision, Binoculars | Pixfra Volans 4K V850 | 50mm ; 3480×216 ; f1.2-3, Pixfra Volans 4K V850 LRF | 50mm ; 3480×2160 ; f1.2-3 |
|---|
Pixfra Sirius Series
| Model | Pixfra Sirius LRF S650 LRF – 50mm ; 640×512 ; 1920×1080 |
|---|
