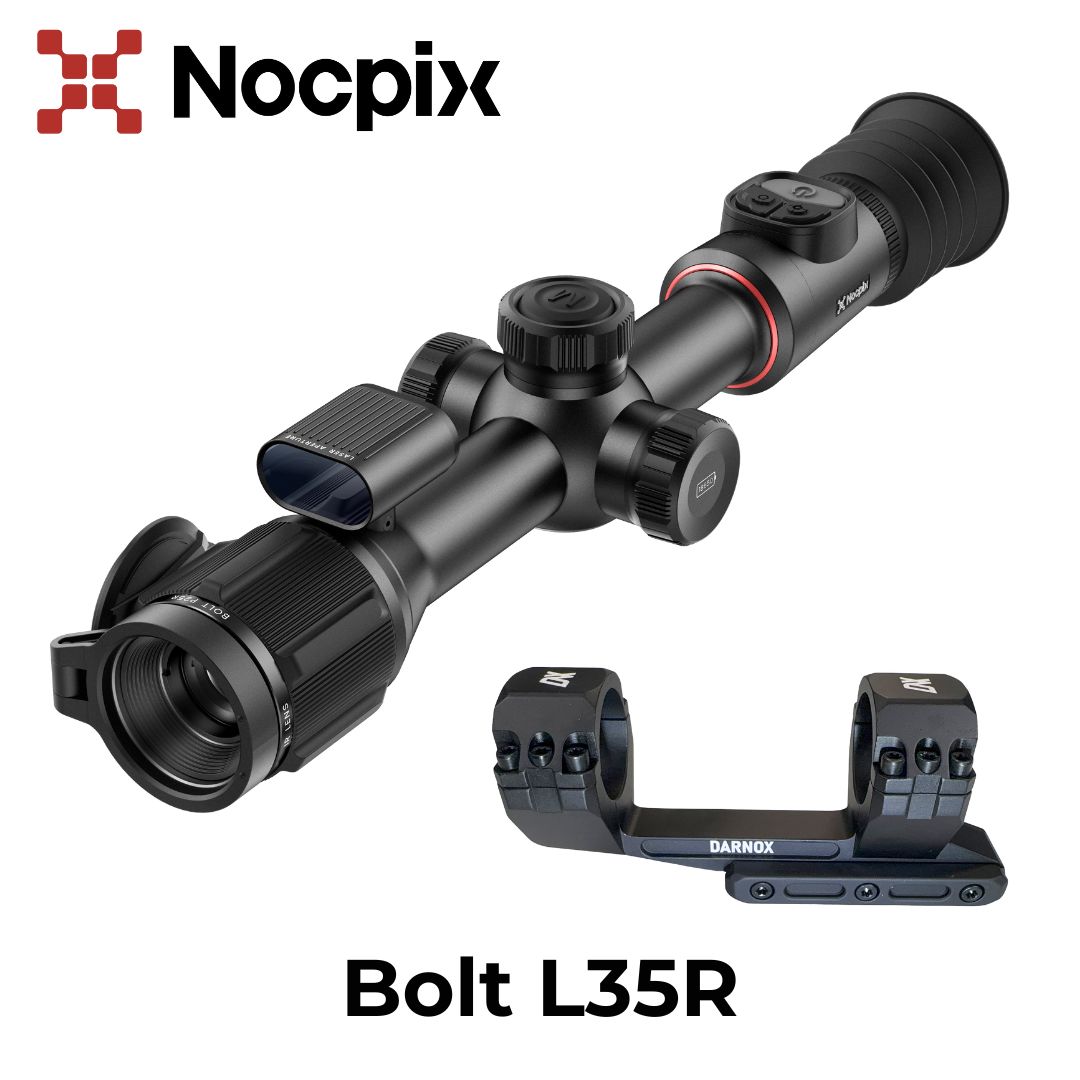

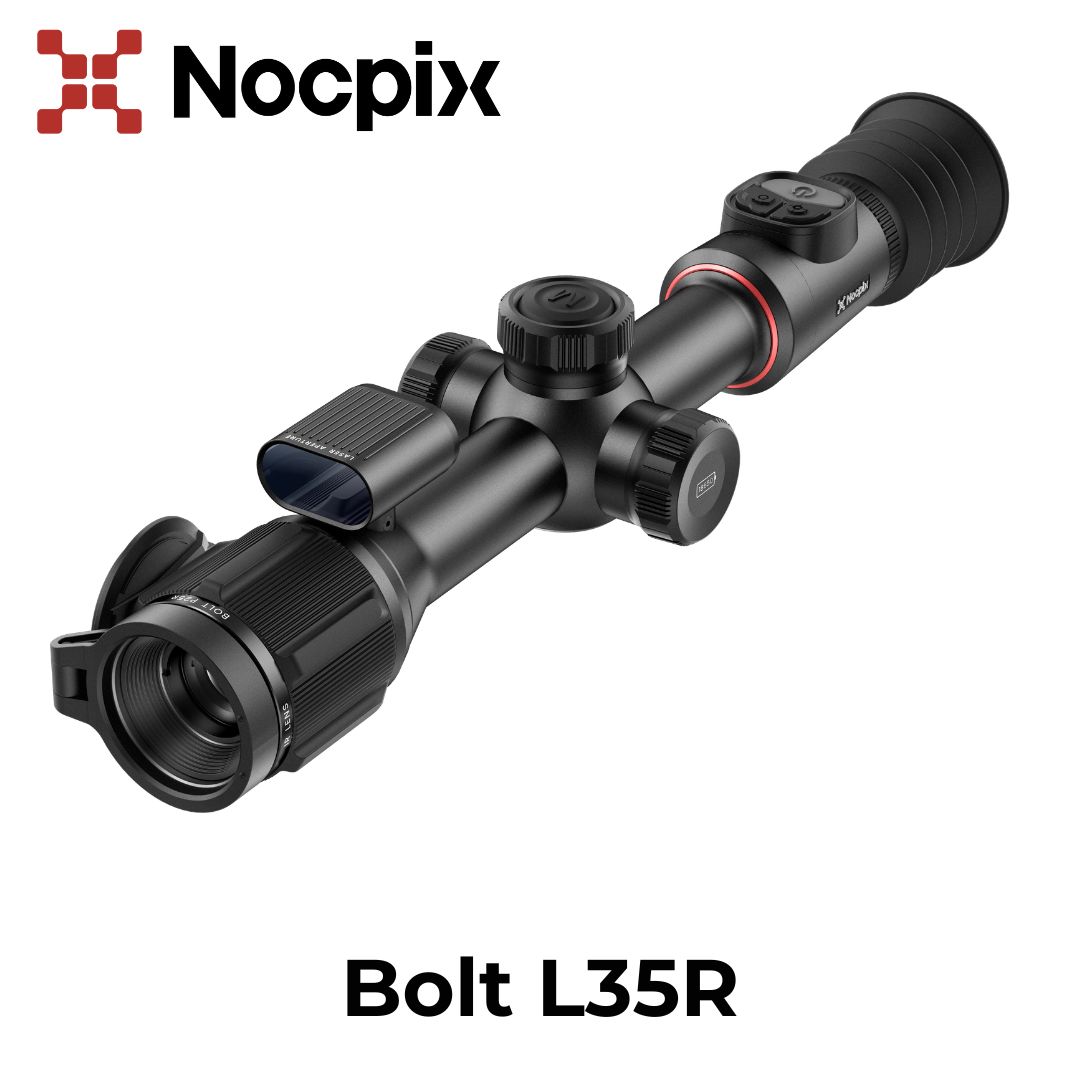

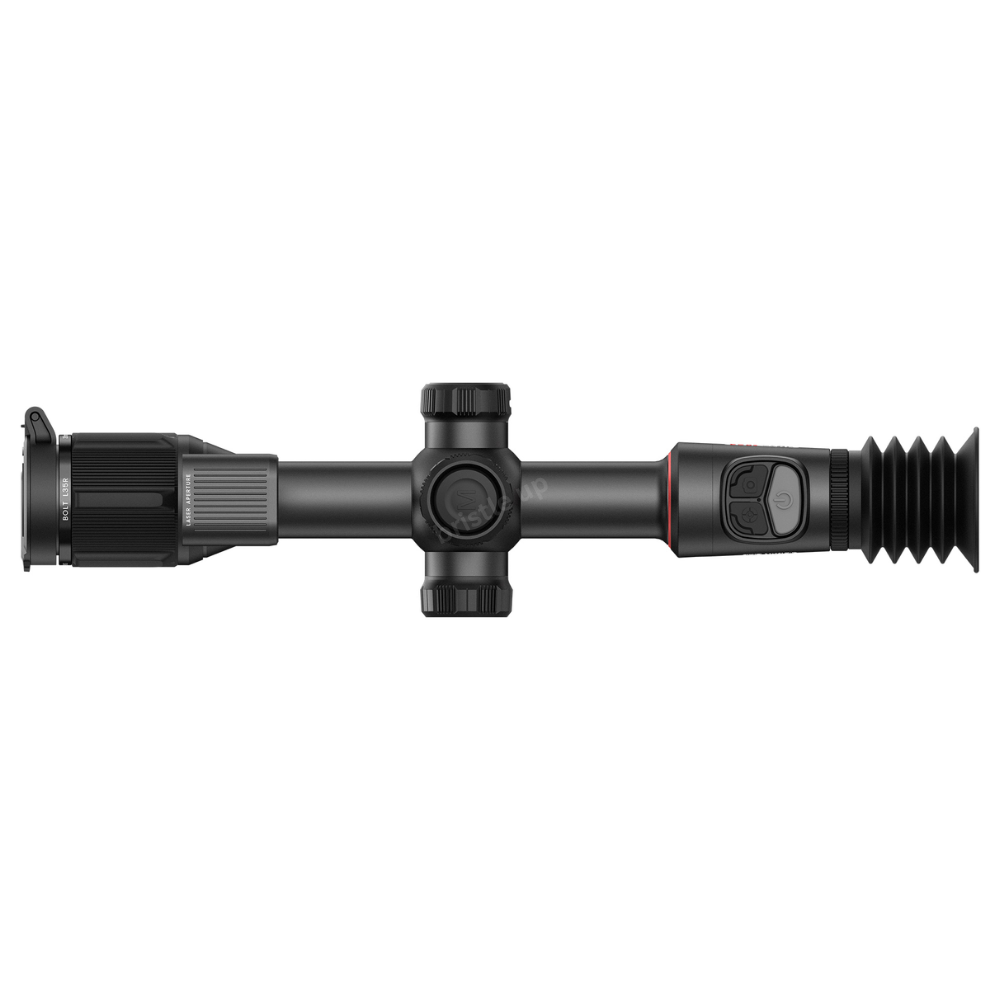

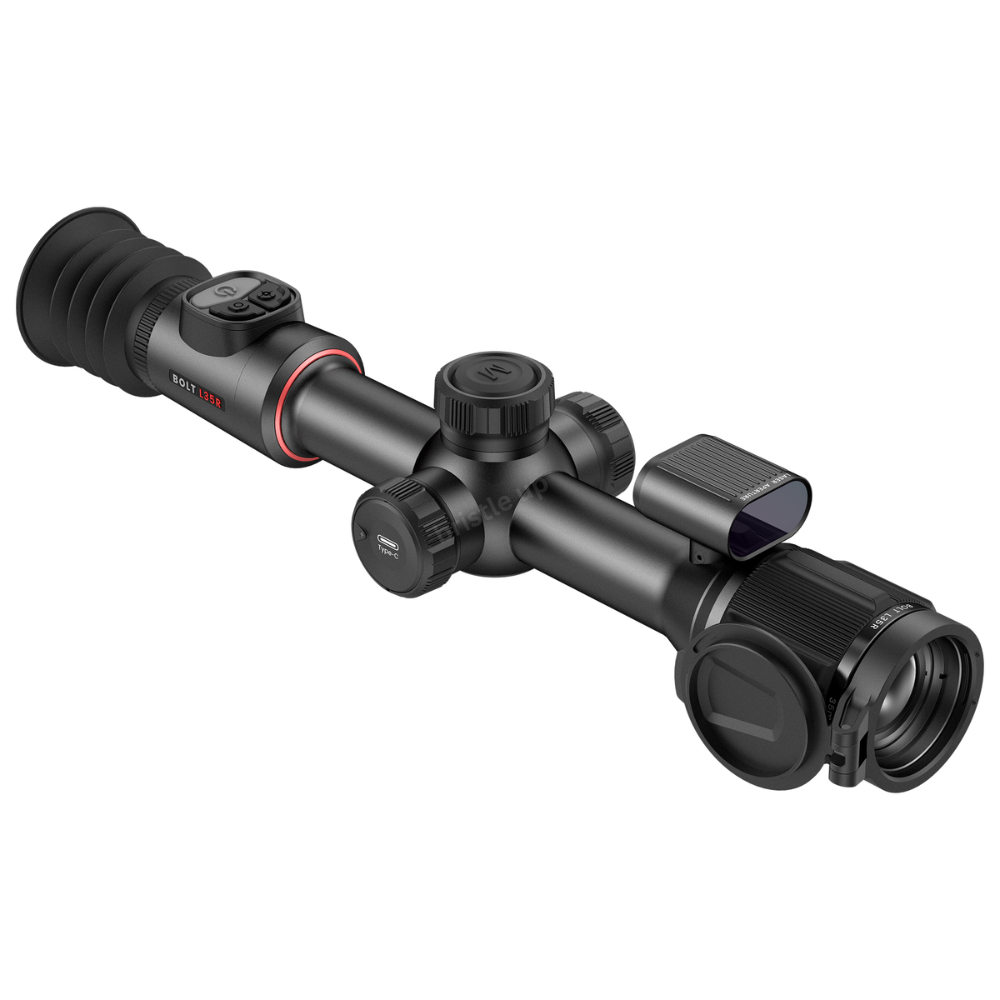

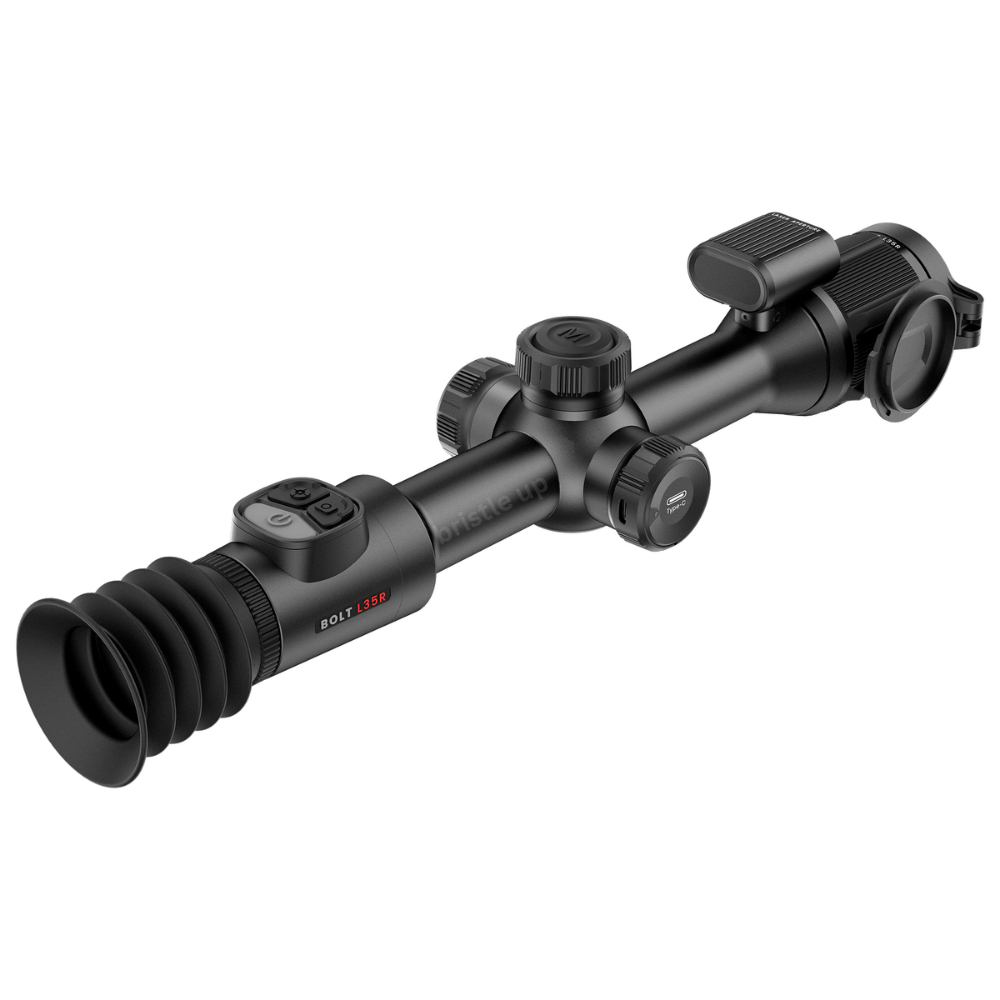

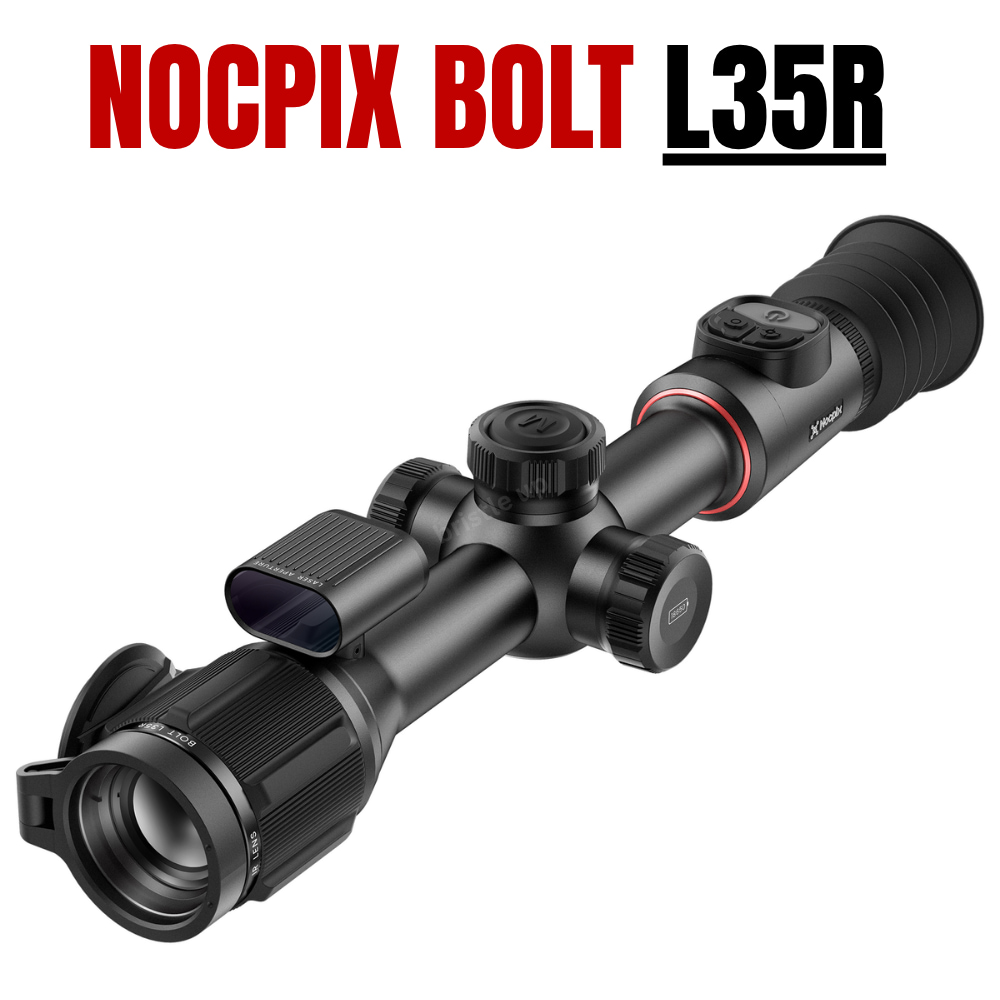

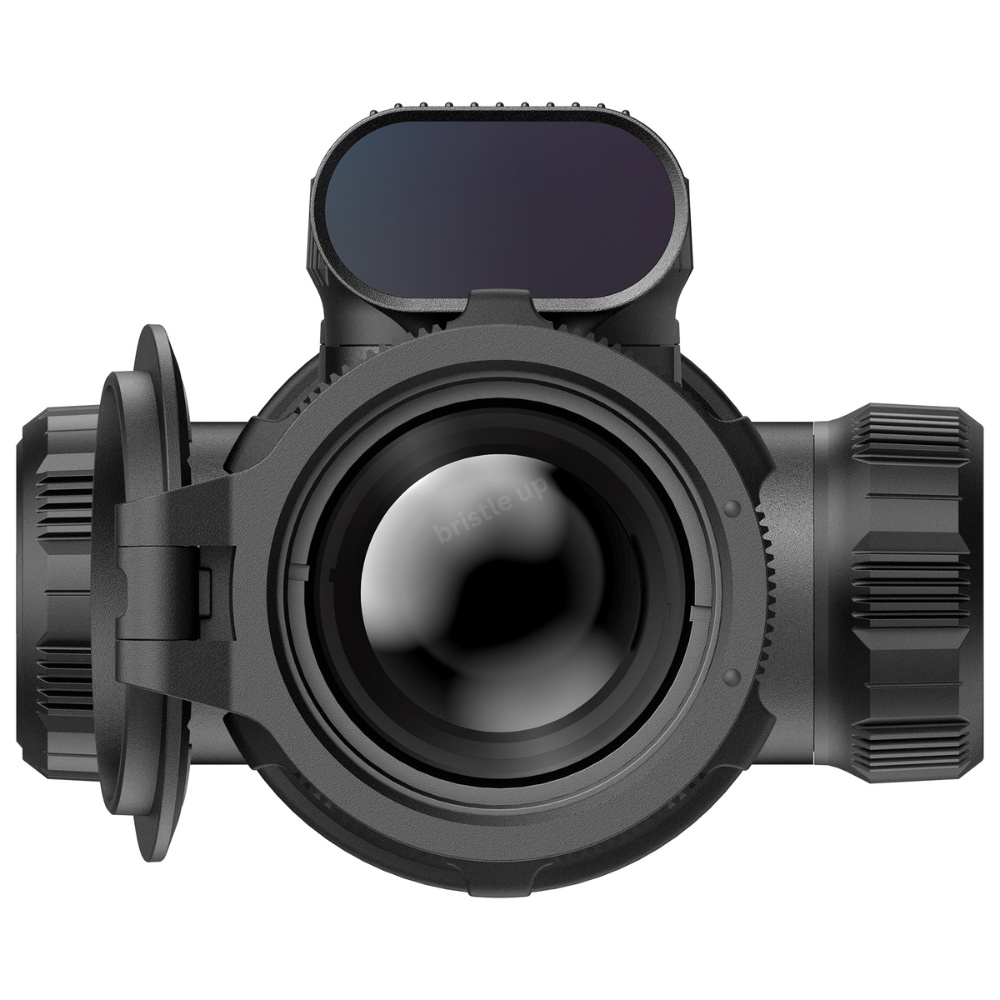

Nocpix Bolt L35R Thermal Scope – 384×288, 20mK, 35mm LRF
$3,599.00
Nocpix BOLT L35R Thermal Scope with LRF
The Nocpix BOLT L35R is a compact thermal imaging riflescope designed for hunting, observation and thermal detection. It combines a 384×288 12μm thermal sensor, ≤20mK thermal sensitivity and 35mm F1.0 objective lens to deliver clear and detailed thermal images in a practical and easy-to-use riflescope design.
With 3.5× base magnification, up to 14× magnification and an integrated 1,200m laser rangefinder (LRF), the BOLT L35R is particularly well suited to hunters wanting thermal imaging together with accurate distance measurement. Its built-in ballistic calculation provides additional support for ranging and aiming in the field.
The L35R also features Reality+ image processing, a dual-battery system, N-LINK app connectivity, photo/video recording and IP67 protection, combining practical thermal imaging with useful features for night hunting and demanding outdoor conditions.
Key Features
- 384 × 288, 12μm thermal sensor
- ≤20mK NETD thermal sensitivity
- 35mm F1.0 objective lens
- 50Hz frame rate
- 3.5×–14× magnification
- 7.5° × 5.7° field of view
- 13.2 × 9.9m field of view at 100m
- Integrated 1,200m Laser Rangefinder (LRF)
- Built-in ballistic calculation
- Reality+ (R+) image processing
- Built-in + replaceable 18650 battery system
- N-LINK app connectivity
- Photo, video and audio recording
- Recoil-activated recording
- IP67 water and dust protection
Choose Bolt Model
| Nocpix Bolt Series | BOLT L35R- 384px – 3.5x – 20mk – 1800m |
|---|
Popular Unimounts + Rings + Quick Detach 2026
| Mount Brand | Burris, Darnox, Magne-Tech, SPUHR, Warne |
|---|---|
| Tube Size | 30mm Tube |
| Mount Models | Burris AR-PEPR – 30mm Tube – 40mm Height – 50mm Cantilever, Darnox 7075 Rings – 30mm Tube – 32mm Height – 0 MOA, Darnox 7075 Rings – 30mm Tube – 37mm Height – 0 MOA, Darnox ObsidianOne – 30mm Tube – 38mm High – 50mm Cantilever – 0 MOA, Magne-Tech 30mm Tube – TOP PART ONLY – 38.5mm high, (Part B), Magne-Tech BASE ONLY goes to picatinny rail (Part A), Magne-Tech FULL KIT – 30mm Tube – 38.5mm Height, SPUHR – QDP-3002 – 30mm Tube – 38mm Height – 0 MOA, SPUHR – QDP-3006 – 30mm Tube – 34mm Height – 0 MOA, SPUHR – QDP-3016 – 30mm Tube – 38mm Height – 0 MOA – 40mm Offset, SPUHR – QDP-3046 – 30mm Tube – 34mm Height – 0 MOA – 40mm Cantilever (recommended for Thermal), Warne XSKEL QD – 30mm Tube – 36mm Height – 0 MOA – 40mm Cantilever |
ADM American Defense - Quick Detach Mount
| American Defense Series | DELTA, RECON |
|---|---|
| Tube Size | 25mm Tube, 30mm Tube, 34mm Tube |
| Mount Height | 27mm, 29mm, 34mm, 35mm, 38mm, 39mm, 43mm, 49mm |
| American Defense Mount Models | AD DELTA QD C STD – 30mm Tube – 38mm Height – 0 MOA – (50mm Cantilevered for better eye relief, AD DELTA QD C-H – 30mm Tube – 49mm Height – 0 MOA – (50mm offset for better eye relief), AD DELTA QD C-H STD – 30mm Tube – 49mm Height – 0 MOA, AD DELTA QD C-M – 30mm Tube – 43mm Height – 0 MOA – (50mm offset for better eye relief), AD DELTA QD RC-30-STD – 30mm Tube – 43mm Height – 0 MOA – (25mm offset for better eye relief) – Left Side Levers, AD DELTA QD RC-L-30-STD – 30mm Tube – 34.9mm Height – 0 MOA – (25mm offset for better eye relief), AD DELTA QD STD – 25mm Tube – 38mm Height – 0 MOA, AD DELTA QD STD – 30mm Tube – 38mm Height – 0 MOA, AD DELTA QD STD – 34mm Tube – 39mm Height – 0 MOA, AD Recon 30 STD QD – 30mm Tube – 38mm Height – 0 MOA – (50mm Cantilevered for better eye relief), AD Recon 30 STD QD – 25mm Tube – 34mm Height – 0 MOA – (50mm Cantilevered for better eye relief), AD Recon 30 STD QD – 34mm Tube – 39mm Height – 0 MOA – (50mm Cantilevered for better eye relief), AD Recon H QD STD – 30mm Tube – 49mm height – 0 MOA, AD Recon QD SL-30-STD – 25mm Tube – 27mm Height – 0 MOA, AD Recon S 30 STD QD – 30mm Tube – 37mm Height – 0 MOA, AD Recon S QD STD – 34mm Tube – 39mm Height – 0 MOA, AD Recon SL QD STD – 30mm Tube – 29mm Height – 0 MOA, AD Recon SL QD STD – 34mm Tube – 29mm Height – 0 MOA |
ALL Picatinny Rails 2026
| Rifle Brand | Anschutz, Bergara BMR steel, Bergara Premier, Brno, Browning, CZ, Howa, Kimber, Lithgow, Marlin, Other / I Need Help, Remington, Ruger, SAKO, Sauer, Savage, Steyr, Tikka, UTG / Uni Dovetail, Weatherby, Winchester |
|---|---|
| Picatinny Rail | 11mm Dovetail to Picatinny Adapter – 145mm Long – MNT-ADP1102 CCOP, 12mm – 145mm Long – Dovetail to Picatinny Adapter – MNT-ADP1102 CCOP, 3/8 – 9.5mm – 125mm Long Dovetail to Picatinny Adapter – WODG048 CCOP, 3/8 Dovetail to Picatinny Adapter – 90mm – D0012 CCOP, 5/8 – 16mm – 145mm Long – Dovetail to Picatinny Adapter – MNT-ADP85002 CCOP, A-Bolt LA 0 MOA 43100 EGW, A-Bolt SA 0 MOA 43000 EGW, AC Howa 1500 Mini Action, Anschutz 11mm – 1450, 1451, 1415, 1416, 1418, 1420, Model 64 / Match 64, 1710, 1712, Model 54 / Match 54, 1761, 1903, 1907, 1913 – MNT-ADP1102 – CCOP, Anschutz 54 Action, 54.18, 1710, 1712 – Talley, Armacore Ruger, LA M77, M77 MKII, Hawkeye, Armacore Ruger, SA M77, M77 MKII, Hawkeye, Armacore Tikka T3, T3x, 0 MOA Australian Made, ATP Howa 1500 SA MOA, ATP Lithgow LA101 RH MOA, ATP Lithgow LA102, LA105, 0 MOA, ATP Remington 700 SA MOA, ATP Tikka M55 Black MOA, ATP Tikka T1x RH 0 MOA, Bergara BMR steel, Contessa SAKO 85 M PH13 – 75 IV, MA 05 M, L691, TRG-S M995, Contessa SAKO 85 S-SM PH12, CONTESSA SAKO 90, S90, SK90, S20/CZ 600 0 MOA – Picatinny on Picatinny, Contessa SAKO XS 85, 75 I, MA 05 XS, L461 Vixen, S491 – PH31 Standard, CZ 11mm Dovetail 452, 453, 455, 511, 512, 515 – 0 MOA – EGW HD 80910 [ejection slot], CZ 3/8 dovetail 452, 453, 455, 511, 512, 515 – 0 MOA – EGW HD 80900 [ejection slot], CZ 452 / 455 / Brno newer Model 2, 2E – 3/8' (11mm) – MNTCZ455 – CCOP, CZ 452 EURO / CZ 455 / CZ 512 / CZ 513 Rimfire – 11mm Dovetail – TLP0025008 – Talley, CZ 527 / OLD Brno 1 and 2 – 5 / 8 (16mm) Dovetail – MNTCZ527 – CCOP, CZ 527 American 16mm Picatinny Rail – 0 MOA – 80928 EGW HD, CZ 550 / CZ 557 / BRNO ZKK 600 / ZG-47 – Standard / Medium Action – 19mm Dovetail – 80914 – HD EGW, DN CZ 457, DN Sako S 85, 75 III, MA 05 S, L579 Forester, M591, VL63 Finnwolf, DN Sako XS 85, 75 I, MA 05 XS, L461 Vixen, S491, EGW HD Howa 1500/Weatherby Vanguard SA 81040, EGW HD Remington 700 SA 80000, EGW Savage Edge/Axis 41800, EGW Savage Flat Back SA 41200, EGW Savage Round Back SA 41000, EGW Winchester 70 SA 42000, Enter CZ Model In Notes Below, Kimber LA 84 (84L) – HD – 0 MOA (Center Spread 3.88″) EGW 81013, Kimber LA 8400 (8400 Magnum) 0 MOA (Center Spread 4.325″) HD EGW 81003, Kimber SA 84 (84M) – HD – 0 MOA (Center Spread 3.352″) EGW #81010, Kimber SA 8400 (8400 WSM) – HD – 0 MOA (Center Spread 3.678″) EGW #81000, LA HD Rem 700, 721, 725, Sauer 100, 101 – 0 MOA – 50100 – Center Spread: 4.485 – EGW, LA LW Rem 700, 721, 725, Sauer 100, 101 0 MOA – 40100 – Center Spread: 4.485 – EGW, LA Mark V (9 lug) HD Weatherby 80700 EGW, LA Ruger American – 0 MOA 7685M Warne, LA Ruger M77 MNT MKII LAUH – RUGM77MK2LAUH – CCOP, LA Sauer 100 / REM 700 M674M Warne, LA X-BOLT BRNT – 0 MOA 7642BB Warne, LA101 0 MOA Lithgow DN, Low 3/8 Wedge / 12.7-13mm on top – Dovetail to Picatinny Adapter – 145mm Long – MNT-ADP83002 CCOP, Magnum Action – CZ 550, BRNO ZKK 602 – 19mm Dovetail – 80920 – HD EGW, Mark VTRR (6 lug Bolt) HD Weatherby O MOA 80710 EGW, Marlin XT-17, XT-22 982, 917 – AC, Mini Action Howa / 1500 – 0 MOA 7656M Warne, Other / I'm Not Sure, Remington 783 LA 0 MOA, Remington 783 SA 0 MOA, Ruger 10-22 NON-Takedown – 46100 EGW, Ruger American 10-22 – PBRUG001 CCOP, SA Ruger M77 MNT MKII LAUH – RUGM77MK2SAUH – CCOP, SA Sako A7 0 MOA Talley, SA Steyr SBS Pro Hunter / Pro Varmint- 0 MOA (Center Spread 2.44″) – 81070 – EGW, SA Winchester 70 – Arctic, SA XPR Winchester 70 – Arctic, Sako 85 XS PH31 NV 0 MOA – Contessa, Sako 90 M/L Suits Bavarian, Hunter – PH109 Contessa, Sako 90 S Suits Bavarian, Hunter – PH108 Contessa, Sako 90 XS Suits Bavarian, Hunter – PH111 Contessa, Sako S20, CZ 600 Saphire / Helix 0 MOA PH70 – Contessa, Savage B Mag, Heavy Barrel, WSM, 0 MOA, BLK – 41970 EWG, Spuhr R-7001 Remington 700 SA 0MIL, Spuhr R-7011 Remington 700 LA 0MIL, SSA X-Bolt 7640M 0 MOA Warne, Tikka T3 / T3X 0 MOA – DN, Tikka T3 0 MOA – 44000 EGW, Tikka T3, T3x 0 MOA 76T3M Warne, UTG 9-11mm -100mm long Dovetail to Picatinny 9 slot, UTG 9-11mm Dovetail to Picatinny 14 slot 50mm cantilever, Warne HS Precision 700 SA Mountain Tech Tactical Rail, 8-40 / 6-48 – Bergara Premier – 7671M, Warne SA Mountain Tech Tactical Rail, Burnt Bronze – Remington – 7673BB, X-BOLT LA 0 MOA, X-BOLT SA 0 MOA |
Zeroing Targets - Thermal + Day + Night Vision 2026
| Zeroing Targets | Pulsar Thermal + Day + Night Vision Zeroing Targets, Hikmicro Thermal + Day + Night Vision Zeroing Targets, Thermal Flashing Tape Roll Zeroing (Best Value) |
|---|
