Nocpix Auto NS7 Thermal Vehicle Camera
$1,299.00 GST
Nocpix Auto NS7 pairs a 7″ HD display with dual thermal and visible cameras plus 24/7 ADAS alerts, giving you clear vision and early warning of vehicles, pedestrians and wildlife in any weather.
Please confirm stock level - SMS / CALL or hit .
Nocpix Auto NS7 Thermal Vehicle Camera
Product Overview

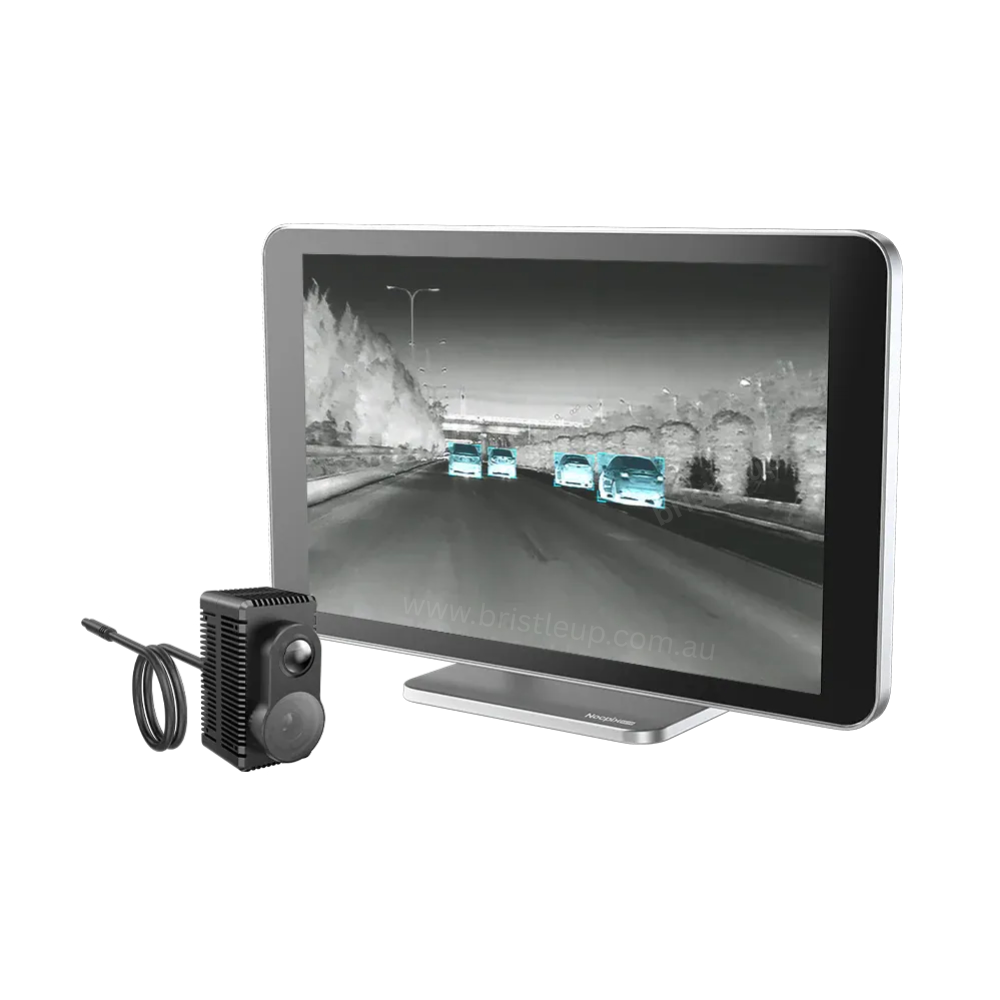

Nocpix Auto’s NS7 Thermal Vehicle Camera is built for drivers who want a serious edge when the light and weather turn against them. It pairs a 256×192 thermal sensor with a Full HD day camera and feeds both into a crisp 7-inch, 1280×800 display running at 60 Hz. The result is a smooth, detailed view of the road that cuts through darkness, fog, rain and glare so you can spot vehicles, pedestrians and wildlife well before your headlights pick them up. Backed by an ADAS safety suite, the NS7 doesn’t just show you what’s ahead – it actively helps you react. Forward Collision, Pedestrian and Lane Departure Warnings, plus animal detection and front vehicle start alerts, work around the clock to keep you switched on and out of trouble. Compact camera dimensions and 12 V cigarette-lighter power make it easy to fit to almost any vehicle, while the rugged IP67 housing and wide operating temperature range mean it’s ready for Aussie summers, frosty mornings and everything in between.
Key Features
- Dual thermal and visible light imaging combines heat signatures with Full HD visuals, giving drivers a clearer view of vehicles, pedestrians and animals in low-light and poor weather conditions.
- 256×192 thermal resolution with NETD ≤25 mK delivers high thermal sensitivity, helping you spot hazards such as wildlife or stranded vehicles well before they appear in standard headlights.
- Full HD 1920×1080 visible light camera provides sharp daytime imagery, so the system remains useful and informative around the clock.
- Large 7-inch LCD display with 1280×800 resolution and 60 Hz refresh rate offers a smooth, detailed live view that is easy to read at a glance while driving.
- ADAS functions including Forward Collision Warning, Pedestrian Collision Warning and Lane Departure Warning actively alert the driver to common road risks, supporting safer, more focused driving.
- Wildlife Vehicle Collision and Wildlife Crossing warnings help detect animals near the roadway, giving extra reaction time on rural or poorly lit roads.
- Detection range up to 200 m for vehicles and 100 m for pedestrians extends your effective visibility far beyond headlight distance, especially valuable at highway speeds.
- Rugged IP67-rated camera housing and -4°F to +140°F operating temperature range ensure reliable performance in rain, dust, heat and winter conditions.

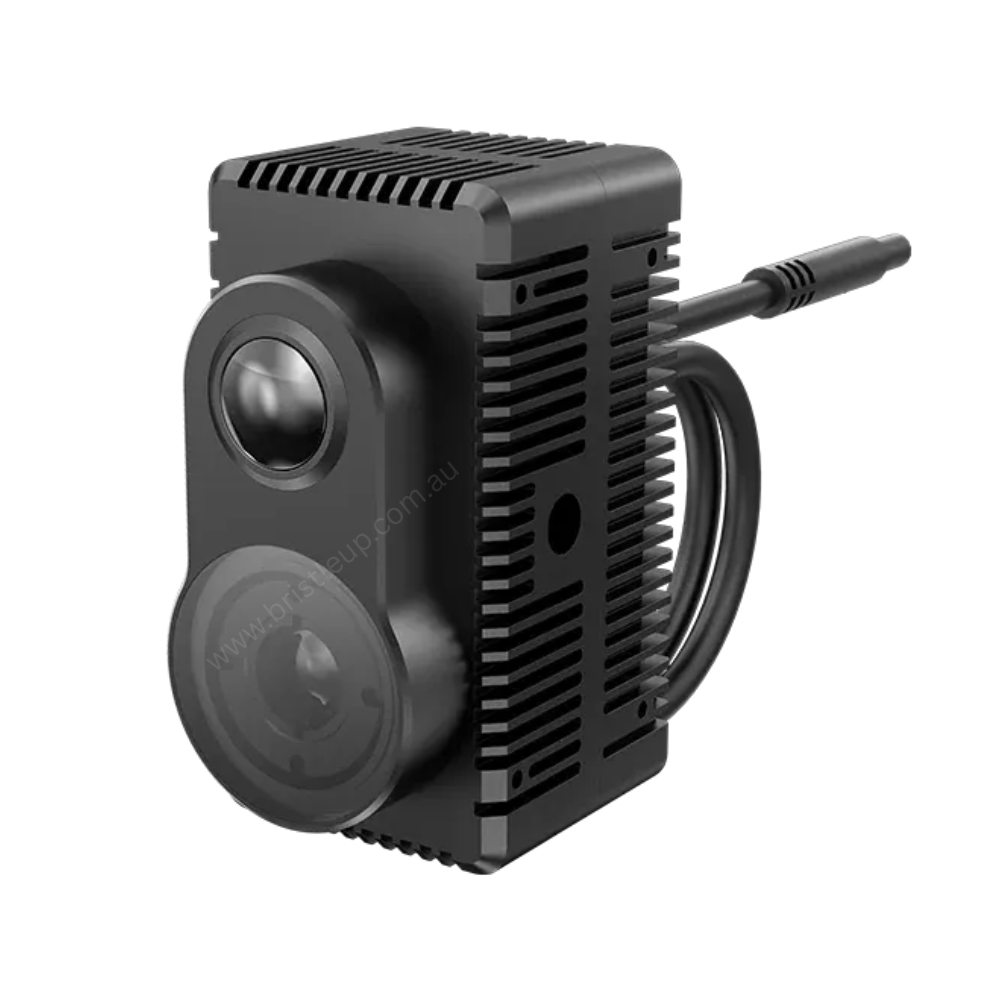

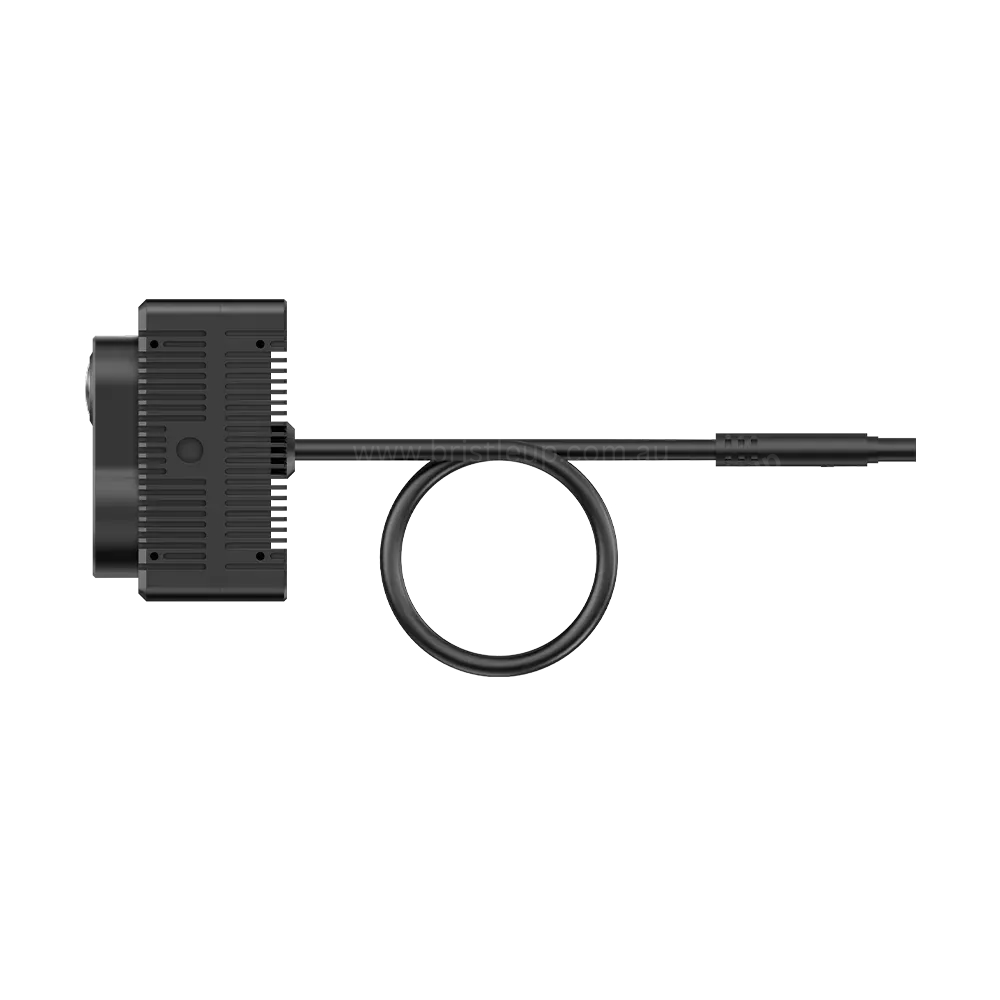

- Compact camera module (26 × 33.5 × 73 mm) is easy to position on the vehicle without obstructing the driver’s view.
- 12 V cigarette lighter power compatibility simplifies installation, allowing the system to be used in virtually any passenger vehicle.
Features
Dual thermal and visible light imaging for 24/7 visibility
The Nocpix Auto NS7 combines a 256×192 thermal sensor with a Full HD 1920×1080 visible light camera to deliver a clear picture in both daylight and complete darkness. Thermal imaging reveals heat signatures from vehicles, pedestrians and animals even through fog, rain or light smoke, while the visible camera maintains natural detail in good light. Together they provide continuous situational awareness so you can drive with confidence at any hour.

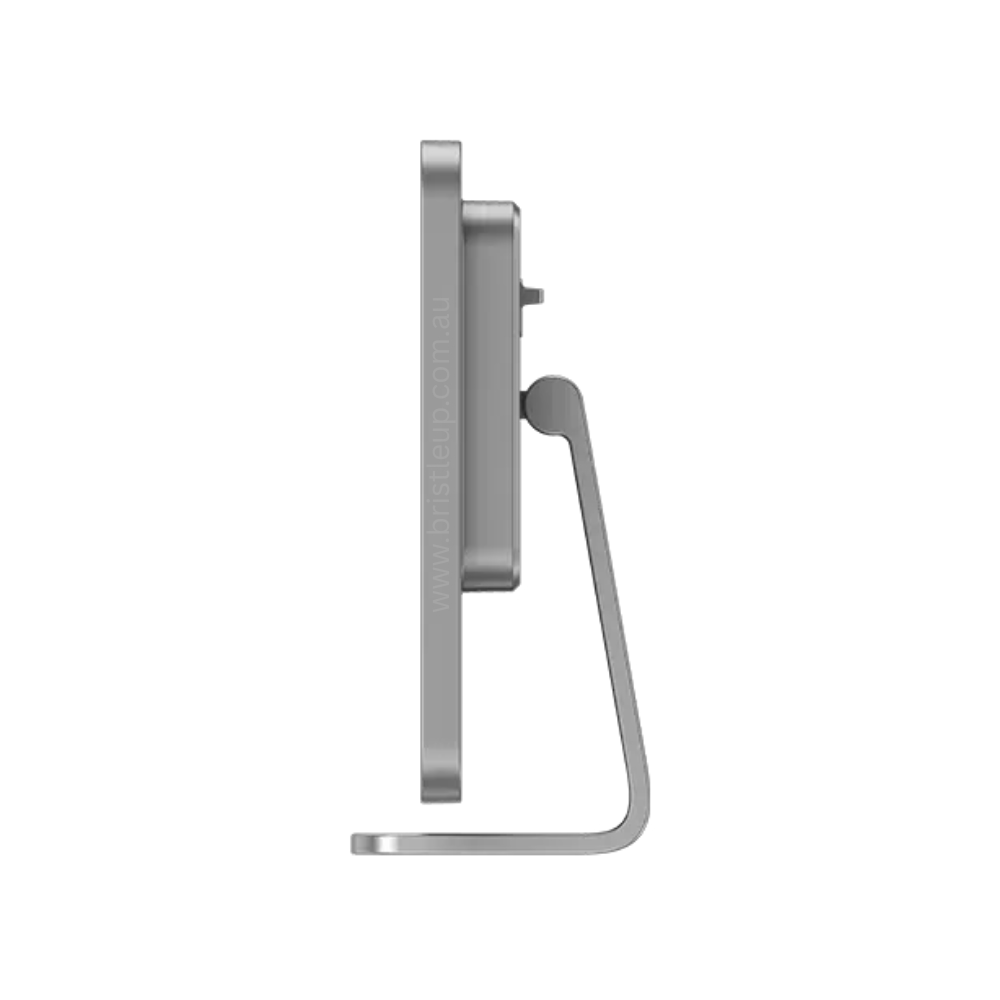

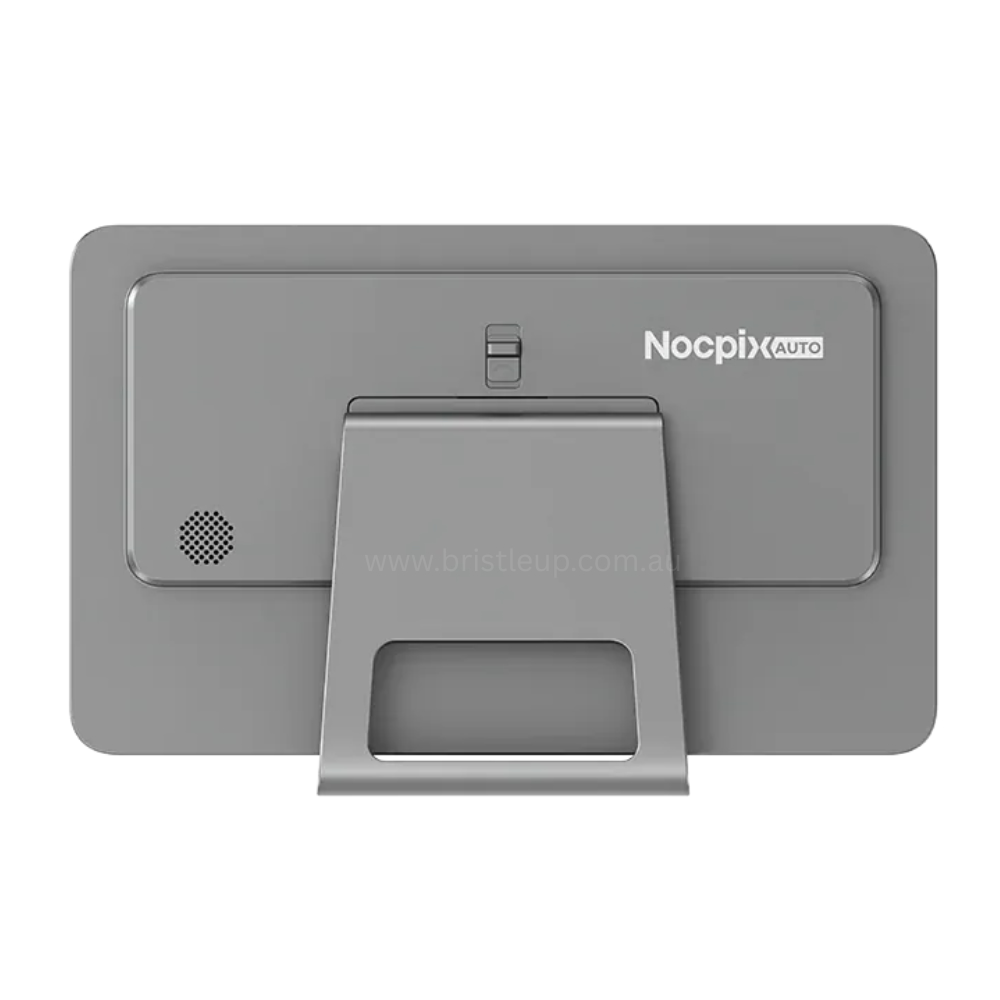

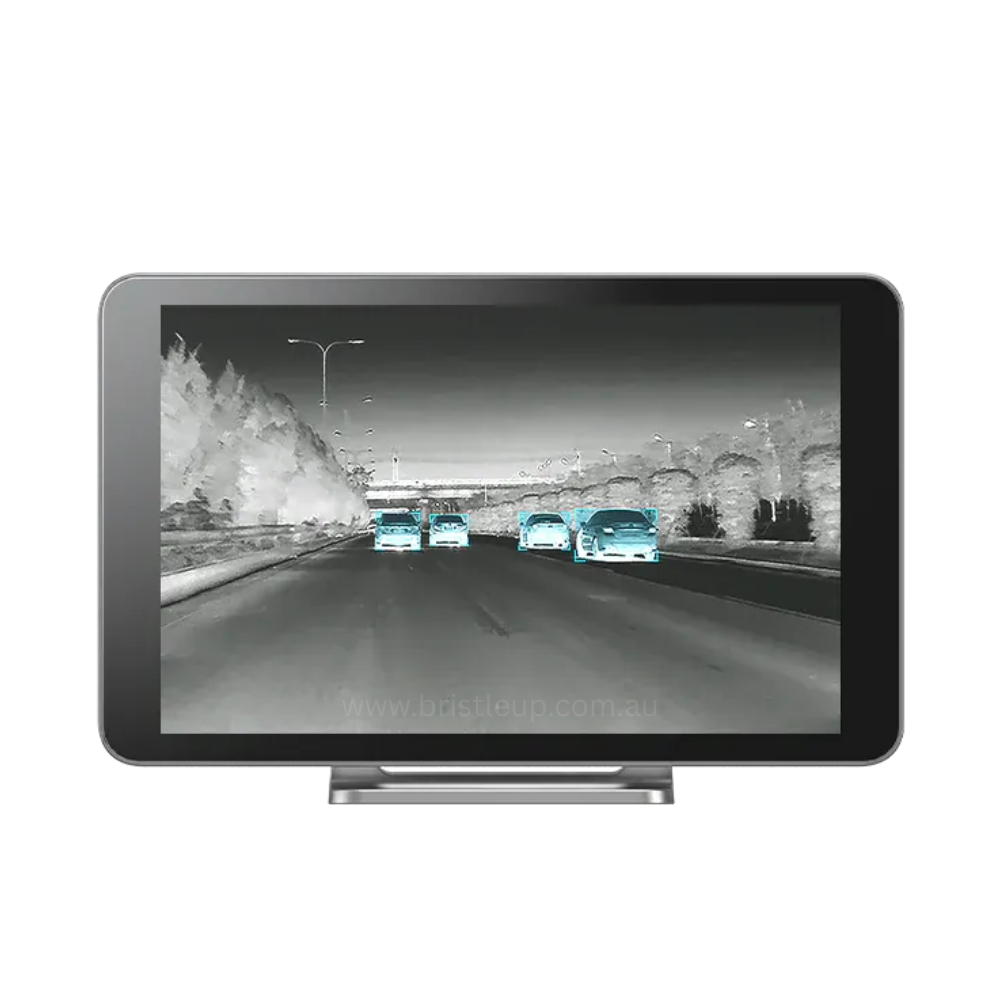

7-inch HD display with smooth 60 Hz refresh
A large 7-inch LCD screen with 1280×800 resolution and 60 Hz refresh rate presents a bright, detailed image that is easy to read at a glance. The high refresh rate keeps motion fluid, which is especially important when driving at highway speeds or in busy traffic. This combination reduces eye strain and helps you interpret what’s ahead more quickly.
Advanced ADAS safety alerts
Built-in ADAS functions such as Forward Collision Warning, Pedestrian Collision Warning and Lane Departure Warning continuously analyse the scene in front of the vehicle. The system issues timely alerts if you are closing too quickly on another vehicle, drifting out of your lane or approaching a pedestrian, helping you react sooner and avoid potential accidents. Additional wildlife detection modes further enhance safety on rural and unlit roads.
Long-range detection up to 200 metres
With a vehicle detection range of up to 200 metres and pedestrian detection up to 100 metres, the NS7 extends your effective visibility far beyond the reach of standard headlights. This extra distance gives you more time to brake or change course when hazards appear ahead. It is particularly valuable for night-time highway driving, where reaction time is critical.
Rugged, all-weather design with simple 12 V power
The camera module features an IP67-rated housing and operates reliably from -4°F to +140°F, so it can handle year-round exposure to rain, dust, heat and cold. Powering the system from a standard 12 V cigarette lighter socket makes installation straightforward in most vehicles without complex wiring. This combination of durability and convenience means the NS7 is ready for daily use in demanding driving conditions.
Included in the Box:
- Nocpix Auto NS7 Thermal Vehicle Camera
Specifications
| SKU | NOCNS7 |
| Model # | NS7 |
| Brand | Nocpix |
| Objective Lens Diameter | 5.6mm |
| Sensor Size | 256px |
| Pixel Pitch | 12 μm |
| NETD | <25 mK |
| Maximum Detection Range | 200m |
| Display Size | 1280 x 800 |
