Hikmicro Thunder TQ50C 3.0 – Thermal Clip-on
$5,199.00 GST

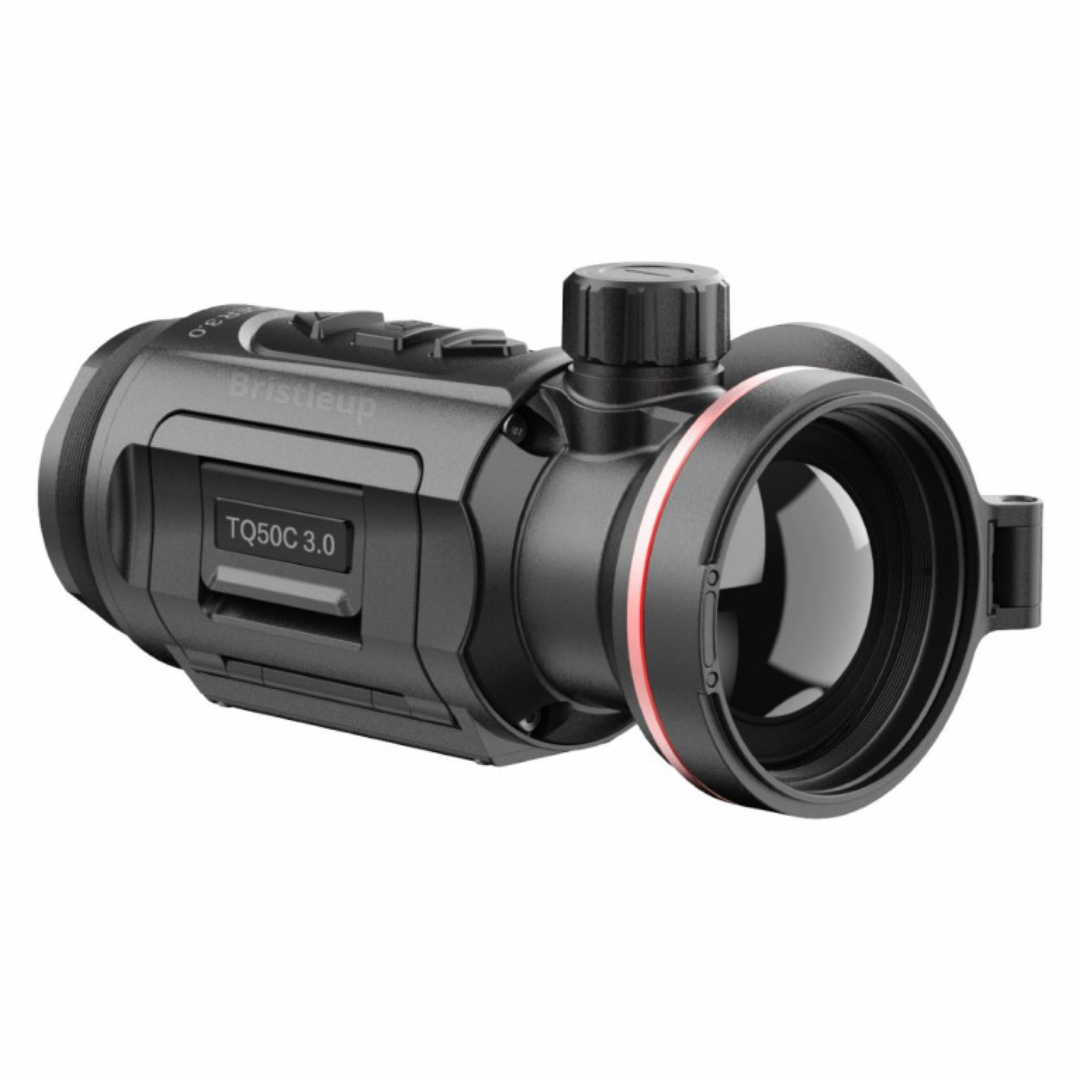

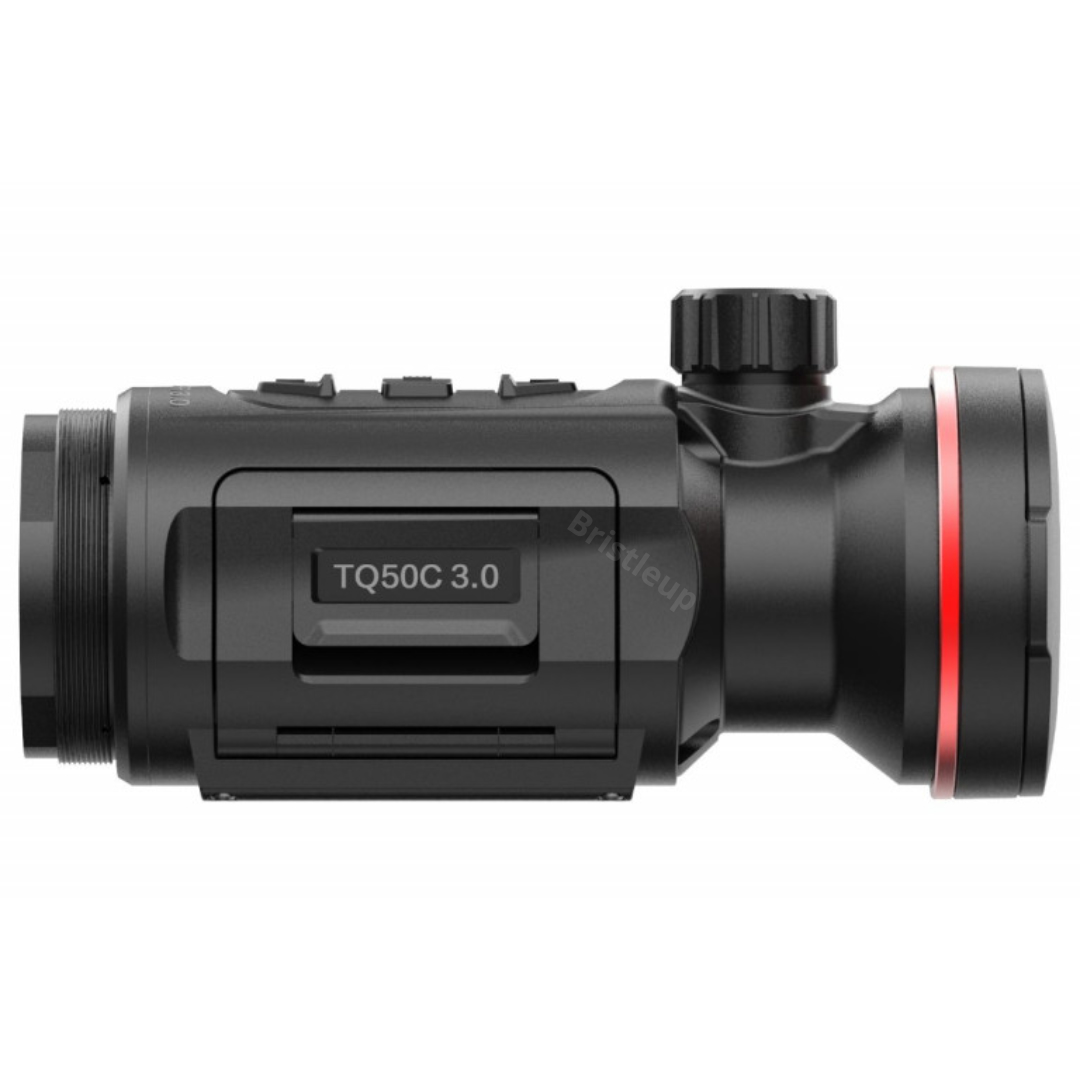

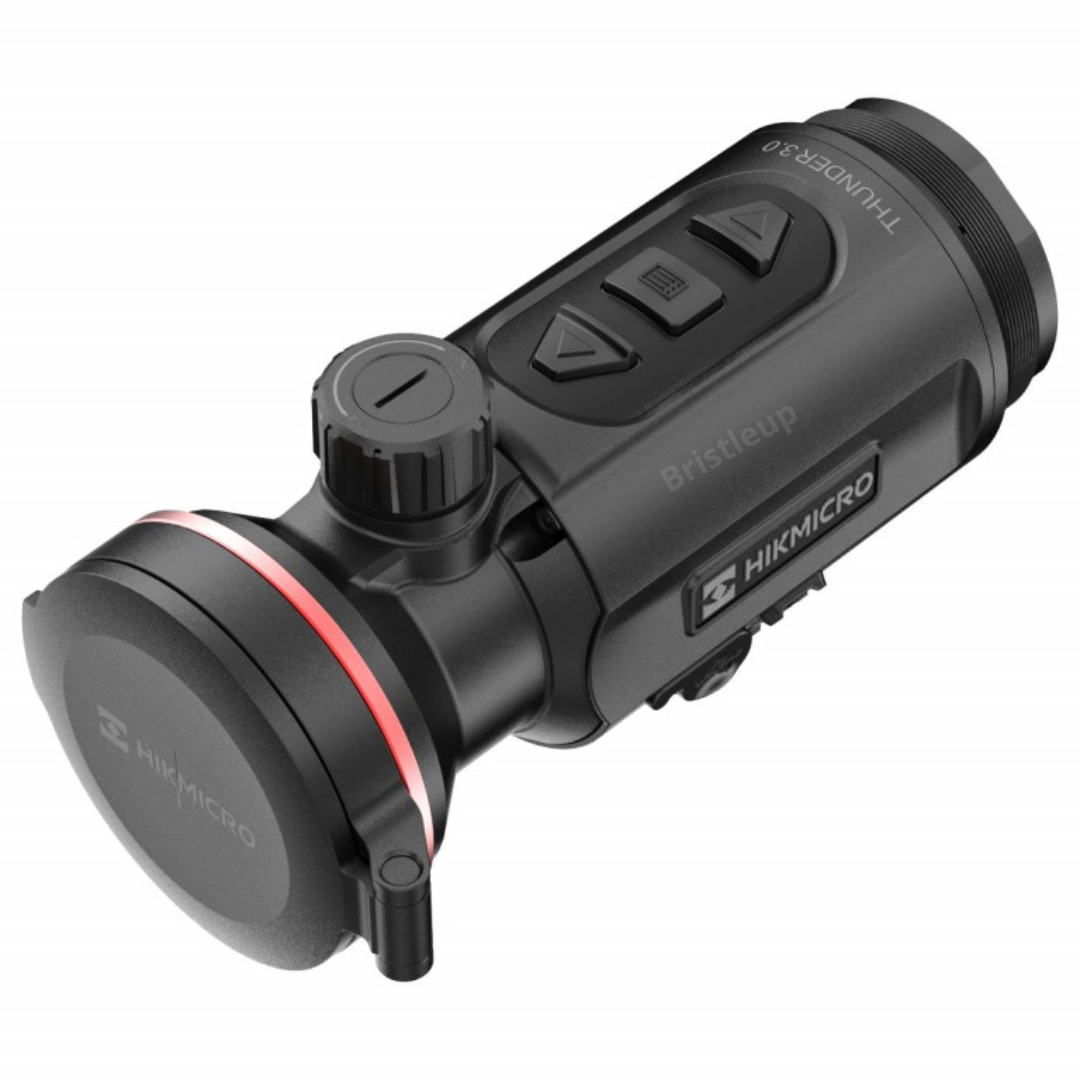

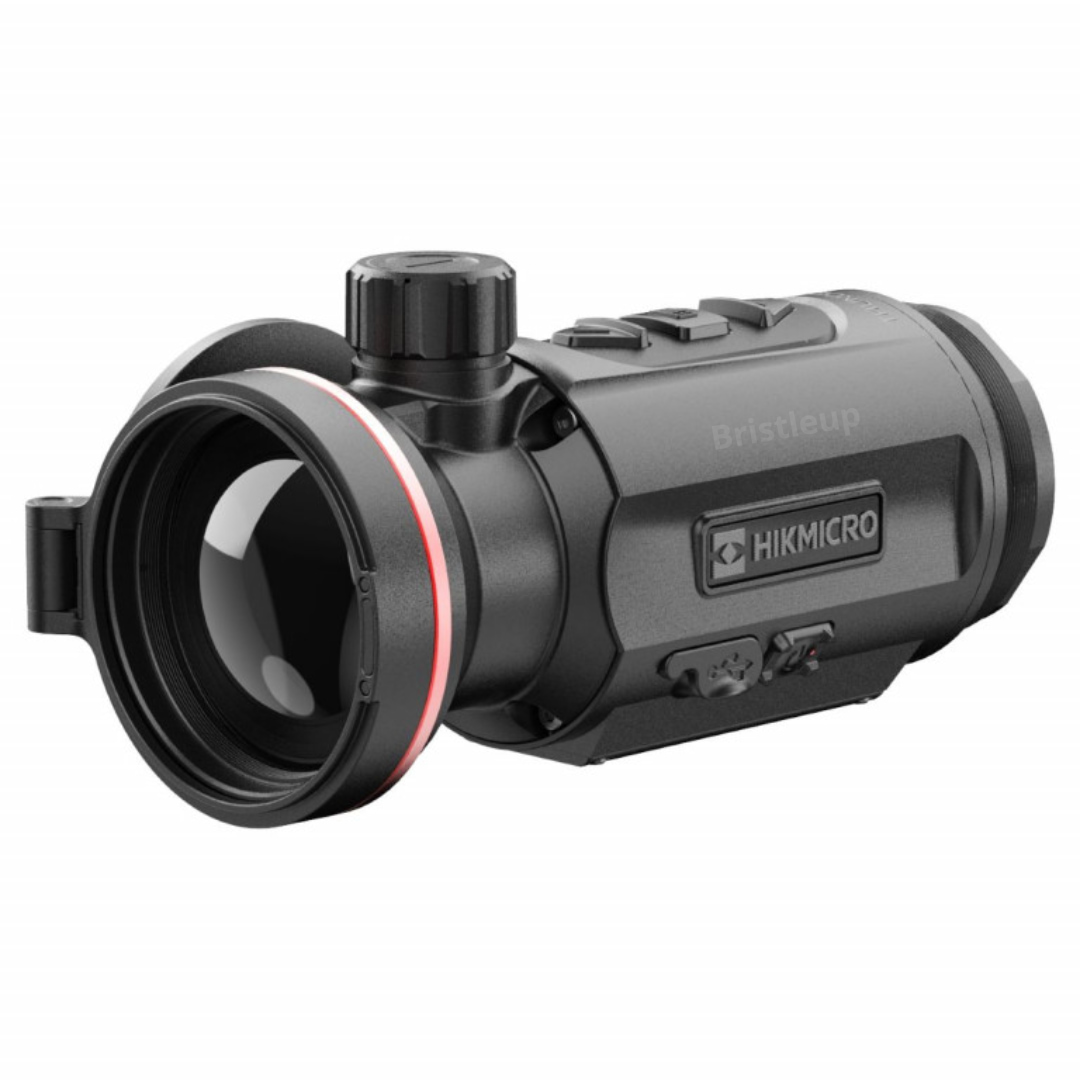

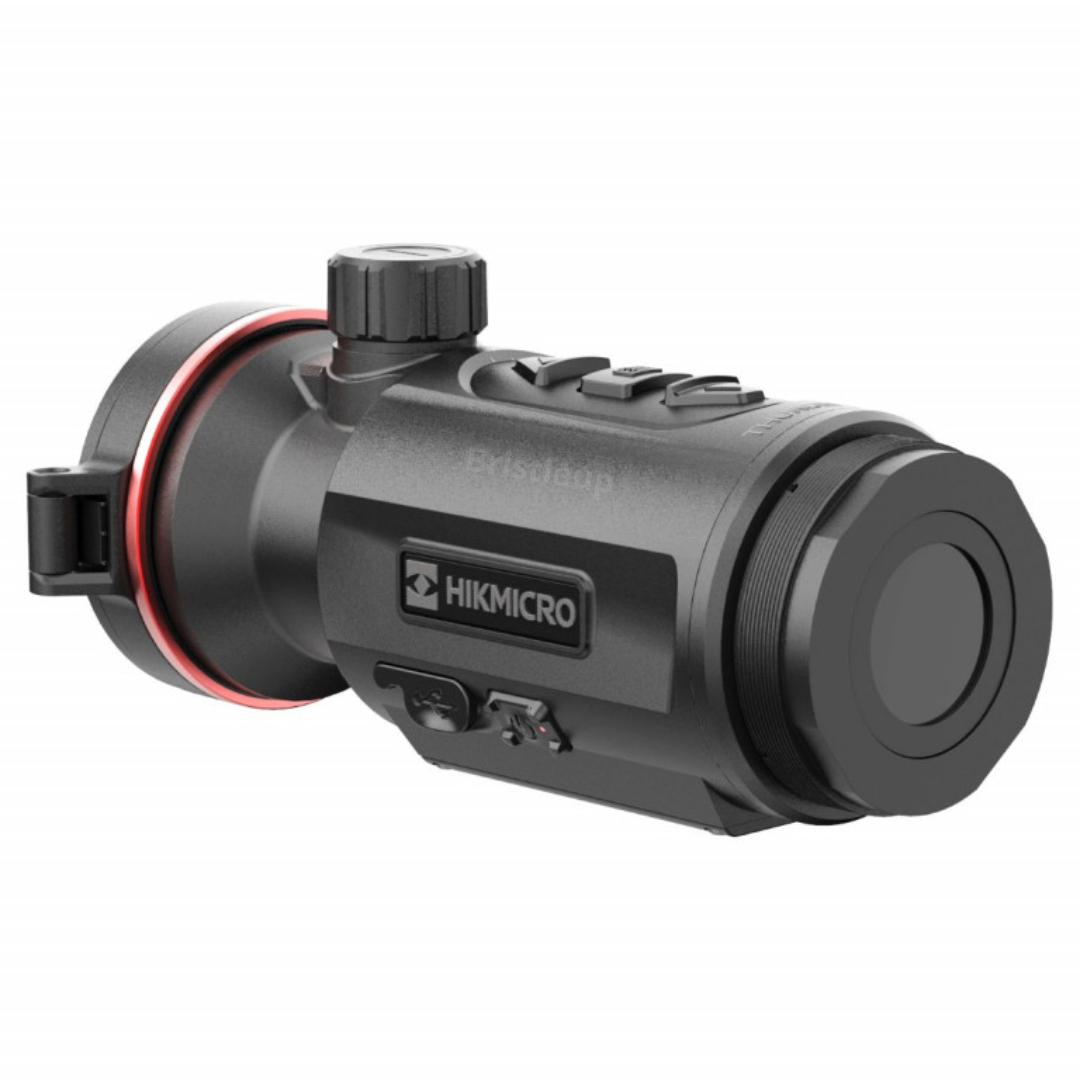

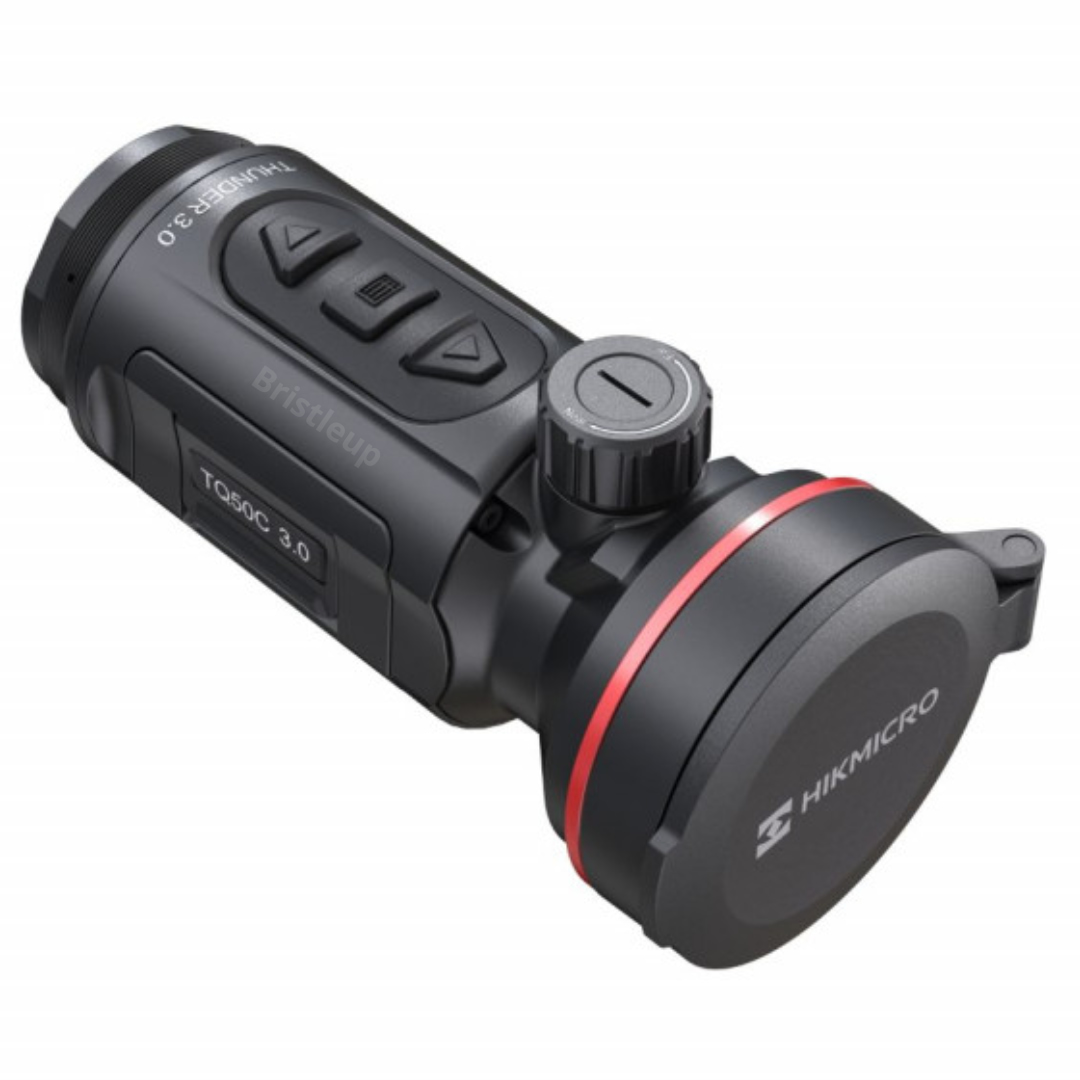

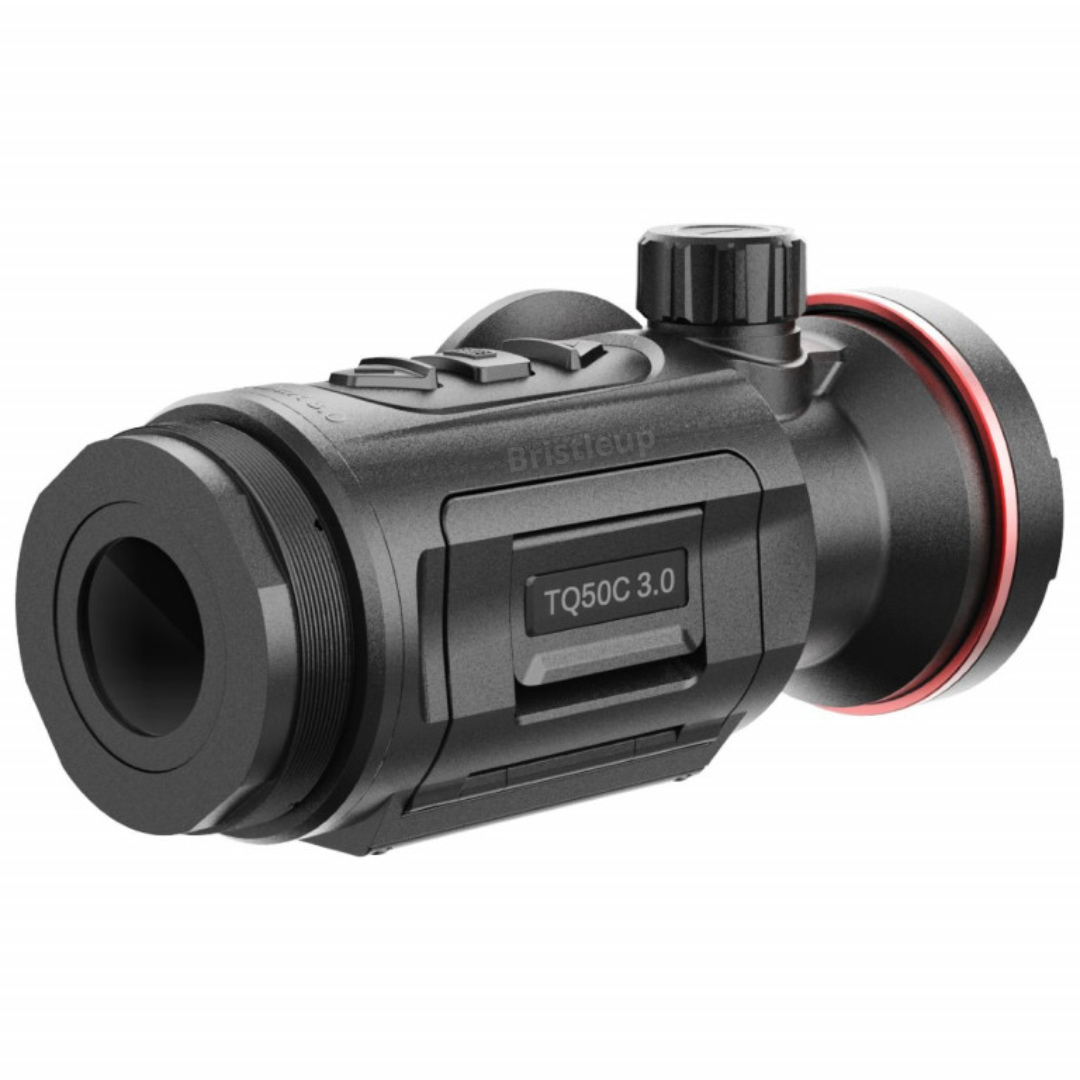

Hikmicro Thunder TQ50C 3.0
SPECIFICATION
| Thermal Module | TQ35C 3.0 |
| Image Sensor | Uncooled Focal Plane Arrays |
| Max. Resolution | 640 × 512 |
| Frame Rate | 50 Hz |
| Pixel Interval | 12 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | Less than 15 mK (25 °C, F#=1.0) |

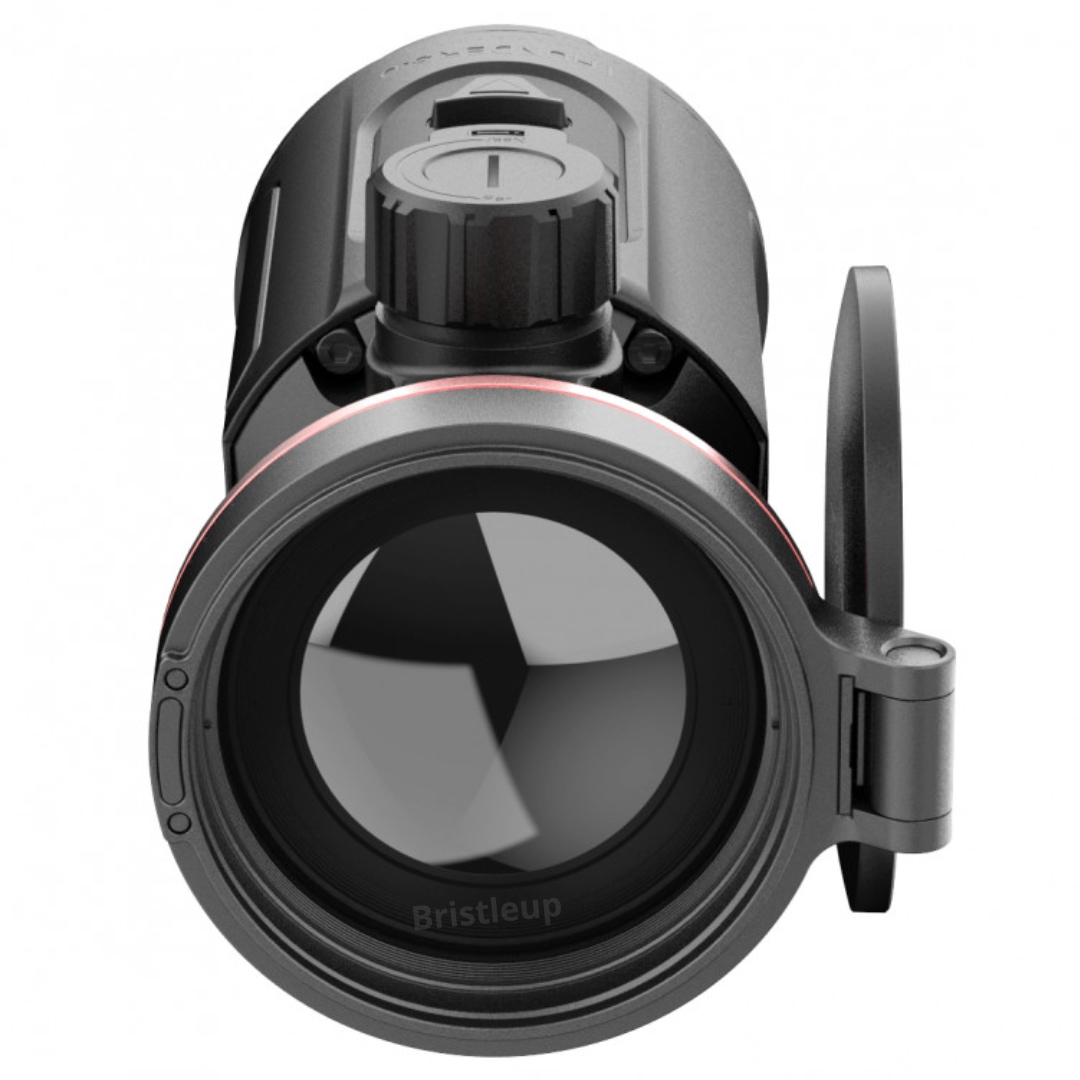

| Lens (Focal Length) | 50 mm, F1.0 |

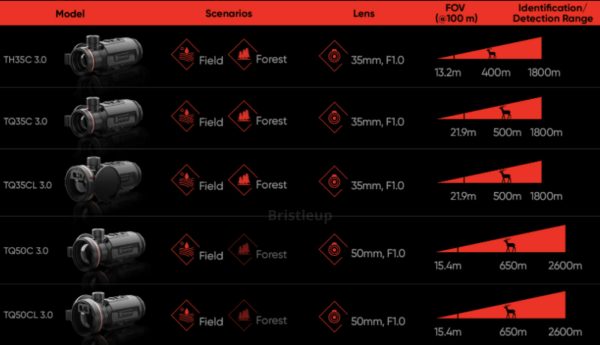

| Detection Range | 2600 m |
| Focus Mode | Focus Knob |
| Field of View(H × V), Degrees / m @100m | 8.8° × 7.0° / 15.4 m × 12.3 m |
| Min. Focusing Distance | 10 m |
| Magnification | 1x |

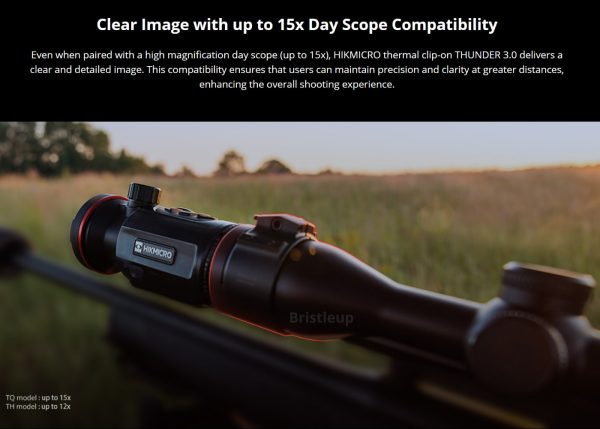

| Recommended Magnification of the Day Scope | 1-15x |
| Magnification of Monocular Mode | 2.8x-22.4x (8x) |
| Image Display | |
| Display | 1920 × 1080, 0.49 inch, OLED |
| Brightness Adjustment | Yes |
| Palettes | Black Hot, White Hot, Red Hot, Fusion, Red monochrome, Green monochrome |
| Exit Pupil | 25 mm |
| Eye Relief | 20 mm |
| Tone Adjustment | Cold, Warm |

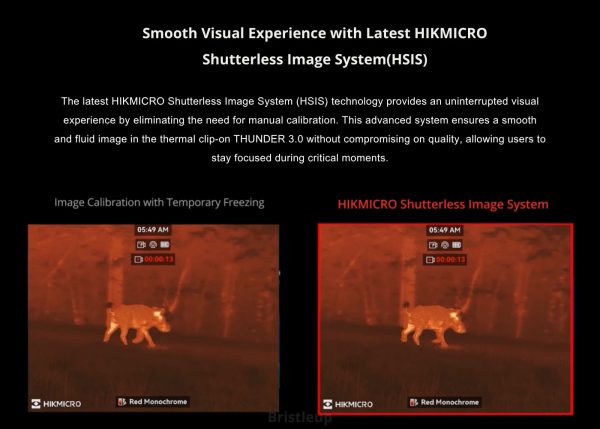

| HSIS (HIKMICRO Shutterless Image System) | Yes |
| Image Pro 3.0 | Yes |
| General | |
| Protection Level | IP67 |
| Weight | 500 g with battery |
| Dimension | 149.4 mm × 76 mm × 74.6 mm |
| Working Temperature | -30 °C to +55 °C (-22 °F to 131°F) |
| Body Material | Body & Lens Cover: Magnesium Alloy |
| System | |
| Record Video | On-board Video Recording |
| Capture Snapshot | Yes |
| Hotspot | Yes |
| Standby Mode | Yes |
| Storage | Built-in EMMC (64 GB) |
| Reticle | No |
| Audio Recording | Yes |
| Recoil-activation Recording | Yes |

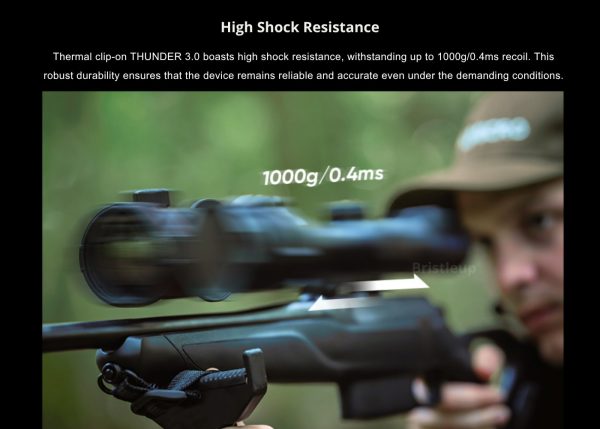

| Max. Recoil | 1000 g / 0.4 ms |
| Local Album | Yes |

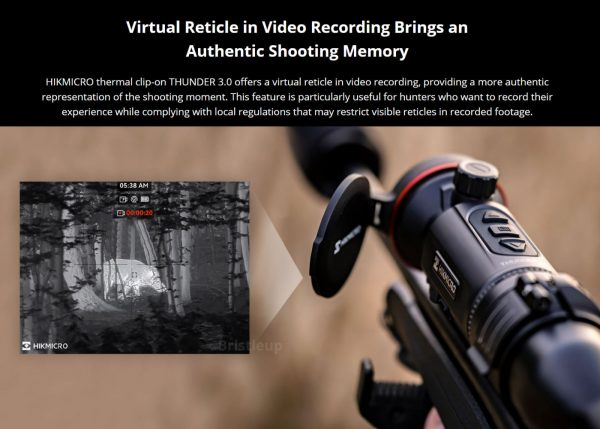

| Virtual Reticle | Yes |
| Image Calibration | Yes |

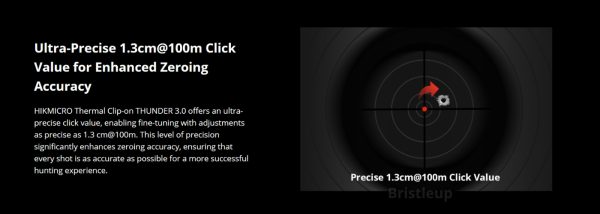

| Zeroing Profiles | 5 |
| Power Supply | |
| Battery Type | Replaceable and Rechargeable Li-ion Battery Pack |
| Battery Operating Time | ≥6h (25 °C, with hotspot off) |
| Type-C Power Supply | 5 VDC, 2 A |
