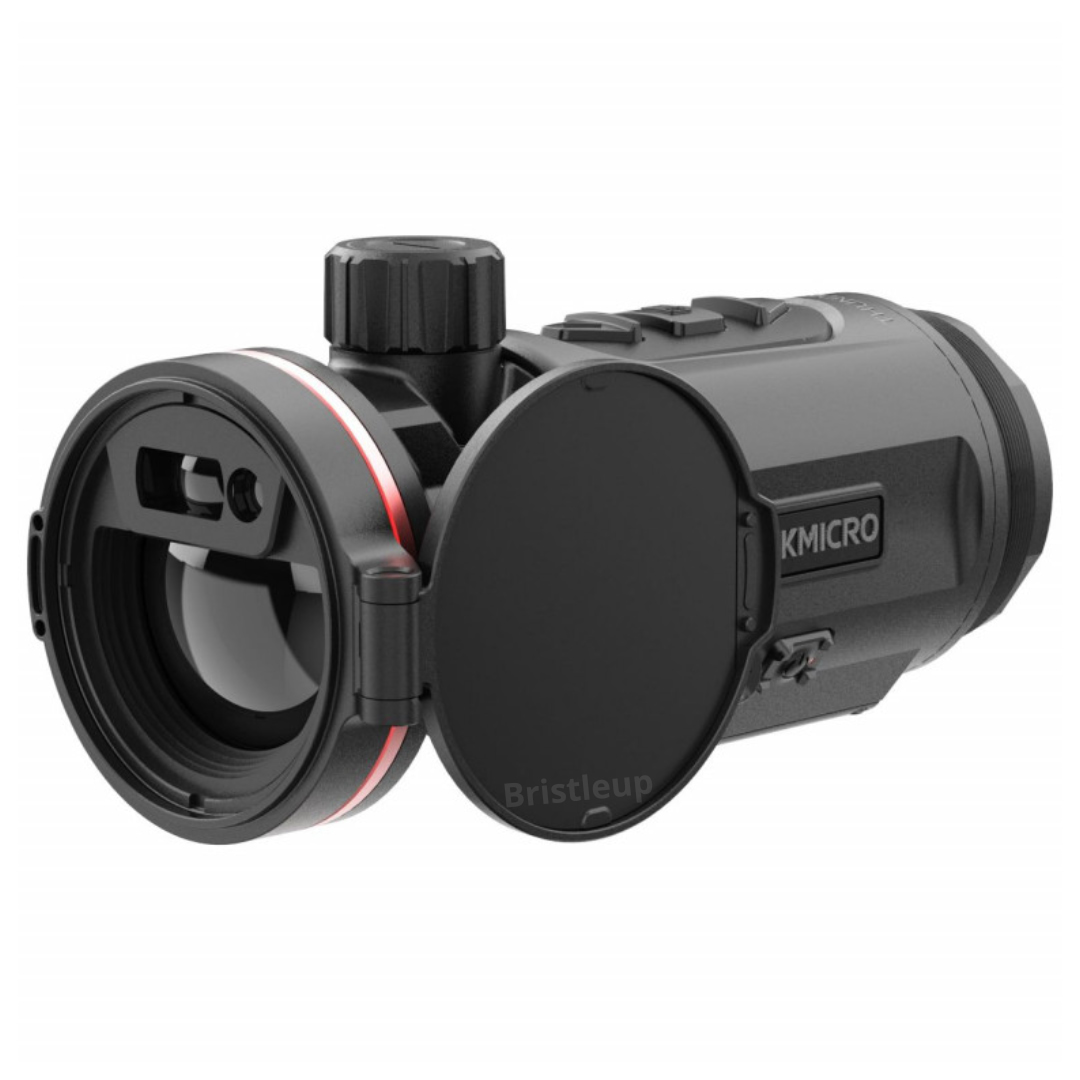

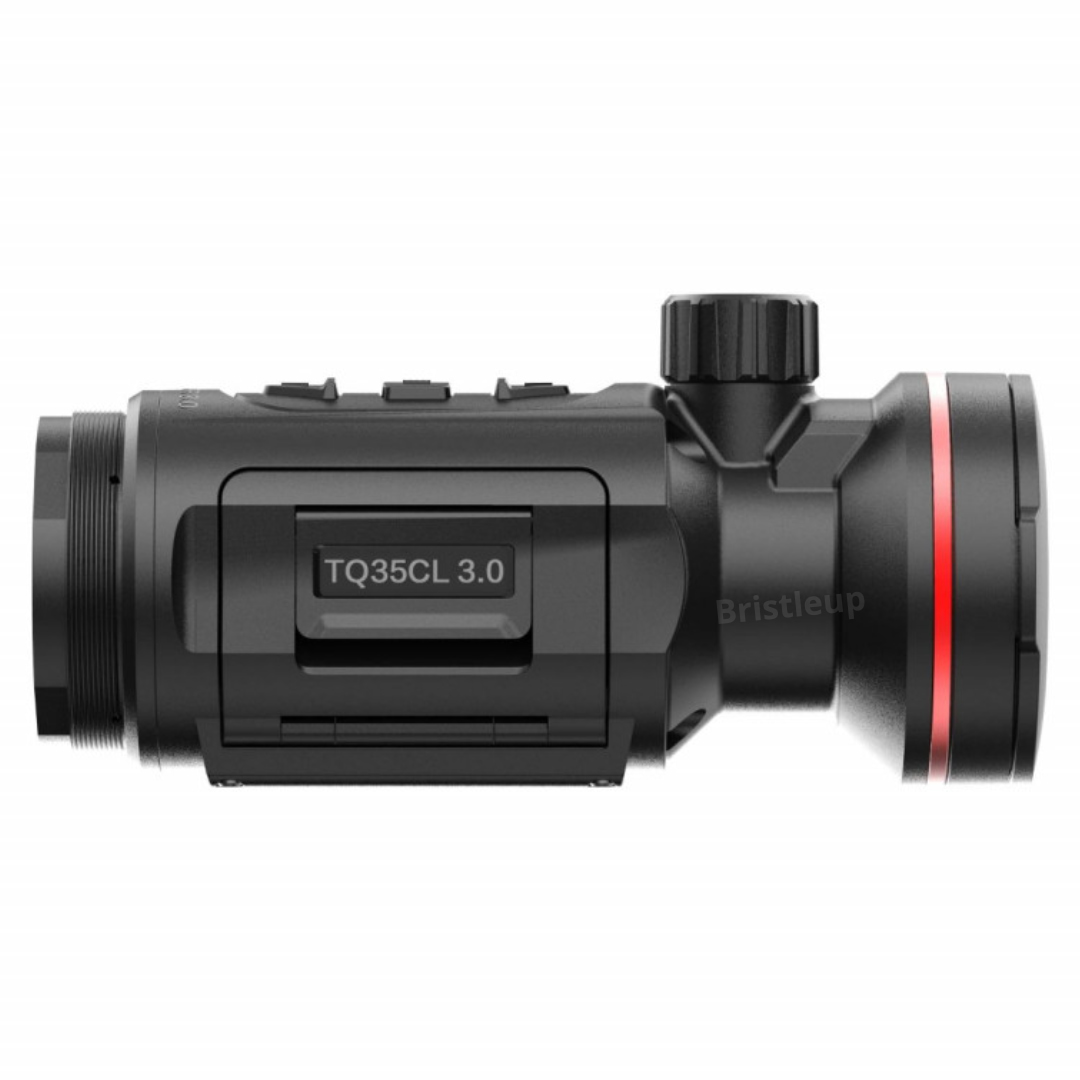

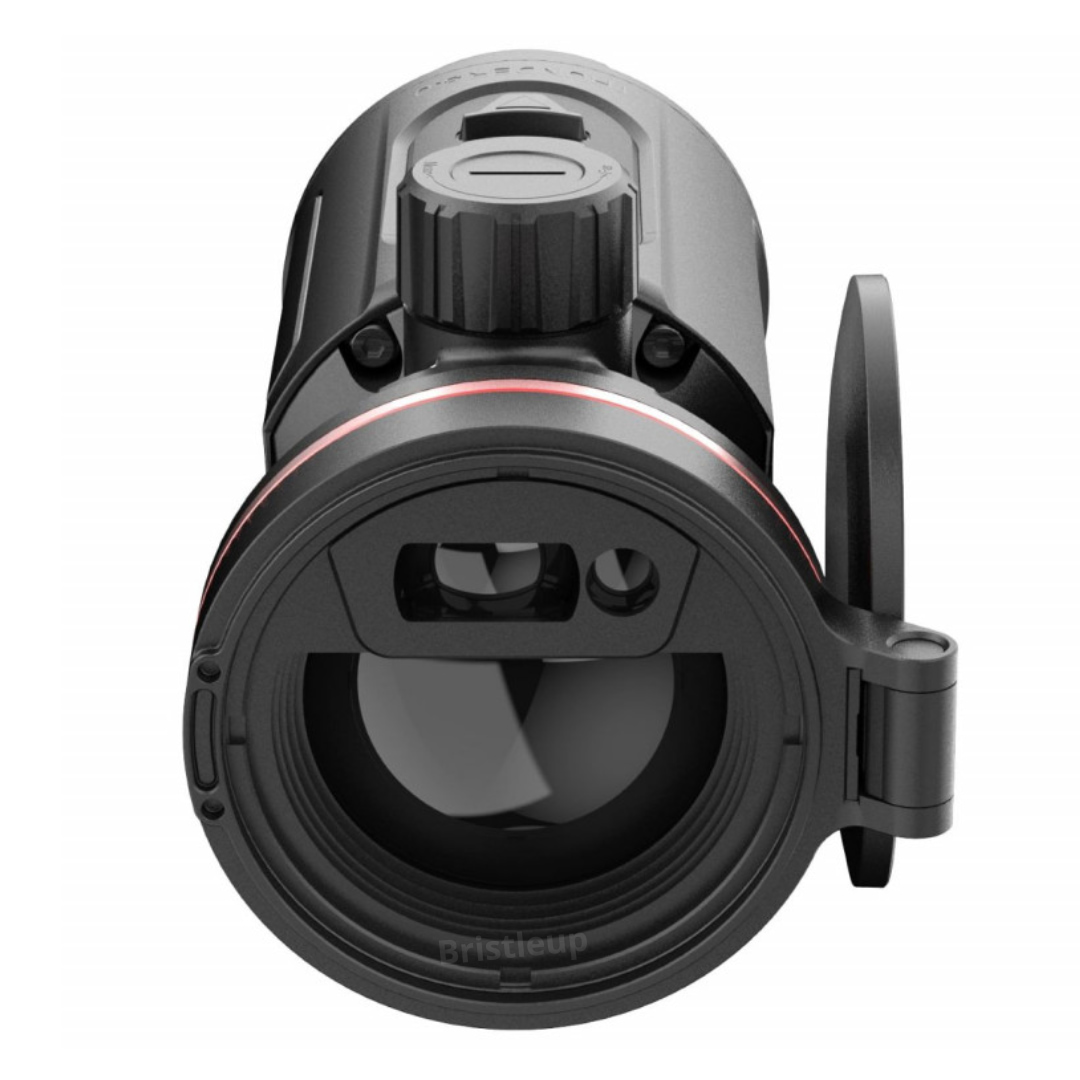

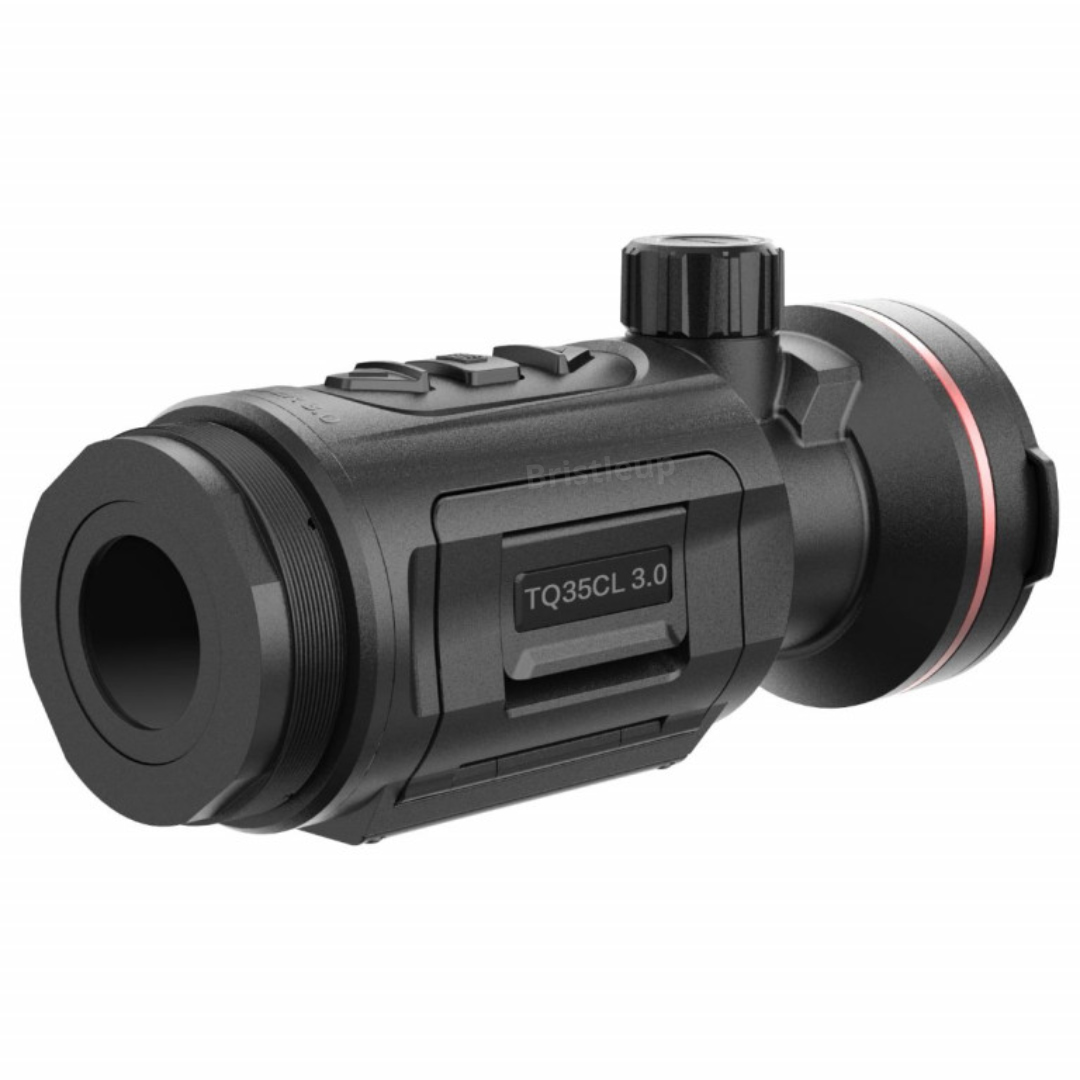

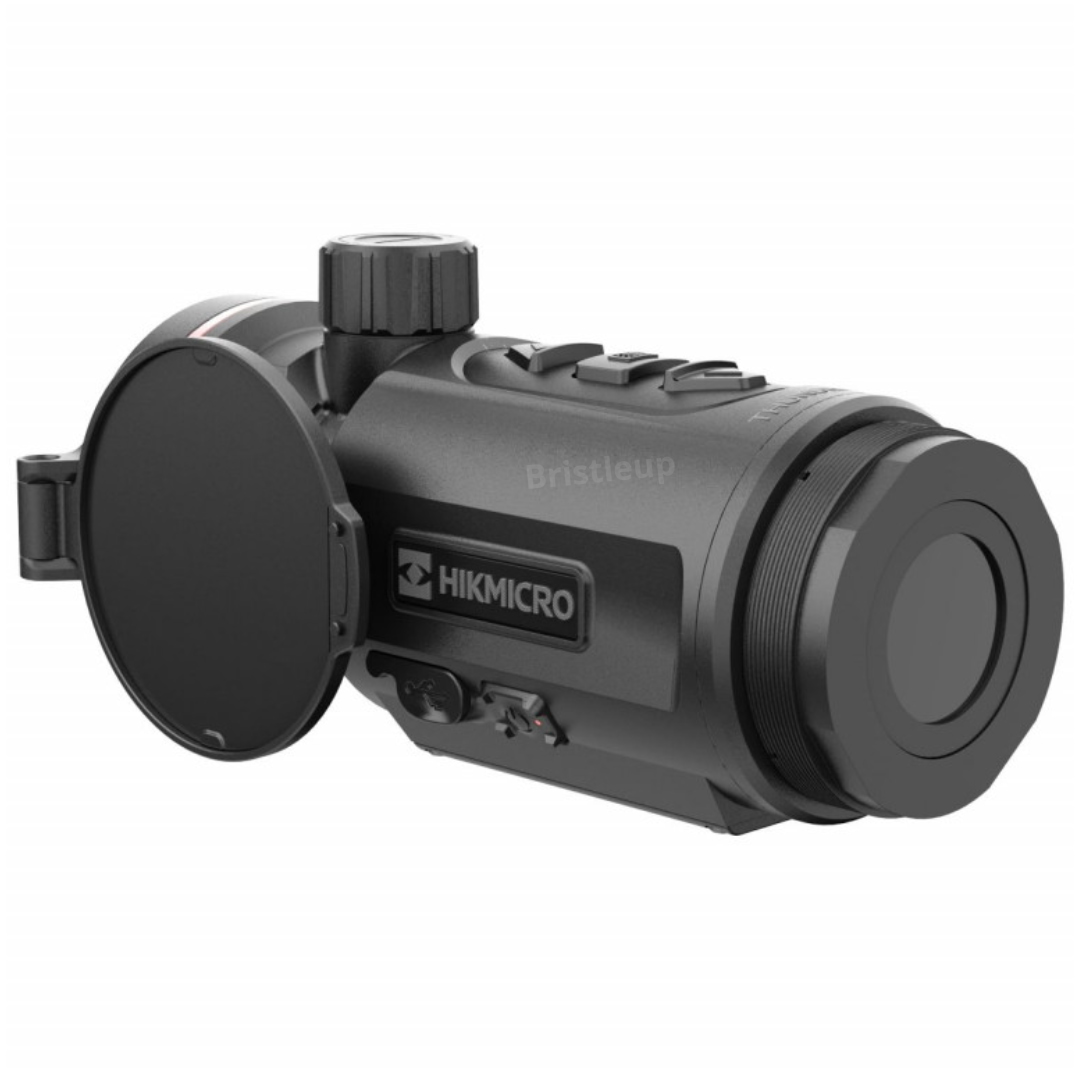

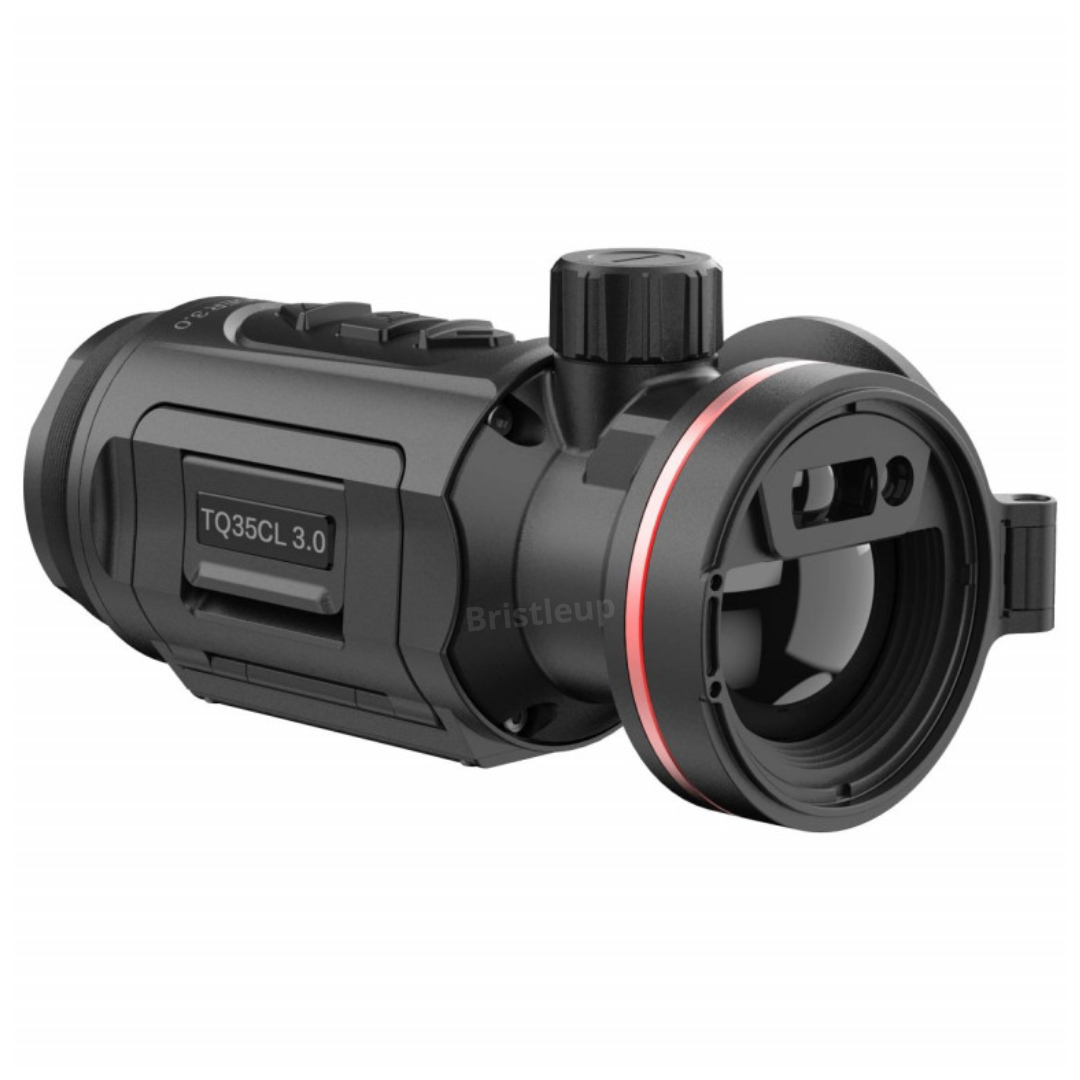

Hikmicro Thunder TQ35CL 3.0 - Thermal Clip-on

Hikmicro Thunder TQ35CL 3.0 - Thermal Clip-on - Image 2

Hikmicro Thunder TQ35CL 3.0 - Thermal Clip-on - Image 3

Hikmicro Thunder TQ35CL 3.0 - Thermal Clip-on - Image 4

Hikmicro Thunder TQ35CL 3.0 - Thermal Clip-on - Image 5

Hikmicro Thunder TQ35CL 3.0 - Thermal Clip-on - Image 6

Hikmicro Thunder TQ35CL 3.0 - Thermal Clip-on - Image 7

Hikmicro Thunder TQ35CL 3.0 – Thermal Clip-on

$4,999.00 GST

Description

Hikmicro Thunder TQ35CL 3.0

MANUAL: HIKMICRO THUNDER 3.0 SERIES

SPECIFICATION

Thermal Module	TQ35CL 3.0
Image Sensor	Uncooled Focal Plane Arrays
Max. Resolution	640 × 512
Frame Rate	50 Hz
Pixel Interval	12 μm
Response Waveband	8 μm to 14 μm
NETD	Less than 15 mK (25 °C, F#=1.0)
Lens (Focal Length)	35 mm, F1.0
Detection Range	1800 m
Focus Mode	Focus Knob
Min. Focusing Distance	10 m
Magnification	1x
Field of View(H × V), Degrees / m @100m	12.5° × 8.0° / 21.9 m × 14.0 m
Recommended Magnification of the Day Scope	1-15x
Magnification of Monocular Mode	2.0x-16.0x (8x)
Image Display
Display	1920 × 1080, 0.49 inch, OLED
Palettes	Black Hot, White Hot, Red Hot, Fusion, Red monochrome, Green monochrome
Exit Pupil	25 mm
Eye Relief	20 mm
Brightness Adjustment	Yes
Tone Adjustment	Cold, Warm
HSIS (HIKMICRO Shutterless Image System)	Yes
Image Pro 3.0	Yes
System
Record Video	On-board Video Recording
Capture Snapshot	Yes
Virtual Reticle	Yes
Standby Mode	Yes
Storage	Built-in EMMC (64 GB)
Hotspot	Yes
Reticle	No
Audio Recording	Yes
Recoil-activation Recording	Yes
Max. Recoil	1000 g / 0.4 ms
Local Album	Yes
Image Calibration	Yes
Zeroing Profiles	5
Power Supply
Battery Type	Replaceable and Rechargeable Li-ion Battery Pack
Battery Operating Time	≥5h (25 °C, with hotspot off and LRF on)
Type-C Power Supply	5 VDC, 2 A
Supports External Power Supply	Yes
Supports Direct Charging	Yes
General
Protection Level	IP67
Dimension	152.3 mm × 63 mm × 74.1 mm
Weight	525 g with battery
Working Temperature	-30 °C to +55 °C (-22 °F to 131°F)
Body Material	Body & Lens Cover: Magnesium Alloy
Center Height	32 mm
Laser Rangefinder
Safety Class for Laser	Class 1
Wavelength	905 nm
Max. Measuring Range	1000 m
Measurement Accuracy	±1 m
Min. Measuring Range	10 m
LRF Module in Lens	Yes
