Hikmicro Thunder TQ35C 3.0 – Thermal Clip-on
$4,599.00 GST

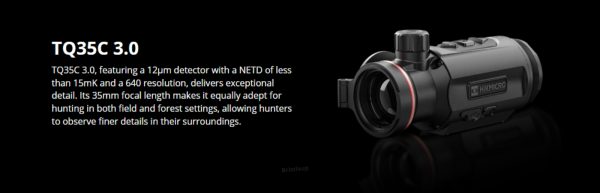

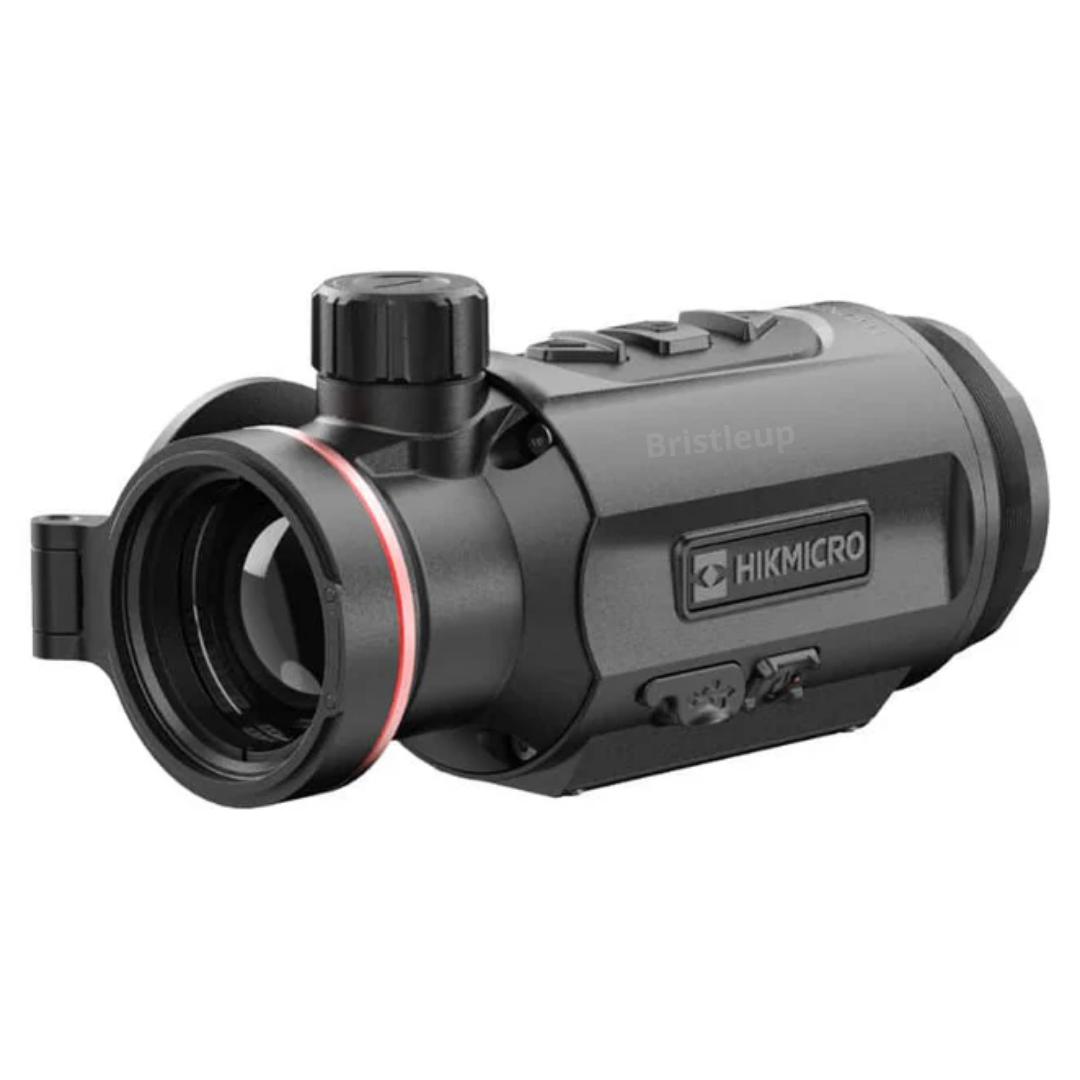

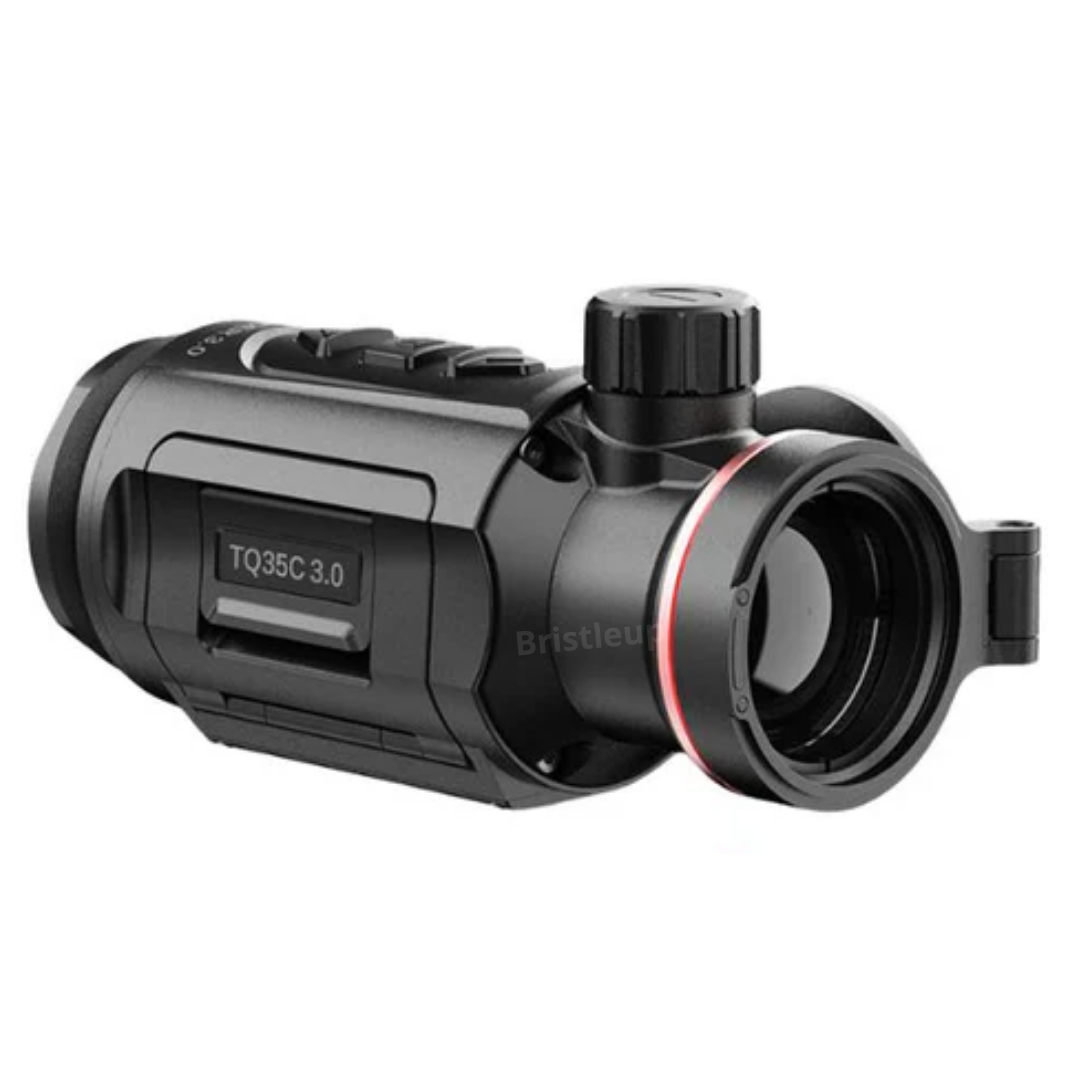

Hikmicro Thunder TQ35C 3.0
MANUAL: HIKMICRO THUNDER 3.0 SERIES
SPECIFICATION
| Thermal Module | TQ35C 3.0 |
| Image Sensor | Uncooled Focal Plane Arrays |
| Max. Resolution | 640 × 512 |
| Frame Rate | 50 Hz |
| Pixel Interval | 12 μm |
| Response Waveband | 8 μm to 14 μm |
| NETD | Less than 15 mK (25 °C, F#=1.0) |
| Lens (Focal Length) | 35 mm, F1.0 |
| Detection Range | 1800 m |
| Focus Mode | Focus Knob |
| Field of View (H × V), Degrees / m @100m | 12.5° × 8.0° / 21.9 m × 14.0 m |
| Min. Focusing Distance | 10 m |
| Magnification | 1x |
| Recommended Magnification of the Day Scope | 1-15x |
| Magnification of Monocular Mode | 2.0x-16.0x (8x) |
| Image Display | |
| Display | 1920 × 1080, 0.49 inch, OLED |
| Brightness Adjustment | Yes |
| Palettes | Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome |
| Exit Pupil | 25 mm |
| Eye Relief | 20 mm |
| Tone Adjustment | Cold, Warm |
| HSIS (HIKMICRO Shutterless Image System) | Yes |
| Image Pro 3.0 | Yes |
| General | |
| Protection Level | IP67 |
| Weight | 460 g with battery |
| Dimension | 143.4 mm × 67.5 mm × 72.9 mm |
| Working Temperature | -30 °C to +55 °C (-22 °F to 131 °F) |
| Body Material | Body & Lens Cover: Magnesium Alloy |
| System | |
| Record Video | On-board Video Recording |
| Capture Snapshot | Yes |
| Hotspot | Yes |
| Standby Mode | Yes |
| Storage | Built-in EMMC (64 GB) |
| Reticle | No |
| Audio Recording | Yes |
| Recoil-activation Recording | Yes |
| Max. Recoil | 1000 g / 0.4ms |
| Local Album | Yes |
| Virtual Reticle | Yes |
| Image Calibration | Yes |
| Zeroing Profiles | 5 |
| Power Supply | |
| Battery Type | Replaceable and Rechargeable Li-ion Battery Pack |
| Battery Operating Time | ≥6h (25 °C, with hotspot off) |
| Type-C Power Supply | 5 VDC, 2 A |
