Hikmicro Lynx LE10 3.0 – Thermal Monocular
$699.00
FOR EXPERT ADVICE, PRICE MATCHING OR BUNDLES 0427312312

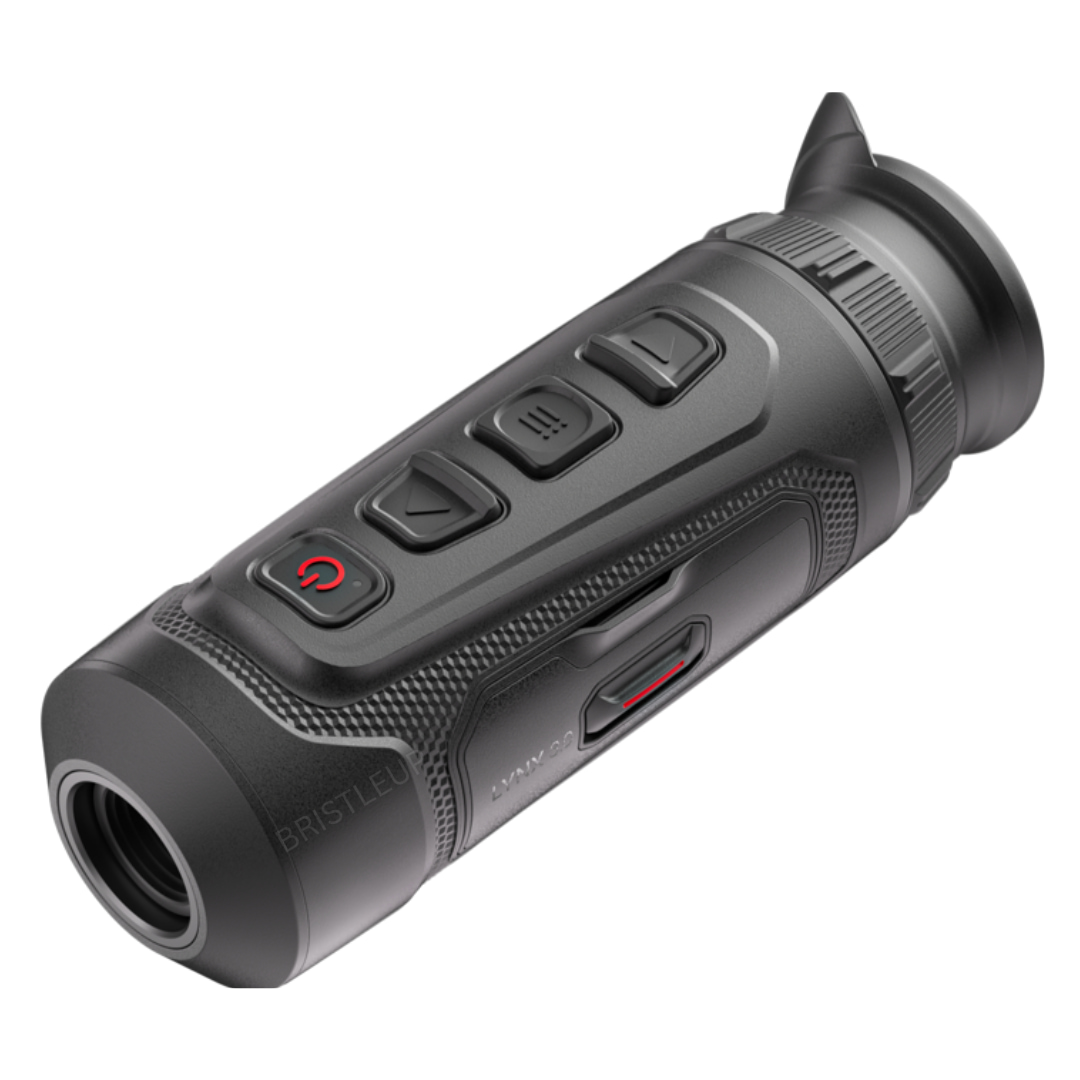

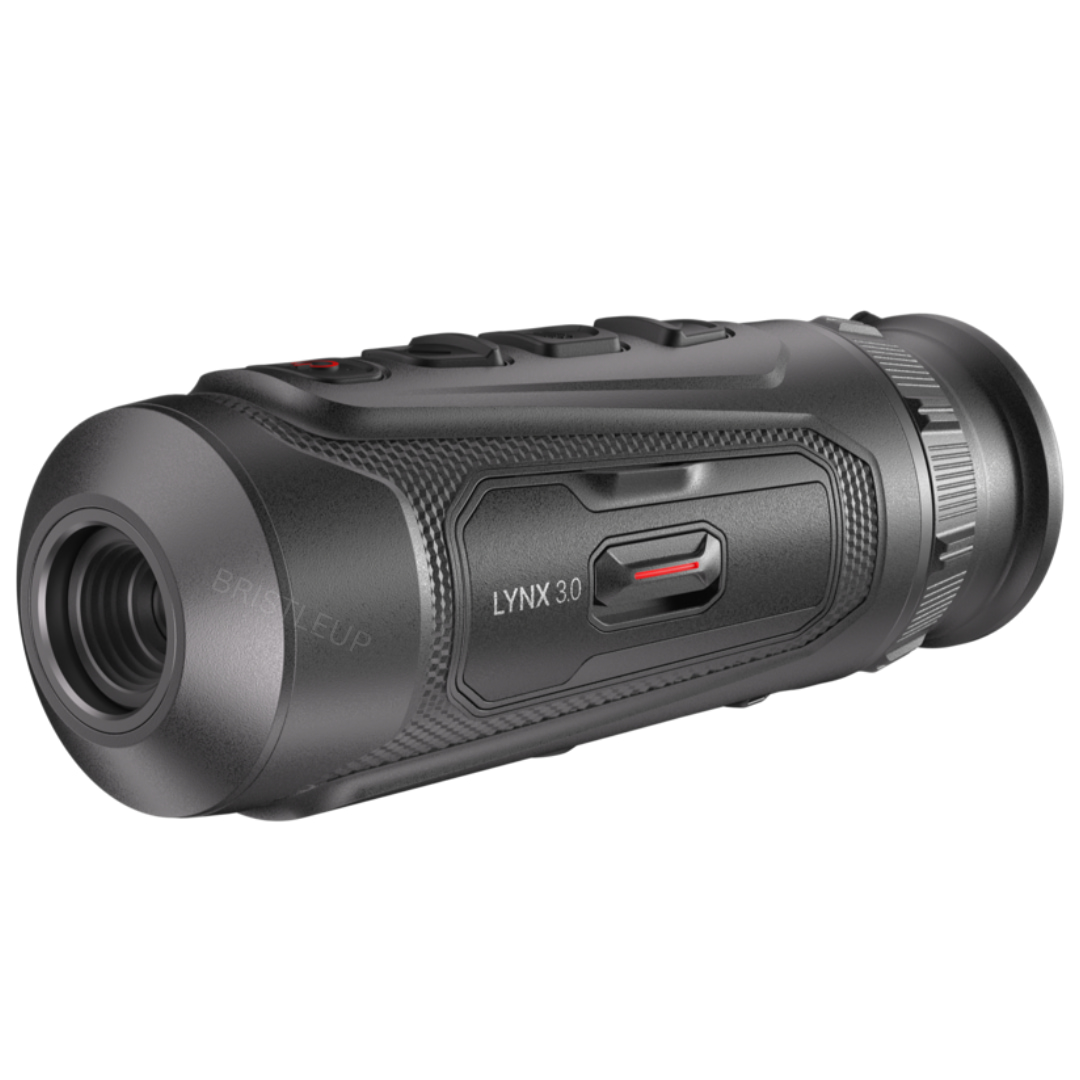

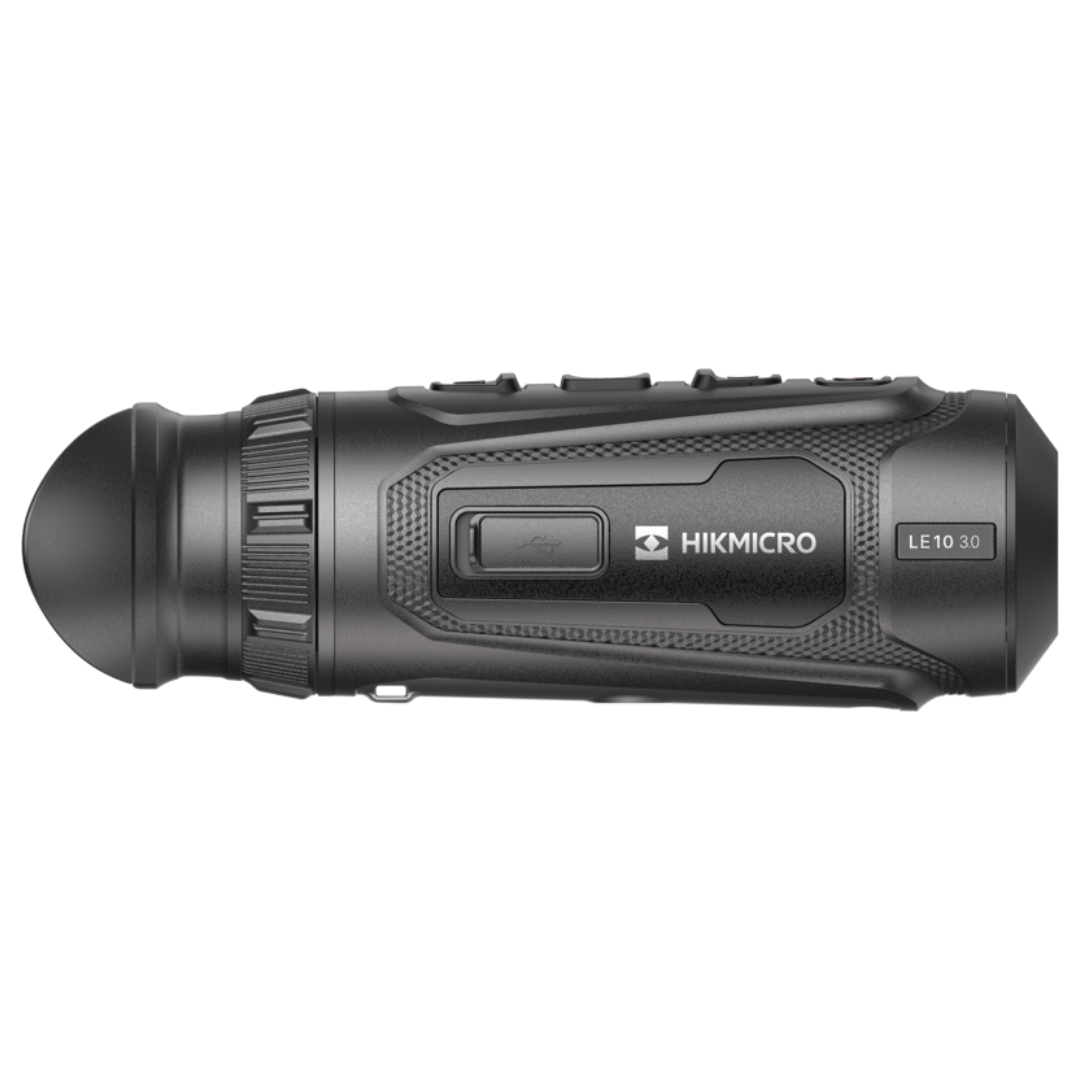

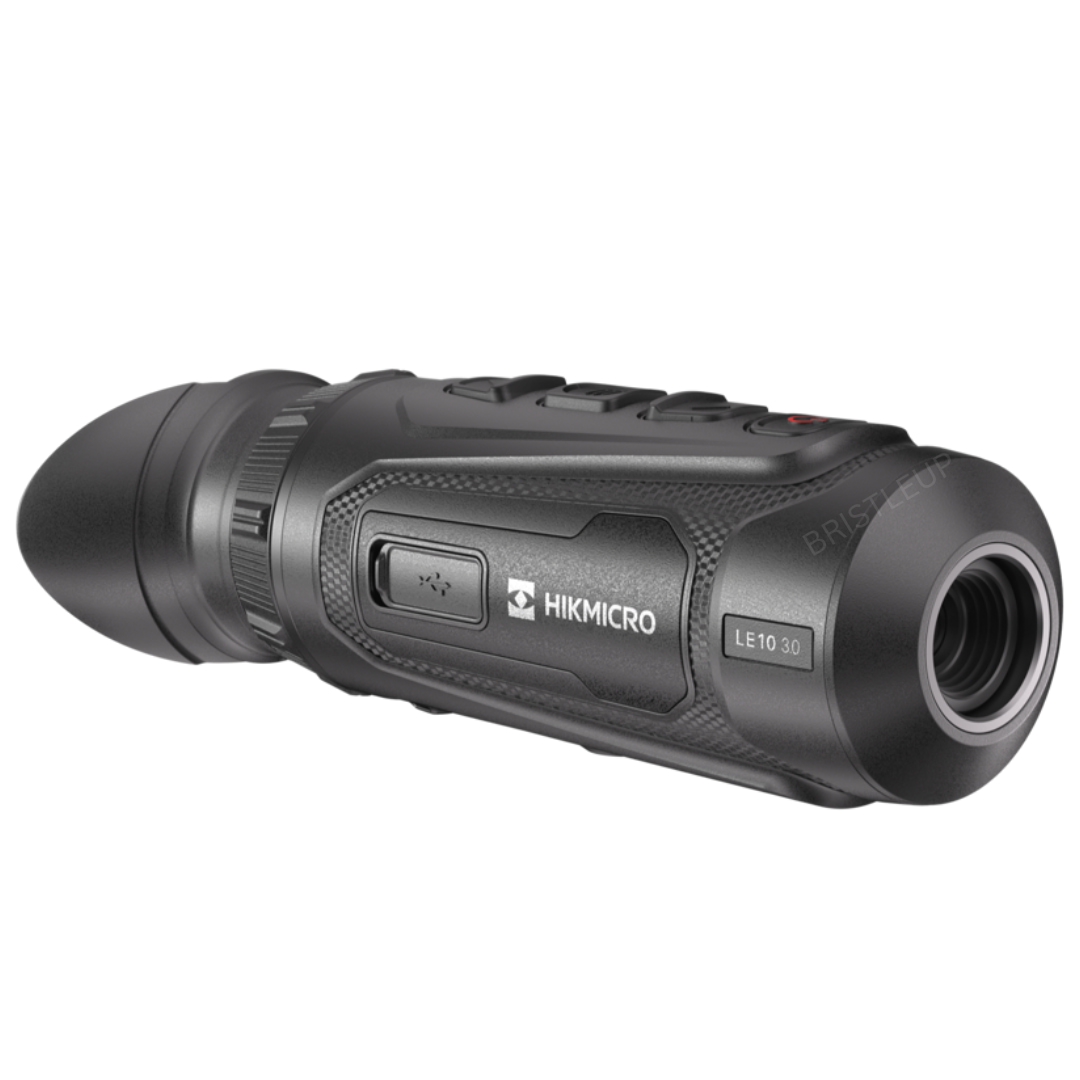

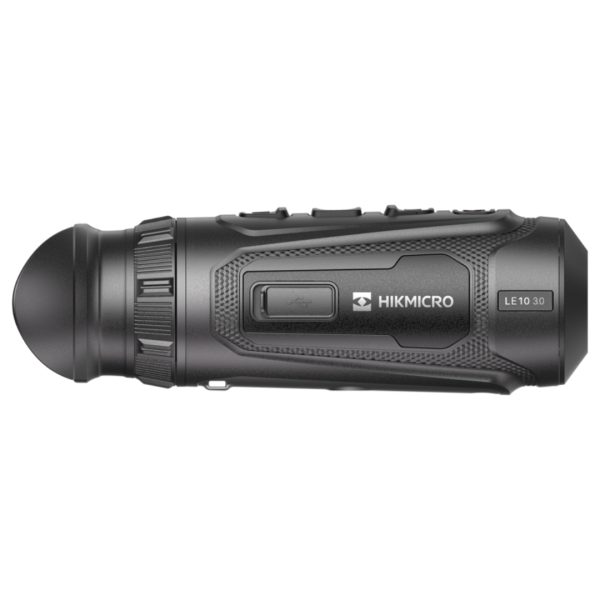

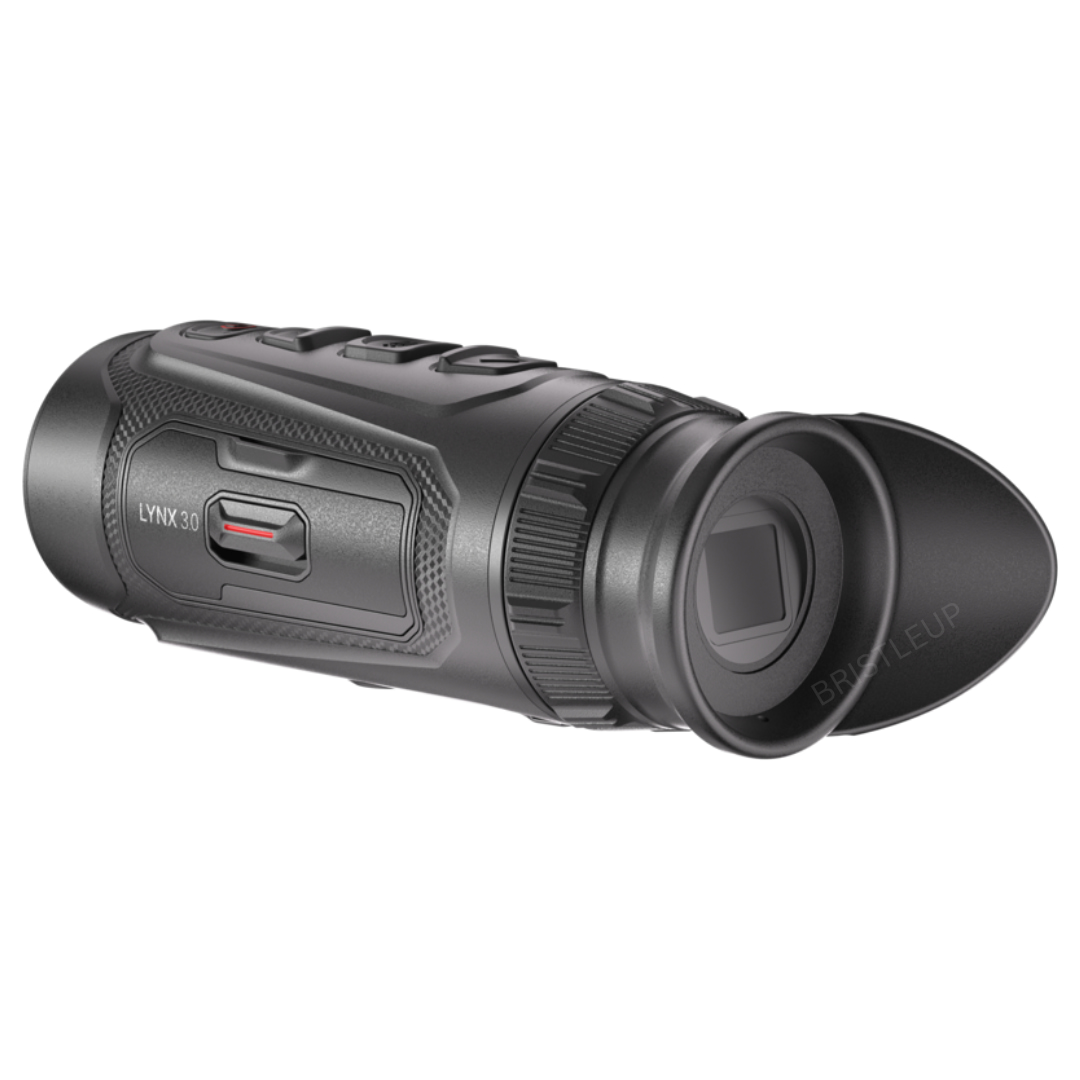

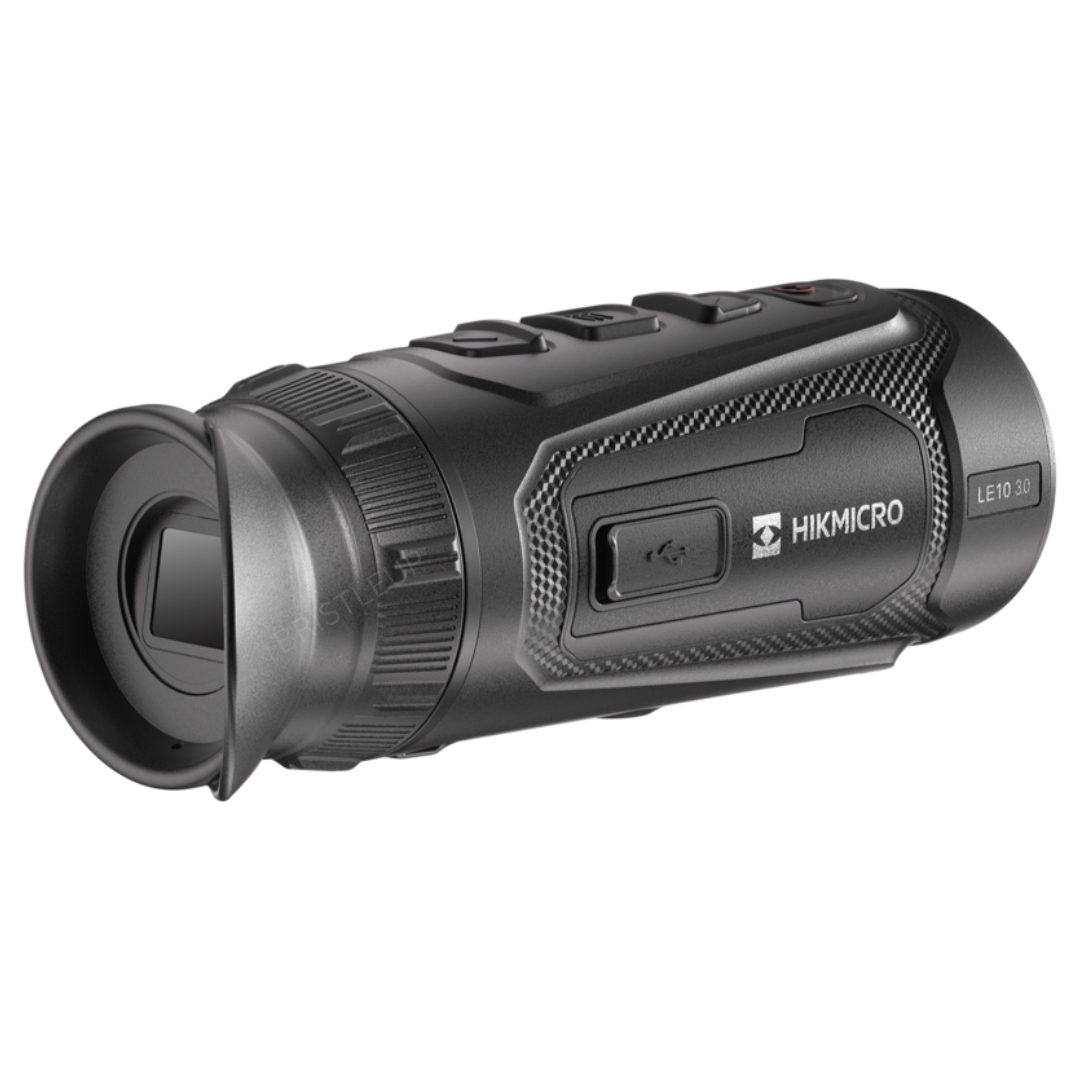

Hikmicro Lynx 3.0 LE10 Thermal Monocular
The LE10 3.0 is the ultimate-valued thermal monocular for close-range observation. Featuring a 256×192 thermal detector and a 9.7mm F1.0 lens, it offers a 1.4x base magnification and an 18° field of view, with a detection range of up to 500m. Compact, reliable, and lightweight, it is an excellent choice for quick and efficient use in tight spaces.
Hikmicro Lynx 3.0 Series Overview
Remark：
1. The shutter module has been retained to ensure high image quality for power-up and under large temperature variations.
2. The battery time data comes from HIKMICRO lab. The actual result may differ due to the environment and personal usage habits. Please refer to actual experience.
3. The HIKMICRO Sight APP connection process complies with the latest CE RED Directive (2014/53/EU) and the EN 18031 standard. We are always your most reliable choice.
*All the pictures and videos taken by device are for reference only, the actual effect shall prevail.
*All images, videos, and screen display contents about the product itself on this page are for reference only. Actual product effects (including but not limited to appearance, color, and size) and screen display contents (including but not limited to backgrounds, UI, and illustrations) may vary.
| SPECIFICATION | |
| Product Model | LE10 3.0 |
| Thermal Module | |
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 256×192 |
| Frame Rate | 50Hz |
| Pixel Interval | 12μm |
| Response Waveband | 8μm to 14μm |
| NETD | < 20 mK (@25°C), F#=1.0 |
| Lens (Focal Length) | 9.7mm, f1.0 |
| Detection Range | 500m |
| Focus Mode | Focus Free |
| Field of View (H × V), Degrees / m @100m | 18.0°×13.6° / 31.7m × 23.8m |
| Min. Focusing Distance | 3.4m |
| Magnification | 1.4x – 11.2x (8x) |
| Image Display | |
| Display | 1024×768, 0.39 inch, AMOLED |
| Contrast Adjustment | Yes |
| Brightness Adjustment | Yes |
| Palettes | Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome |
| Exit Pupil | 6mm |
| Eye Relief | 20mm |
| Diopter (Range) | -5D to +3D |
| Tone Adjustment | Cold, Warm |
| Zoom Pro | N/A |
| HSIS (HIKMICRO Shutterless Image System) | Yes |
| Image Pro 3.0 | Yes |
| General | |
| Protection Level | IP67 |
| Weight | 291.5 g with battery |
| Dimension | 152.4×53.6×49.5 mm |
| Working Temperature | From -30°C to 45°C (-22°F to 113°F); Humidity: 90% or Less |
| System | |
| Built-in Memory | Built-in EMMC (64 GB) |
| Record Video | Yes |
| Capture Snapshot | Yes |
| Hotspot | 2.4 GHz / 5 GHz Wi-Fi Waveband |
| Standby Mode | Yes |
| PIP | Yes |
| Hot Track | Yes |
| Distance Measurement | Yes |
| Audio Recording | Yes |
| Local Album | Yes |
| Power Supply | |
| Battery Type | Replaceable and Rechargeable Li-ion 18650 Battery |
| Battery Operating Time | 6-hour continuous running with hotspot on (@25°C) 5.5-hour continuous running with hotspot on (@-20°C) |
| Type-C Power Supply | 5V DC, 2A Supports External Power Supply, Support Direct Charging |
Hikmicro Lynx Series 3.0 (K)
| Choose Mode | LE10 3.0 – 256px – 1.4x – 20mK – 500m |
|---|
