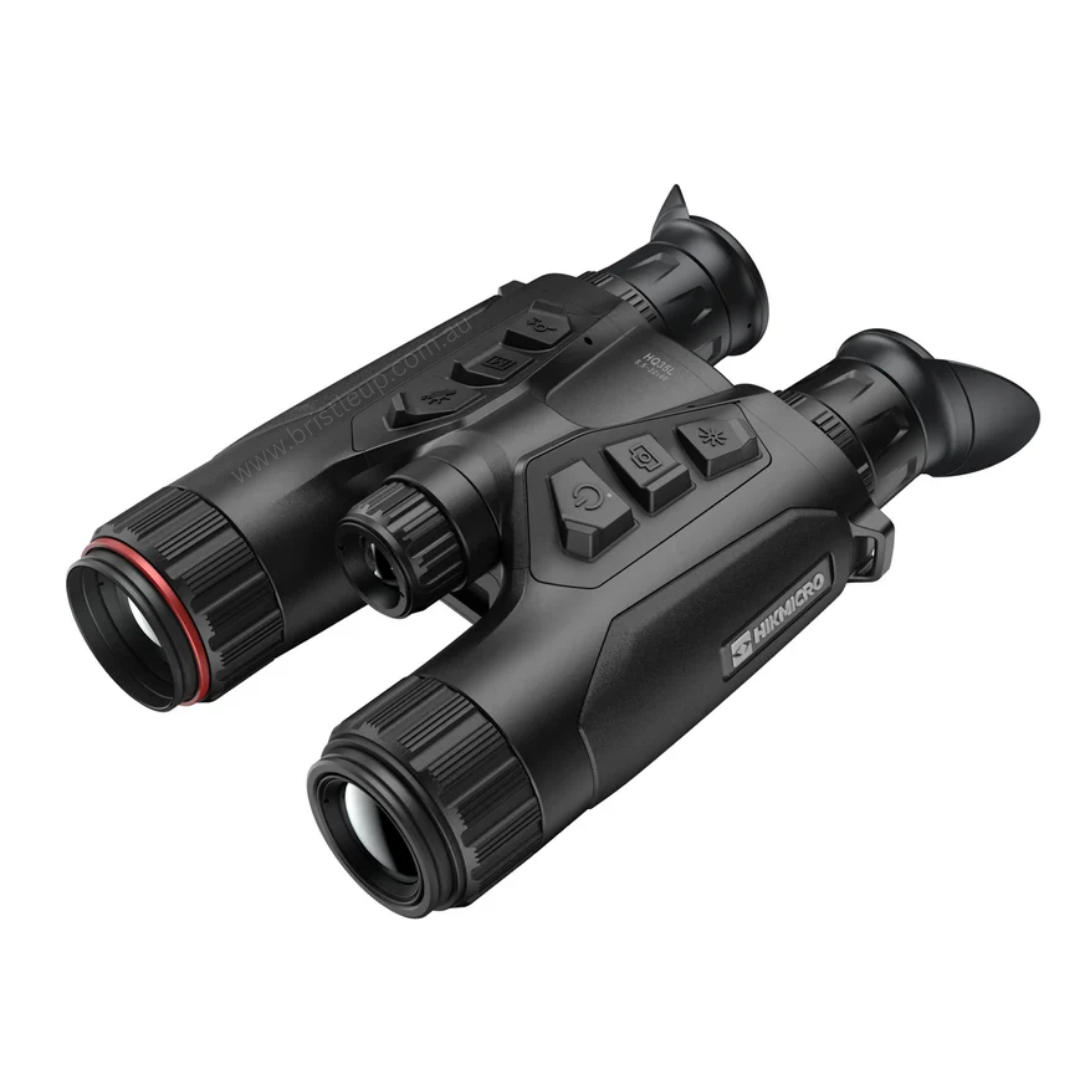

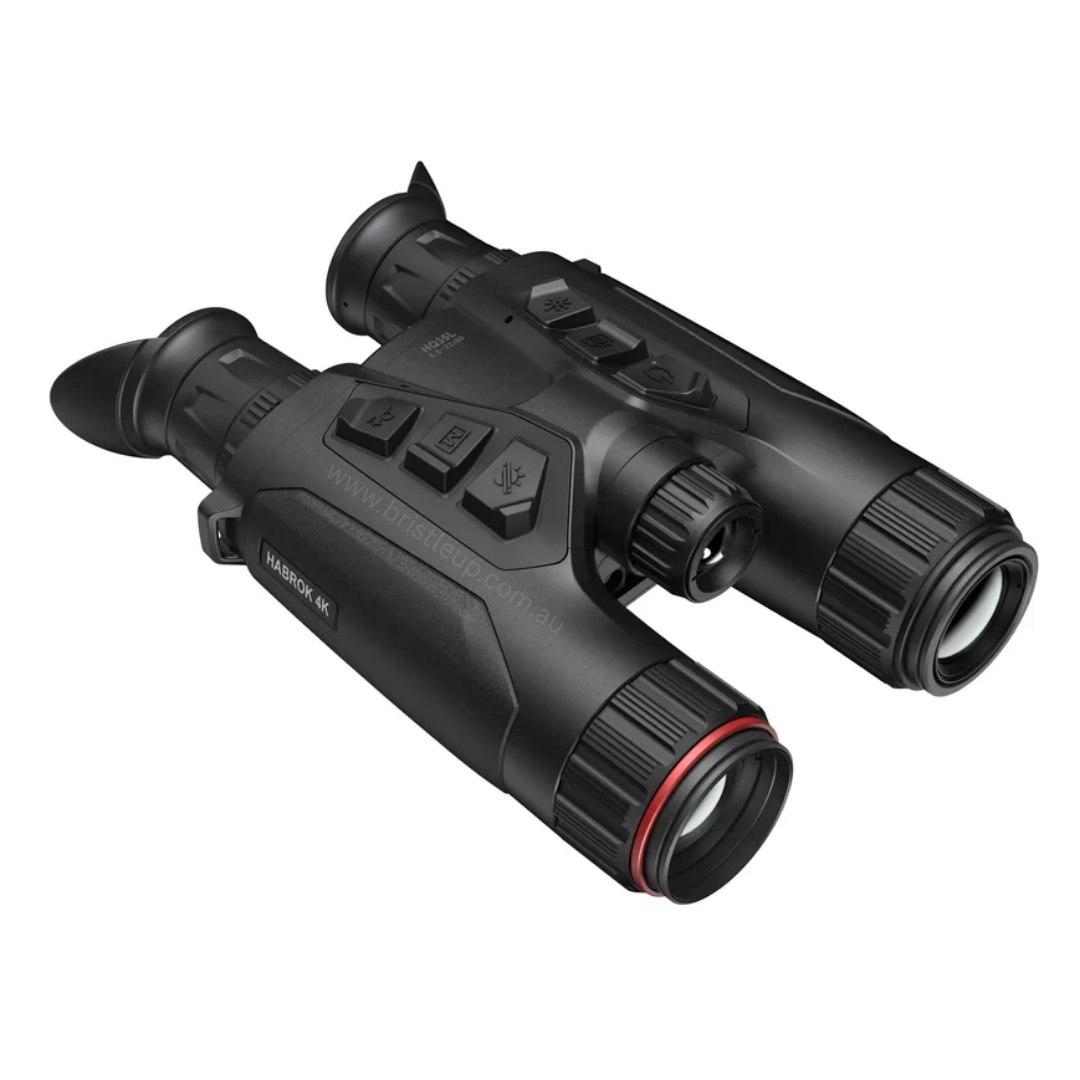

Hikmicro Habrok 4K HQ35L – Multispectral LRF Binoculars
$5,799.00 GST
Choose your Awesome High sensitivity NETD<20mK Multispectral LRF Binocular
You’ll receive $359.54 kit credit with this product.

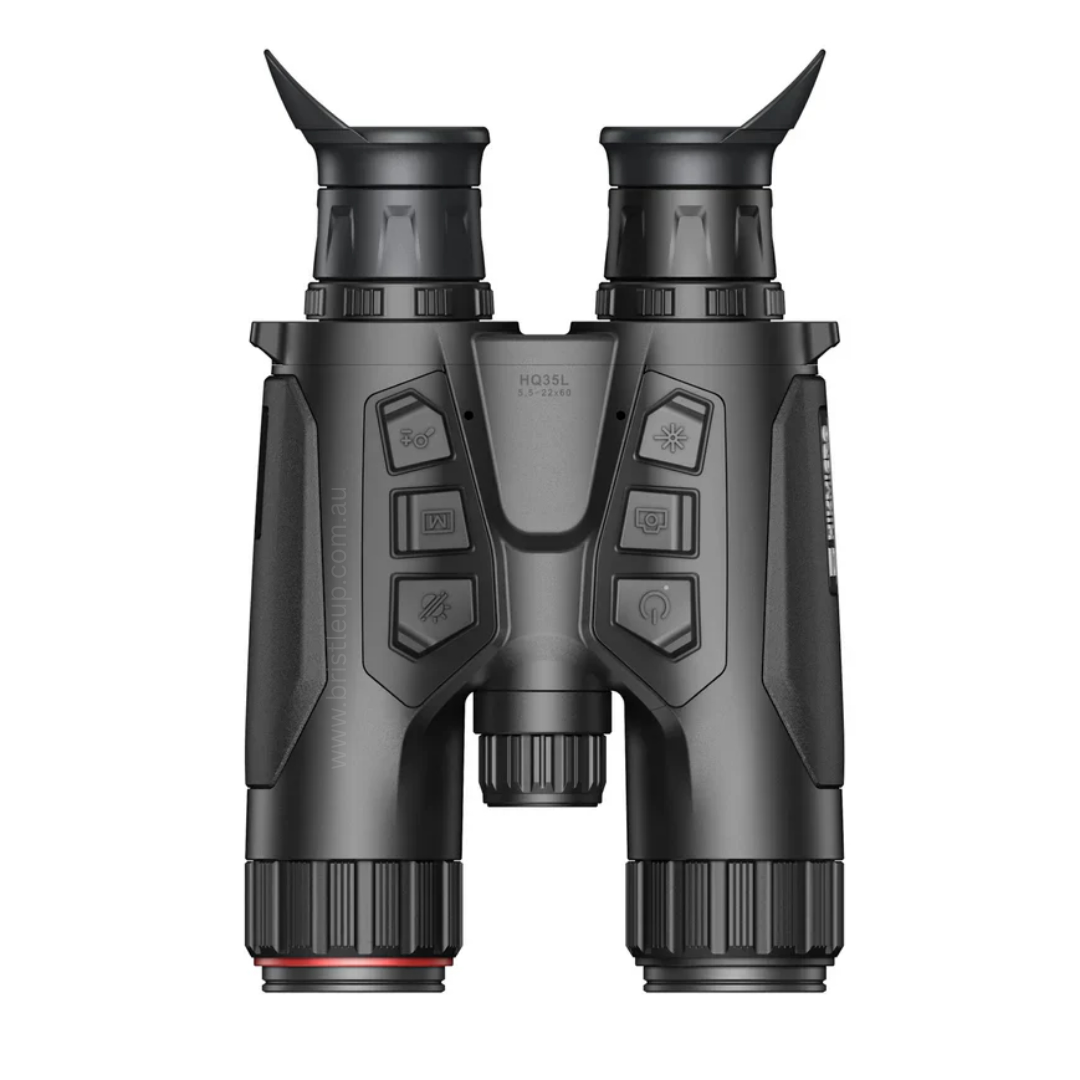

Hikmicro Habrok 4K HQ35L

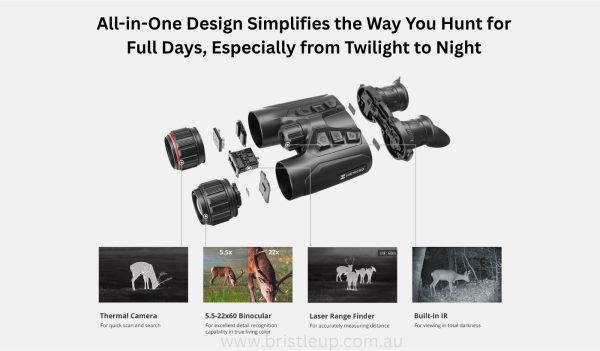

With a powerful 640×512, 20mK NETD thermal detector, HQ35L 5.5-22X60 provides more effective searching and recognition capabilities during all-day hunting. The 4K UHD digital camera @60mm long lens, two replaceable IR for fitting different observation needs, and built-in LRF, this compact all-in-one device covers your every need in all scenarios.
Specification

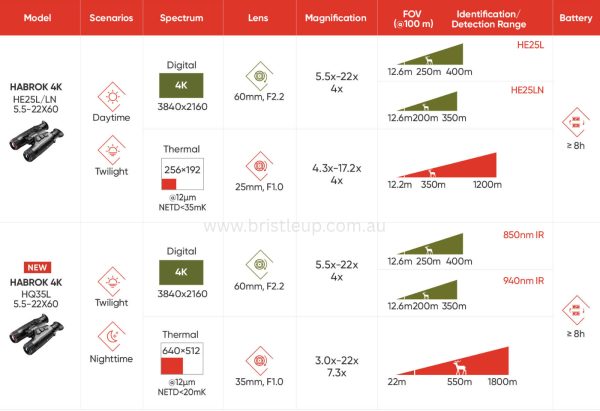

| Technical Parameters |
4K HQ35L
Multi-Spectrum Binocular
|
| Thermal Module | |
| Image Sensor | VOx Uncooled Focal Plane Arrays |
| Max. Resolution | 640 × 512 |
| Frame Rate | 50Hz |
| Pixel Interval | 12μm |
| Response Waveband | 8μm to 14μm |
| NETD | Less than 20 mK (@25°C), F#=1.0 |
| Lens (Focal Length) | 35mm, F1.0 |
| Focus Mode | Focus Ring |
| Detection Range | 1800m |
| Min. Focusing Distance | 3.5m |
| Magnification | 3.0x – 22.0x (7.3x) |
| Field of View (H × V), Degrees / m @100m | 12.5° × 10.1° / 22.0m × 17.6m |
| Optical Module | |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Focal Length | 60mm, F2.2 |
| Min. Working Distance | 3m |
| Min. Illumination | N.A. |
| Focus Mode | Focus Ring |
| Magnification | 5.5x – 22.0x (4x) |
| Field of View (H × V), Degrees / m @100m | 7.3° × 4.1° / 12.6m × 7.2m @100m |
| Smart IR | Yes |
| IR Illuminator Wavelength | 940nm (default), 850nm (replaceable) |
| Viewing Range at Night | 400m |
| Replaceable IR Illuminator | Yes |
| Image Display | |
| Display | 0.49 inch OLED, 1920 × 1080 |
| Palettes | Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto |
| FFC Mode | Auto, Manual, External Correction |
| Exit Pupil | 8mm |
| Eye Relief | 15mm |
| Diopter Range | -5D ~ +3D |
| Brightness Adjustment | Yes |
| Tone Adjustment | Cold, Warm |
| Contrast Adjustment | Yes |

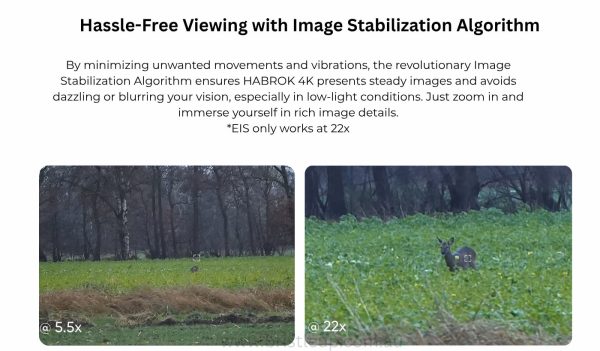

| Electric Image Stabilization | N.A. |
| Zoom Pro | Yes |
| HSIS (HIKMICRO Shutterless Image System) | N.A. |
| System | |

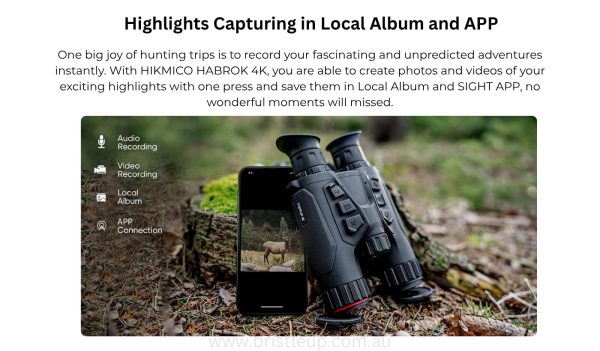

| Record Video | Yes |
| Capture Snapshot | Yes |
| Audio Recording | Yes |
| Standby Mode | Yes |
| Storage | Built-in eMMC (64GB) |
| PIP | Yes |
| Hotspot | Yes |
| Hot Track | Yes |
| Digital Magnetic Compass | Yes |
| GPS | Yes |
| Local Album | Yes |
| Power Supply | |
| Battery Type | Replaceable and Rechargeable Li-ion Battery |
| Battery Operating Time | ≥8h (25°C, with hotspot off) |
| Type-C Power Supply | 5V DC, 2A Supports External Power Supply, Supports Direct Charging |
| General | |
| Protection Level | IP67 |
| Dimension | 138.1 × 68.5 × 222.4 mm (5.44″ × 2.70″ × 8.75″) |
| Weight | 798g without battery |
| Working Temperature | -30°C to +55°C |

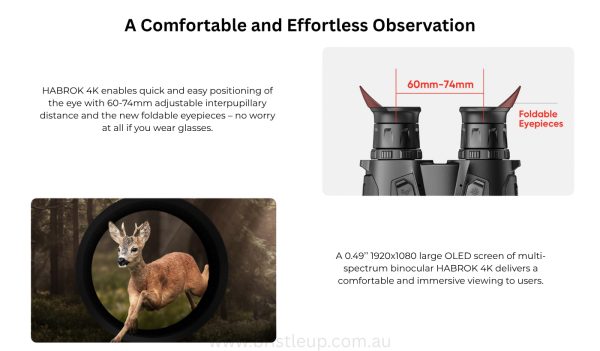

| Interpupillary Adjustment Range | 60mm to 74mm |
| Mounting Adapter | 1/4″-20 UNC |

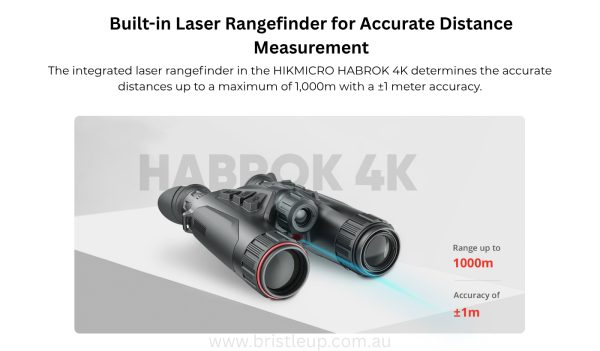

| Laser Rangefinder | |
| Safety Class for Laser | Class 1 |
| Wavelength | 905nm |
| Max. Measuring Range | 1000m |
| Measurement Accuracy | ±1m |
| Min. Measuring Range | 10m |
| Emitter | N.A. |
| IR Wavelength | 940nm (default), 850nm (replaceable) |
| Beam Angle | N.A. |
