Guide TN650MS MUO 2.0 Apex Vision – Multispectral Thermal Binocular
$5,499.00
FOR THE BEST UNBIASED ADVICE AND PRICING CALL 0427312312

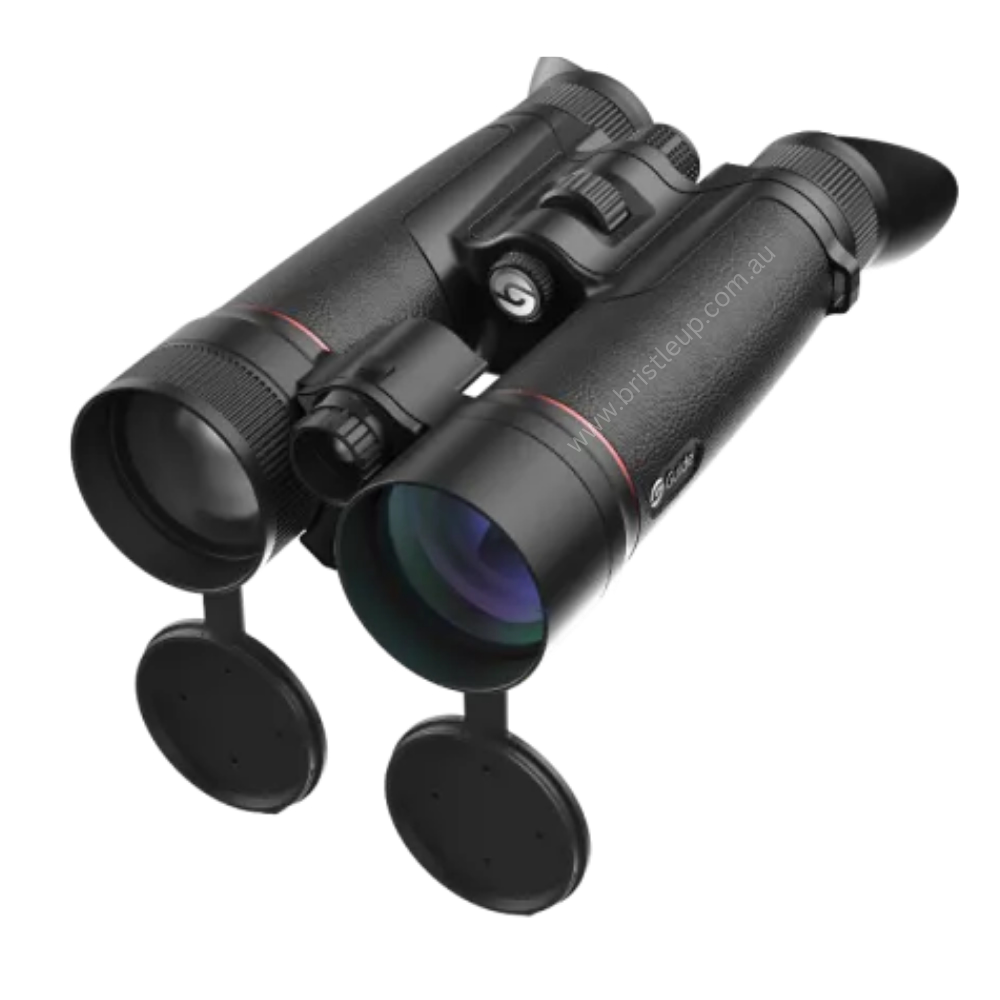

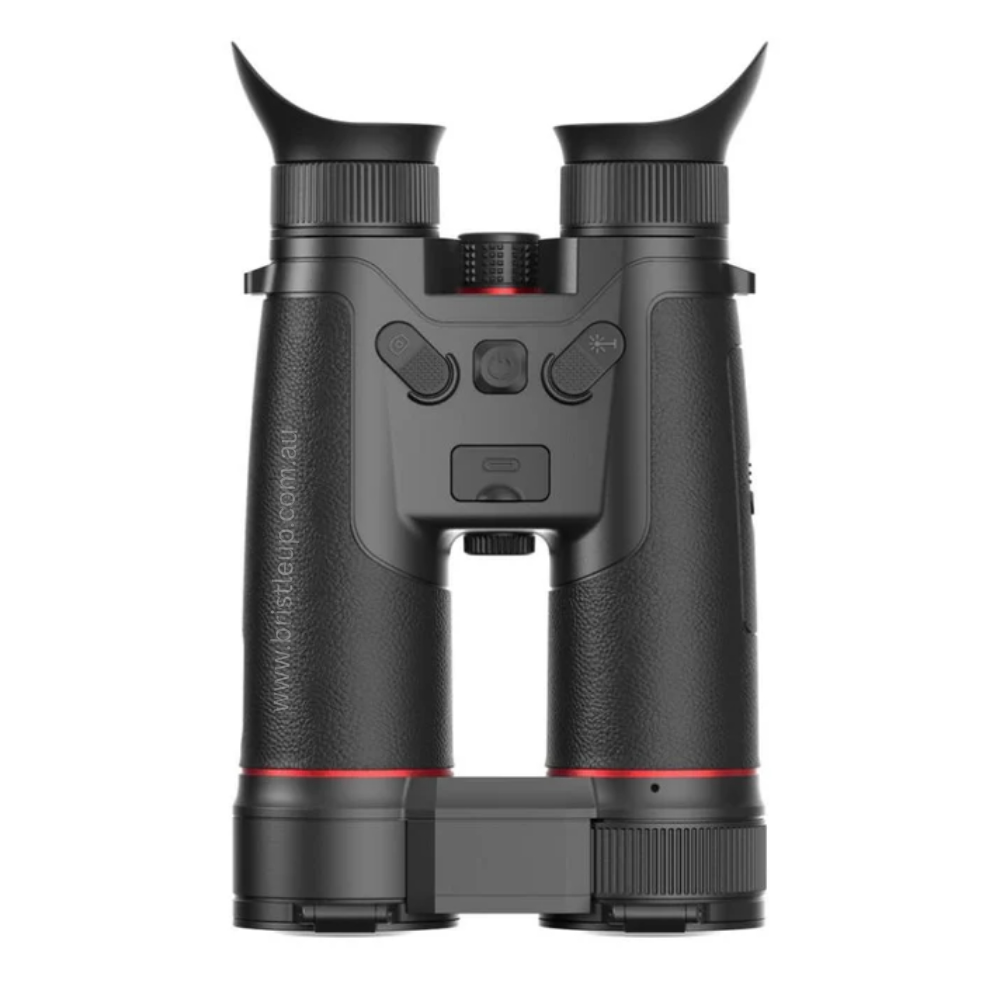

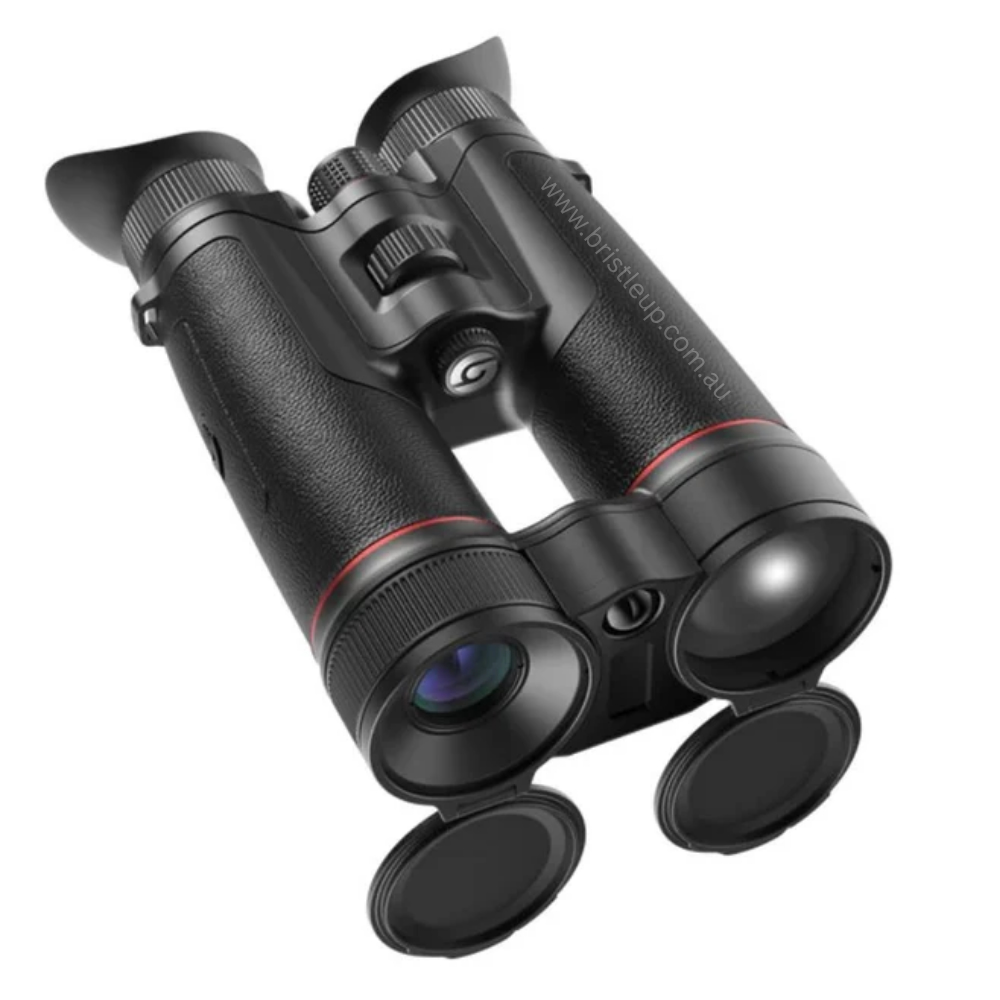

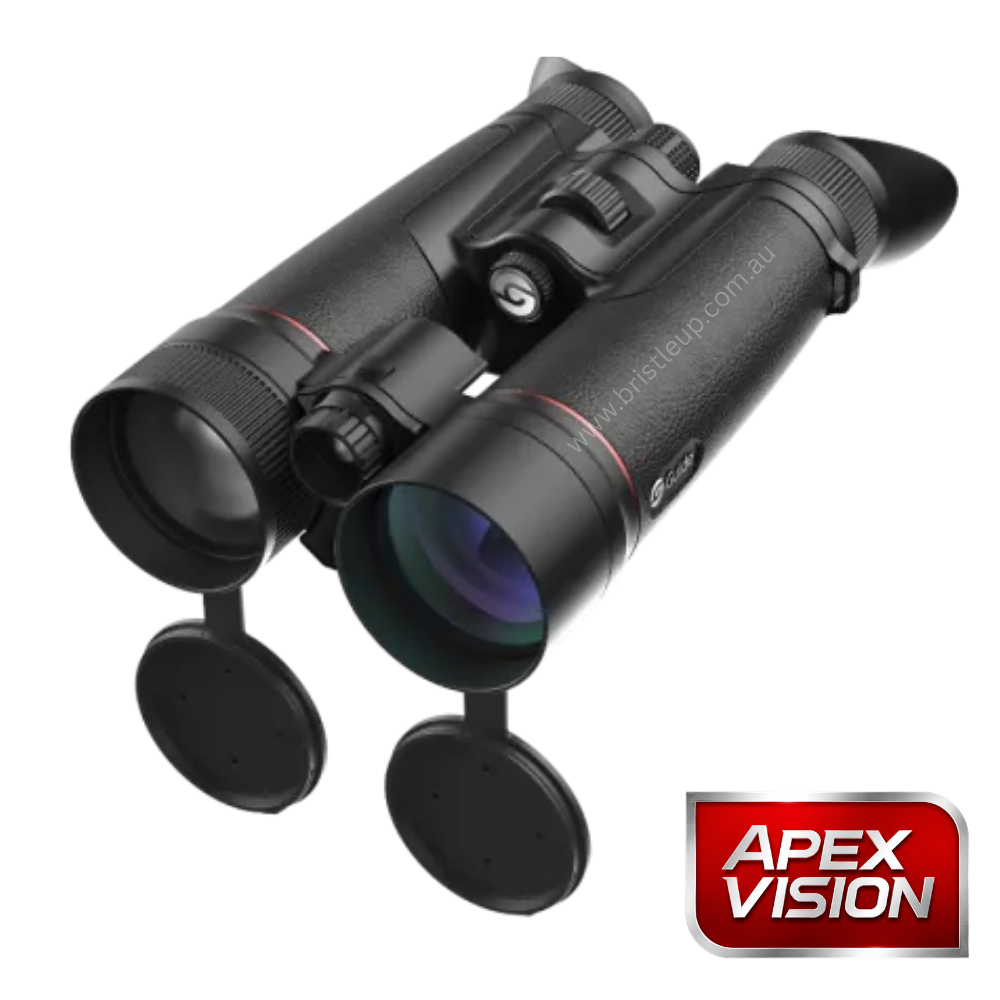

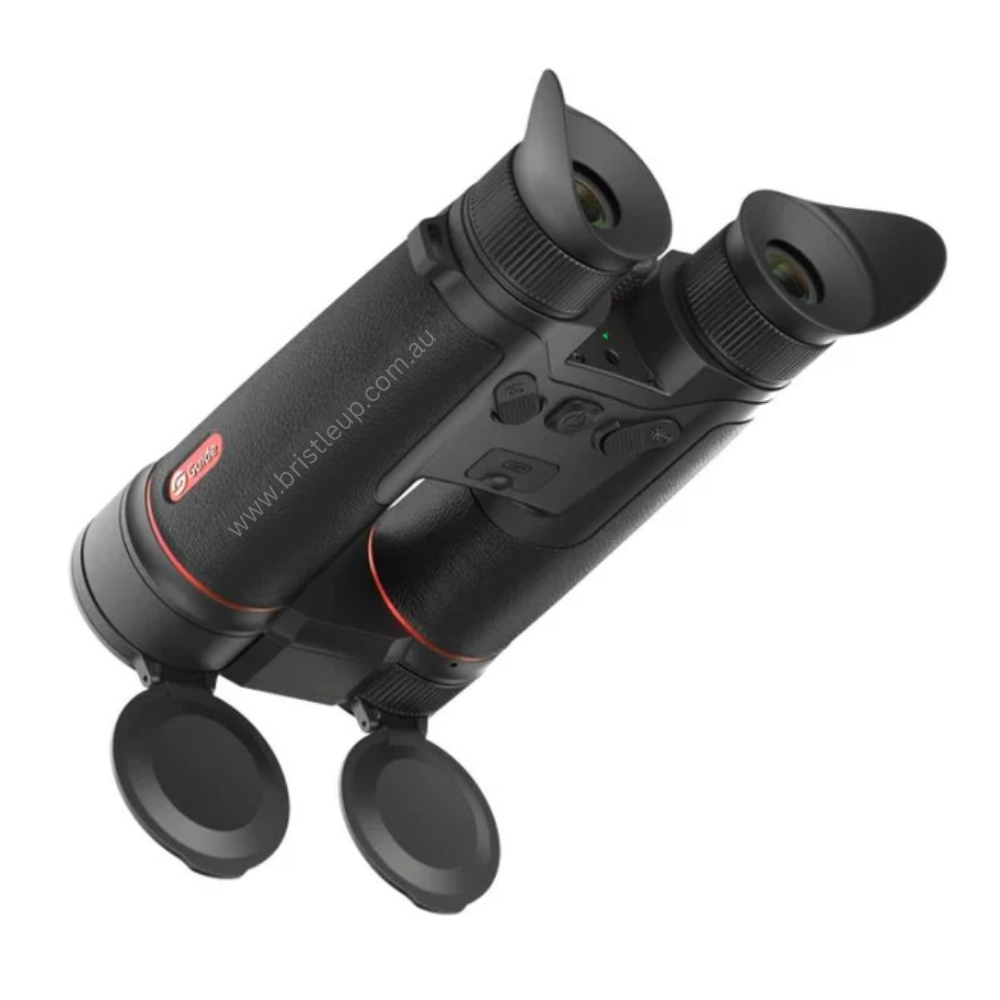

Guide TN650MS MUO 2.0 Multispectral Thermal Binocular
The Guide TN650MS combines high-sensitivity thermal imaging with ultra-HD night vision in one compact, rugged binocular. Powered by the Complete ApexVision S1 System Architecture, it delivers ultra-clear visuals with smooth, ghost-free motion, high-fidelity imaging, and exceptional long-range detail in any environment.
Featuring a 640 × 512 @12μm thermal detector, 3840 × 2160 low-light CMOS sensor, and ≤15mK NETD sensitivity, the TN650MS allows you to seamlessly switch between thermal, digital night vision, or fused imaging for outstanding situational awareness.
Complete with a built-in 1500m laser rangefinder, GPS, digital compass, and IP67-rated protection, it’s built to perform in the most demanding conditions.
TECHNICAL SPECIFICATIONS
| Product model | TN650MS |
| Sensor | |
| Core Technology Item |
Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0 |
| Type | Thermal: Uncooled VOx Infrared Detector, 8 to 14μm; Digital: CMOS |
| Resolution | Thermal: 640×512@12μm (NETD 15mK); Digital: 3840×2160@2μm |
| Frame rate | 50Hz |
| Lens | |
| Objective lens | Thermal: 50mm, F1.0; Digital: 70mm, F1.8 |
| Field of view | Thermal: 8.2°×4.9°; Digital: 5.9°×3.5° |
| FOV m@100m | Thermal: 14×9; Digital: 10×6 |
| Magnification | Thermal: 3.9x~31.2x; Digital: 5.4x~43.2x |
| Detection range | Thermal: 2600m/2800yd; Digital: 1300m/1400yd |
| Focus | Manual |
| Display | |
| Display type | 0.49″ AMOLED 1920×1080 |
| Color palettes | IR: White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia; Visible: Day, Night, Low-light |
| Eyepiece | Eye relief: 20mm; Diopter: −6 to +6; Interpupillary distance adjustment: 58–72mm; Zoom: 13.8x |
| Hardware | |
| Laser rangefinder | 1500m/1630yd |
| WIFI | 2.4G, 5G |
| Interface | USB-C (Charging/Power supply/USB2.0) |
| Others | Microphone, Compass, Gyroscope, Bluetooth |
| System | |
| Recording function | Photo/Video (Audio recording included) |
| Memory capacity | 256GB |
| Power | |
| Battery type | Customized Battery (Built-in) and 18650 ×1 Battery (External) |
| Operating time | 5 hours |
| Environmental | |
| Operating temp. | −20°C to 50°C / −4°F to +122°F |
| Encapsulation | IP67 |
| Physical | |
| Weight (g/oz) | 1110/39.15 |
| Size (mm/in) | 235×134×63/9.25×5.28×2.48 |
| Standard | Device, Eye Mask, Neck Strap, Carry Bag, Accessory Bag, 18650 Battery ×2, Battery Charger, 5V 2A Adapter (US or UK or Australia or Europe), USB-A to USB-C Cable, Quick Start Guide, Warranty Card |
| Optional | Bluetooth Remote Control, 18650 Battery |
Choose TN MUO 2.0 Models
| (k) Guide TN MUO 2.0 Models 2027 | TN650MS MUO 15mk – 3.9x/5.4x – 640px/3840px – 2600m/1300m – Guide |
|---|
