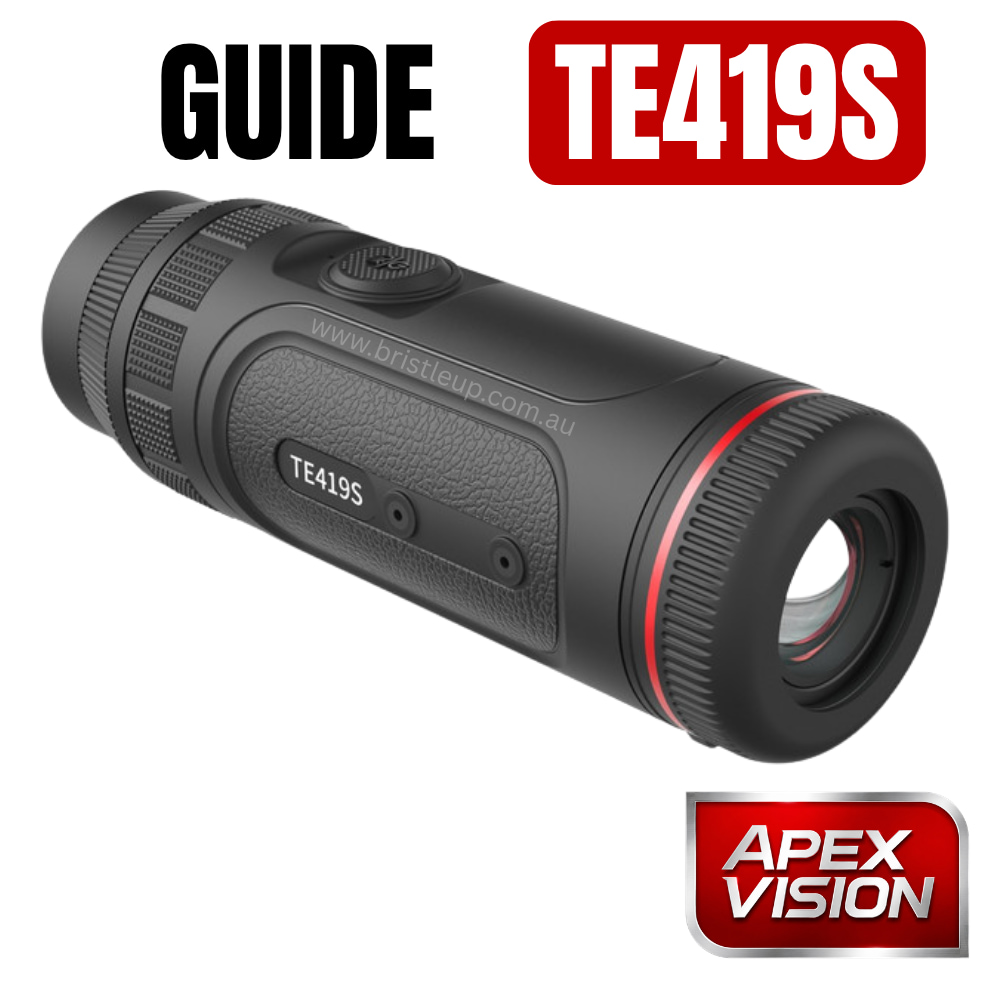

Guide TE419S Apex Vision Thermal Monocular – 400×300, 15mK, 19mm
$1,399.00
FOR THE BEST UNBIASED ADVICE AND PRICING CALL 0427312312

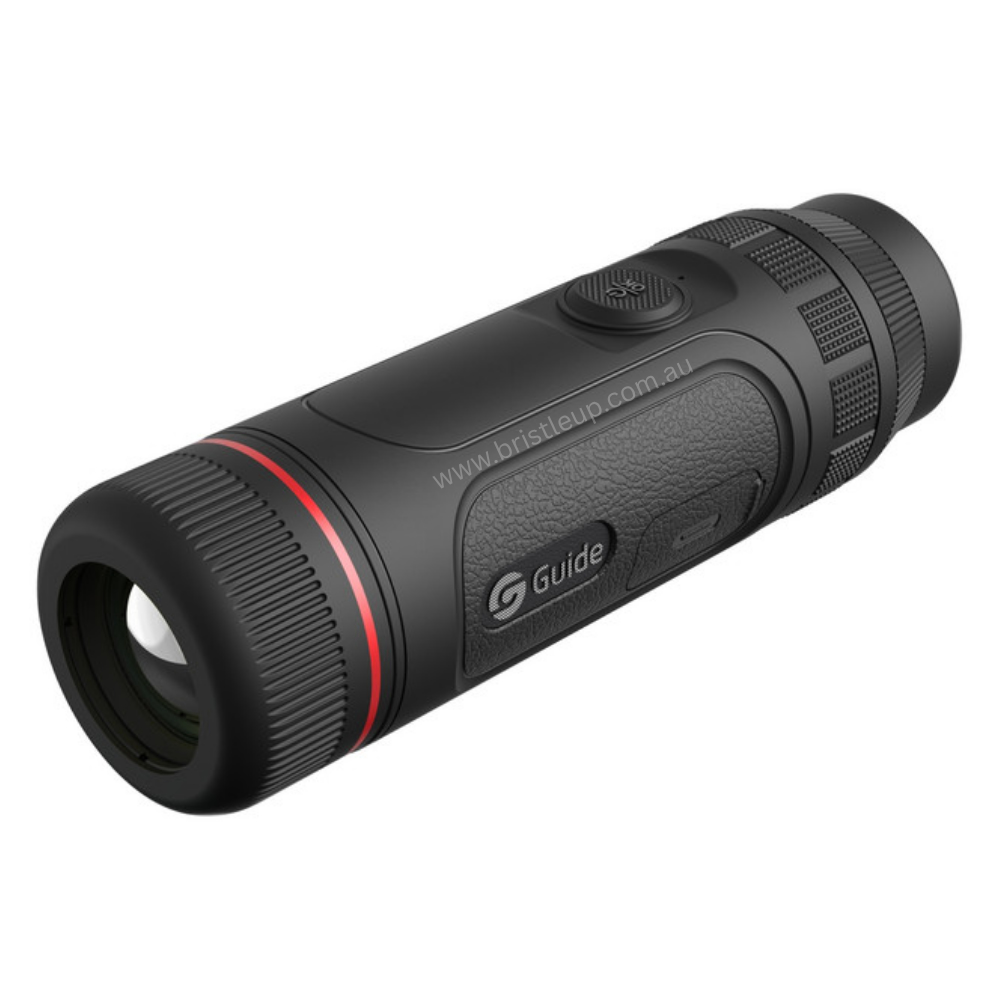

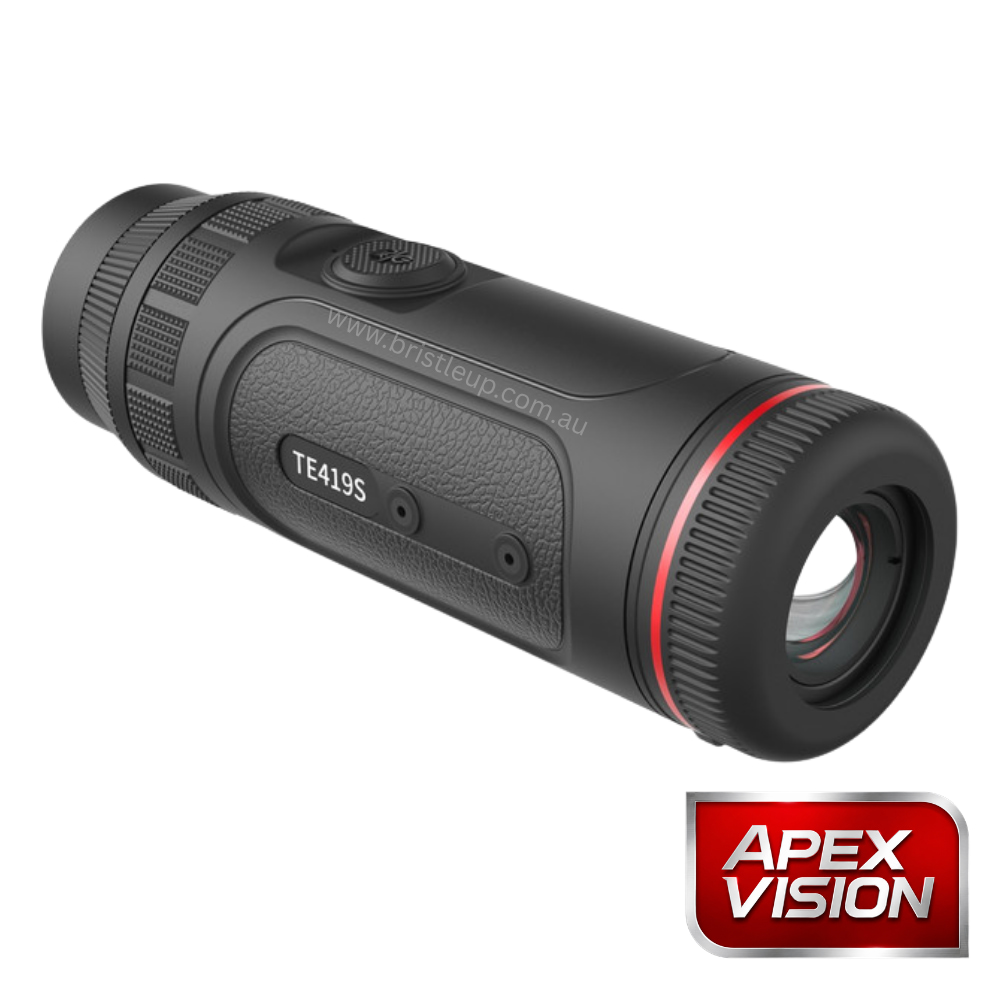

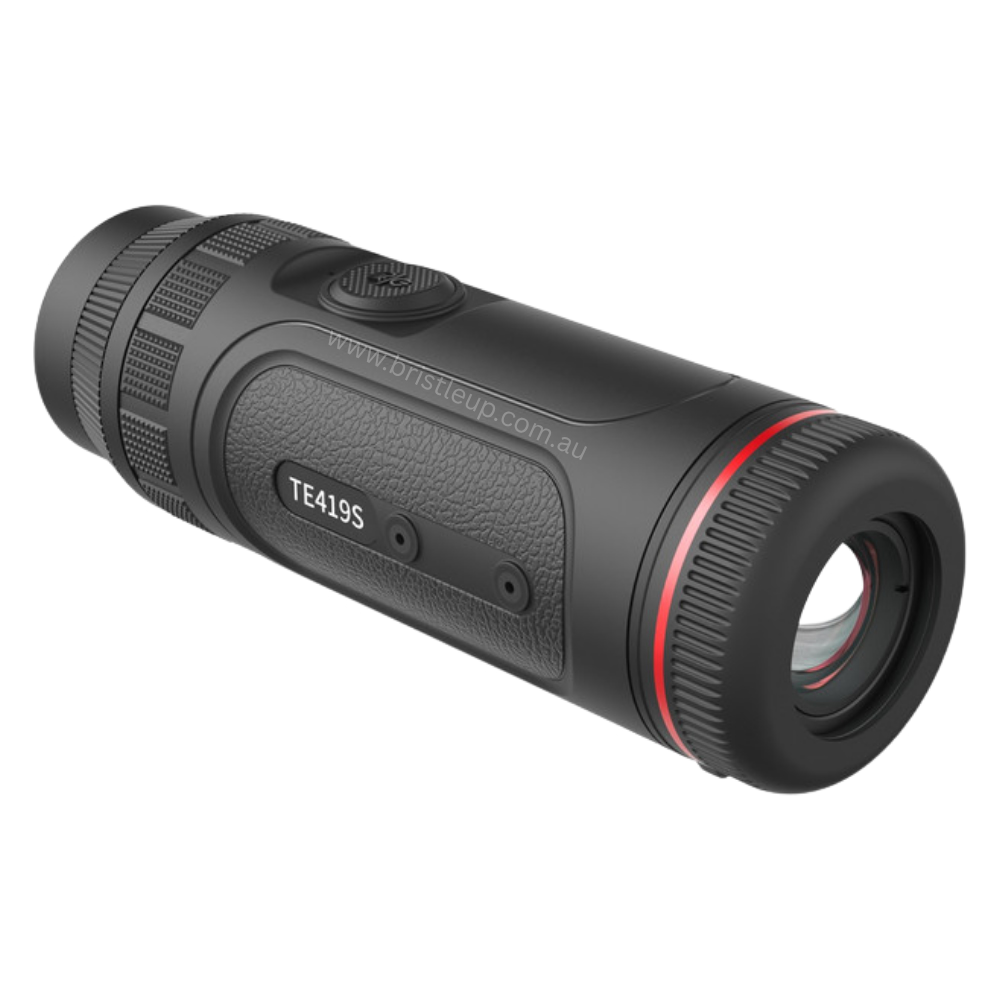

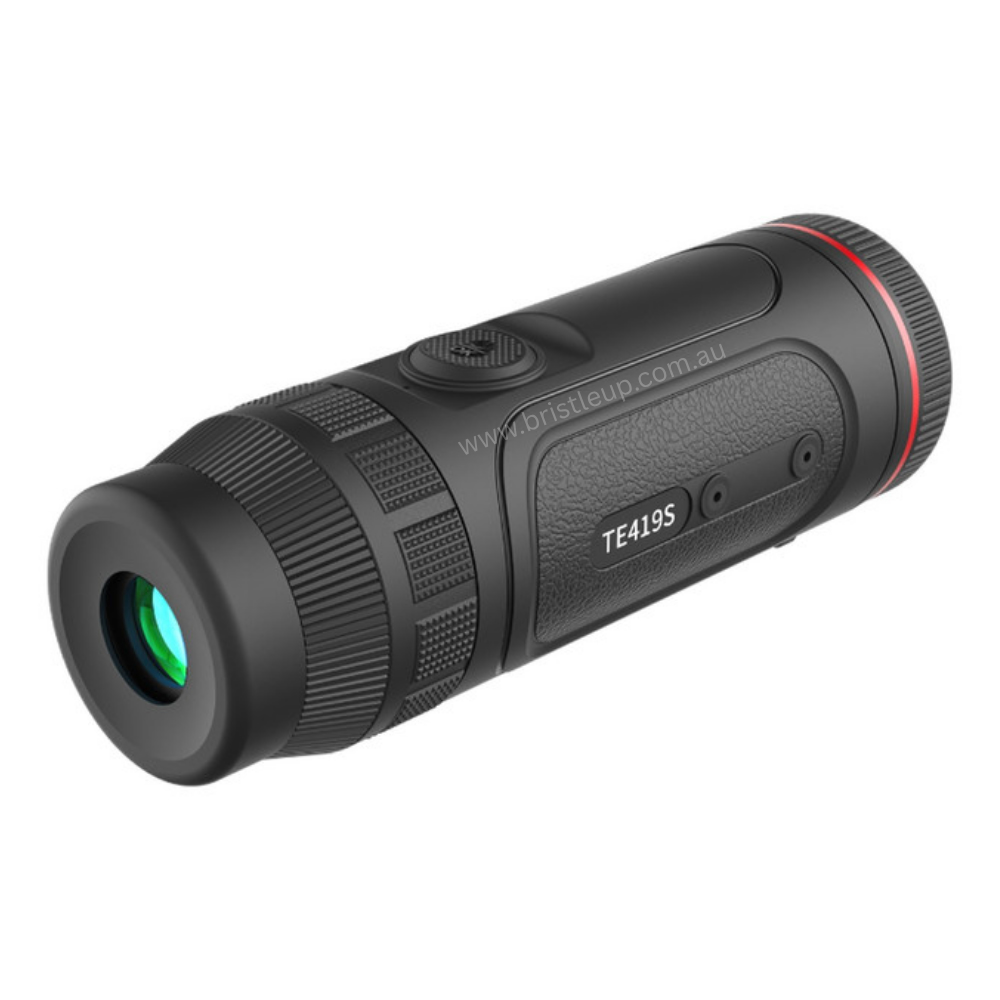

Guide TE419S Thermal Monocular
The Guide TE419S Thermal Imaging Monocular combines powerful thermal performance with a compact, pocket-sized design.
Featuring a 400×300 @12μm thermal sensor with<15mK NETD sensitvity and a 19mm lens with a 1000m detection range, it delivers clear thermal imagery and reliable long-range detection.
Powered by the advanced APEXVISION image processing system, it enhances image clarity and detail for confident viewing in demanding conditions. A 10-minute fast charge provides up to one hour of continuous operation, making the TE Series the perfect lightweight companion for hunting, wildlife observation, security, and outdoor adventures.
Key Features
- 400 × 300, 12μm thermal sensor
- 15mK NETD thermal sensitivity
- ApexVision S1 system architecture
- ApexCore S1 detector + Nexus 1.0 platform + Hyper-Light 2.0 algorithm
- 19mm F1.0 objective lens
- 50Hz frame rate
- 1.4×–5.6× magnification
- 14.4° × 10.8° field of view
- 25 × 19m field of view at 100m
- Detection range up to 1,000m / 1,090yd
- Manual focus
- 0.32″ 800 × 600 AMOLED display
- 25mm eye relief
- Photo and video recording with audio
- 2.4GHz & 5GHz Wi-Fi
- Bluetooth
- USB-C charging/power
- 20W quick charging
- IP67 water and dust protection
- Ultra-lightweight 288g
- Compact 47 × 47 × 148mm design
TECHNICAL SPECIFICATIONS
| Product model | TE425S | TE419S | TE210S |
| Sensor | |||
| Core Technology Item |
Equipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0 |
||
| Type | Uncooled VOx Infrared Detector, 8 to 14μm | ||
| Resolution | 400×300@12μm | 400×300@12μm | 256×192@12μm |
| NETD | 15mK | ||
| Frame rate | 50Hz | ||
| Lens | |||
| Objective lens | 25mm, F0.9 | 19mm, F1.0 | 10mm, F1.0 |
| Field of view | 11.0°×8.2° | 14.4°×10.8° | 17.5°×13.1° |
| FOV m@100m | 19×14 | 25×19 | 31×23 |
| Magnification | 1.9x–7.6x | 1.4x–5.6x | 1.2x–4.8x |
| Detection range | 1300m/1400yd | 1000m/1100yd | 500m/550yd |
| Focus | Manual | Manual | Focus-free |
| Display | |||
| Display type | 0.32″ AMOLED 800×600 | ||
| Color palettes | White Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, Sepia | ||
| Eyepiece | Eye relief: 25mm; Diopter −5 to +5; Zoom: 13.8x | ||
| Hardware | |||
| Wi-Fi | 2.4G, 5G | ||
| Interface | USB-C (Charging/Power supply/USB2.0) | ||
| Others | Microphone, Bluetooth | ||
| System | |||
| Recording function | Photo/Video (Audio recording included) | ||
| Memory capacity | 32GB | 64GB | 64GB |
| Power | |||
| Battery type | Built-in Battery | ||
| Operating time | 5 hours (Support 20W quick charging) | 5 hours (Support 20W quick charging) | 6 hours (Support 20W quick charging) |
| Environmental | |||
| Operating temp. | −20°C to 50°C / −4°F to +122°F | ||
| Encapsulation | IP67 | ||
| Physical | |||
| Weight (g/oz) | 320/11.29 | 288/10.16 | 228/8.04 |
| Size (mm/in) | 157×51×47/6.18×2.01×1.85 | 47×47×148/1.85×1.85×5.83 | 47×47×132/1.85×1.85×5.20 |
| Standard | Device, Wrist Strap, Carry Bag, Lint-Free Cloth, USB-C to USB-C Cable, Quick Start Guide, Warranty Card |
Device, Wrist Strap, Carry Bag, Lint-Free Cloth, USB-C to USB-C Cable, Quick Start Guide, Warranty Card |
Device, Wrist Strap, Carry Bag, Lint-Free Cloth, USB-A to USB-C Cable, Quick Start Guide, Warranty Card |
| Optional | Quick Charging Adapter, Bluetooth Remote Control, USB-A to USB-C Cable | Quick Charging Adapter, Bluetooth Remote Control, USB-A to USB-C Cable | Bluetooth Remote Control, Quick Charging Adapter, USB-C to USB-C Cable |
Choose TE Models
| (k) Guide TE Models 2027 | TE419S 15mk – 1.4x – 400px – 1000m – Guide |
|---|
