The Guide TU425S SE 3.0 Apex Vision Thermal Scope – 400×300, 15mK, 25mm
Original price was: $2,398.00.Current price is: $1,699.00. Save $699.00

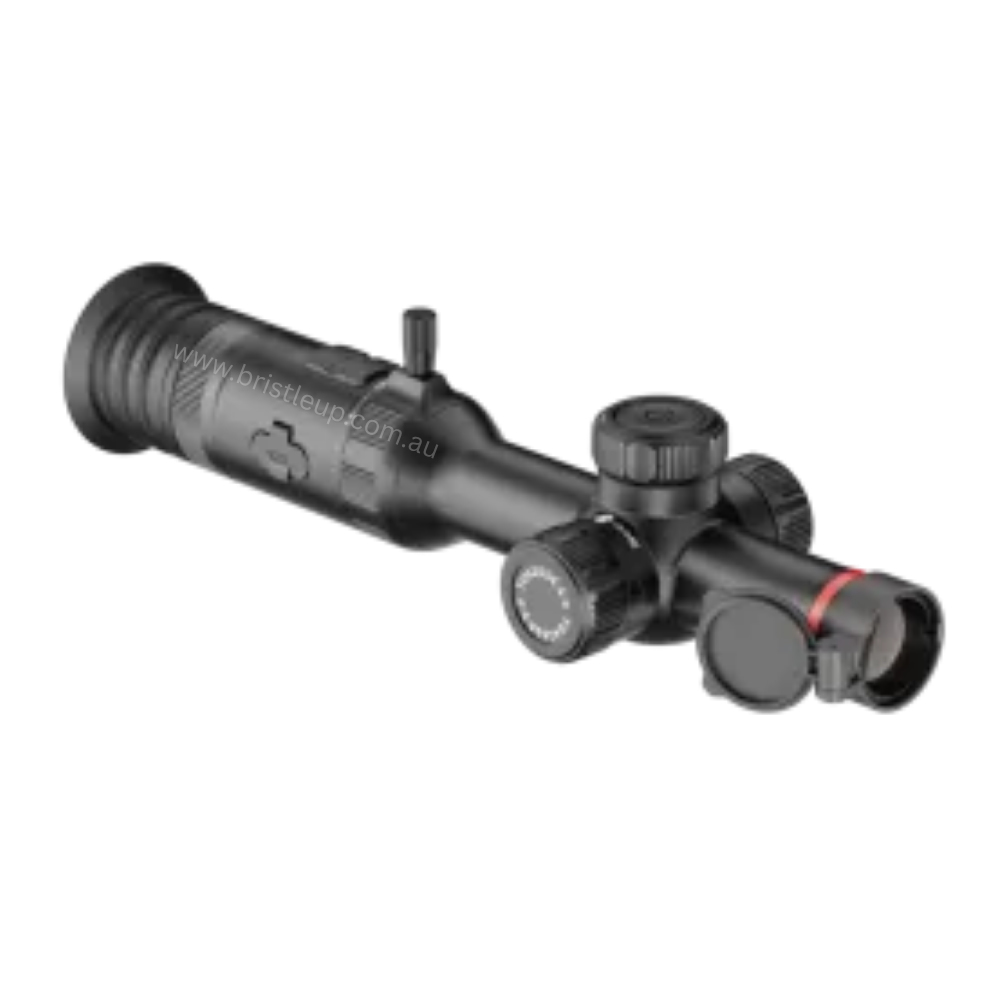

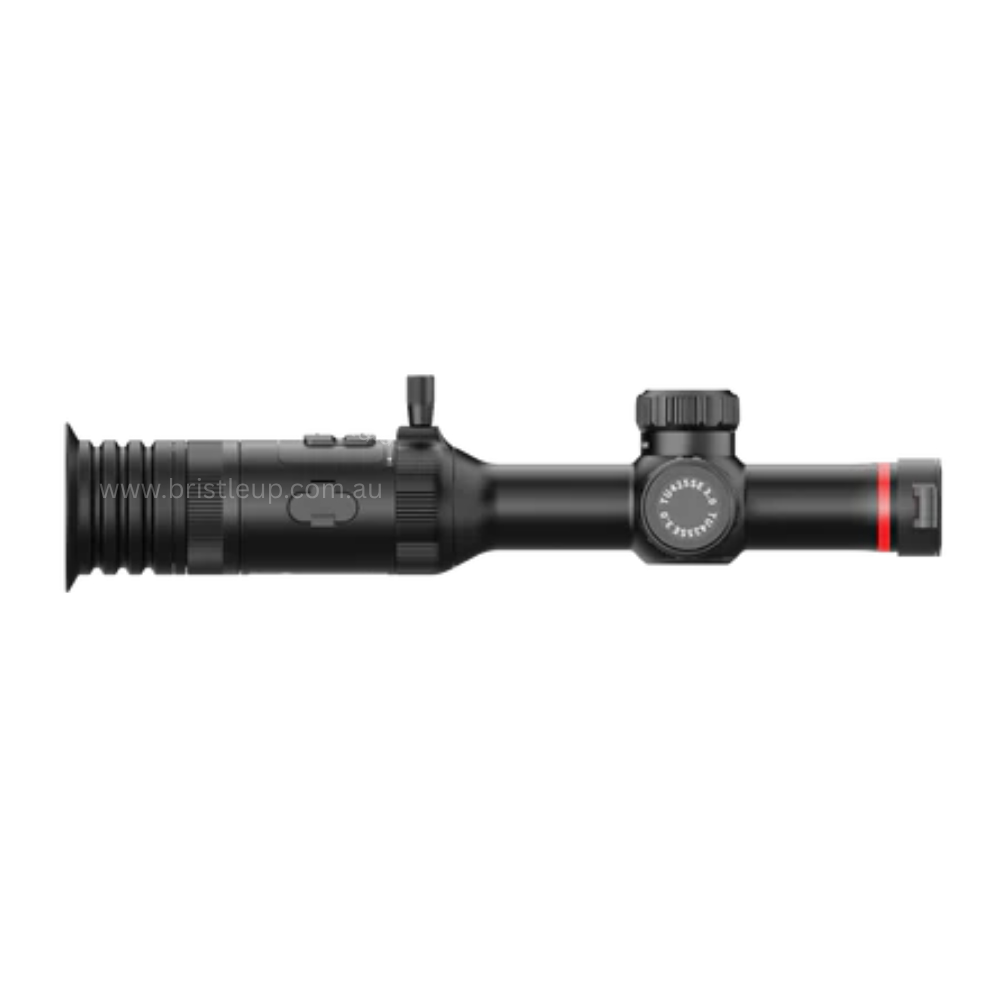

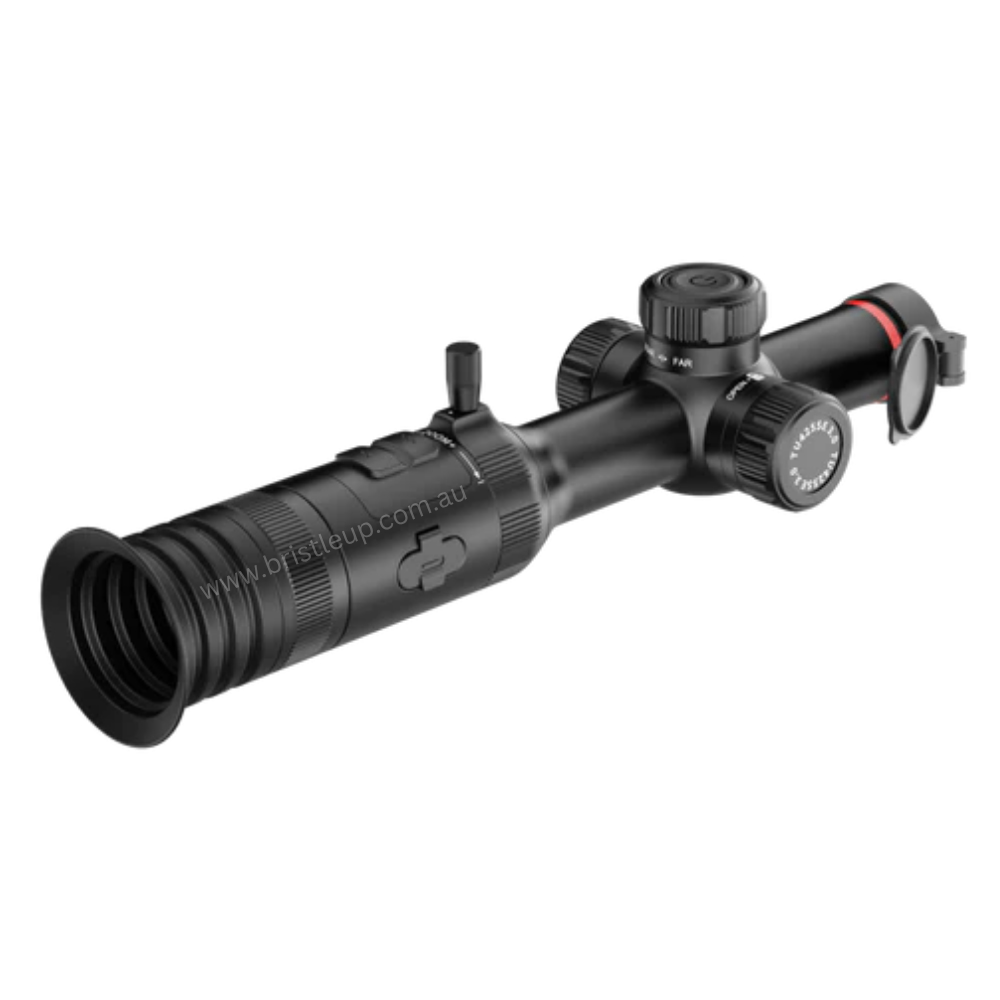

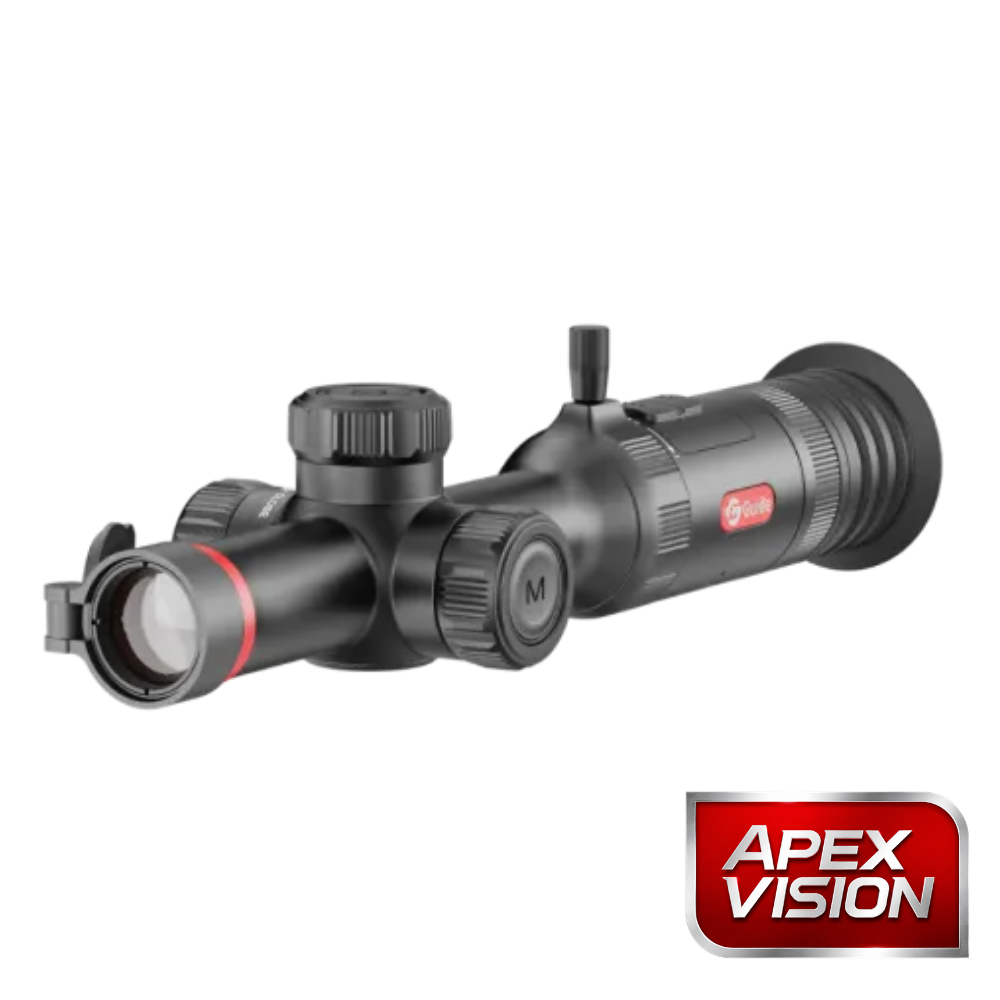

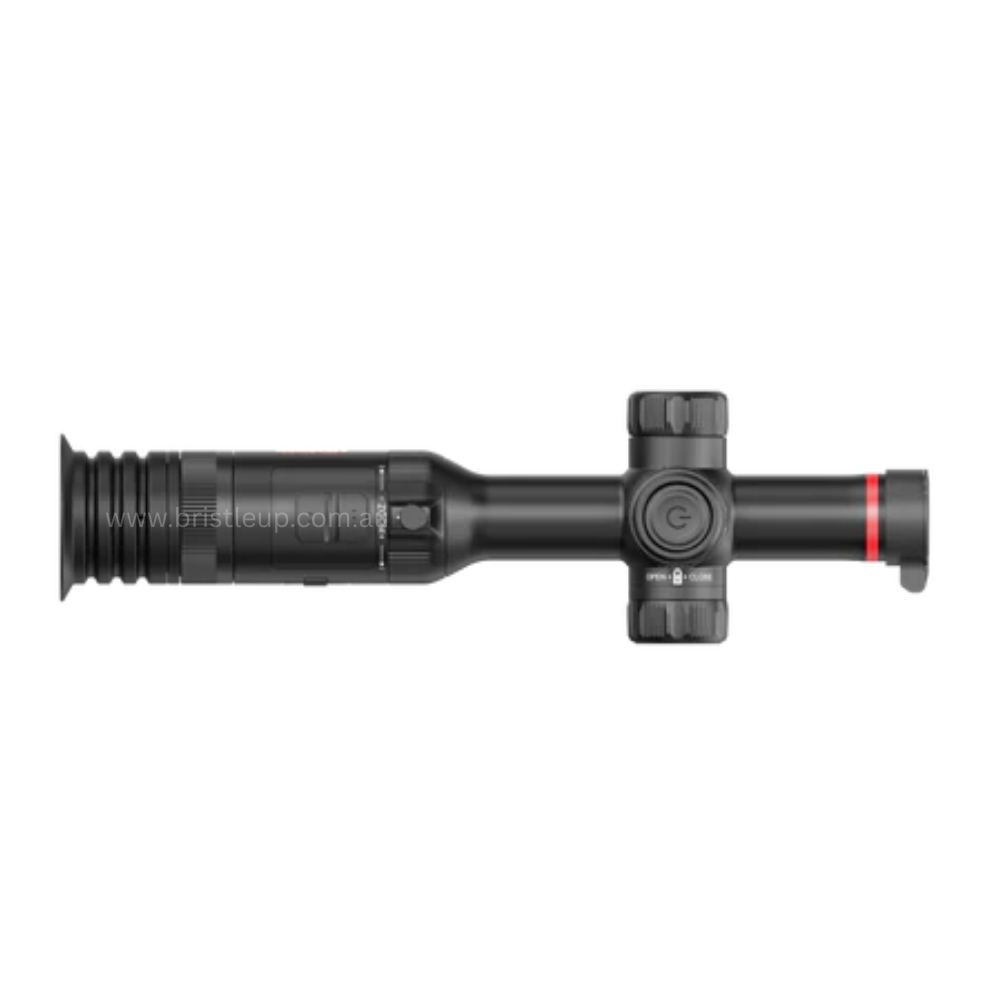

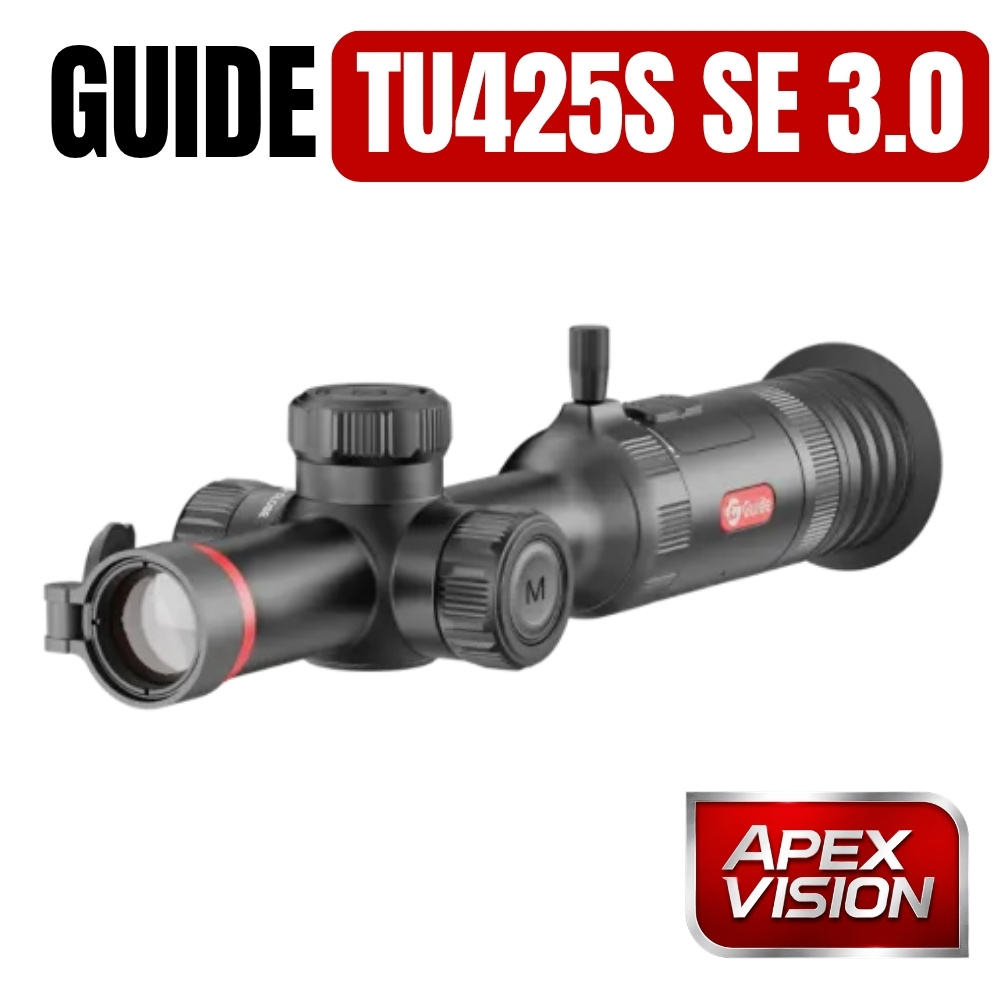

Guide TU425S SE 3.0 Apex Vision Thermal Scope
The Guide TU425S SE 3.0 is an ultra-compact thermal imaging scope featuring a 400×300 12μm thermal sensor with 15mK NETD, delivering clear thermal detail and strong sensitivity in challenging environmental conditions. Its LPVO-style design provides a smaller and lighter profile than conventional thermal scopes.
Guide’s Hyper-Light image processing improves image clarity, reduces noise and enhances fine details, while Shutterless 3.0 technology provides smooth, uninterrupted thermal viewing without calibration-related image freezing.
The TU425S features a 0.49-inch 1920×1080 AMOLED display and a dual-battery system providing up to 8 hours of operation. It also incorporates recoil-activated smart recording, AI-assisted functions, TargetIR Ballistics, up to 6000J shock resistance and IP68 protection for dependable outdoor performance.

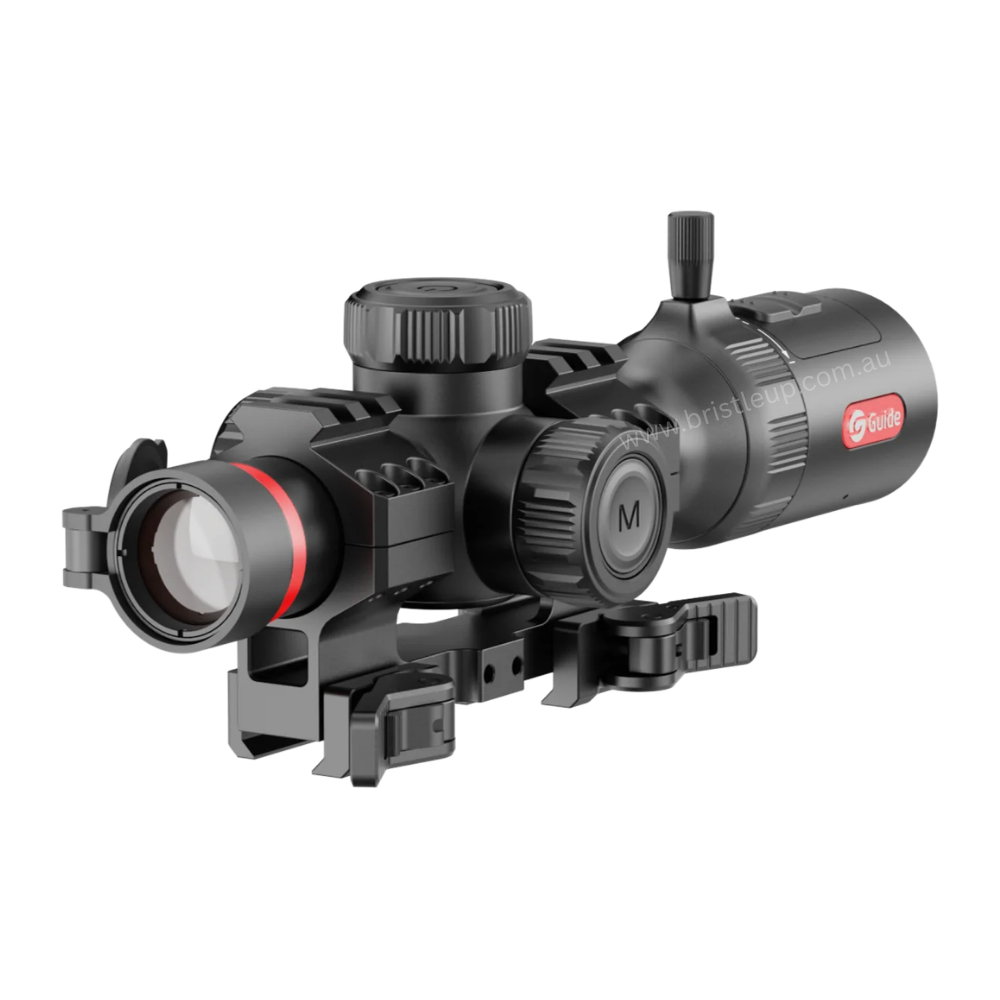

INCLUDES QUICK RELEASE SCOPE MOUNT.
Quick Release Mount Scope Tube Torque Settings = <2.5N·m / 22.13 in-lbs
Key Features
- 400 × 300, 12μm thermal sensor
- 15mK NETD thermal sensitivity
- 25mm objective lens
- Ultra-compact LPVO-style design
- Hyper-Light image processing
- Shutterless thermal imaging
- 0.49″ 1920 × 1080 AMOLED display
- AI-enhanced functions
- TargetIR Ballistics support
- Up to 8 hours battery life
- Recoil-activated smart recording
- Up to 6000J shock resistance
- IP68 weather protection
TECHNICAL SPECIFICATIONS
Product modelTU425S SE 3.0
SensorCore technologyEquipped with full ApexVision S1 system architecture: Detector ApexCore S1 + Platform Nexus 1.0 + Algorithm Hyper-Light 2.0TypeUncooled VOx Infrared Detector, 8 to 14μmResolution400×300@12μmNETD20mKFrame rate50 Hz
LensObjective lens25mm, F1.0Field of view10.3°×6.2°FOV m@100m18×11Magnification3.1x~12.4xDetection range1300m/1400ydFocusManual
DisplayDisplay type0.49″ AMOLED 1920×1080Color palettesWhite Hot, Black Hot, Red Hot, Green Hot, Iron Red, Blue Hot, SepiaEyepieceEye relief: 48mm; Diopter −5 to +5; Zoom: 14x
HardwareWIFI2.4G, 5GInterfaceUSB-C (Charge/USB2.0)Tube diameterStandard 30 mmOthersMicrophone, Bluetooth
SystemRecording functionPhoto/Video (Audio recording included)Memory capacity32GB
PowerBattery type18500 ×1 Battery (Built-in) and 18650 ×1 Battery (External)Operating time12 hours
EnvironmentalOperating temp.−20°C to 50°C / −4°F to +122°FShock6000J/1200GEncapsulationIP68
PhysicalWeight (g/oz)575/20.28Size (mm/in)311×89×76/12.24×3.50×2.99StandardDevice, Lens Cover, Eye Mask, Quick-Release Scope Mount, Carry Bag,
18650 Battery ×2, Battery Charger, 5V 2A Adapter (US or UK or Australia or Europe),
USB-A to USB-C Cable, Quick Start Guide, Warranty CardOptionalBluetooth Remote Control, Laser Rangefinder, 18650 Battery
