Pulsar Trail 3 XQ50 LRF – Thermal Imaging Riflescope
$4,299.00

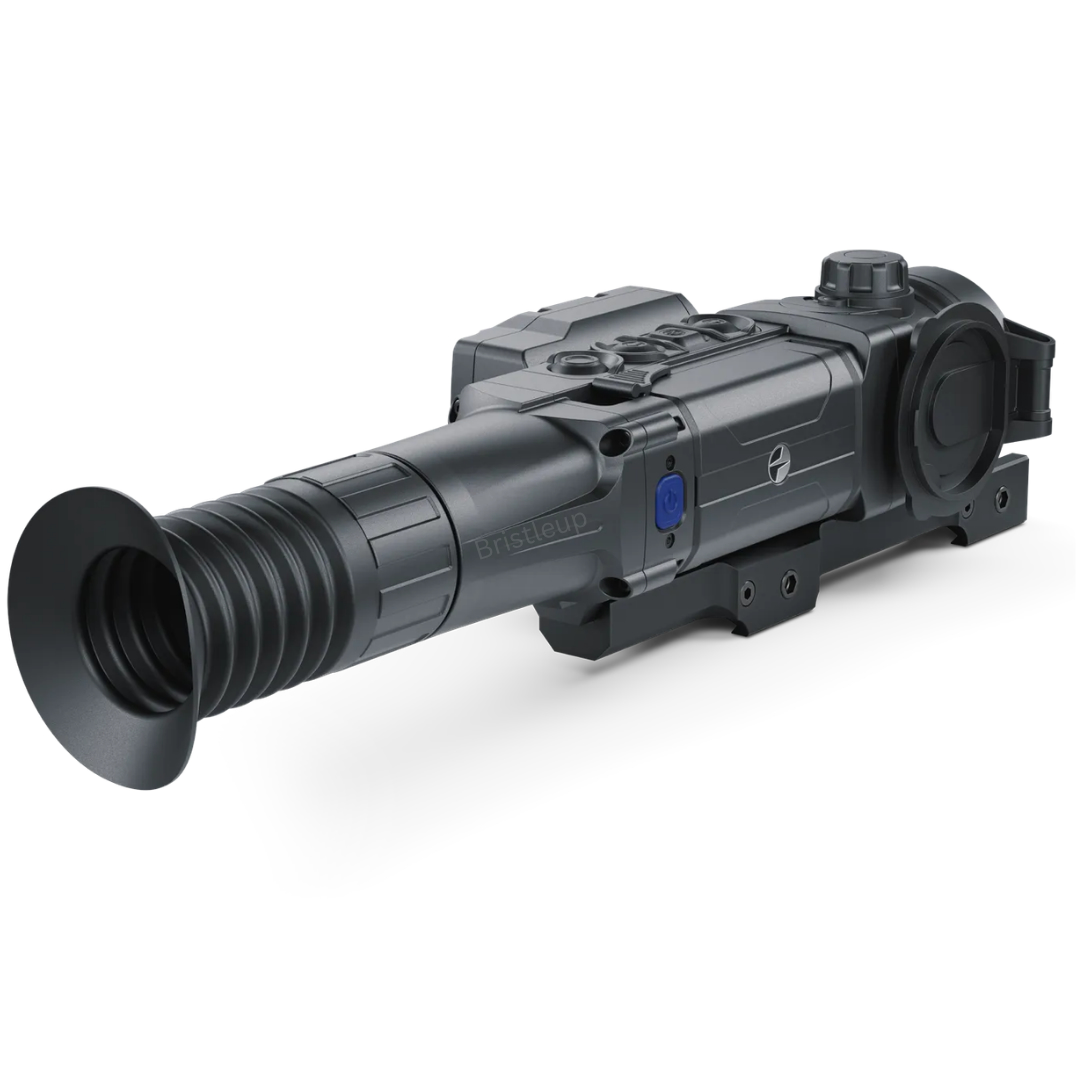

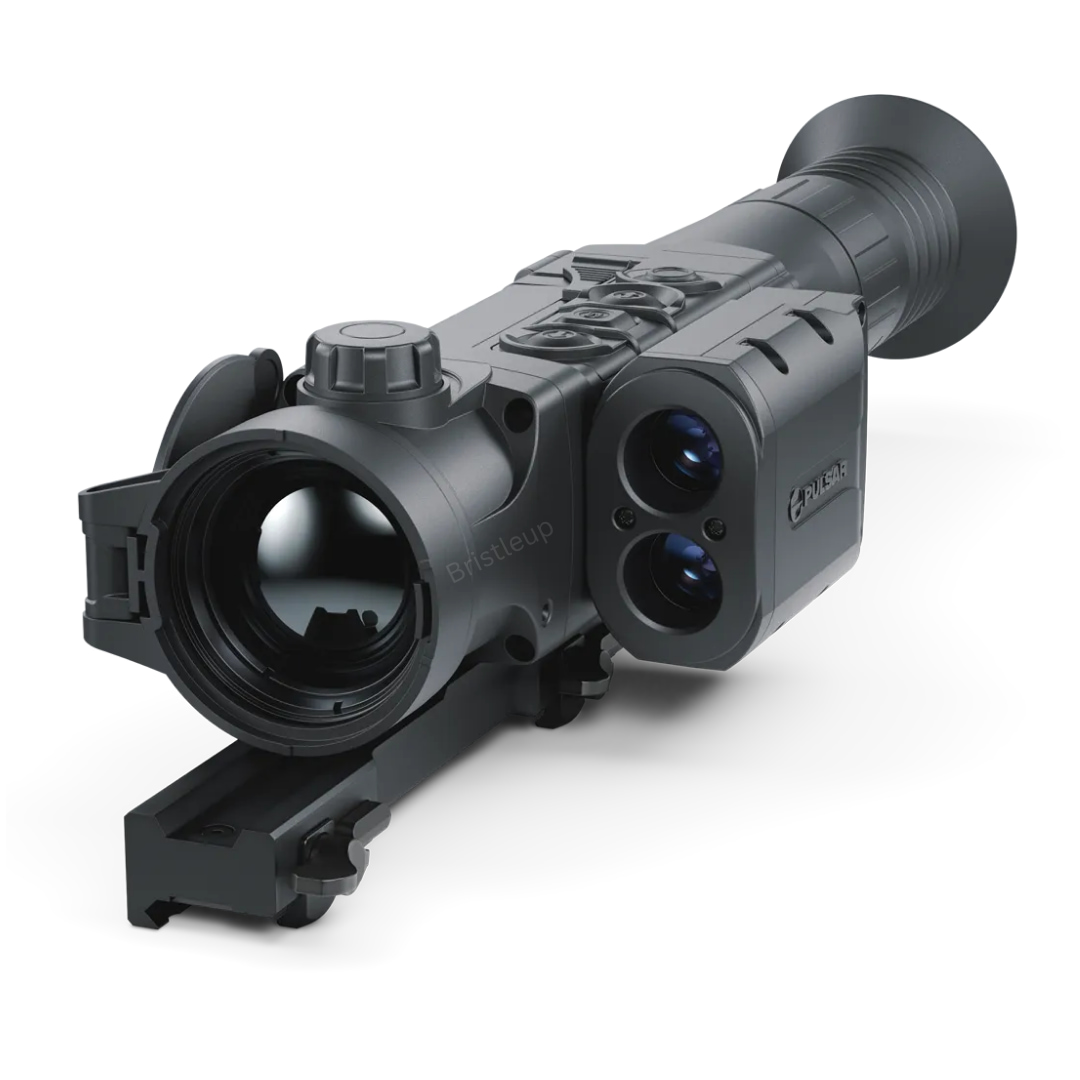

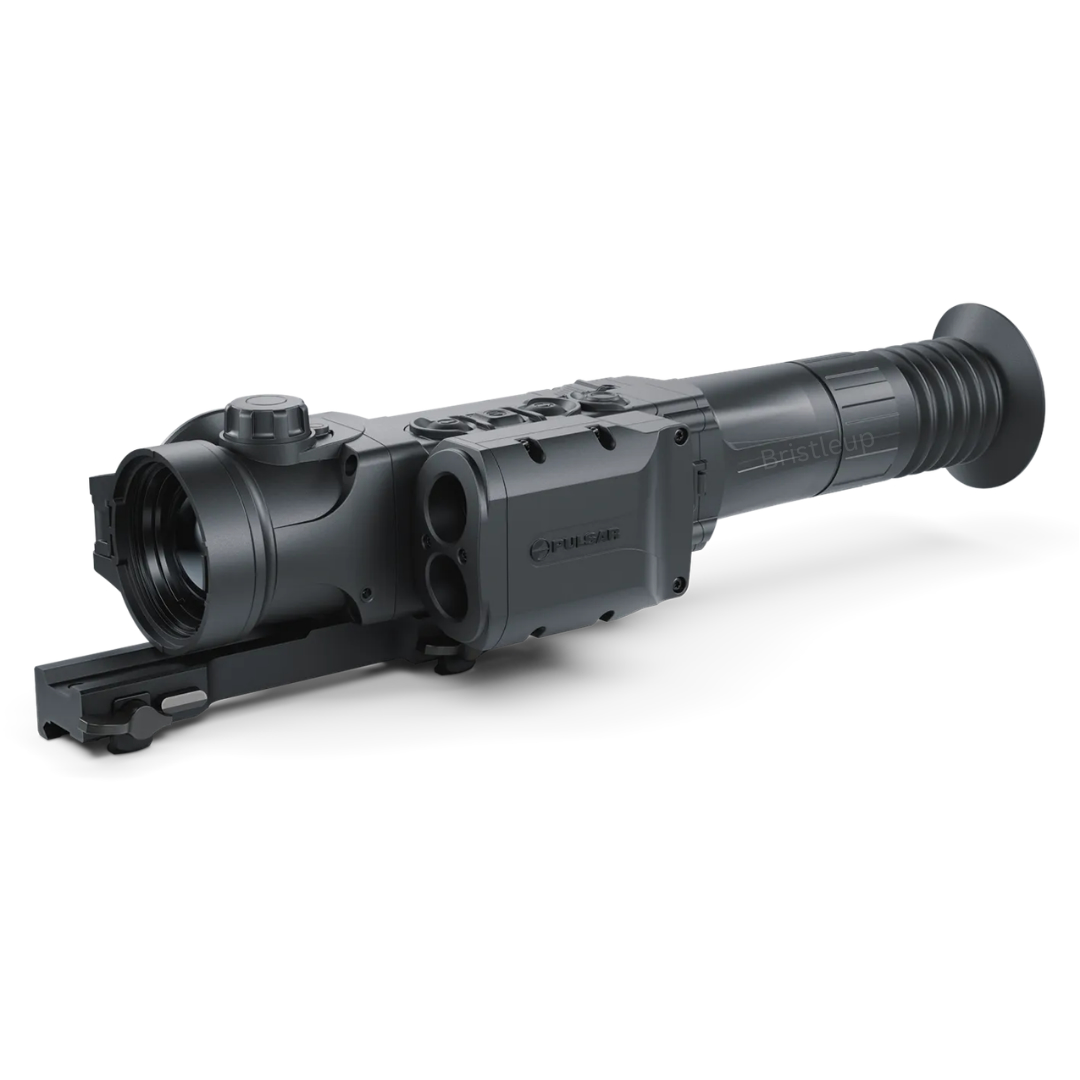

Pulsar Trail 3 XQ50 LRF
Compact and rugged Trail 3 LRF riflescopes are built for professional hunters, forestry specialists, and pest control operators. Monoblock design and multi-point Pulsar prism ensure robustness and firm mounting on rail mounts. Top quality thermal imaging combined with a precise laser rangefinder and ballistic calculator offers excellent image while ensuring shooting precision.

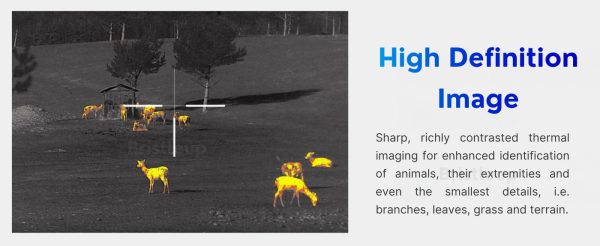

The Trail 3 XQ50 LRF is built for short- to mid-range shooting in challenging conditions such as fog, humidity, or low-contrast environments. It delivers clear, stable images to help you spot and track targets reliably, even when visibility is limited.
| SPECIFICATIONS | ||
| Model | TRAIL 3 LRF XQ50 | TRAIL 3 LRF XR50 |
| Product Information | ||
| SKU Without Mount | 76585 | 76588 |
| SKU With Weaver N Mount | 76585N | 76588N |
| SKU With Weaver SQD Mount | 76585WS | 76588WS |
| SKU With Weaver LQD Mount | 76585L | 76588L |
| Microbolometer | ||
| Type | Uncooled | Uncooled |
| Resolution, pixels | 384×288 | 640×480 |
| Pixel Pitch, µm | 17 | 12 |
| Sensor NETD, mK | <25 | <30 |
| System NETD, mK | <15 | <18 |
| Frame Refresh Rate, Hz | 50 | 50 |
| Optical Specifications | ||
| Lens, mm | F50/1.0 | F50/1.0 |
| Magnification, x | 3.5-14 | 3-24 |
| Eye Relief, mm/inch | 50 / 1.96 | 50 / 1.96 |
| Field of View (H), °/m@100 | 7.5 / 13.1 | 8.8 / 15.4 |
| Diopter Adjustment, D | -5 / +5 | -5 / +5 |
| Detection Distance, Deer-type Object, m/yd | 1800 / 1969 | 2300 / 2516 |
| Aiming Reticle | ||
| Click Value, mm@100 m – when magnifying, x | 9.1 – 3.5x 4.5 – 7x 2.3 – 14x |
10.7 – 3x 5.3 – 6x 2.7 – 12x 1.3 – 24x |
| Click Range, mm@100 m (H/V) | 1800 / 1800 | 2200 / 2200 |
| Display | ||
| Type | AMOLED | AMOLED |
| Resolution, pixels | 1920×1080 | 1920×1080 |
| Operating Features | ||
| Power Supply, V | 3–4.2 | 3–4.2 |
| Battery Type / Capacity / Rated Output Voltage | LPS7i Li-ion Battery Pack / 6400 mAh DC 3.7 V (removable) |
LPS7i Li-ion Battery Pack / 6400 mAh DC 3.7 V (removable) |
| External Power Supply | 5 V, 9 V (USB Type-C Power Delivery) | 5 V, 9 V (USB Type-C Power Delivery) |
| Battery Pack Operating Time at temp. = 22 °C, hrs | 12 | 11 |
| Max. Recoil Power on Rifled Weapon, Joules | 6000 | 6000 |
| Max. Recoil Power on Smoothbore Weapon, caliber | 12 | 12 |
| Compatible Pulsar Mounts | Weaver N Mount Weaver SQD Mount Weaver LQD Mount |
Weaver N Mount Weaver SQD Mount Weaver LQD Mount |
| Degree of Protection, IP Code (IEC60529) | IP67 | IP67 |
| Operating Temperature, °C / °F | -25 – +50 / -13 – 122 | -25 – +50 / -13 – 122 |
| Dimensions with Eyecup, mm/inch | 271x86x71 / 10.7×3.4×2.8 | 271x86x71 / 10.7×3.4×2.8 |
| Weight with Battery, without Mount, kg/oz | 0.87 / 28.92 | 0.87 / 28.92 |
| Video Recorder | ||
| Photo / Video Resolution, pixels | 1440×1080 | 1440×1080 |
| Video / Photo Format | .mp4 / .jpg | .mp4 / .jpg |
| Built-in Memory | 64 GB | 64 GB |
| Wi-Fi Channel | ||
| Frequency | 2.4 / 5 GHz | 2.4 / 5 GHz |
| Standard | IEEE 802.11 b/g/n/ac | IEEE 802.11 b/g/n/ac |
| Bluetooth | ||
| Wireless Protocol | BLE 4.2 | BLE 4.2 |

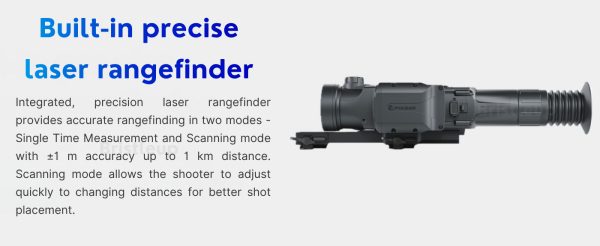

| Laser Rangefinder | ||
| Wavelength, nm | 905 | 905 |
| Max. Measurement Range, m/yd | 1200 / 1312 | 1200 / 1312 |
| Measurement Accuracy, m | 1 | 1 |
