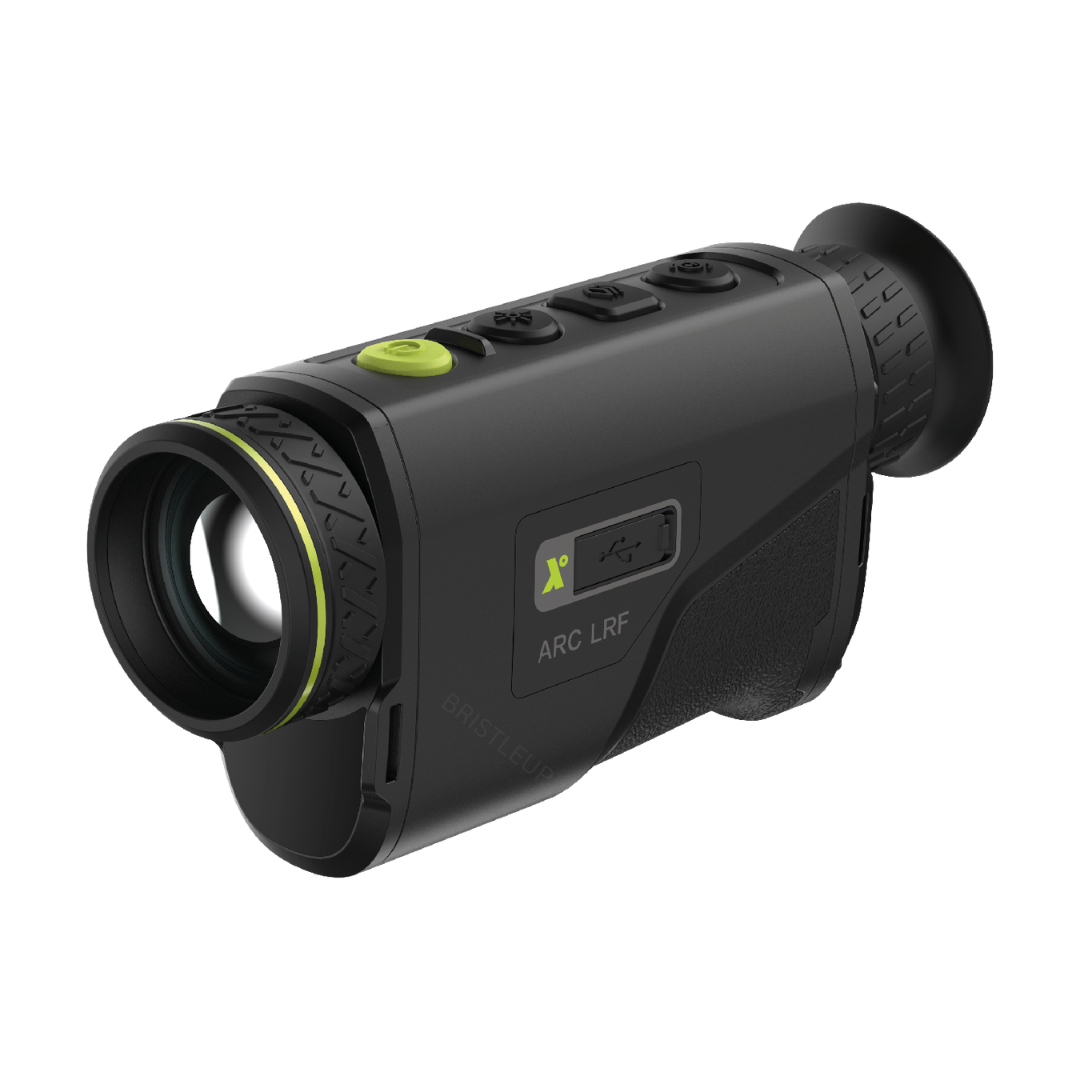

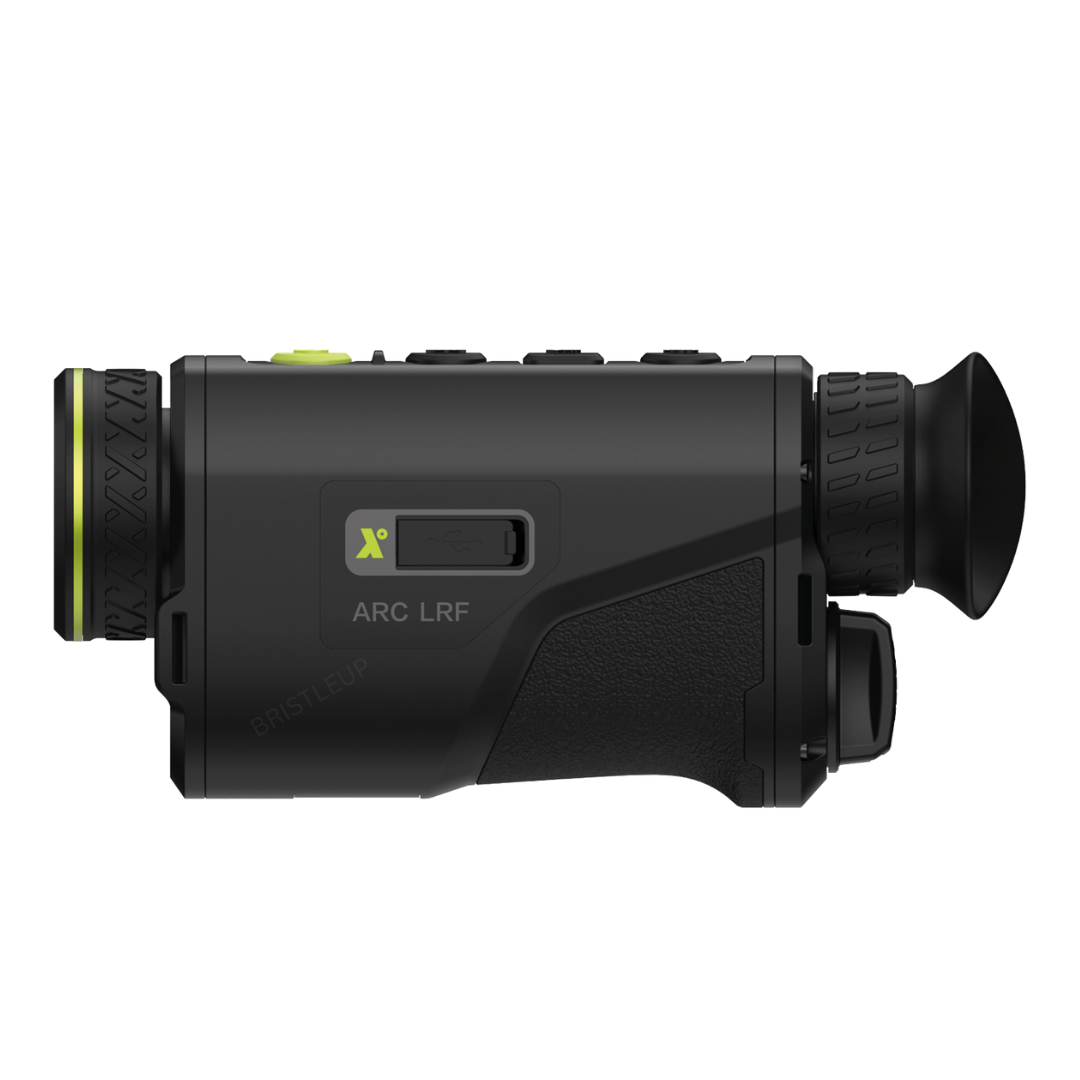

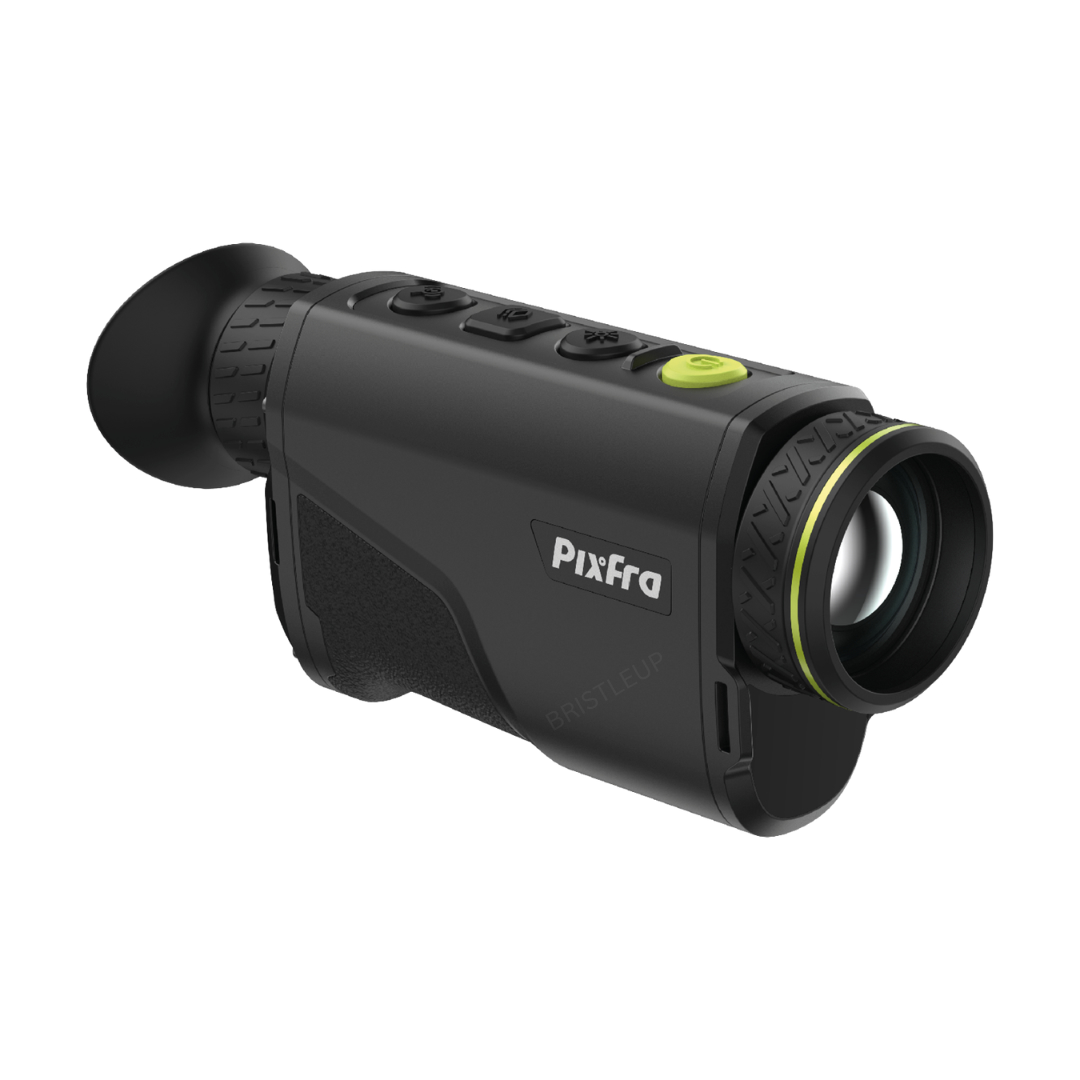

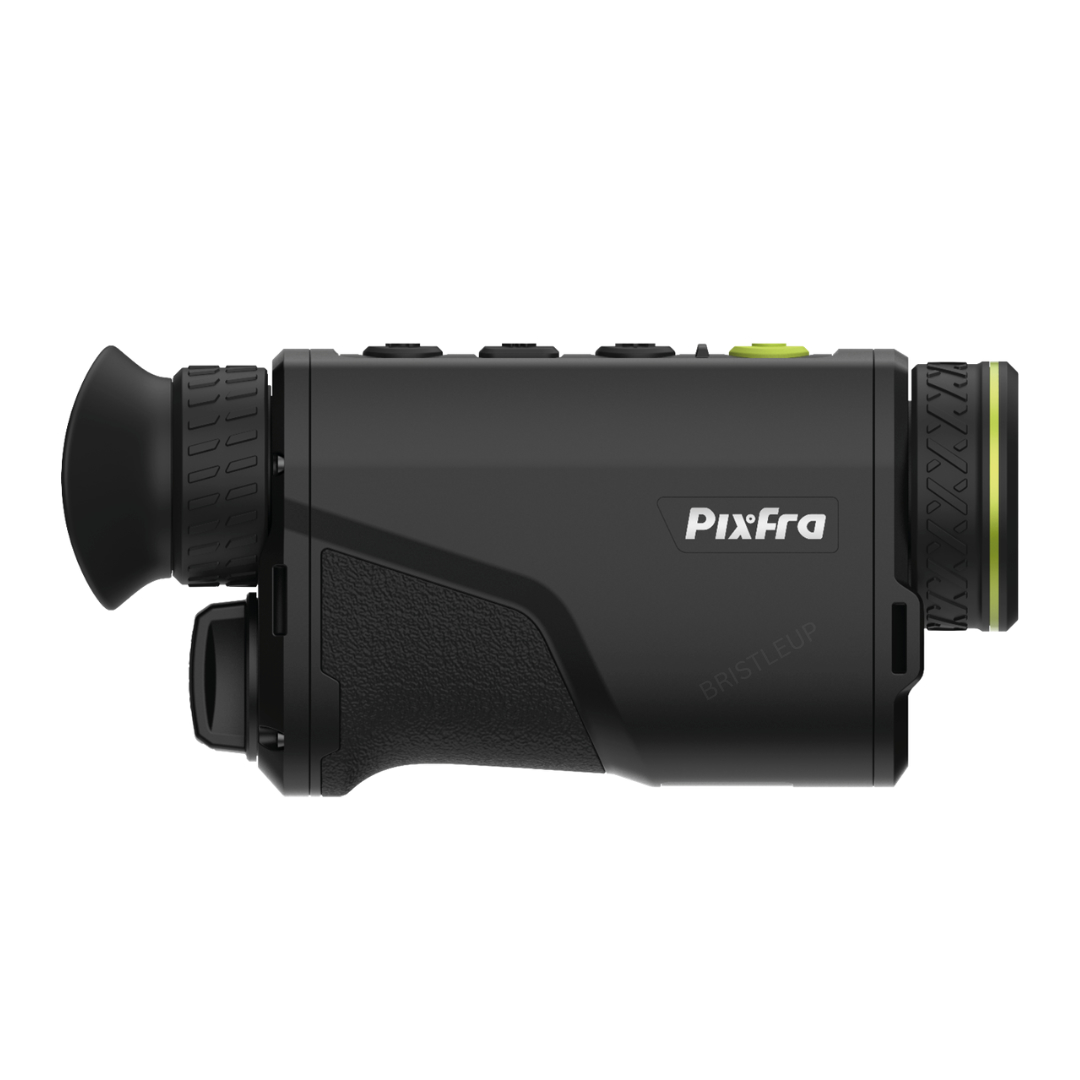

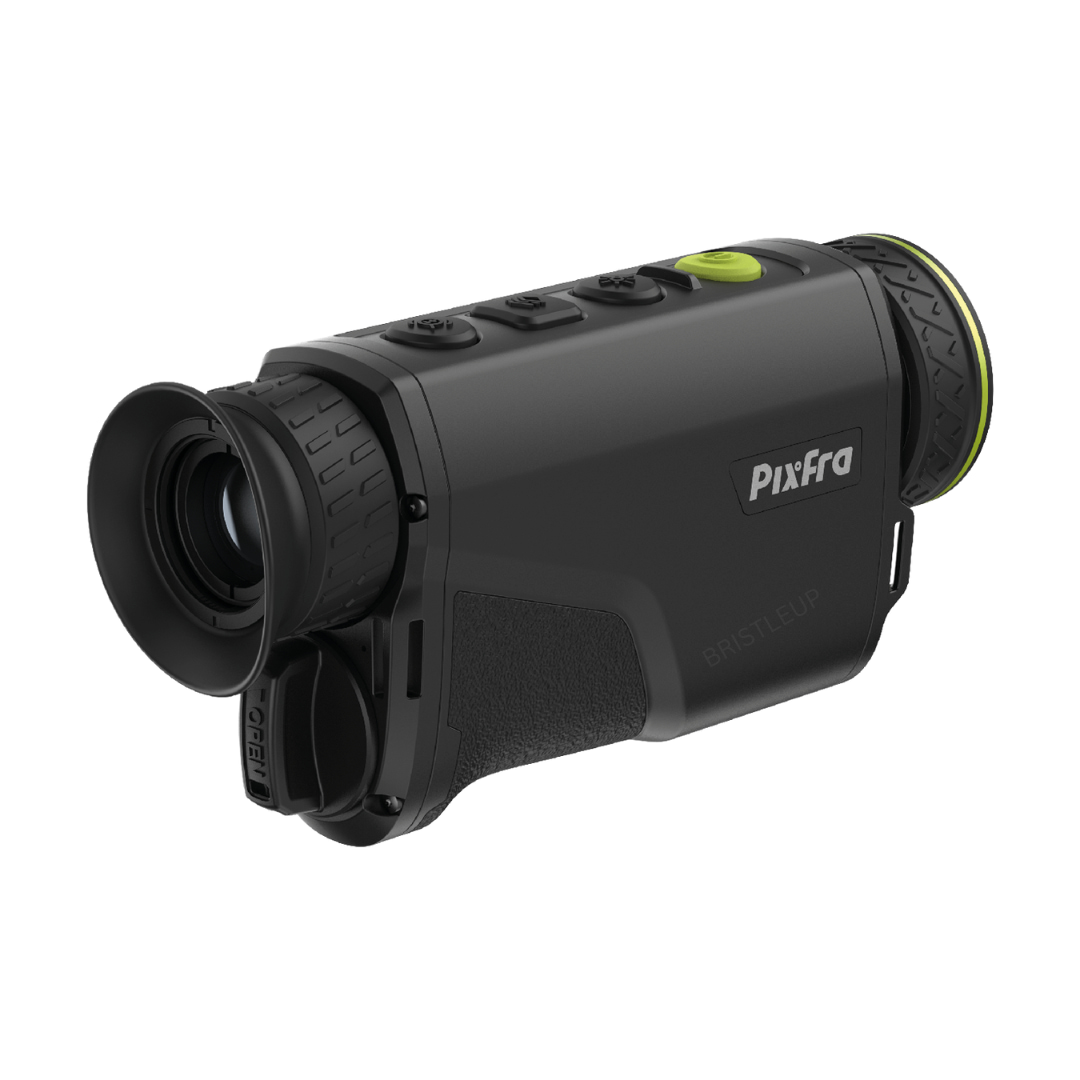

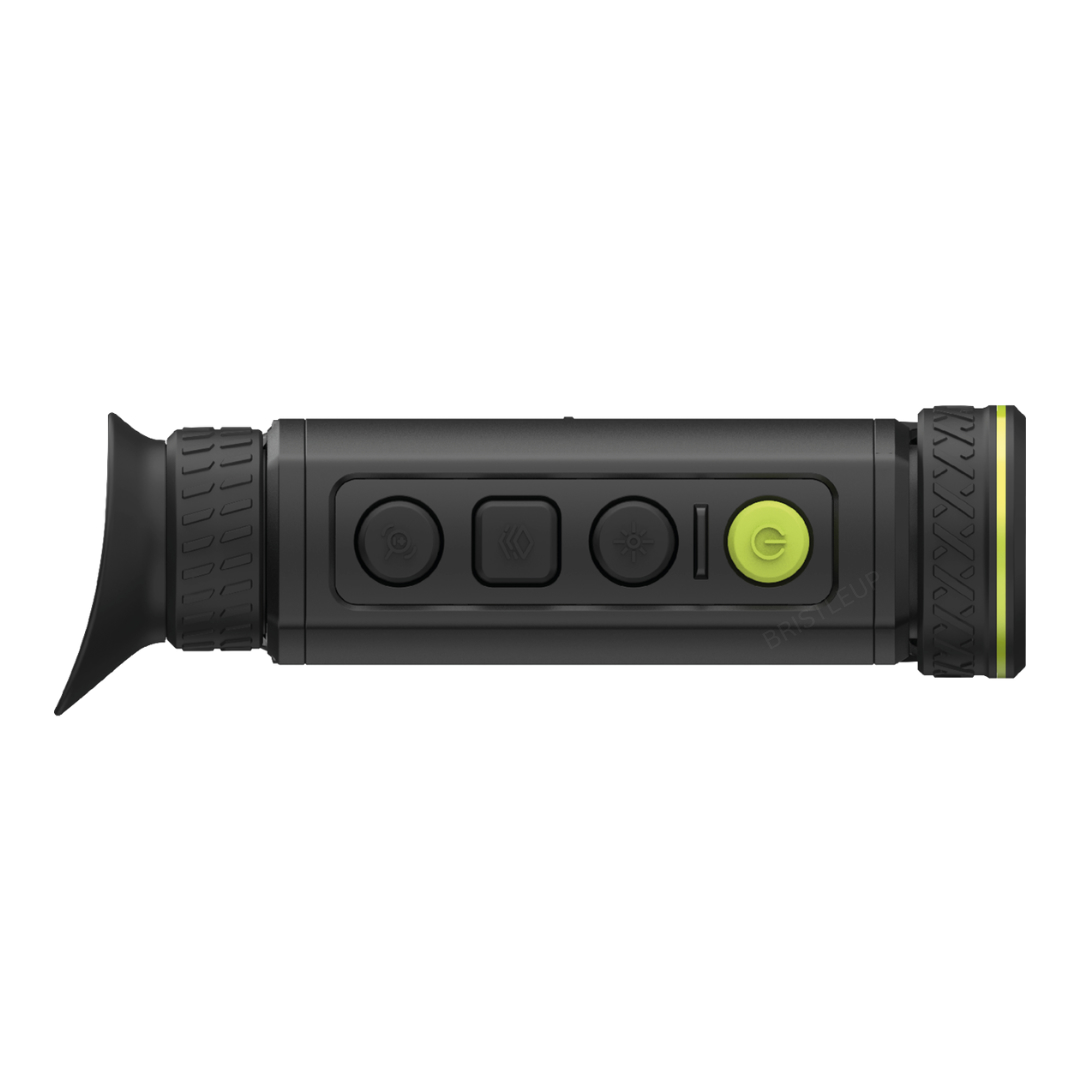

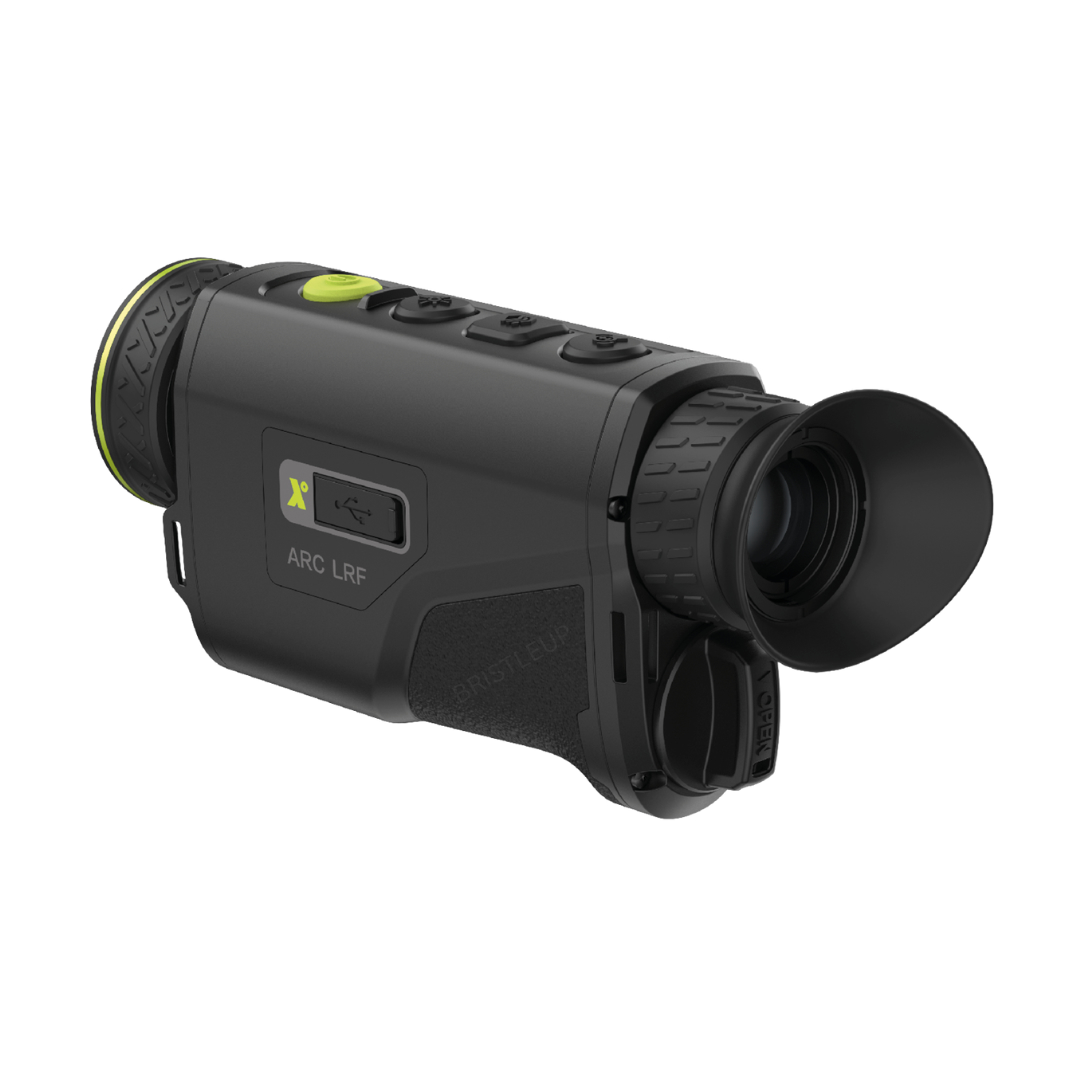

Pixfra Arc LRF A635LRF – Thermal Monocular
From: $2,790.00 GST
Pixfra Arc LRF A635LRF
| PRODUCT PARAMETERS | ||||||
|---|---|---|---|---|---|---|
| Product Model | A419P LRF | A425P LRF | A435P LRF | A625P LRF | A635P LRF | A650P LRF |
| Detector Type | Vanadium oxide uncooled focal plane detector | Vanadium oxide uncooled focal plane detector | Vanadium oxide uncooled focal plane detector | Vanadium oxide uncooled focal plane detector | Vanadium oxide uncooled focal plane detector | Vanadium oxide uncooled focal plane detector |
| Effective Pixels | 384 (H) × 288 (V) | 384 (H) × 288 (V) | 384 (H) × 288 (V) | 640 (H) × 512 (V) | 640 (H) × 512 (V) | 640 (H) × 512 (V) |
| Pixel Pitch | 12 μm | 12 μm | 12 μm | 12 μm | 12 μm | 12 μm |
| Spectral Range | 8 μm ~ 14 μm | 8 μm ~ 14 μm | 8 μm ~ 14 μm | 8 μm ~ 14 μm | 8 μm ~ 14 μm | 8 μm ~ 14 μm |
| Sensitivity (NETD) | ≤20 mK@f/1.0 | ≤20 mK@f/1.0 | ≤20 mK@f/1.0 | ≤20 mK@f/1.0 | ≤20 mK@f/1.0 | ≤20 mK@f/1.0 |
| Frame Rate | 50 Hz | 50 Hz | 50 Hz | 50 Hz | 50 Hz | 50 Hz |
| Focal Length | 19 mm | 25 mm | 35 mm | 25 mm | 35 mm | 50 mm |
| Field of View@100m | 24.3m × 18.2m | 18.4m × 13.8m | 13.2m × 9.9m | 30.7m × 24.6m | 21.9m × 17.6m | 15.4m × 12.3m |
| Thermal Focus Control | Manual | Manual | Manual | Manual | Manual | Manual |
| Close Focus Distance | 2 m (6.56 ft) | 2 m (6.56 ft) | 2 m (6.56 ft) | 2 m (6.56 ft) | 2 m (6.56 ft) | 2 m (6.56 ft) |
| Aperture | F1.0 | F1.0 | F1.0 | F1.0 | F1.0 | F1.0 |
| Laser Detection Distance | 1,000 m (3,280.84 ft) |
1,000 m (3,280.84 ft) |
1,000 m (3,280.84 ft) |
1,000 m (3,280.84 ft) |
1,000 m (3,280.84 ft) |
1,000 m (3,280.84 ft) |
| Digital Zoom | 1×; 2×; 4×; 8× | 1×; 2×; 4×; 8× | 1×; 2×; 4×; 8× | 1×; 2×; 4×; 8× | 1×; 2×; 4×; 8× | 1×; 2×; 4×; 8× |
| Magnification | 2.1X | 2.76X | 3.86X | 1.68× | 2.36X | 3.37× |
| Color Palettes | 6 (white hot/black hot/iron red/alarm/amber/emerald) | 6 (white hot/black hot/iron red/alarm/amber/emerald) | 6 (white hot/black hot/iron red/alarm/amber/emerald) | 6 (white hot/black hot/iron red/alarm/amber/emerald) | 6 (white hot/black hot/iron red/alarm/amber/emerald) | 6 (white hot/black hot/iron red/alarm/amber/emerald) |
| Display Screen Dimensions | 0.41 inch, OLED | 0.41 inch, OLED | 0.41 inch, OLED | 0.41 inch, OLED | 0.41 inch, OLED | 0.41 inch, OLED |
| Storage | Built-in EMMC (32 GB); |
Built-in EMMC (32 GB); |
Built-in EMMC (32 GB); |
Built-in EMMC (32 GB); |
Built-in EMMC (32 GB); |
Built-in EMMC (32 GB); |
| Uniformity Correction | Auto, manual | Auto, manual | Auto, manual | Auto, manual | Auto, manual | Auto, manual |
| PIP | YES | YES | YES | YES | YES | YES |
| Audio Recording | YES | YES | YES | YES | YES | YES |
| Hot Spot Trace | YES | YES | YES | YES | YES | YES |
| Wi-Fi | YES | YES | YES | YES | YES | YES |
| Power Supply | 5 VDC/1 A, USB Type-C | 5 VDC/1 A, USB Type-C | 5 VDC/1 A, USB Type-C | 5 VDC/1 A, USB Type-C | 5 VDC/1 A, USB Type-C | 5 VDC/1 A, USB Type-C |
| Battery Type | 1 replaceable 18650 battery | 1 replaceable 18650 battery | 1 replaceable 18650 battery | 1 replaceable 18650 battery | 1 replaceable 18650 battery | 1 replaceable 18650 battery |
| Battery Capacity | 3,200 mAh | 3,200 mAh | 3,200 mAh | 3,200 mAh | 3,200 mAh | 3,200 mAh |
| Battery Operating Life | ≥7.5 h | ≥7.5 h | ≥7.5 h | ≥6 h | ≥6 h | ≥6 h |
| Protection | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
| Product Dimensions | 168 mm × 50 mm × 78 mm (6.61″ × 1.97″ × 3.07″) (L × W × H) |
168 mm × 50 mm × 78 mm (6.61″ × 1.97″ × 3.07″) (L × W × H) |
172 mm × 53 mm × 78 mm (6.77″ × 2.09″ × 3.07″) (L × W × H) |
168 mm × 50 mm × 78 mm (6.61″ × 1.97″ × 3.07″) (L × W × H) |
172 mm × 53 mm × 78 mm (6.77″ × 2.09″ × 3.07″) (L × W × H) |
186 mm × 59 mm × 82 mm (7.32″ × 2.32″ × 3.23″) (L × W × H) |
| Packaging Dimensions | 228 mm × 120 mm × 187 mm (8.98″ × 4.72″ × 7.36″) (L × W × H) |
228 mm × 120 mm × 187 mm (8.98″ × 4.72″ × 7.36″) (L × W × H) |
228 mm × 120 mm × 187 mm (8.98″ × 4.72″ × 7.36″) (L × W × H) |
228 mm × 120 mm × 187 mm (8.98″ × 4.72″ × 7.36″) (L × W × H) |
228 mm × 120 mm × 187 mm (8.98″ × 4.72″ × 7.36″) (L × W × H) |
228 mm × 120 mm × 187 mm (8.98″ × 4.72″ × 7.36″) (L × W × H) |
| Net Weight | ≤360 g (0.79 lb) (battery excluded) |
≤370 g (0.82 lb) (battery excluded) |
≤375 g (0.83 lb) (battery excluded) |
≤370 g (0.82 lb) (battery excluded) |
≤375 g (0.83 lb) (battery excluded) |
≤430 g (0.95 lb) (battery excluded) |
Pixfra Arc LRF Series
| Model | Pixfra Arc A635P LRF – 35mm ; 640×512 ; 1440×1080 |
|---|
