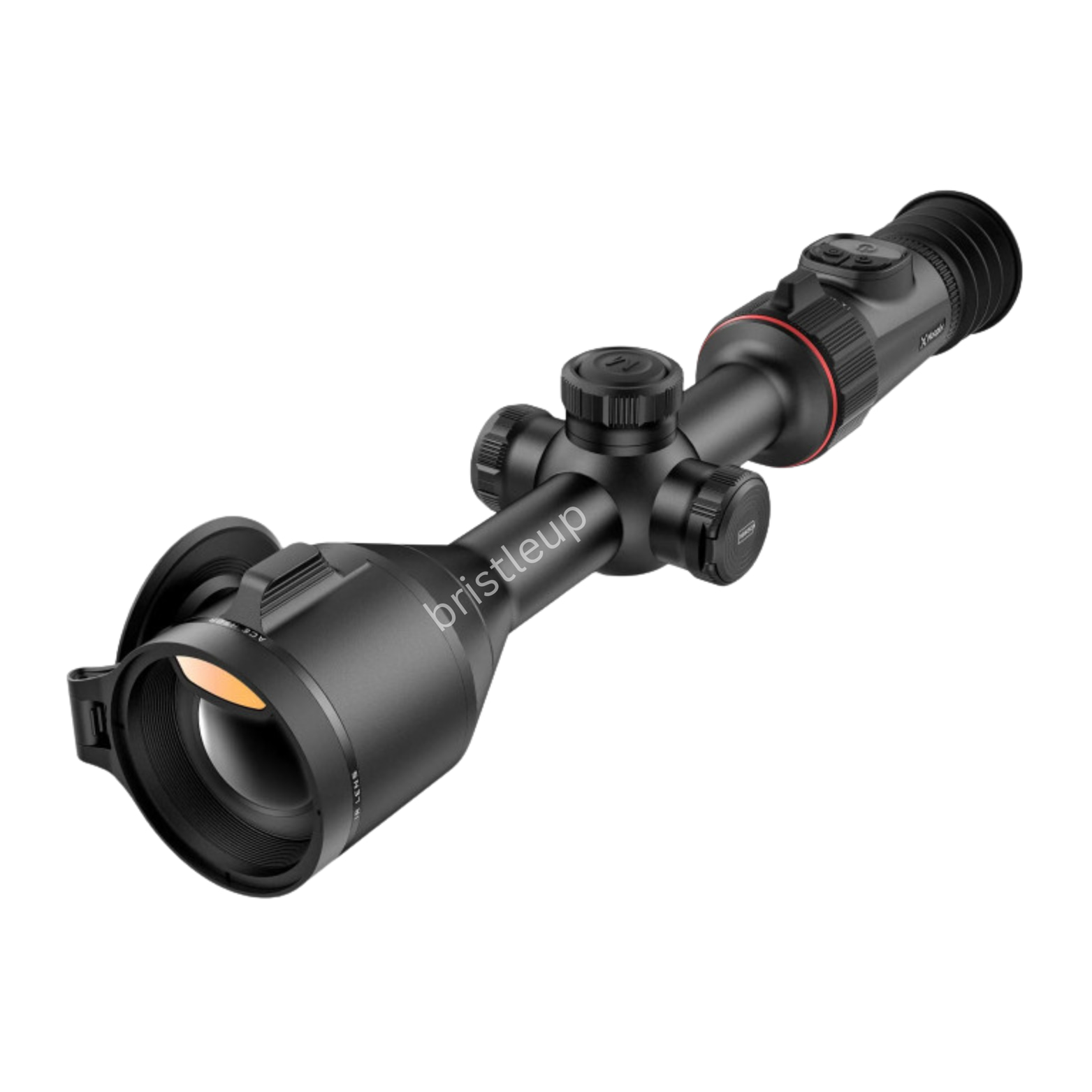

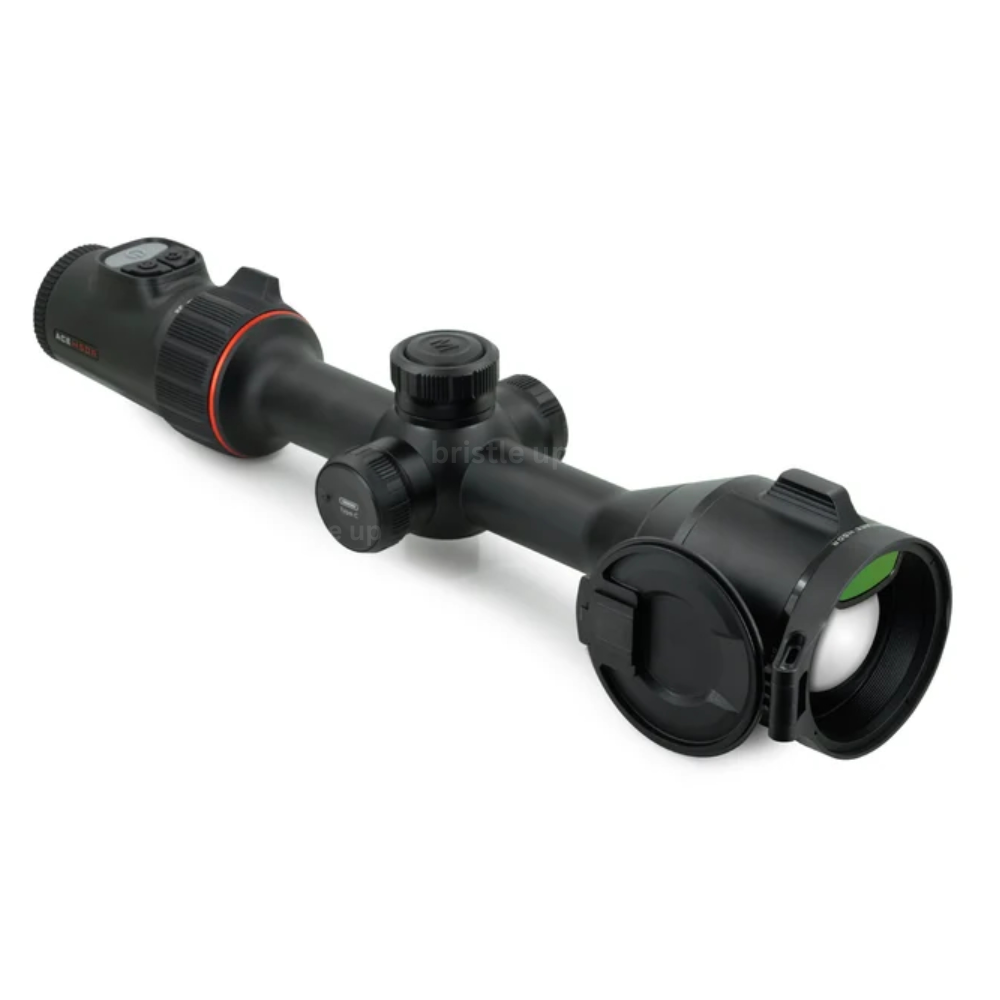

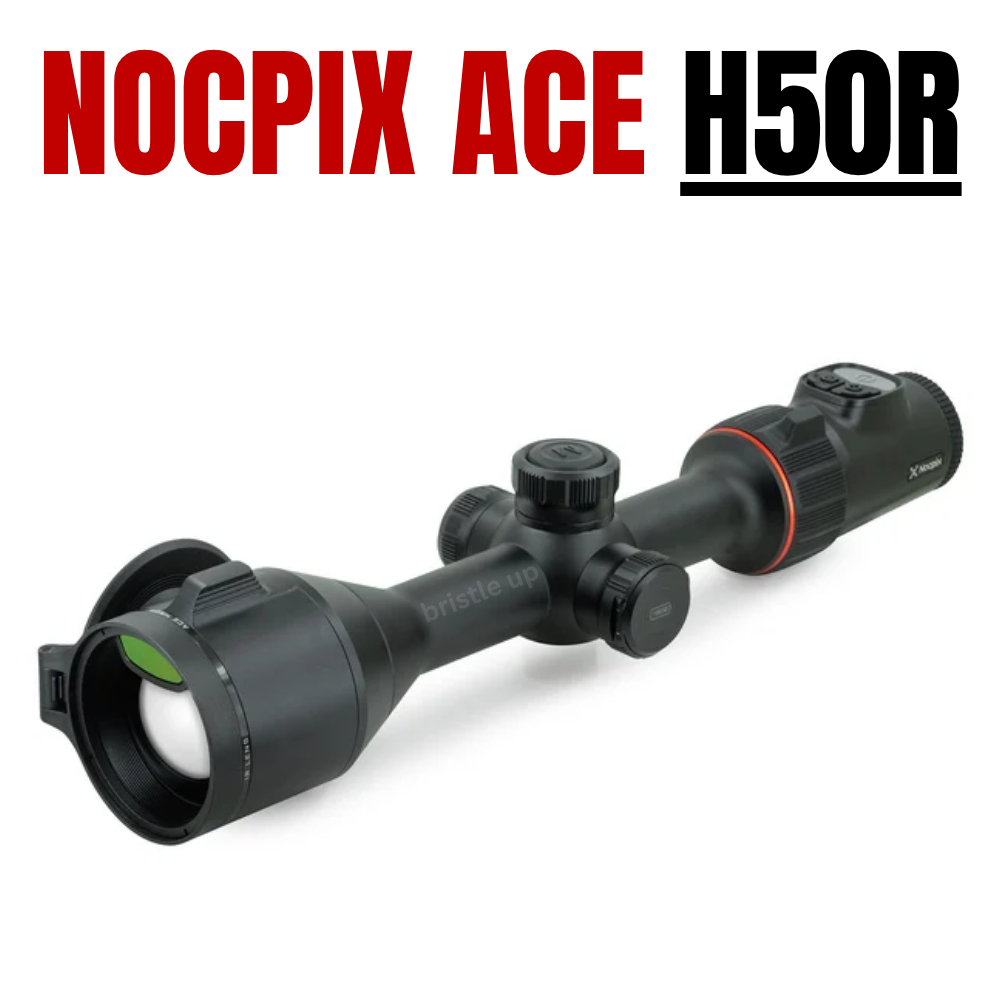

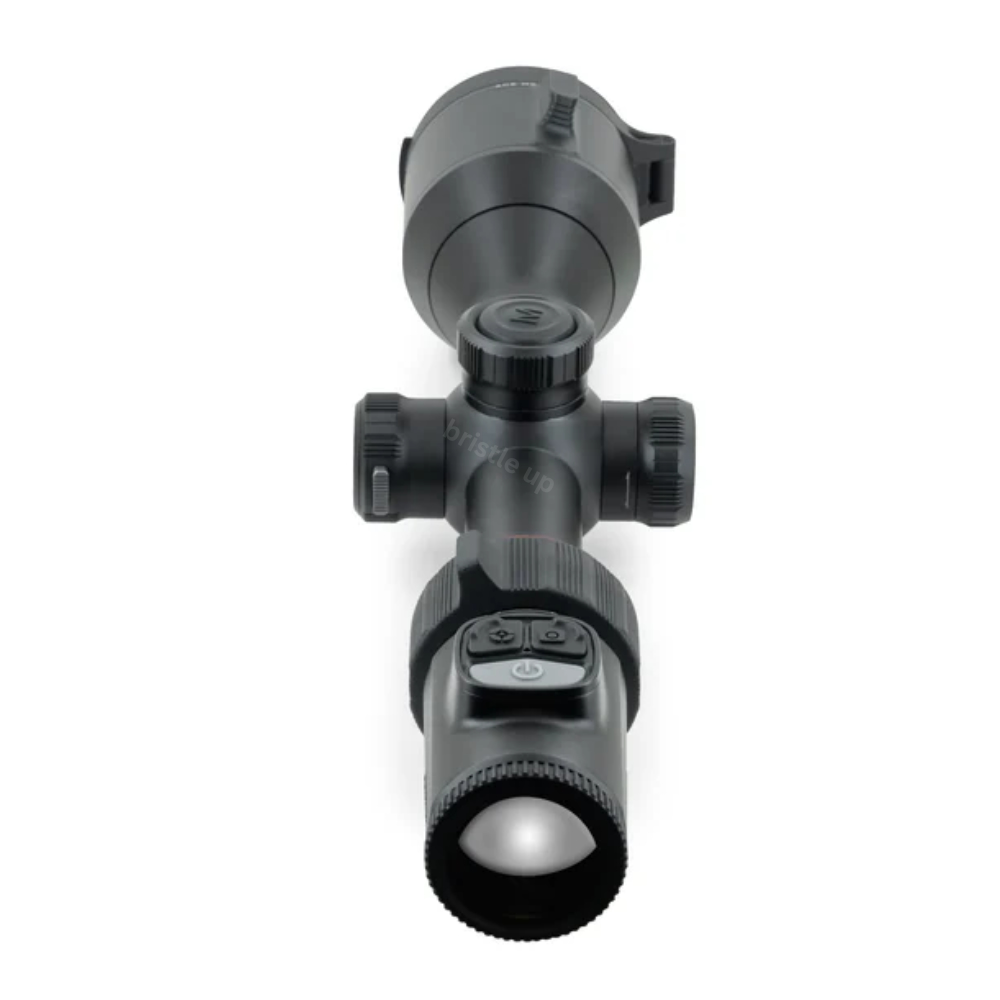

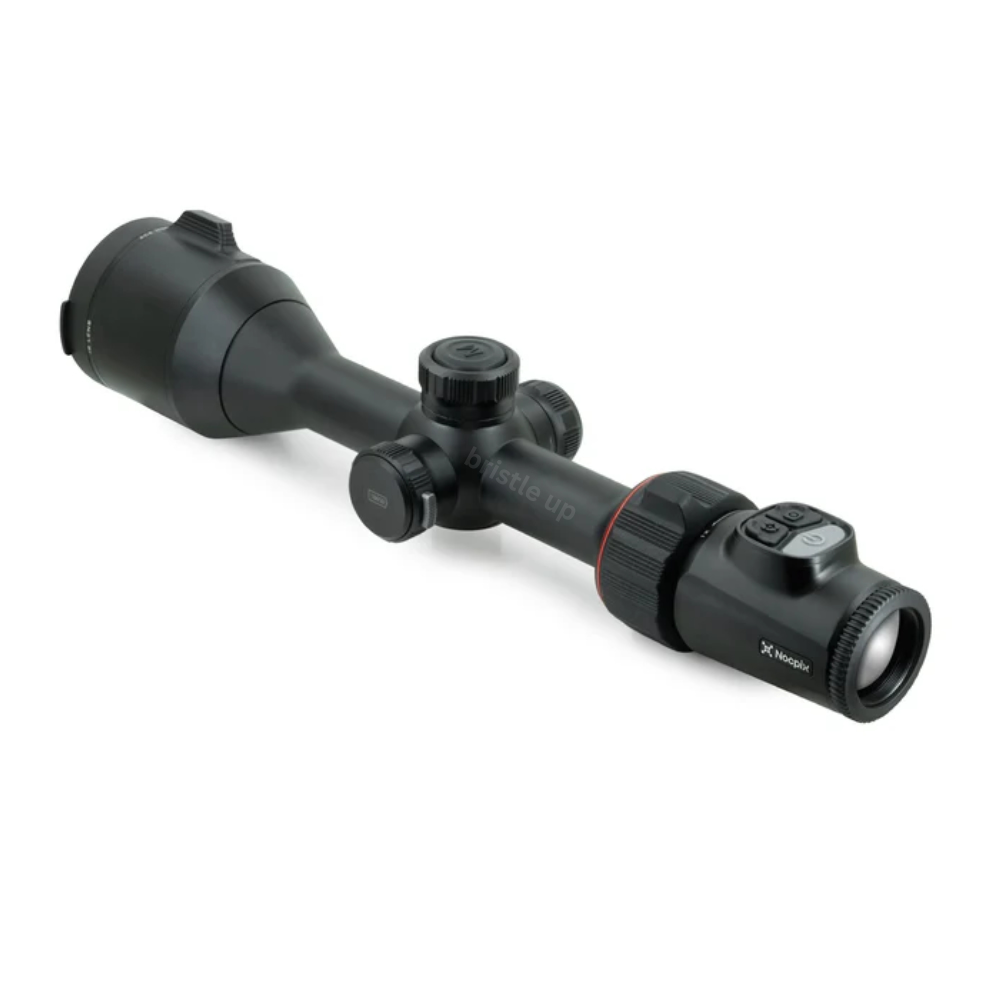

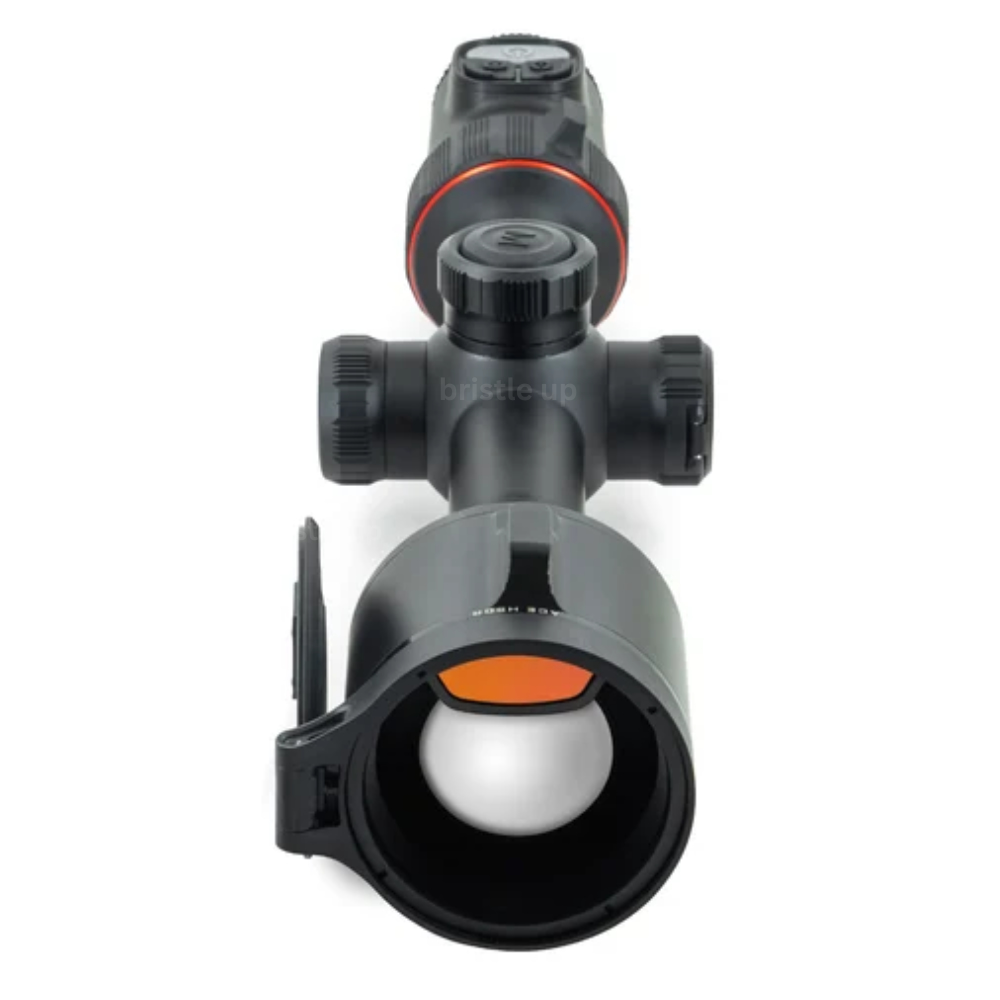

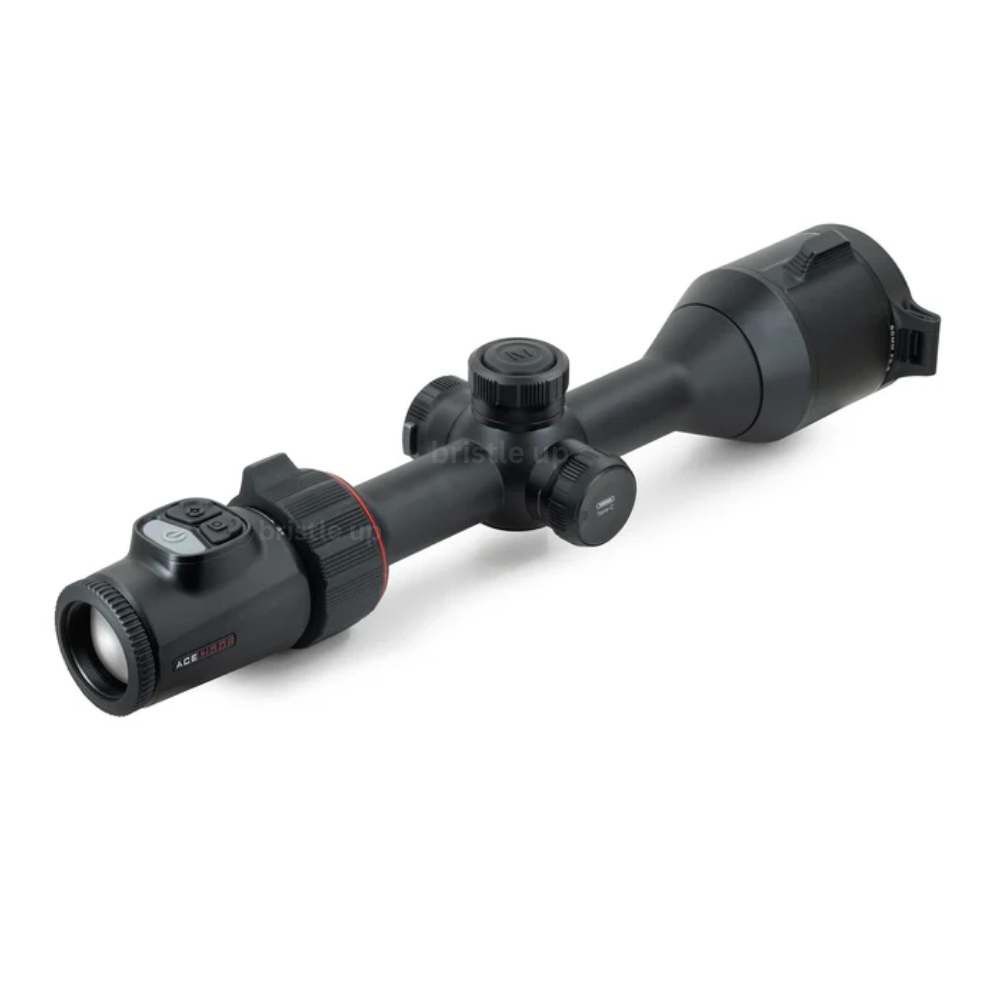

Nocpix Ace H50R Thermal Scope – 640×512, 15mK, 50mm LRF
Original price was: $6,699.00.Current price is: $4,989.00. Save $1,710.00
Nocpix ACE H50R Thermal Scope with LRF
The Nocpix ACE H50R is a high-performance thermal imaging riflescope designed for hunting, observation and long-range thermal detection. It combines a 640×512 12μm thermal sensor, ≤15mK thermal sensitivity and fast 50mm F0.9 objective lens to deliver detailed and smooth thermal images in challenging hunting conditions.
With 3× base magnification, up to 24× magnification and a detection range of up to 2,600 metres, the ACE H50R is particularly well suited to hunters wanting detailed thermal imaging for medium to long-range observation. Its integrated laser rangefinder (LRF) and ballistic calculation provide accurate distance measurement and additional support in the field.
The H50R also features a 1.03-inch 2560×2560 AMOLED display, dual-battery power system, built-in storage, photo/video recording and recoil-activated video, combining advanced thermal imaging with practical features for demanding hunting conditions.
Key Features
- 640 × 512, 12μm thermal sensor
- ≤15mK NETD thermal sensitivity
- 50mm F0.9 objective lens
- 60Hz frame rate
- 3×–24× magnification
- 8.8° × 7.0° field of view
- Detection range up to 2,600 metres
- Integrated Laser Rangefinder (LRF)
- Built-in ballistic calculation
- Vision+ System with Ocular Zoom
- Reality+ image processing
- 1.03-inch 2560 × 2560 AMOLED display
- Dual-battery power system
- Photo and video recording
- Recoil-Activated Video (RAV)
FOR THE BEST UNBIASED ADVICE AND PRICING CALL 0427312312
Introducing the ACE series, the flagship thermal riflescope designed for all hunting environments. It features a self-developed high-resolution thermal sensor, integrated LRF, and advanced Reality+ and Vision+ systems. Deliver unparalleled image quality and superior performance.
Superior Sensor
Ensures Excellence Equipped with a Gen-2 HD thermal sensor offering a resolution of up to 1280×1024 and a frame rate of up to 60Hz, the ACE provides stable performance with an NETD≤15mK. This enables it to detect even the slightest temperature variations, delivering exceptionally detailed and smooth thermal imagery, even when tracking fast-moving prey.
Enhanced Clarity with Larger Lens
The ACE series feature 60mm/F1.0 or 50mm/F0.9 lenses. The larger objective lens allows 20% more light to reach the sensor. Coupled with high-transmittance lens elements, it generates brighter and clearer images.
Long-Distance Detection at Ease
The ACE series boasts an impressive detection range of up to 3100 meters. This capability allows clear identification of distant targets, providing a significant advantage for long-range hunting.
Reality+ Imaging Enhancement
Our proprietary Reality+ image processing algorithm effectively eliminates environmental temperature noise, enhancing contrast and detail clarity.
New Vision+ System with Ocular Zoom
The new Vision+ system features a 1.03-inch round 2560×2560 AMOLED screen and industry-leading ocular zoom for direct optical magnification. Unlike traditional e-zoom, it prevents blurring and distortion in close-up views. Enjoy high-resolution images and a broader field of view for an immersive and comfortable observation experience.
Agile and Precise Built-in LRF
The ACE is equipped with an integrated LRF, offering laser range-finding up to 1200 meters with true optical axis alignment, ensuring precise distance measurements while maintaining a sleek and elegant design.
Eliminate Battery Capacity Concerns
The ACE employs a dual-battery system with a 4000mAh built-in battery and an additional replaceable 18650 battery. This setup meets the demands of prolonged outdoor hunting sessions.
Designed for Hunting
The ACE includes essential features for hunting scenarios such as ballistic calculations, auto screen shutdown, recoil-activated video recording, and a shutterless design, making perfect hunting achievable.
Outdoor-Friendly Design
The ACE incorporates thoughtful features such as a focus adjuster, charging cover, and a Gallery feature for direct video playback, significantly enhancing user convenience.
Rigorous Testing & High-durability
Crafted from high-strength aluminum alloy, the ACE undergoes rigorous impact resistance testing, ensuring exceptional robustness and durability for years to come.
MANUAL: View Ace Manual
Nocpix Ace Model
| Nocpix Ace Series | ACE H50R – 15mk – 3x – 640px – 2600m |
|---|
